EAGLERISE LS-8-XXX LI2 EXC — Compact and Efficient 8W Constant Current LED Driver
LS-8-XXX LI2 EXC
Product Description:
· For luminaries of protection Class II
· SELV，Built-in
· Input Voltage 220-240VAC
· Protections: SCP/OLP/OVP/OTP
· Power Factor ：0.9-0.95
· Efficiency：68-79%
· 5 years warranty
Price range: $1.25 through $1.50
EAGLERISE LS-8-XXX LI2 EXC — Compact and Efficient 8W Constant Current LED Driver

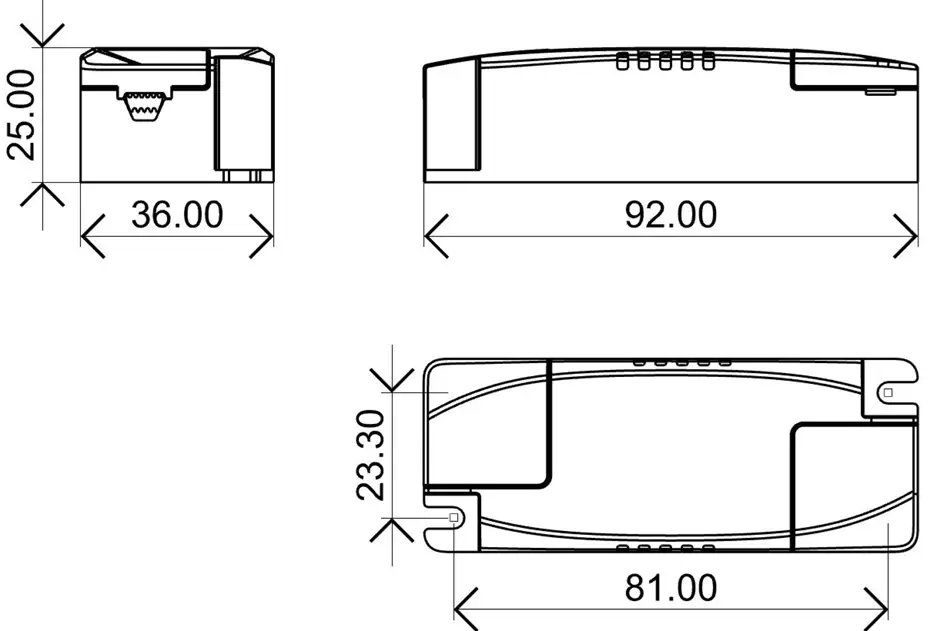

LS-8-XXX LI2 EXC is a 8W constant current LED driver that operates from 198-264Vac input with 70 to 220mA output current. With it’s compact dimensions from 92 x 36 x 25mm it is easy to integrate in LED Panel, spot, down lights. To ensure trouble-free operation, protection is provided against output short circuit, over load, over voltage and over temperature.
- High Power Factor for Energy Efficiency
- Comprehensive Protection for Reliable Operation: Built-in protections include Short Circuit Protection (SCP), Over Load Protection (OLP), Over Voltage Protection (OVP), and Over Temperature Protection (OTP) — all with auto-resume functionality.
- Long Service Life with 5-Year Warranty
- Class II Insulation with SELV Output
- Low Standby Power Consumption: No-load power consumption is less than 0.5W, with start-up time under 0.5 seconds — meeting the latest green energy efficiency standards.
- EMC Compliant for System Integration: Meets EN55015, EN61000-3-2, EN61000-3-3, EN61547 and other EMC standards. As a component product, it is designed for installation inside luminaire enclosures, with EMI performance to be re-verified upon system integration.
| Models | *Power | Input Voltage | Output Current | Output Voltage | Efficiency | Power Factor | Size |
| LS-8-70 LI2 EXC | 3.6W | 220-240VAC | 70mA | 27-42VDC | 68% | 0.90 | 92*36*25mm |
| LS-8-120 LI2 EXC | 5.4W | 220-240VAC | 120mA | 27-42VDC | 75% | 0.92 | 92*36*25mm |
| LS-8-150 LI2 EXC | 6.8W | 220-240VAC | 150mA | 27-42VDC | 75% | 0.95 | 92*36*25mm |
| LS-8-160 LI2 EXC | 7.2W | 220-240VAC | 160mA | 27-42VDC | 75% | 0.95 | 92*36*25mm |
| LS-8-180 LI2 EXC | 8W | 220-240VAC | 180mA | 27-42VDC | 78% | 0.95 | 92*36*25mm |
| LS-8-200 LI2 EXC | 9W | 220-240VAC | 200mA | 27-42VDC | 78% | 0.95 | 92*36*25mm |
| LS-8-220 LI2 EXC | 9.8W | 220-240VAC | 220mA | 27-42VDC | 79% | 0.95 | 92*36*25mm |
*Note: The power value is for reference only and is calculated based on the LED light source operating at 36 VDC under the rated current.
The Eaglerise LS-8-XXX LI2 EXC series has been certified to multiple international standards, including CE and ENEC, and complies with the European Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU). Tested and certified by independent bodies including Nemko, the product delivers proven reliability and performance.
| Models | LS-8-70 LI2 EXC output27-42VDC 70mA, LS-8-120 LI2 EXC output27-42VDC 120mA, LS-8-150 LI2 EXC output27-42VDC 150mA, LS-8-160 LI2 EXC output27-42VDC 160mA, LS-8-180 LI2 EXC output27-42VDC 180mA, LS-8-200 LI2 EXC output27-42VDC 200mA, LS-8-220 LI2 EXC output27-42VDC 220mA |
|---|---|
| IP Rating | |
| Dimming Type | |
| Input or Forward Voltage | |
| Certified | |
| Power Factor | |
| Power |
