PHILIPS CertaDrive Panel Drivers – Low Ripple
- Input Voltage:220–240V AC Output Voltage:30–40V DC
- Output Current:500/600/700/800/900/1050mA
- Efficiency:88%-89% Power Factor:≥ 0.97 THD:≤ 20%
- Isolation Class:SELV Protection Class:Class II
- Ingress Protection:IP20 Nominal Lifetime:50,000h（@Tc-life）
- T-Case Lifetime:65°C T-Case Maximum:75°C
- Ambient Temperature:-20°C — +40°C
- Short Circuit Protection/Over Power Protection/Open Circuit Protection
- Certificate:CB,CE,CCC,EAC,ENEC,UA,UKCA
- Three-year system warranty
Applications
Office lighting、Schools、Hospitals、Panel applications for public areas、Luminaires of protection class II
Price range: $1.73 through $1.85

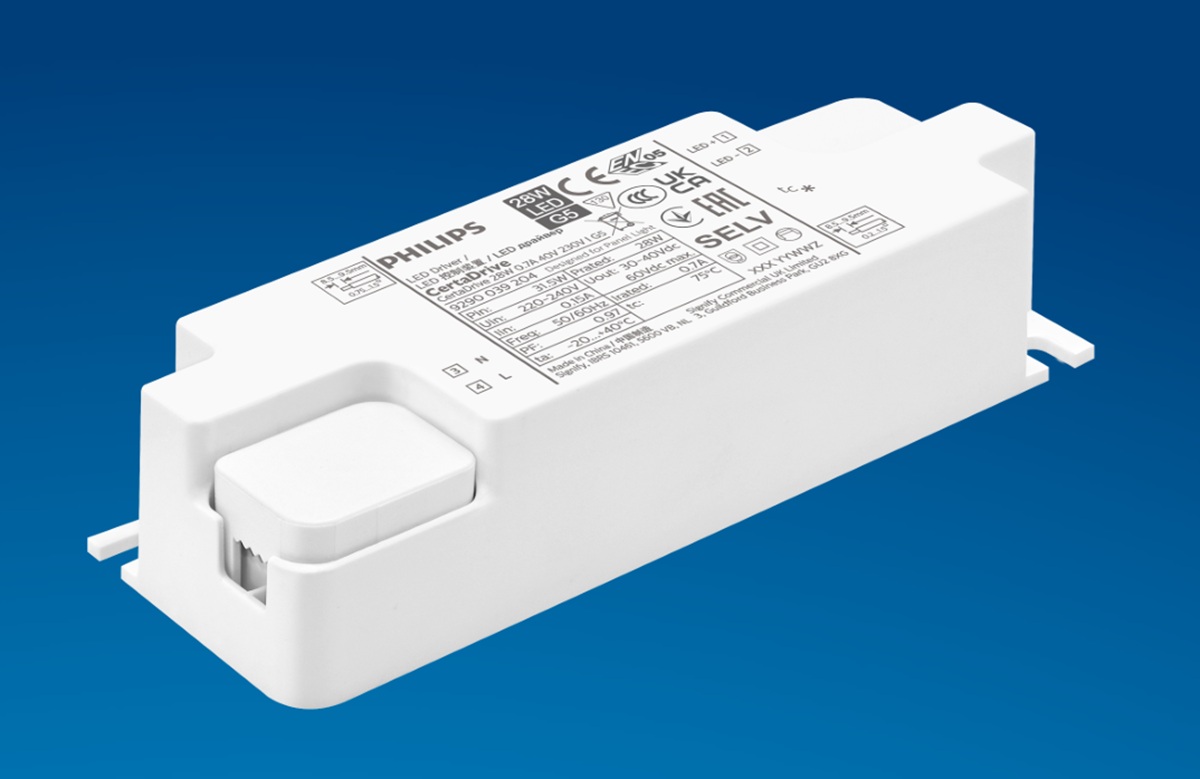

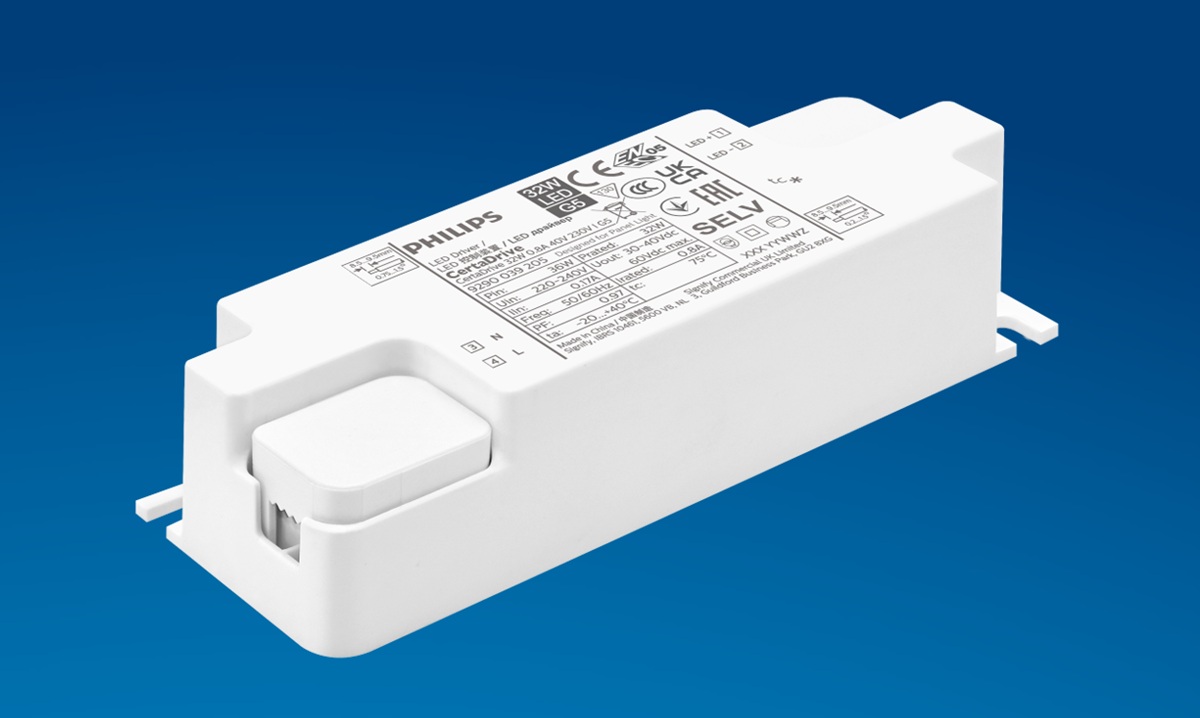

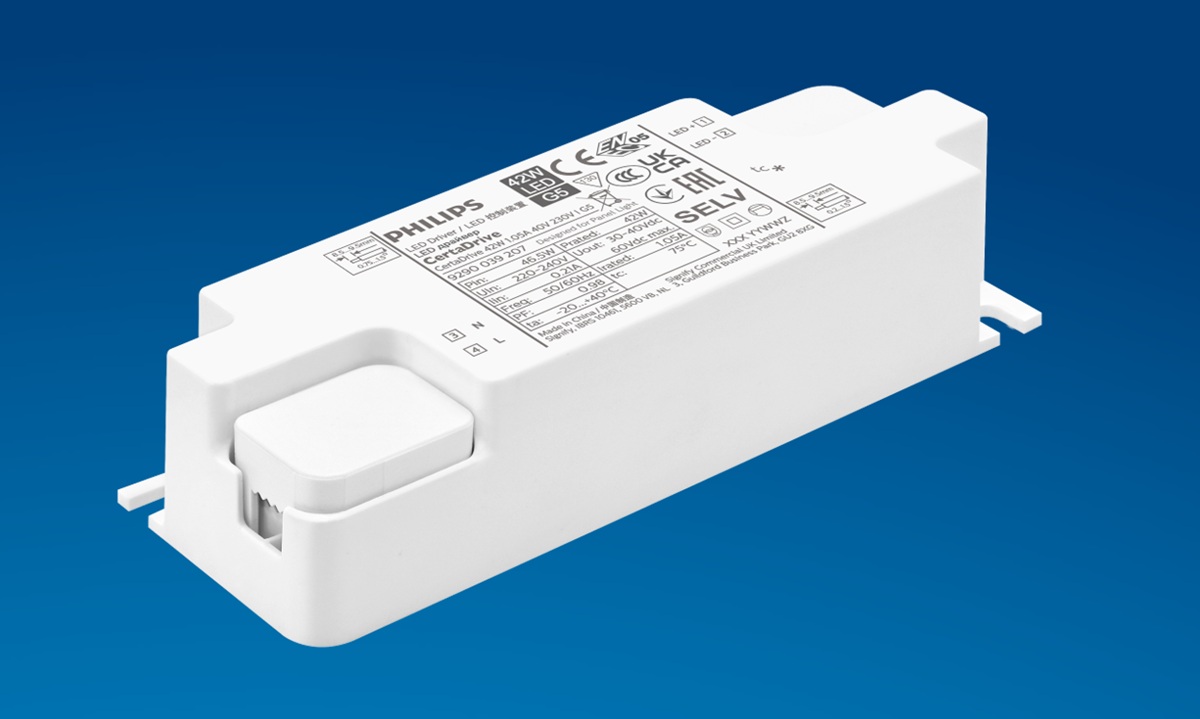

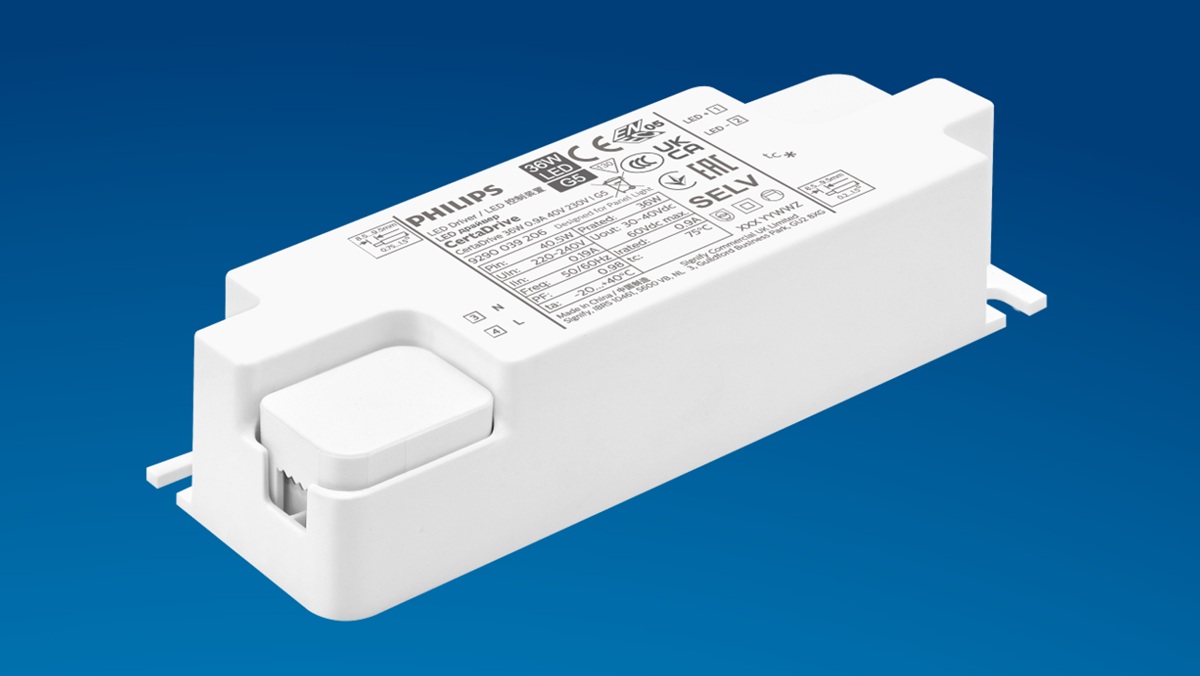

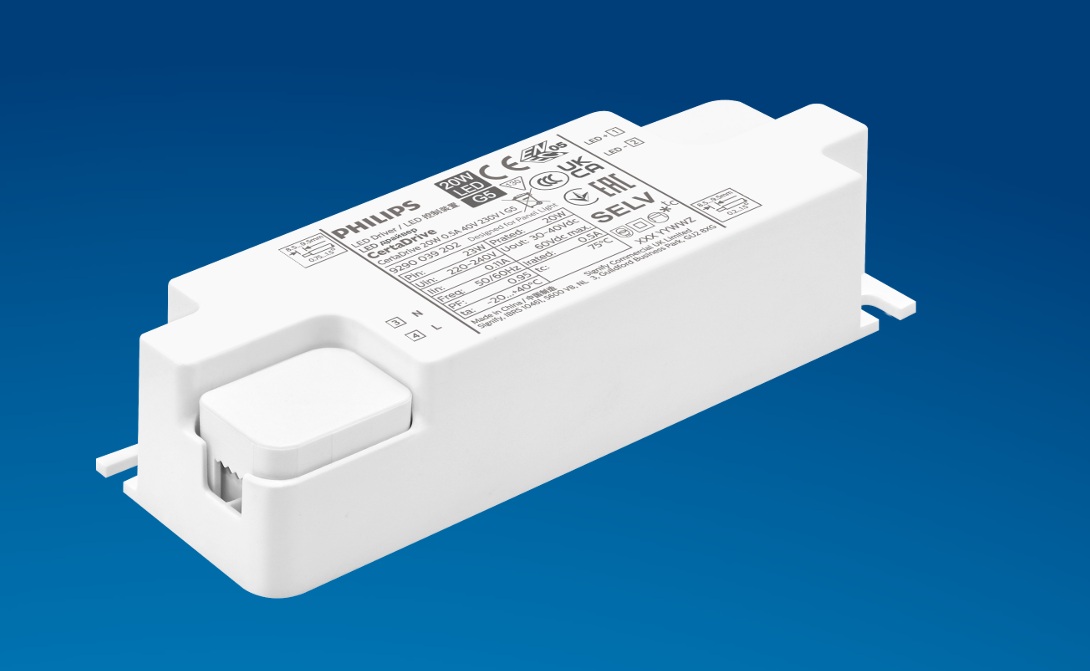

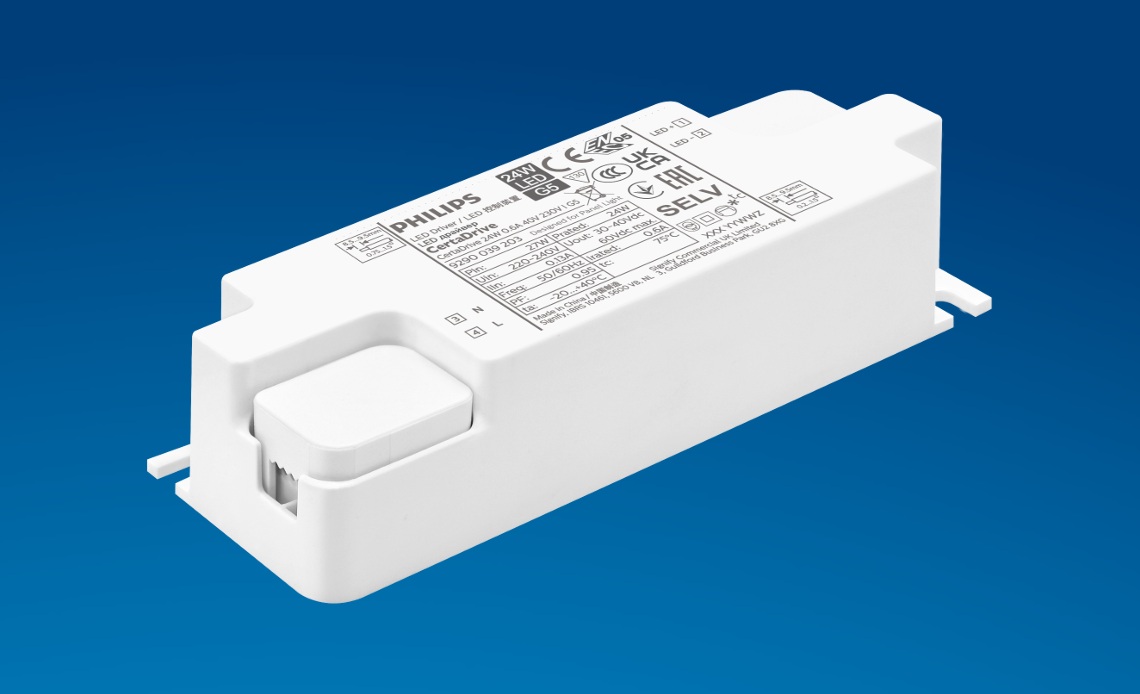

PHILIPS CertaDrive Panel Drivers – Low Ripple
CertaDrive LED panel drivers are designed to fulfill the market need for panel lighting with reliable performance. The new generation offers basic specifications with specific current and voltage settings, easy to use for high-volume applications.
CertaDrive LED isolated drivers offer an attractive combination of features and benefits for a wide range of applications in office, schools, and hospitals, delivering high quality of light without visual flicker or stroboscopic effects, with industry-leading performance.
- Output current ripple ≤ 4%;Comfort for eyes, flicker-free; camera-friendly performance;
- 50,000 hours lifetime (@Tc-life);Maximum efficiency up to 89% (full load);
- Power factor ≥ 0.97;
- Total Harmonic Distortion ≤ 20%;
- SELV isolated output;Class II double insulation;
- Short Circuit Protection, Over Power Protection, Open Circuit Protection;
- Single Current Output, Simple Design
| Order code(12NC) | Product Description | Power | Input Voltage | Output Current | Output Voltage | Efficiency | Power Factor | Size |
| 929003920280 | CertaDrive 20W 0.5A 40V 230V I G5 | 20W |
220-240VAC |
500mA |
30-40VDC |
88% | 0.95 |
118*42*28mm |
| 929003920380 | CertaDrive 24W 0.6A 40V 230V I G5 | 24W | 600mA | 88% | 0.95 | |||
| 929003920480 | CertaDrive 28W 0.7A 40V 230V I G5 | 28W | 700mA | 89% | 0.97 | |||
| 929003920580 | CertaDrive 32W 0.8A 40V 230V I G5 | 32W | 800mA | 89% | 0.97 | |||
| 929003920680 | CertaDrive 36W 0.9A 40V 230V I G5 | 36W | 900mA | 89.5% | 0.98 | |||
| 929003920780 | CertaDrive 42W 1.05A 40V 230V I G5 | 42W | 1050mA | 89.5% | 0.98 |
If you need detailed specifications, please feel free to contact us or visit the official Philips website!
| Order code | 929003920280, 929003920380, 929003920480, 929003920580, 929003920680, 929003920780 |
|---|---|
| Dimming Type | |
| Input or Forward Voltage | |
| IP Rating | |
| Power | |
| Certified | EAC Cerfified, TISI Certified, UA Certified, UKCA Certified, CE Certified, CB Certified, ENEC Certified |
| Power Factor |
Related products
-
Constant Current DriversBuilt-in Constant Current LED Driver-EAGLERISE Round (CS) series
Price range: $1.70 through $3.82 Select options This product has multiple variants. The options may be chosen on the product page -
Constant Current DriversPHILIPS CertaDrive Downlight & Spotlight LED Drivers – LPF/HPF/G3/G4 Series
Price range: $2.24 through $4.85 Select options This product has multiple variants. The options may be chosen on the product page -

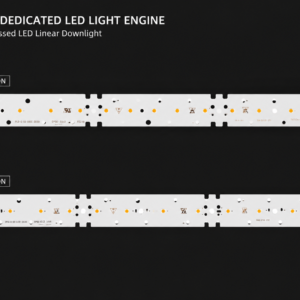

LED ComponentsGB Series Dedicated LED Light Engine
