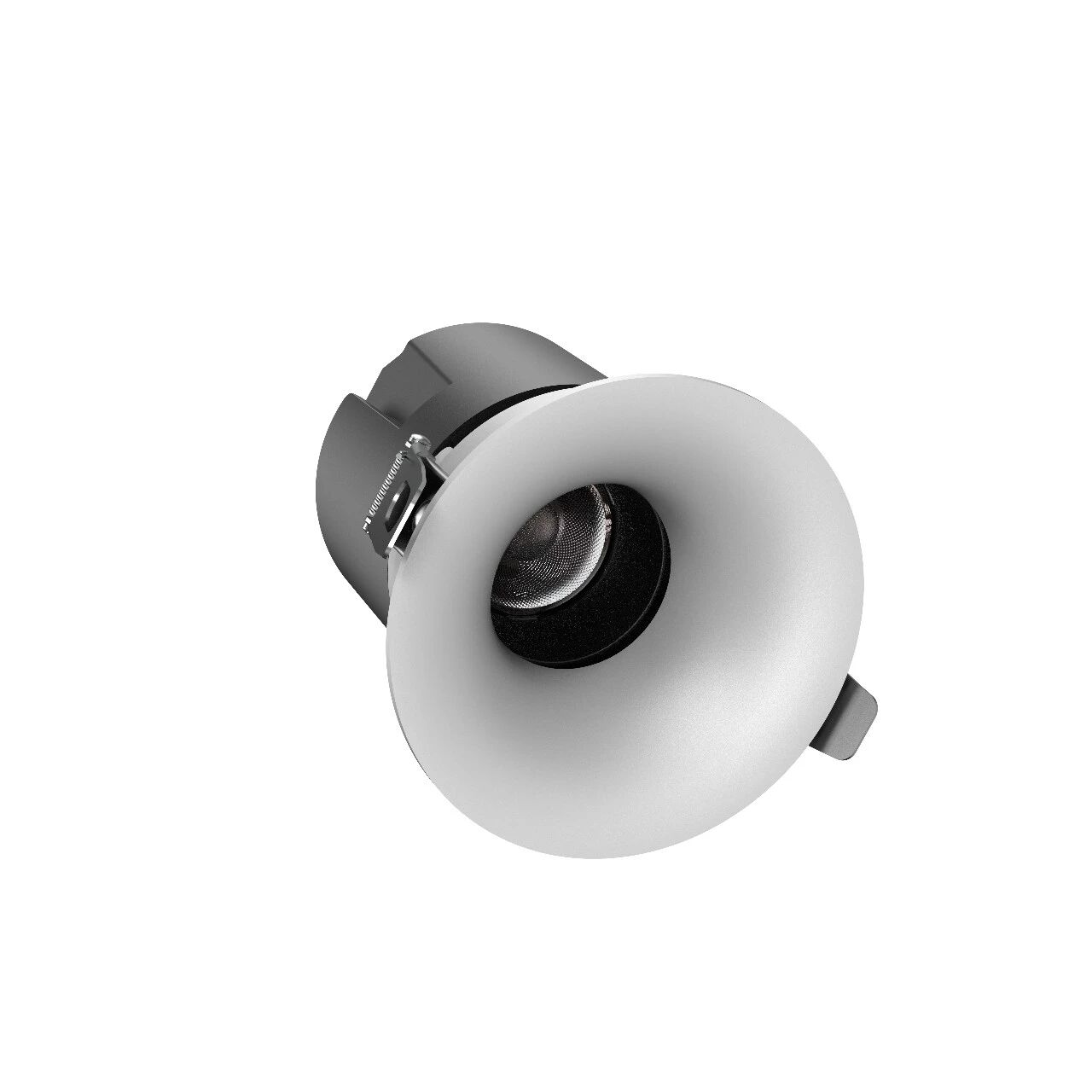

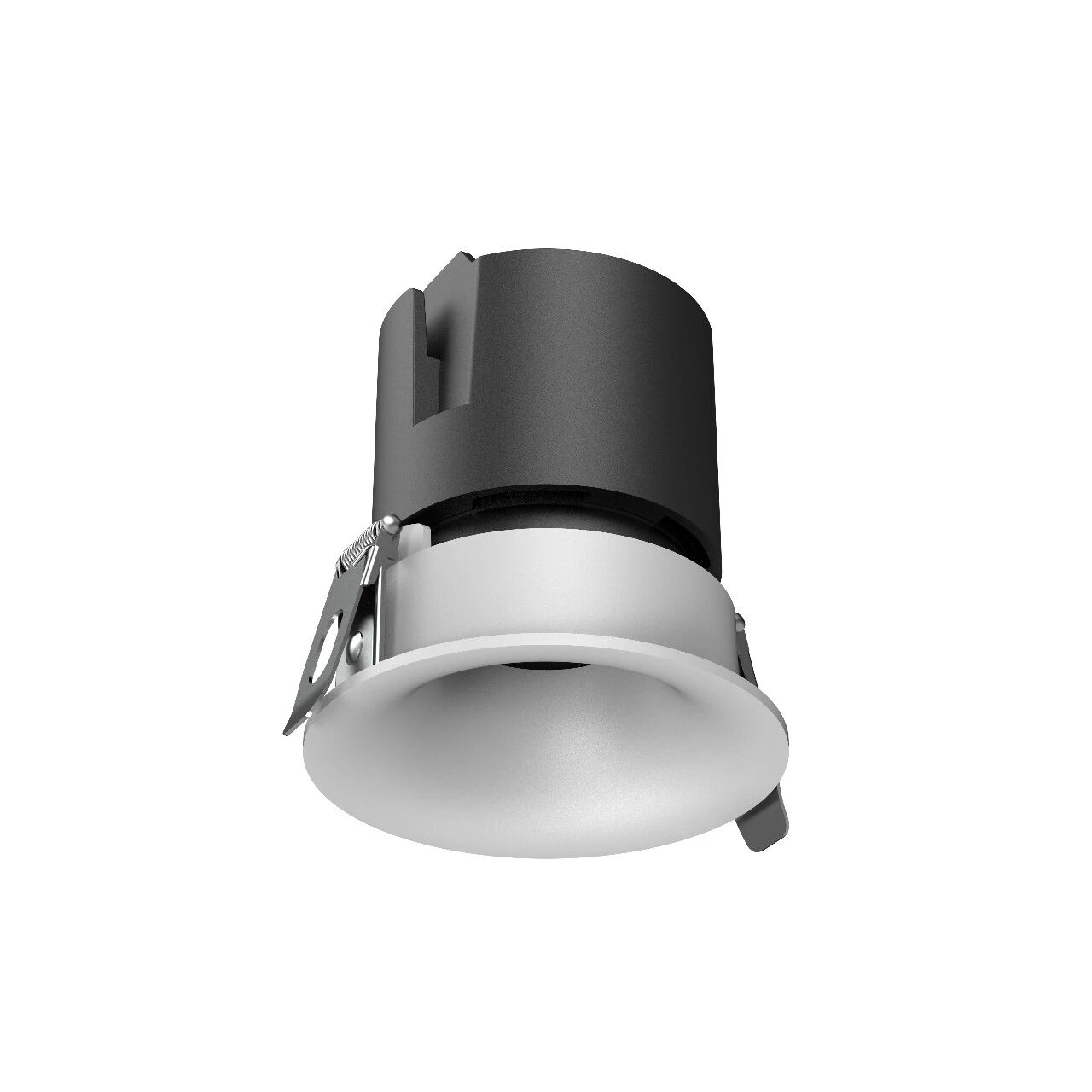

Qin Series Recessed COB Spotlight Housing Kit-Curved Trim
Curved Trim
| Model | Recommended Power | Overall Dimensions（mm) | Cut-out Size(mm) | Beam Angle | LED Holder |
| SR01Q55SR | 5-7W | Ø65*H67 | Ø55 | 15° 24° 36° 55° | 1304 |
| SR01Q55HR | 8-10W | Ø65*H77 | |||

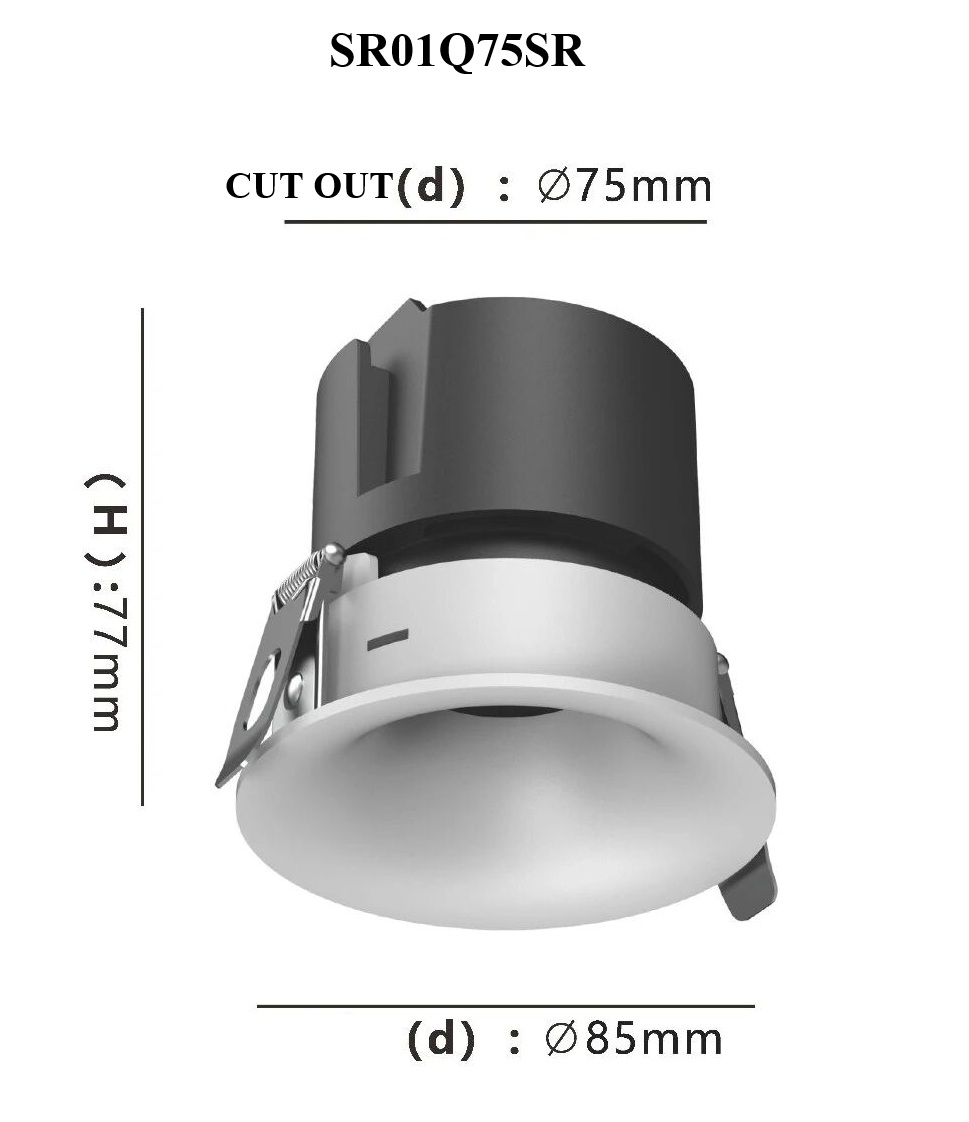

| SR01Q75SR | 10-12W | Ø85*H77 | Ø75 | 1304/020/1507 | |

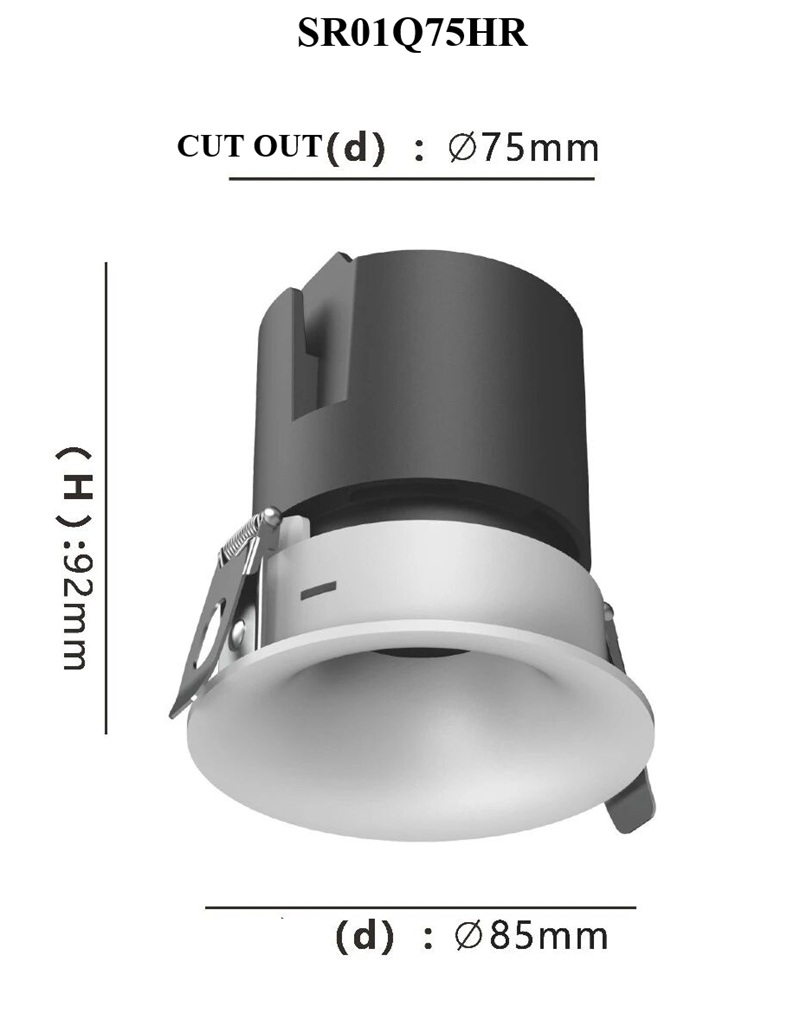

| SR01Q75HR | 12-15W | Ø85*H92 | |||
| SR01Q95SR | 15-18W | Ø105*H98 | Ø95 | 020/1507/1816 | |
| SR01Q95HR | 20-24W | Ø105*H108 |

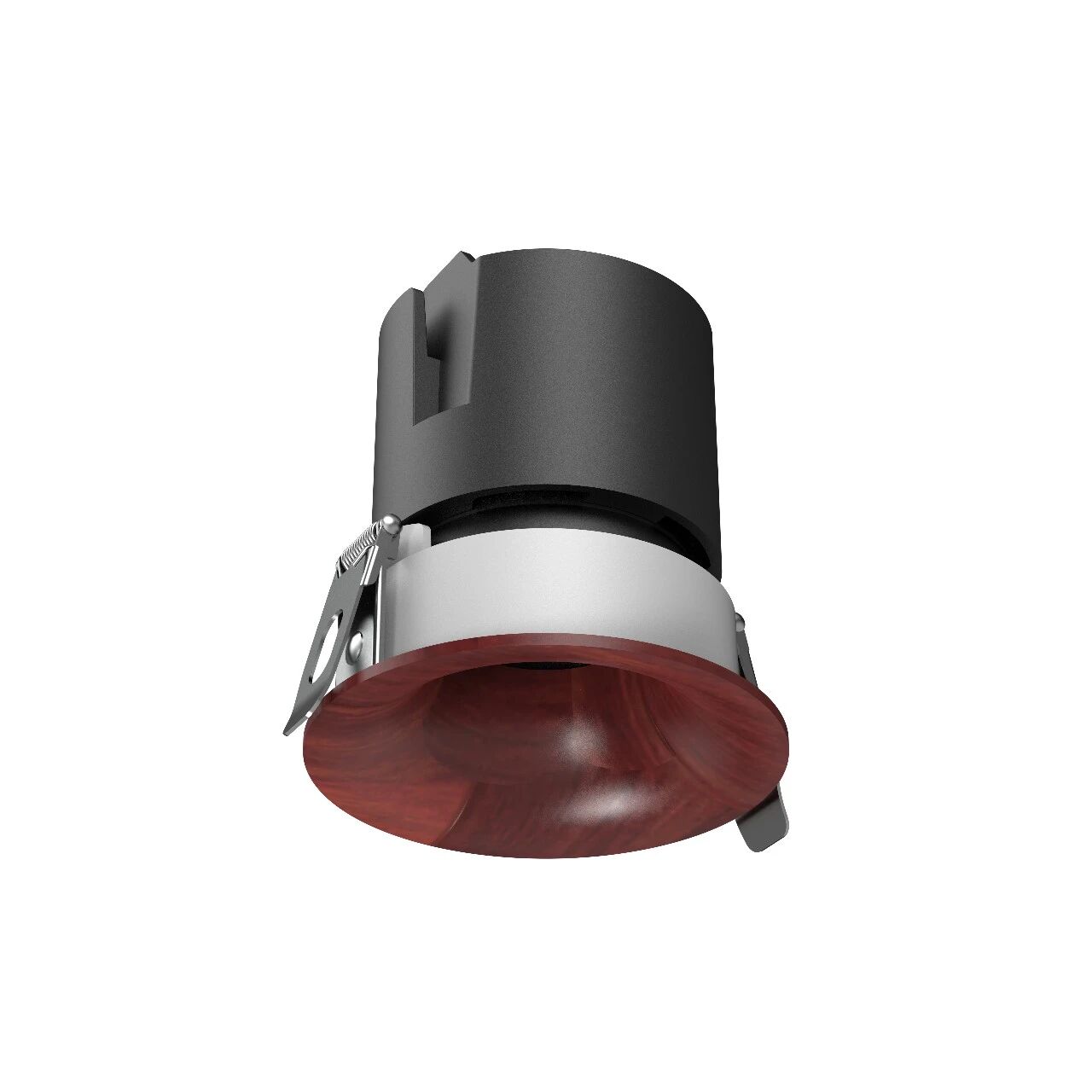

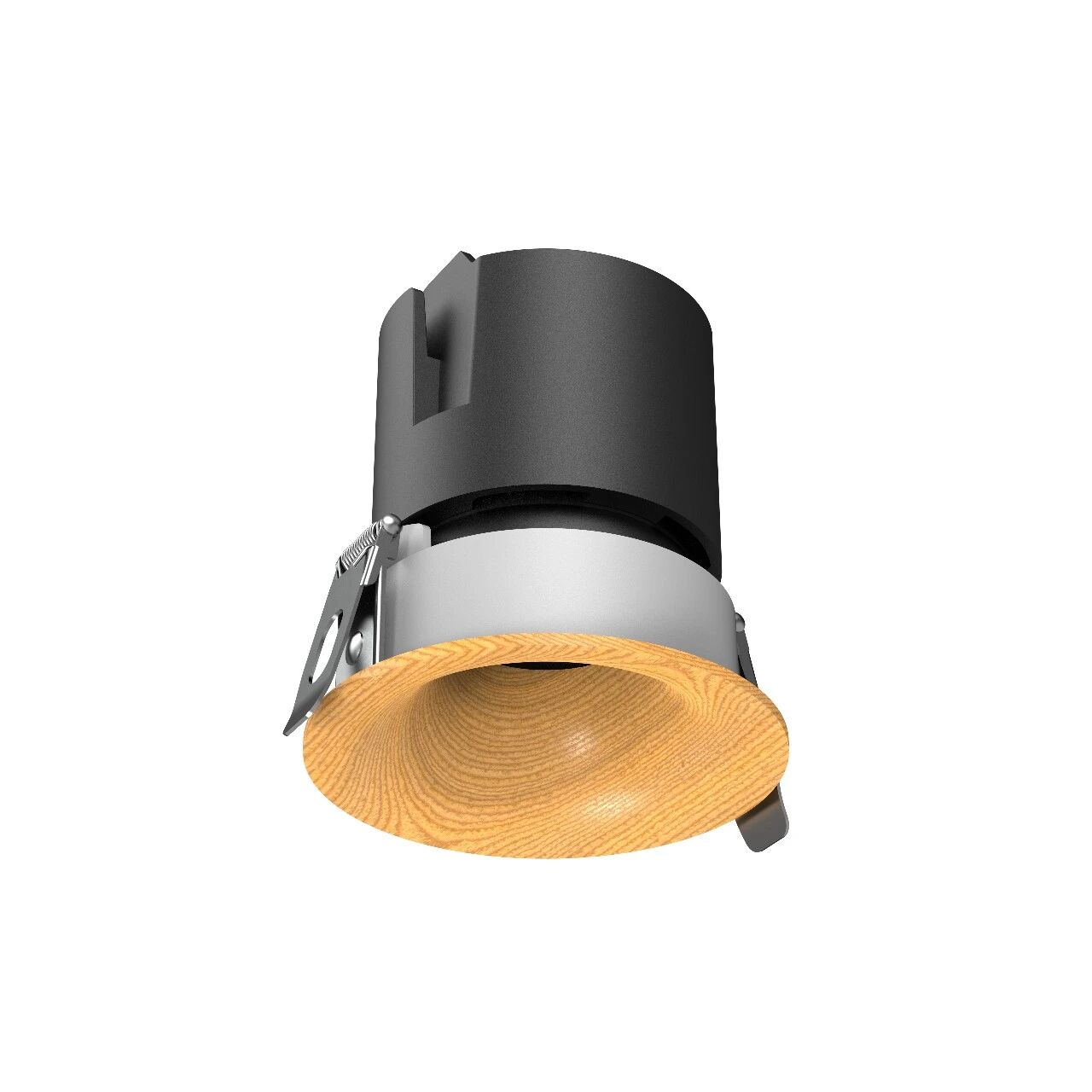

Trim Colors: Soft‑touch paint /Cocoa Cream/Wood‑grain
Application
Residential: Mainless lighting for living room, bedroom, corridor, accent lighting for feature wall
Commercial: Showroom, retail shop, hotel, office, club recessed wall washing & merchandise spotlighting
Engineering projects: Real estate fine decoration, commercial complex lighting projects
Price range: $1.91 through $5.12
Qin Series Recessed COB Spotlight Housing Kit-Cueved Trim
Product Highlights

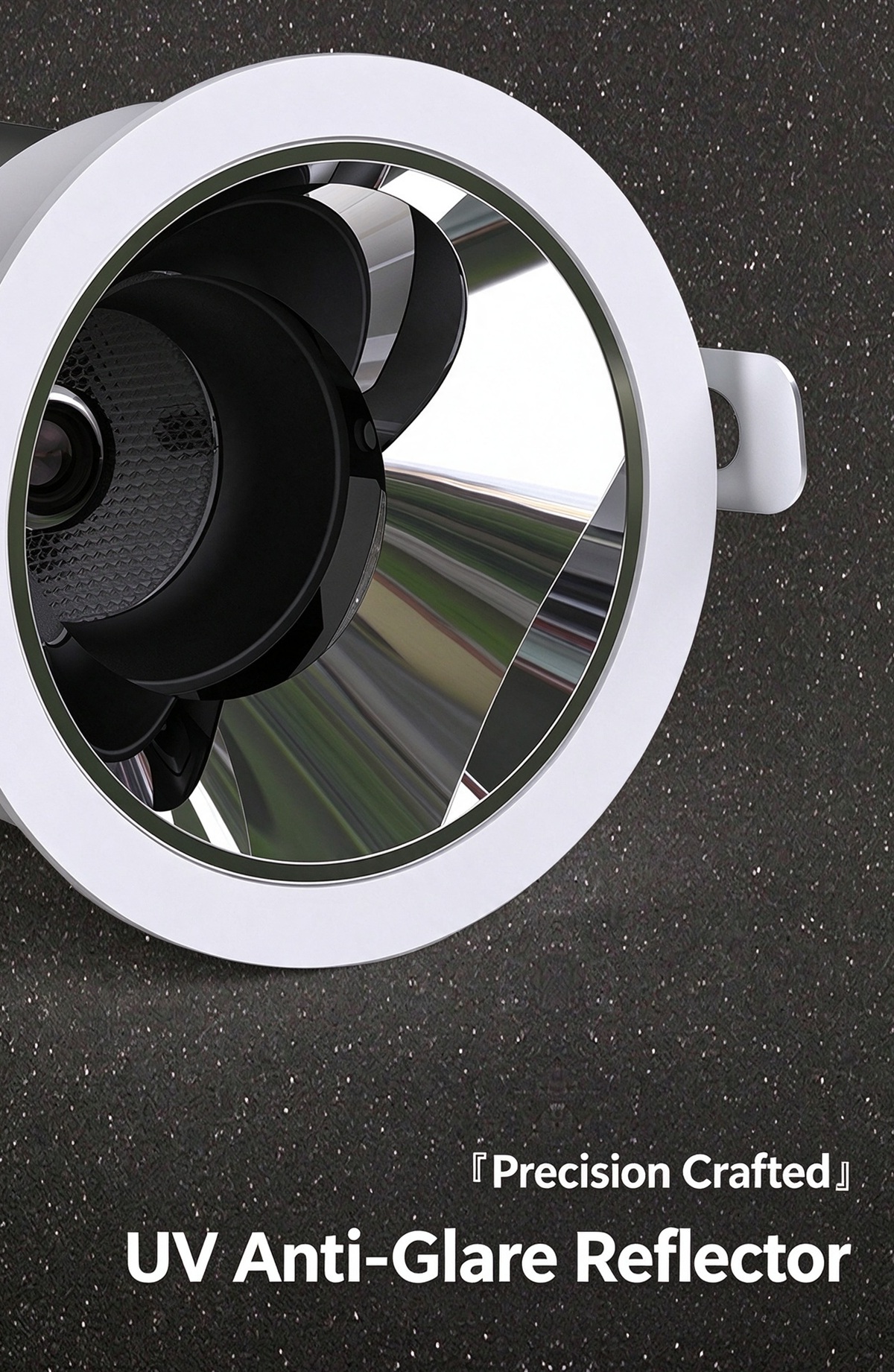

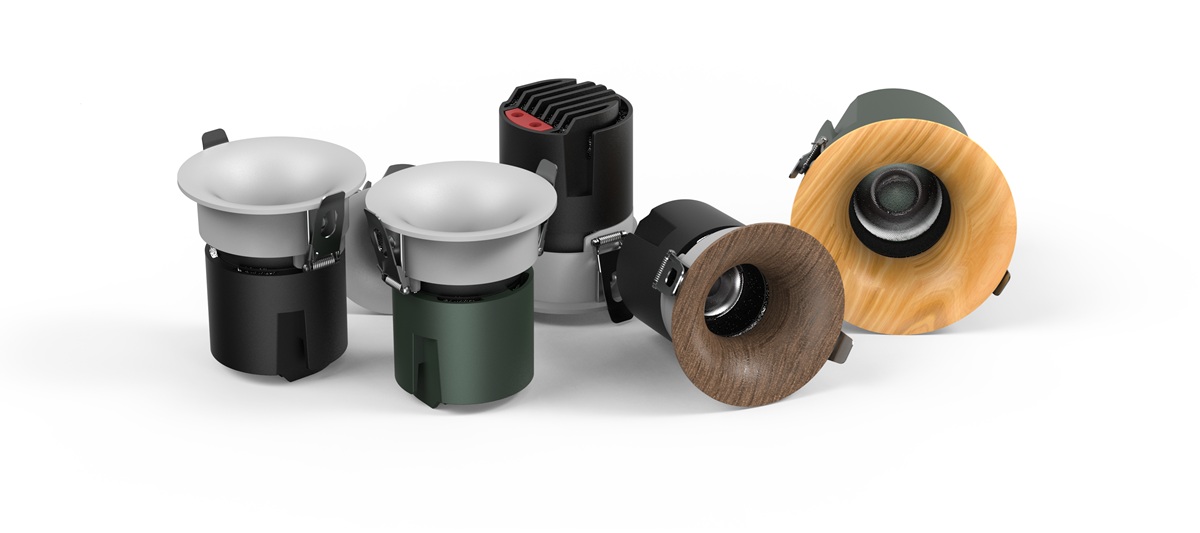

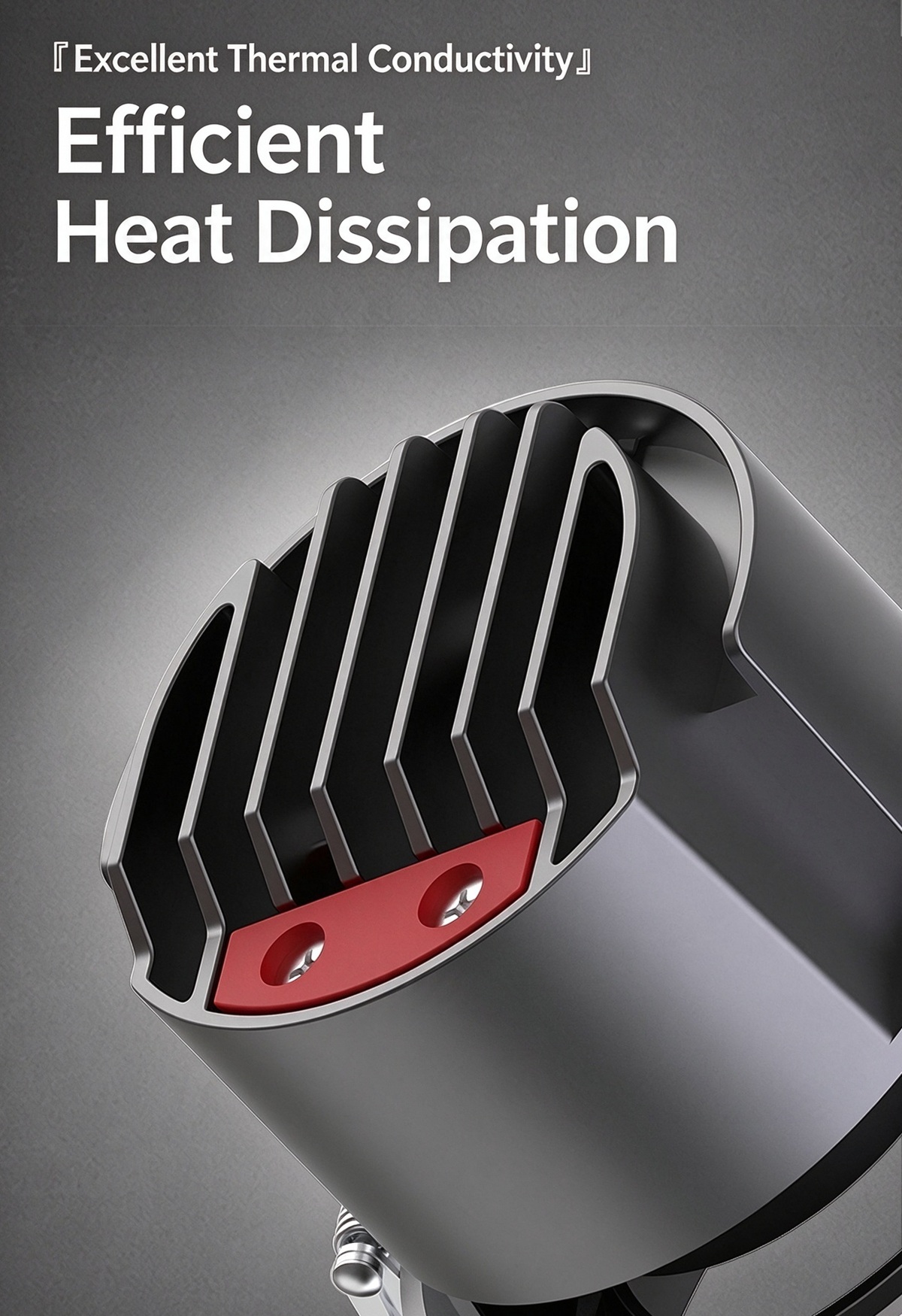

Qin Series Recessed COB Spotlight Housing Kit is developed for recessed ceiling lighting. It offers 3 trim options: Standard Trim, Curved Trim and Trimless Trim, delivering distinct visual effects after ceiling installation. For each cutout size, two heat sinks with different heights are available to match different power requirements. The precision aluminum heat sink adopts grooved convection structure with excellent thermal conductivity to dissipate heat rapidly and ensure long-term stable operation. Adopted UV electroplated anti-glare cover for deep anti-glare performance and better visual comfort. Fitted with high-quality optical lens to realize precise light distribution, clean & uniform light spot and high luminous efficiency. The lamp body supports adjustable beam angle to freely change lighting direction. Optimized mechanical structure brings good part compatibility and high assembly efficiency. 9 optional trim finishes are available to meet customized demands for modern, minimalist, wood texture and luxury interior styles.
Model & SPEC
| NO | Model | Recommended Power | Overall Dimensions（mm) | Cut-out Size(mm) | Beam Angle | LED Holder | Trim Color |
| 1 | SR01Q55SR | 5-7W | Ø65*H67 | Ø55 | 15° 24° 36° 55° | 1304 | Soft‑touch paint /Cocoa Cream/Wood‑grain |
| 2 | SR01Q55HR | 8-10W | Ø65*H77 | ||||
| 3 | SR01Q75SR | 10-12W | Ø85*H77 | Ø75 | 1304/020/1507 | ||
| 4 | SR01Q75HR | 12-15W | Ø85*H92 | ||||
| 5 | SR01Q95SR | 15-18W | Ø105*H98 | Ø95 | 020/1507/1816 | ||
| 6 | SR01Q95HR | 20-24W | Ø105*H108 |
Important Note Recommended wattage is for reference only. The final suitable power should be determined based on the matching light source and driver, combined with the actual temperature rise.
Two heat sinks with different heights
Recessed COB spotlight housing kit, LED downlight shell, anti-glare spotlight frame, trimless ceiling spot light housing, adjustable angle LED spotlight kit, aluminum heat sink spotlight housing
| Model | SR01Q55SR, SR01Q55HR, SR01Q75SR, SR01Q75HR, SR01Q95SR, SR01Q95HR |
|---|---|
| Power | |
| Beam Angle | |
| IP Rating | |
| Housing Material |
