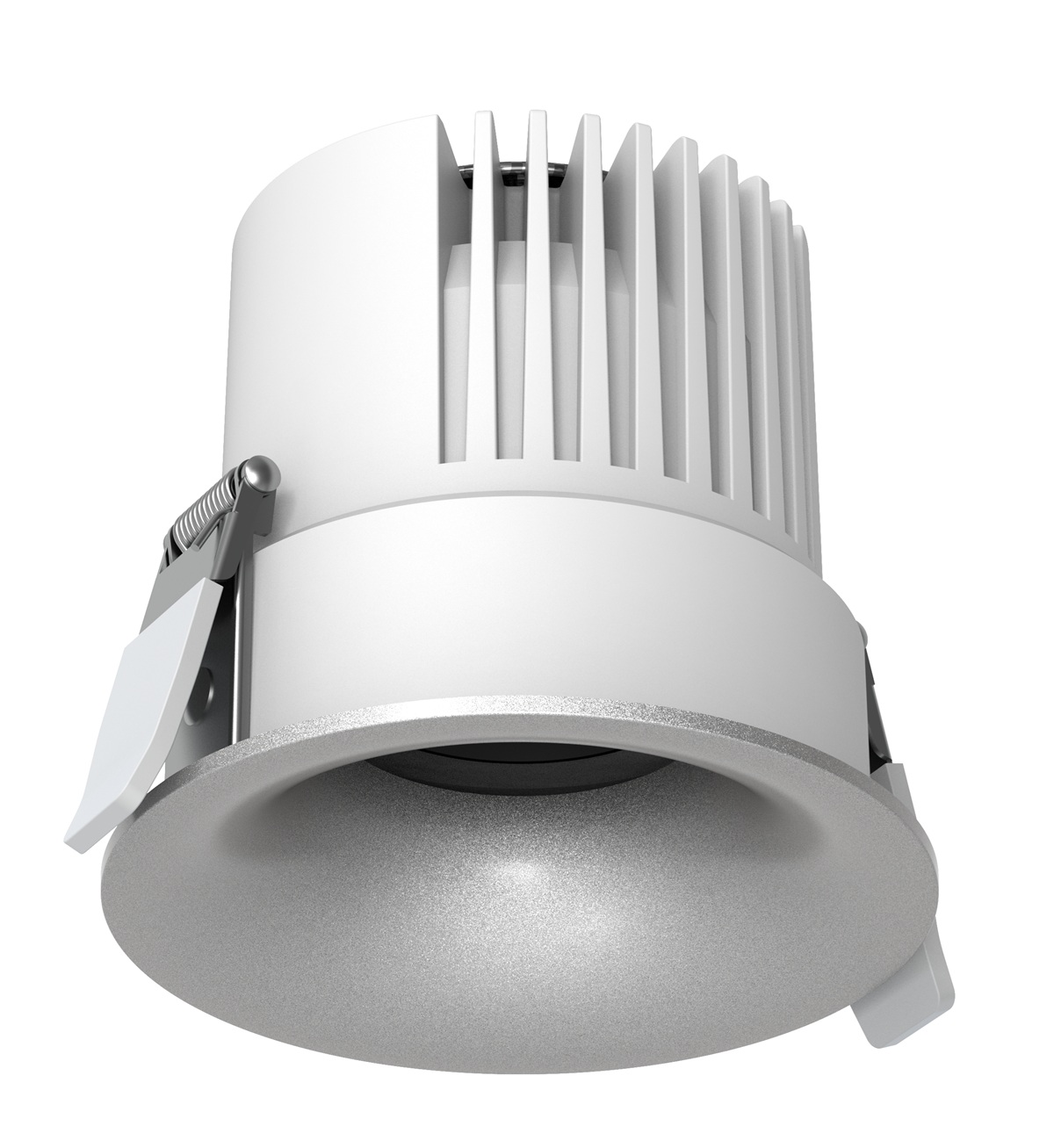

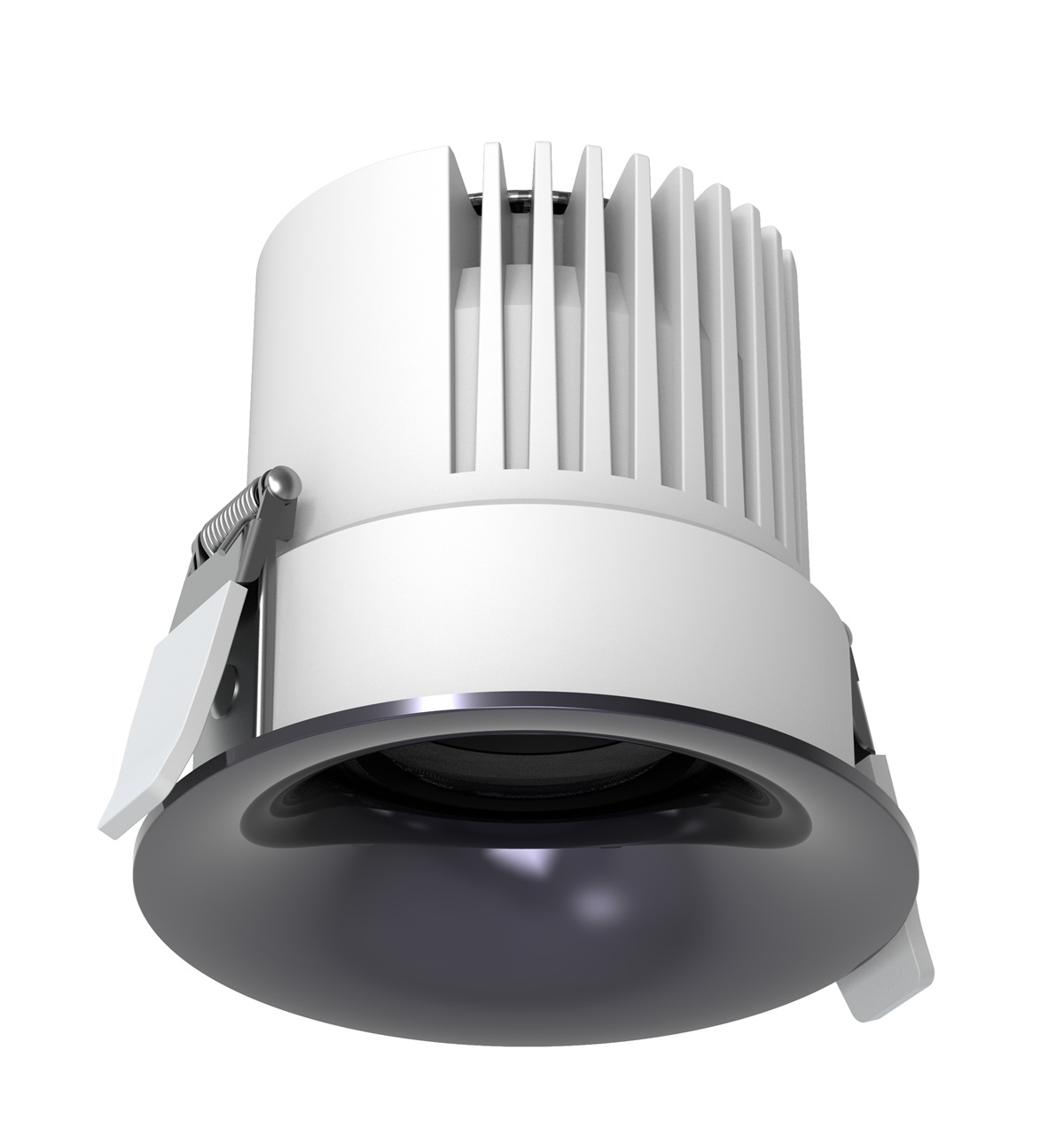

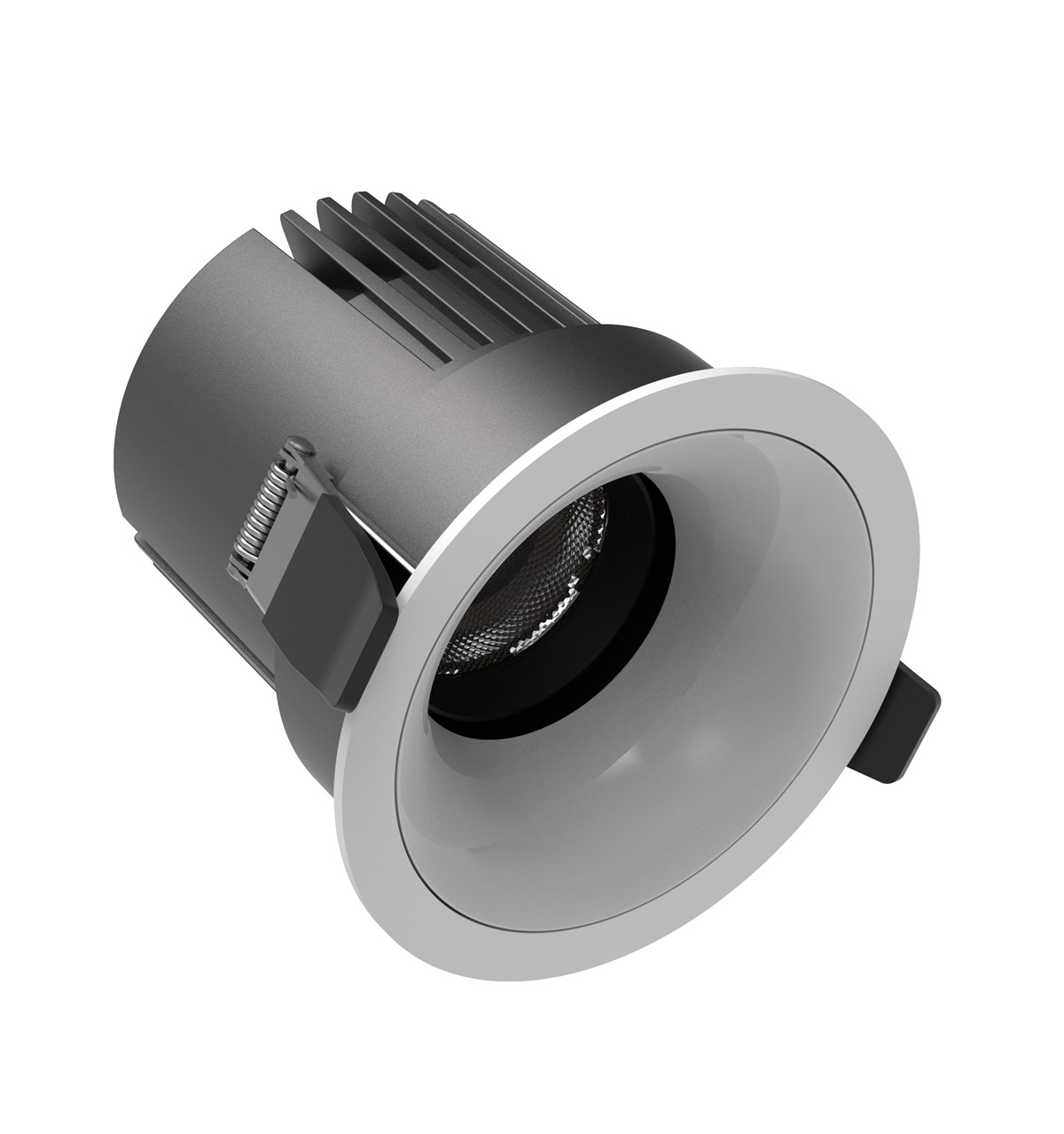

360° Adjustable Recessed COB Wall Washer Spotlight Kit
Description
- Material: Die-cast Aluminum Housing, PC Optical Lens
- Trim Option: Split Trim / Integrated Curved Trim
- Reflector Cup: 9 Colors (Molded / Spray-coated / UV-plated)
- COB Holder:1304/020/1507
- Cutout Size: Ø55mm, Ø75mm, Ø95mm
- Compatible Power: 5-7W /10-12W /15-18W
- IP rating:IP20
- Beam Angle:15°/24°/36°/50°
- Installation: Recessed Mounted
Application
Residential living room, corridor, background wall washing; Accent lighting for exhibition halls, museums, clothing & boutique stores; Recessed ambient lighting for commercial spaces, hotels and clubs
Price range: $1.95 through $5.00
360° Adjustable Recessed COB Wall Washer Spotlight Kit | Anti-Glare Small Hill Beam Downlight Housing
Product Description

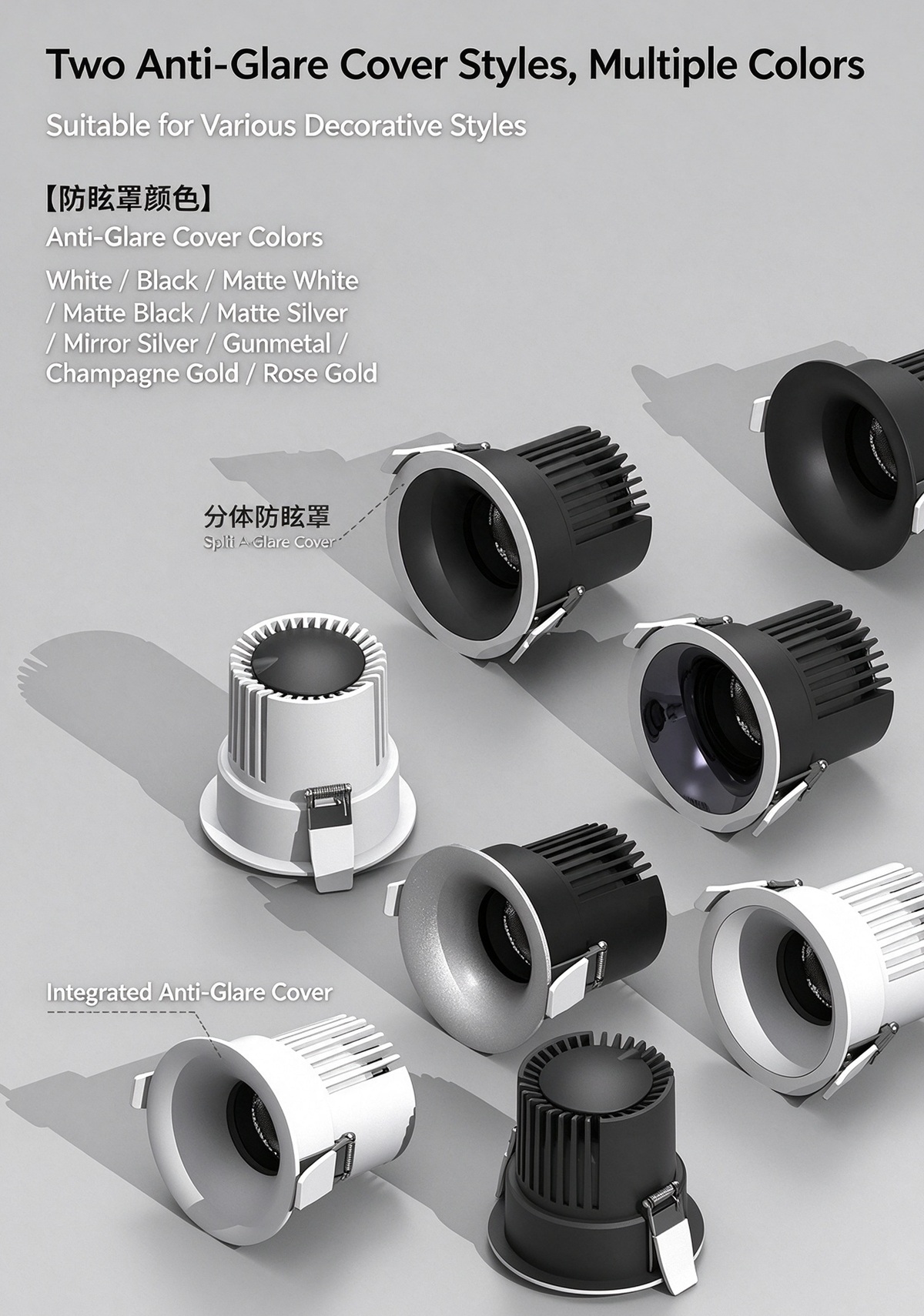

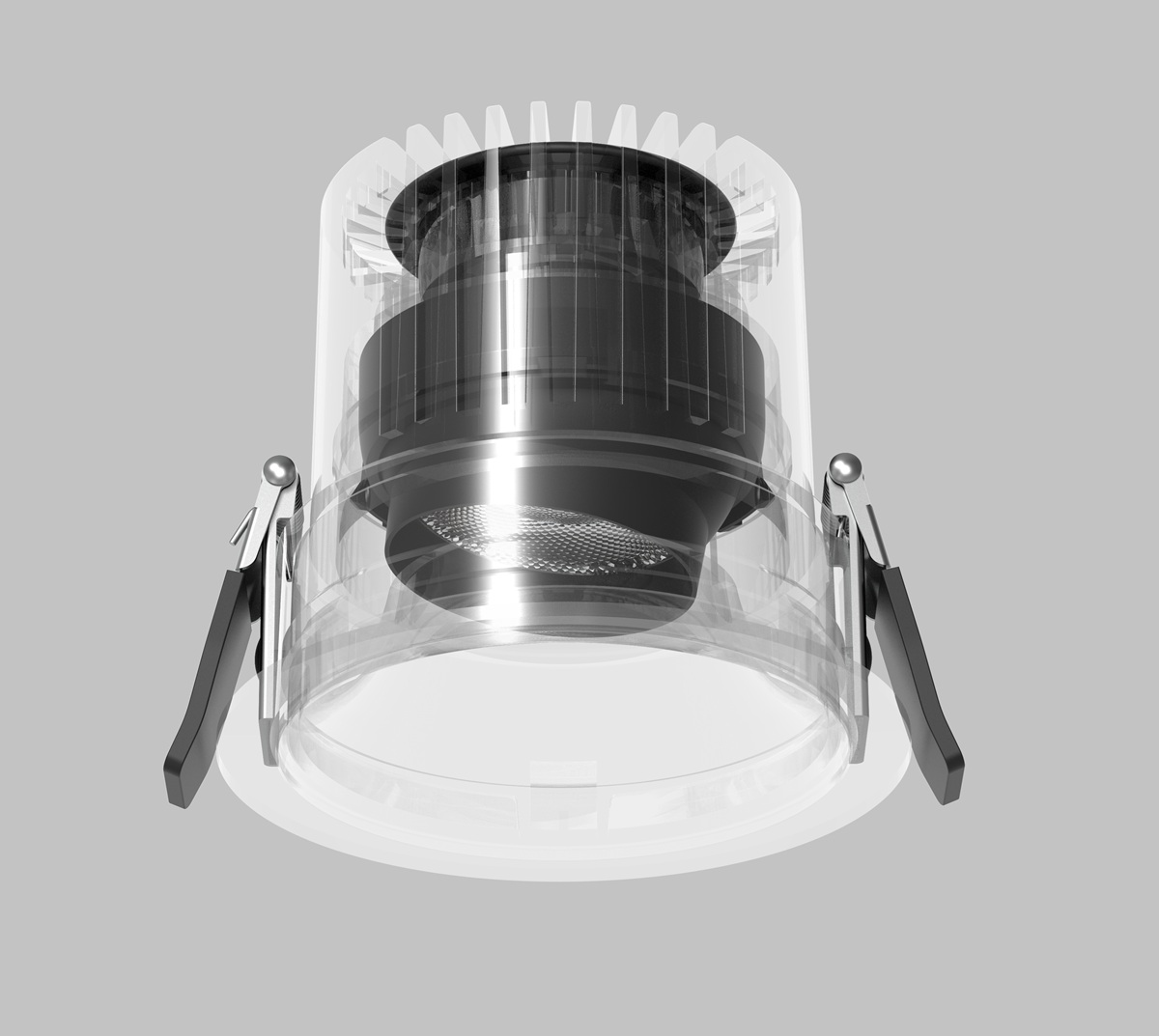

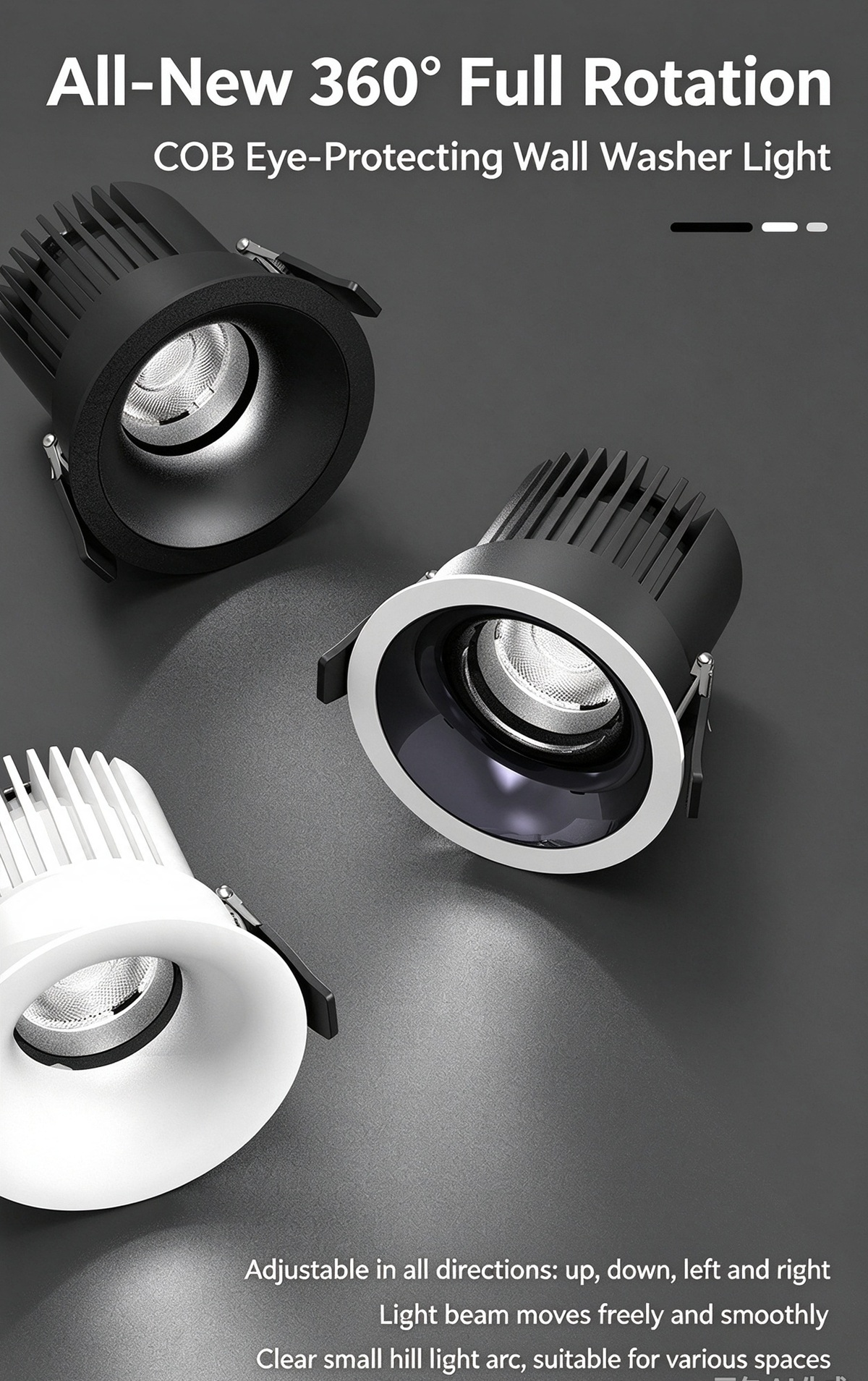

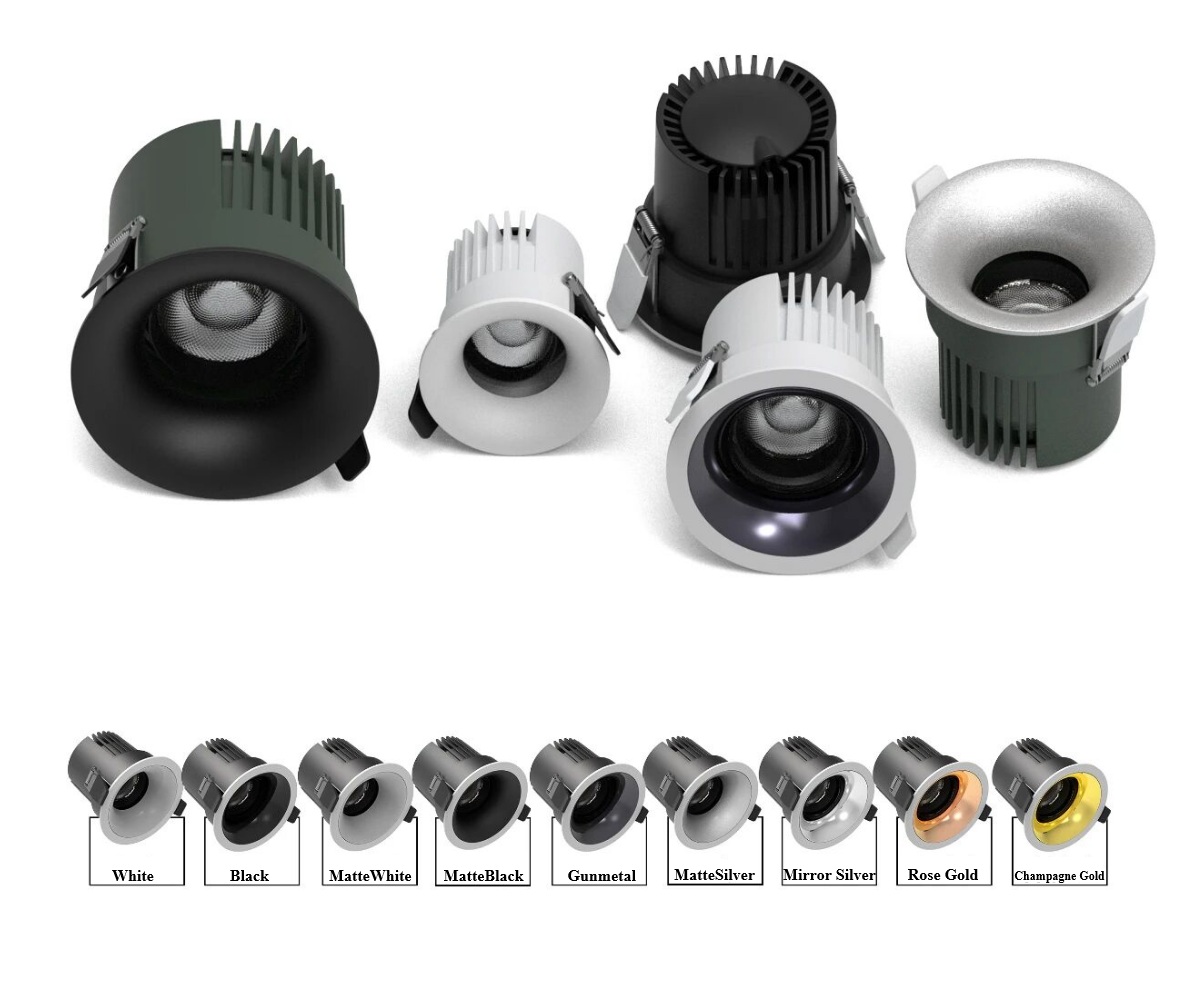

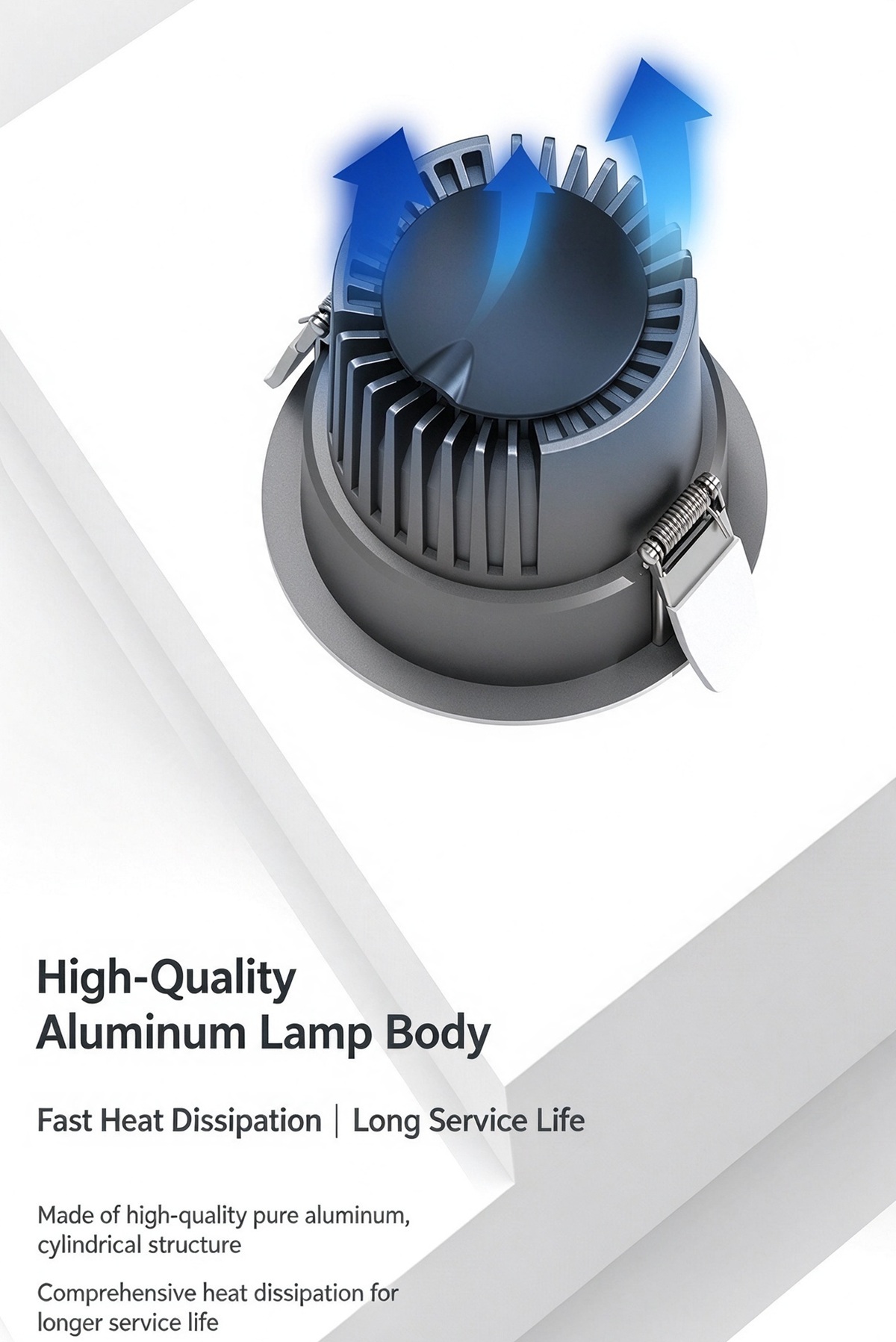

This recessed COB spotlight kit is engineered for accent lighting and wall washing applications. Built-in universal gimbal lens structure supports 360° rotation and ±15° tilt to adjust beam direction flexibly. Made of die-cast aluminum housing with enlarged heat dissipation area, it dissipates heat efficiently for stable long-time operation. Two trim versions are available: split trim and integrated curved trim. The reflector cup comes in 9 color finishes (molded white/black, matte white/matte black/matte silver, mirror silver/gunmetal/champagne gold/rose gold) to fit diverse interior decoration styles. Professionally engineered PC optical lens suppresses stray light and removes secondary flare, producing well-defined, smooth small-hill beam with anti-glare & eye-friendly performance. Three cutout sizes Ø55/Ø75/Ø95mm for different power options, widely used in residential, retail and exhibition recessed lighting projects.
Model & Spec
| Split trim | |||||||
| NO | Model | Recommended Power | Overall Dimensions（mm) | Cut-out Size(mm) | Beam Angle | LED Holder | Color |

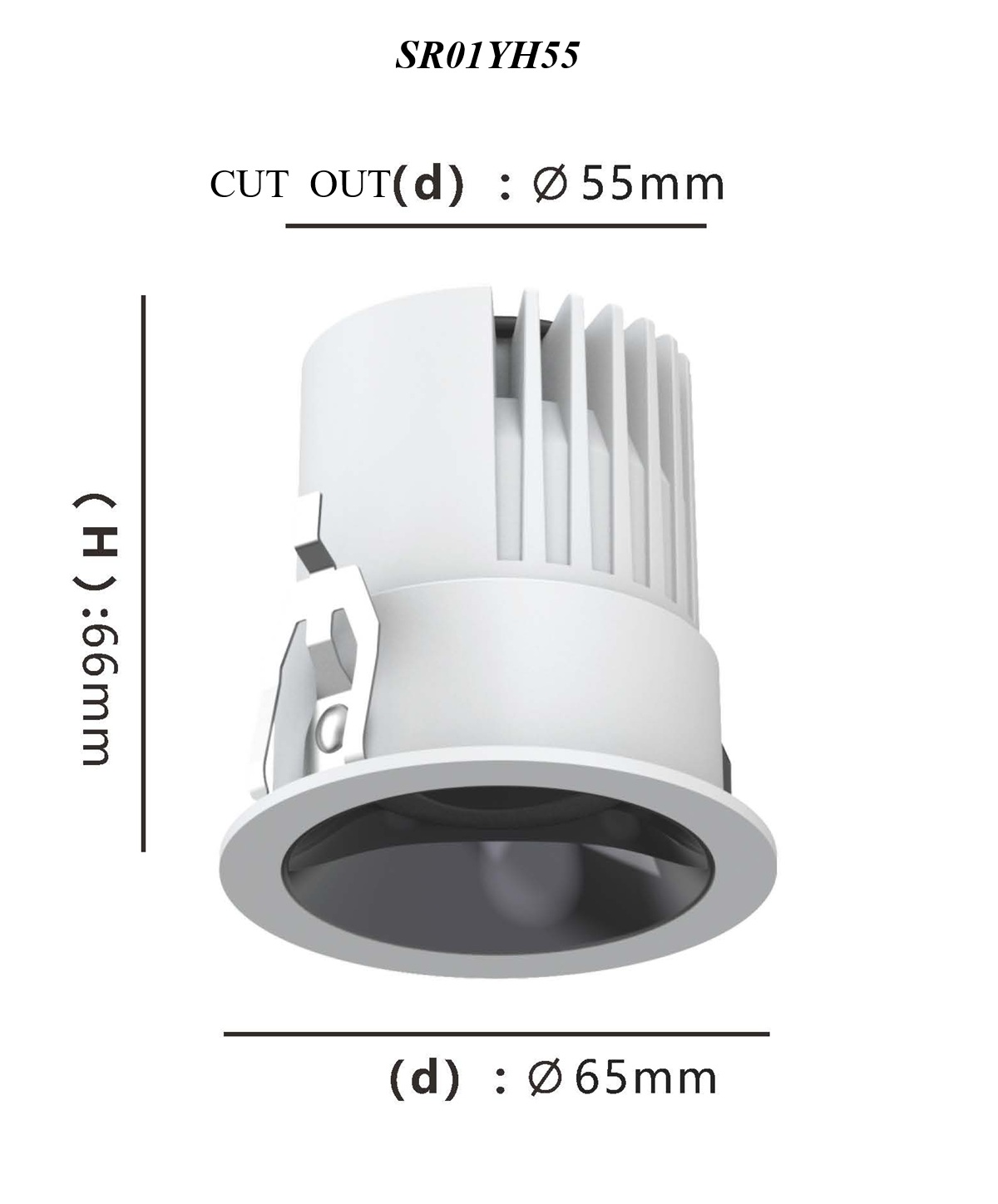

| 1 | SR01YH55 | 5-7W | Ø65*H66 | Ø55 | 15° 24° 36° 50° | 1304
020 |

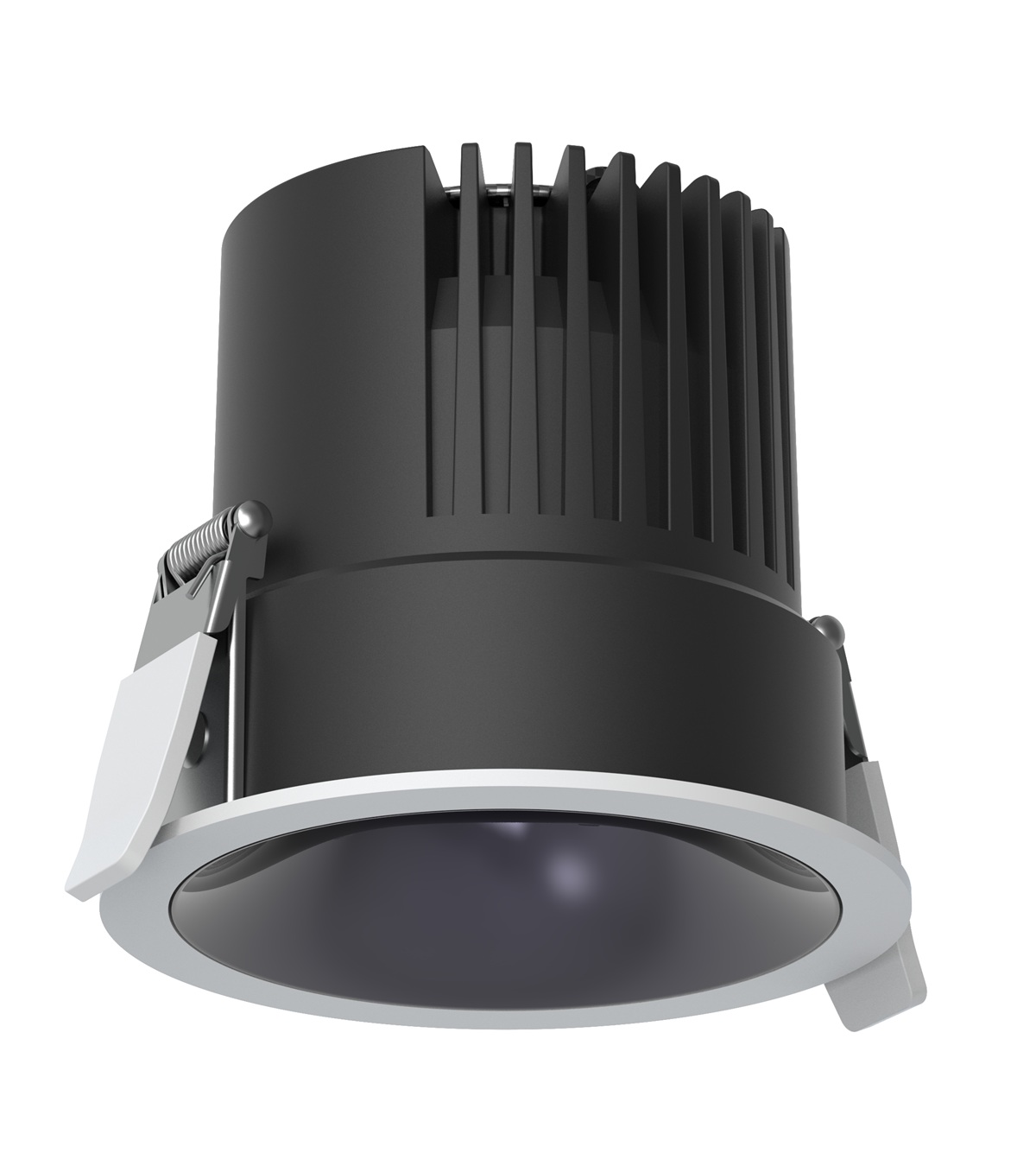

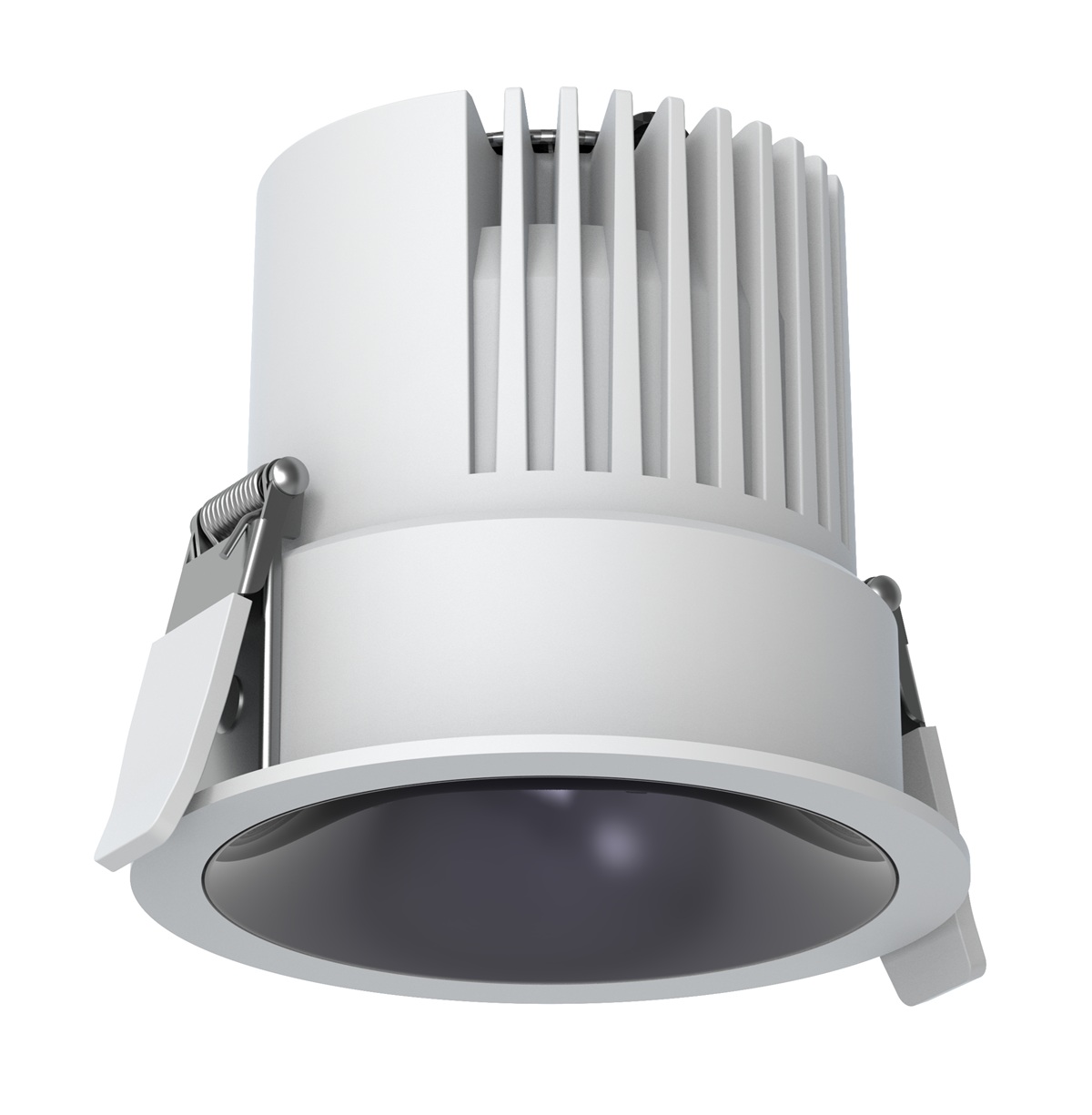

Housing Color: Sand‑Black / Sand‑White Reflector Color: 1.Molded Color:White/Black; 2.Spray‑coated color:MatteWhite/MatteBlack/MatteSilver; 3.UV‑plated color:Mirror Silver/Gunmetal/Champagne Gold/Rose Gold |

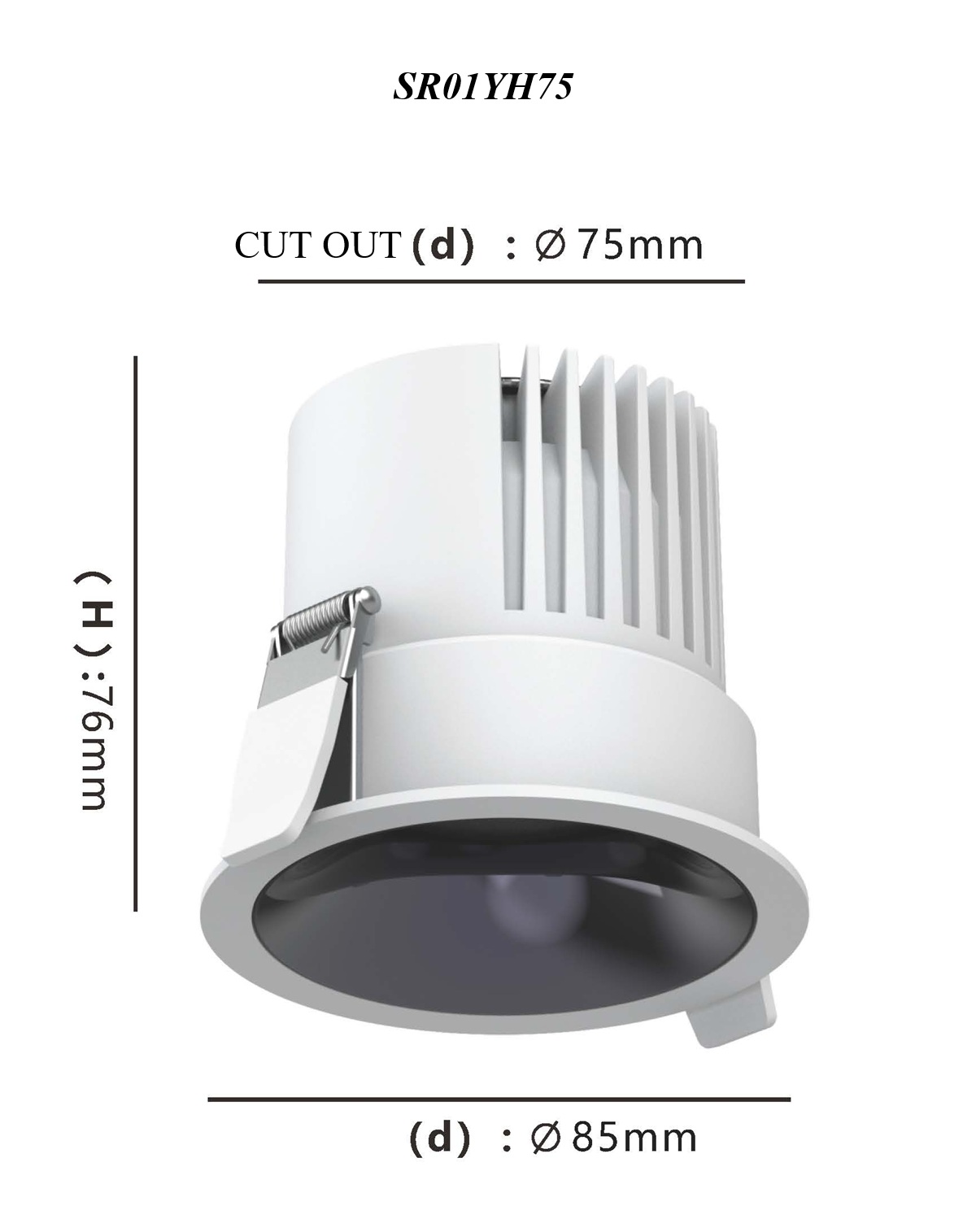

| 2 | SR01YH75 | 10-12W | Ø85*H76 | Ø75 | |||

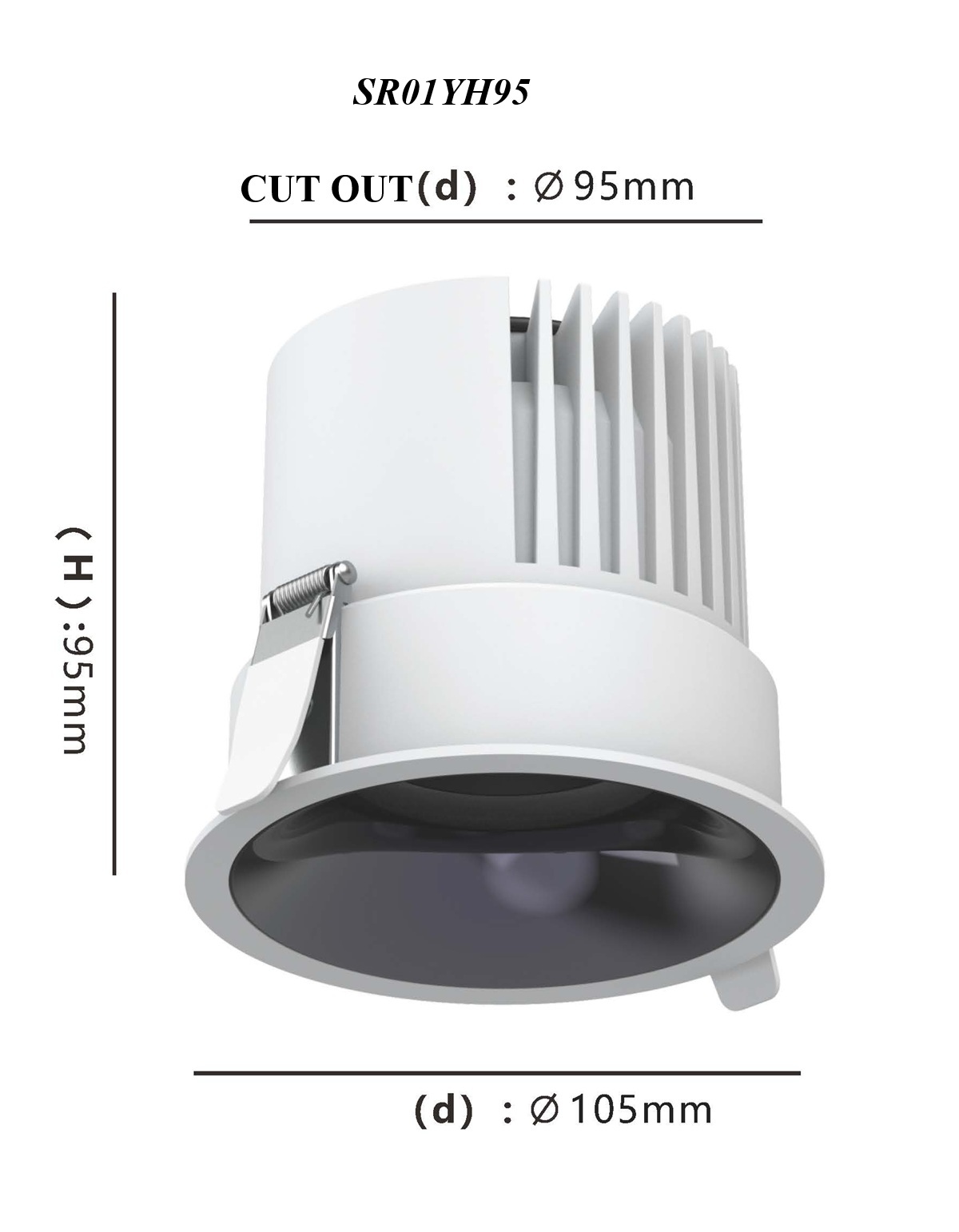

| 3 | SR01YH95 | 15-18W | Ø105*H95 | Ø95 | 1507 | ||
| Curved trim | |||||||
| NO | Model | Recommended Power | Overall Dimensions（mm) | Cut-out Size(mm) | Beam Angle | LED Holder | Color |
| 1 | SR01YH55R | 5-7W | Ø65*H66 | Ø55 | 15° 24° 36° 50° | 1304
020 |
Housing Color: Muted Teal Grey+Sand‑White Reflector Color: 1.Molded Color:White/Black; 2.Spray‑coated color:MatteWhite/MatteBlack/MatteSilver; 3.UV‑plated color:Mirror Silver/Gunmetal/Champagne Gold/Rose Gold |
| 2 | SR01YH75R | 10-12W | Ø85*H76 | Ø75 | |||
| 3 | SR01YH95R | 15-18W | Ø105*H95 | Ø95 | 1507 | ||
| Model | SR01YH55, SR01YH75, SR01YH95, SR01YH55R, SR01YH75R, SR01YH95R |
|---|---|
| Cutout or Body Size | |
| Power | |
| Beam Angle | |
| IP Rating | |
| Housing Material |
