UGR≈0，“T ” -Curved Trim Series Recessed LED Spotlight Kit
Features
- Solid aluminum construction
- High-performance precision optics
- 0°–30° flexible tilt adjustment
- 15° / 24° / 36° / 55° beam angles
- 55mm / 75mm / 95mm cut-out sizes
- UGR≈0
- Tall and short heat sink options
- Premium soft-touch textured finish

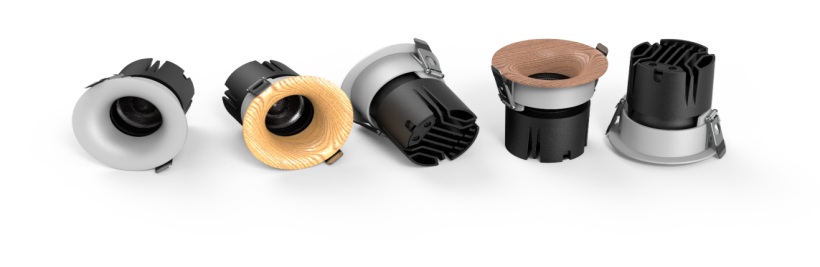

- Up to 6 Trim finishes
Designed for Versatile Lighting Applications
- Hotels & Hospitality
- Retail Stores
- Showrooms & Exhibition Spaces
- Commercial Offices
- Premium Residential Interiors
- Galleries & Art Spaces
- Accent Lighting & Wall Washing
Price range: $2.55 through $5.73
UGR≈0，“T ” -Curved Trim Series Recessed LED Spotlight Kit
Series Overview
This Recessed LED Spotlight Kit combines modular construction, aluminum thermal management, precision optics, and flexible installation into one versatile lighting solution.
The kit features a high-quality aluminum trim ring and heat sink, combined with high-performance optical components to provide efficient thermal management, precise beam control, and a clean, uniform light distribution.
With multiple cut-out sizes, heat sink configurations, beam angles, and finish options, the series can be configured for a wide range of applications, including commercial spaces, hotels, retail stores, showrooms, and premium residential interiors.
Please note:
- Each cut-out size can be paired with two heat sink heights, four beam angles, and up to six trim colors. Different combinations will result in different prices.
- The recommended power is for reference only. It is closely related to the quality of the selected light source and driver, which are not included in this kit.
- When ordering a kit, please specify your light source size, beam angle, and trim color.
Model & Specifications
| NO | Model | Recommended Power | Overall Dimensions（mm) | Cut-out Size(mm) | Beam Angle | LED Holder | Trim Color |

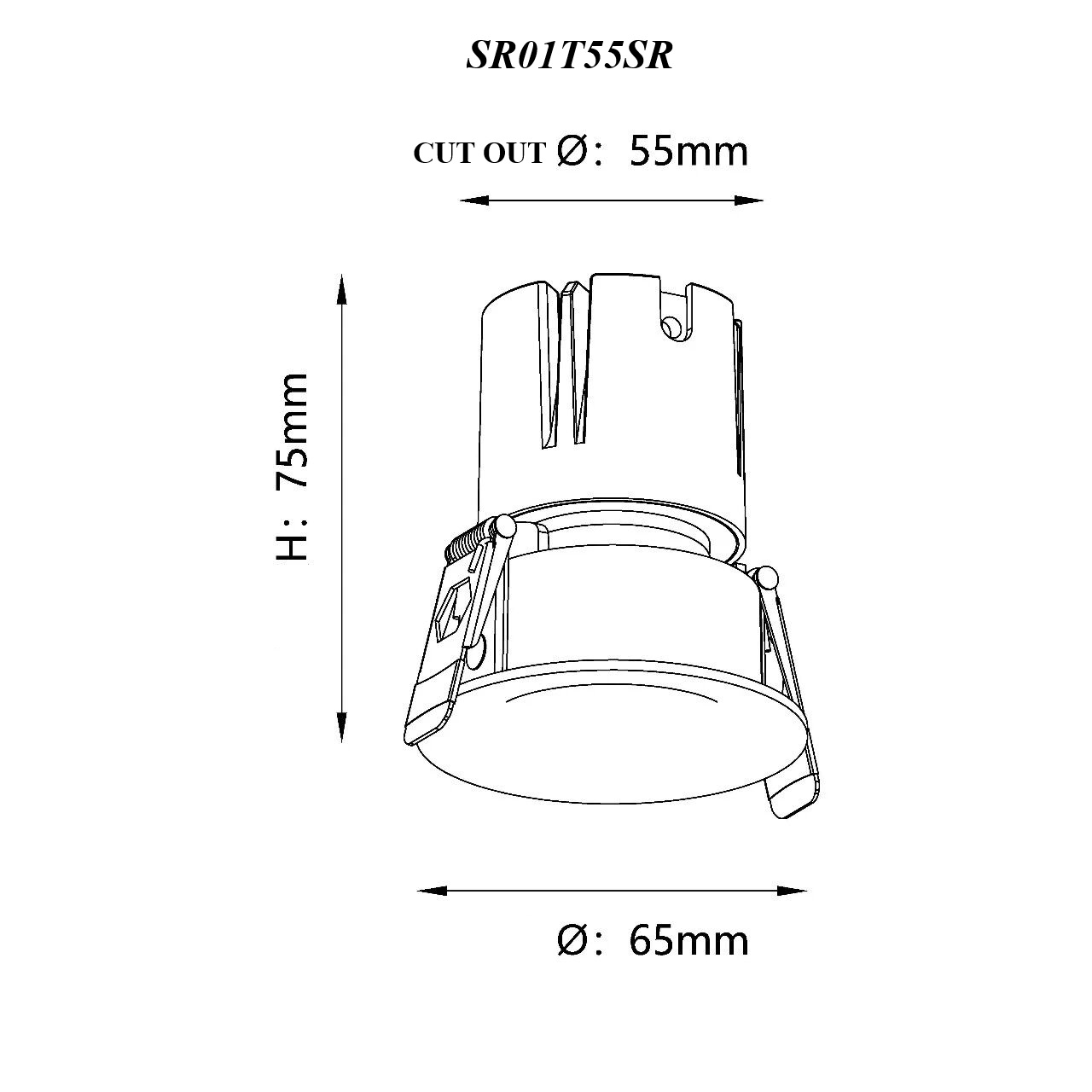

| 1 | SR01T55SR | 5-7W | Ø65*H75 | Ø55 | 15° 24° 36° 55° | 1304 | Soft‑touch paint finish:Lotus White/Ru Kiln White/Cocoa Cream/Soft‑touch Black;Wood‑grain finish:Walnut Wood/Natural Wood Tone |

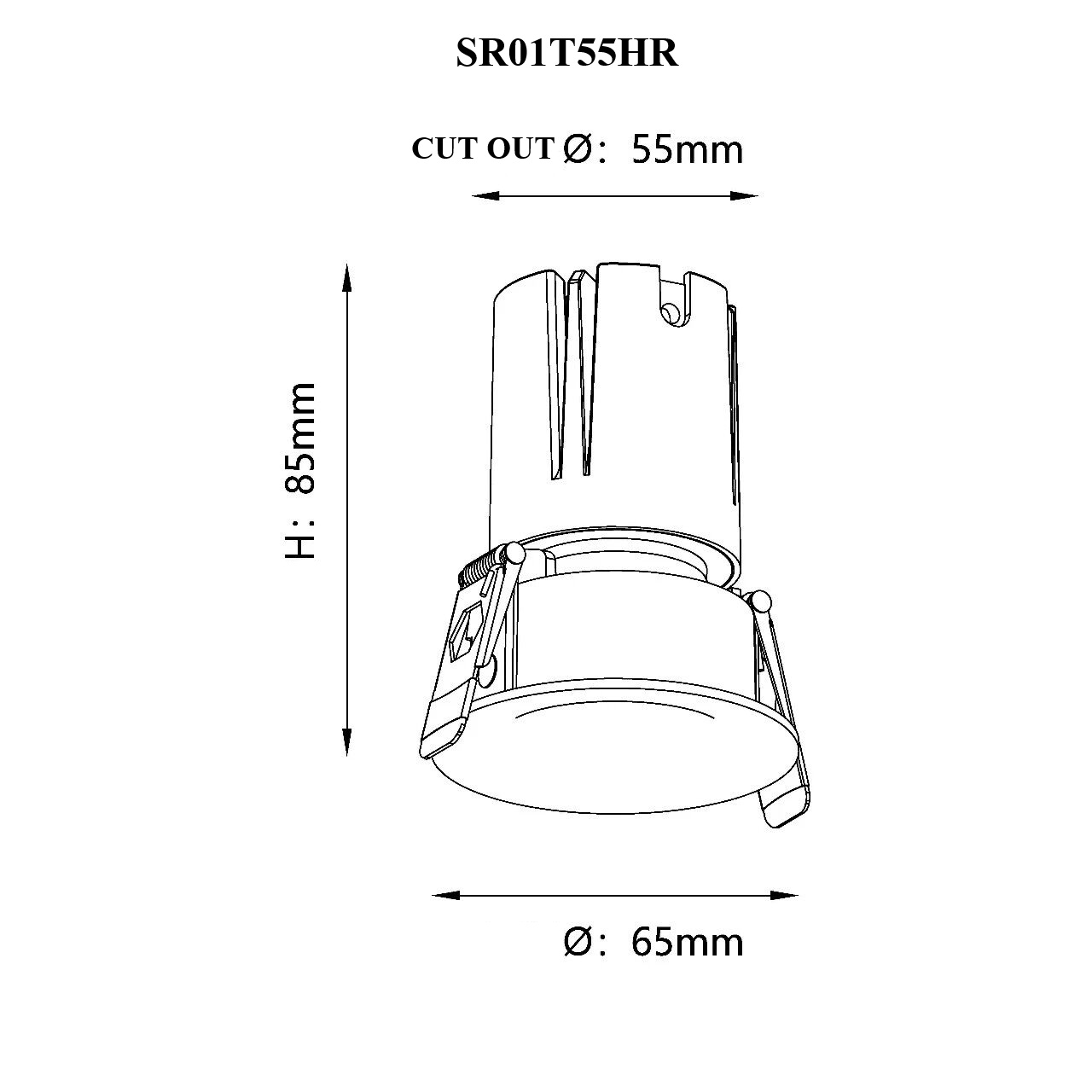

| 2 | SR01T55HR | 8-10W | Ø65*H85 | ||||
| 3 | SR01T75SR | 10-12W | Ø85*H85 | Ø75 | 1304/020/1507 | ||
| 4 | SR01T75HR | 12-15W | Ø85*H97 | ||||
| 5 | SR01T95SR | 15-18W | Ø105*H103 | Ø95 | 020/1507/1816 | ||
| 6 | SR01T95HR | 20-24W | Ø105*H115 |
| Model | SR01T55SR, SR01T55HR, SR01T75SR, SR01T75HR, SR01T95SR, SR01T95HR |
|---|---|
| Trim color | Soft‑touch paint finish:Lotus White/Ru Kiln White/Cocoa Cream/Soft‑touch Black, Wood‑grain finish:Walnut Wood/Natural Wood Tone |
| Beam Angle | |
| Cutout or Body Size | |
| IP Rating | |
| Power | |
| Housing Material |
