UGR≈0，“T ” Series Recessed Trimless ceiling spotlight housing Kits
Features
- Solid aluminum construction
- High-performance precision optics
- 0°–30° flexible tilt adjustment
- 15° / 24° / 36° / 55° beam angles
- 55mm / 75mm / 95mm cut-out sizes
- Tall and short heat sink options
- Premium soft-touch textured finish

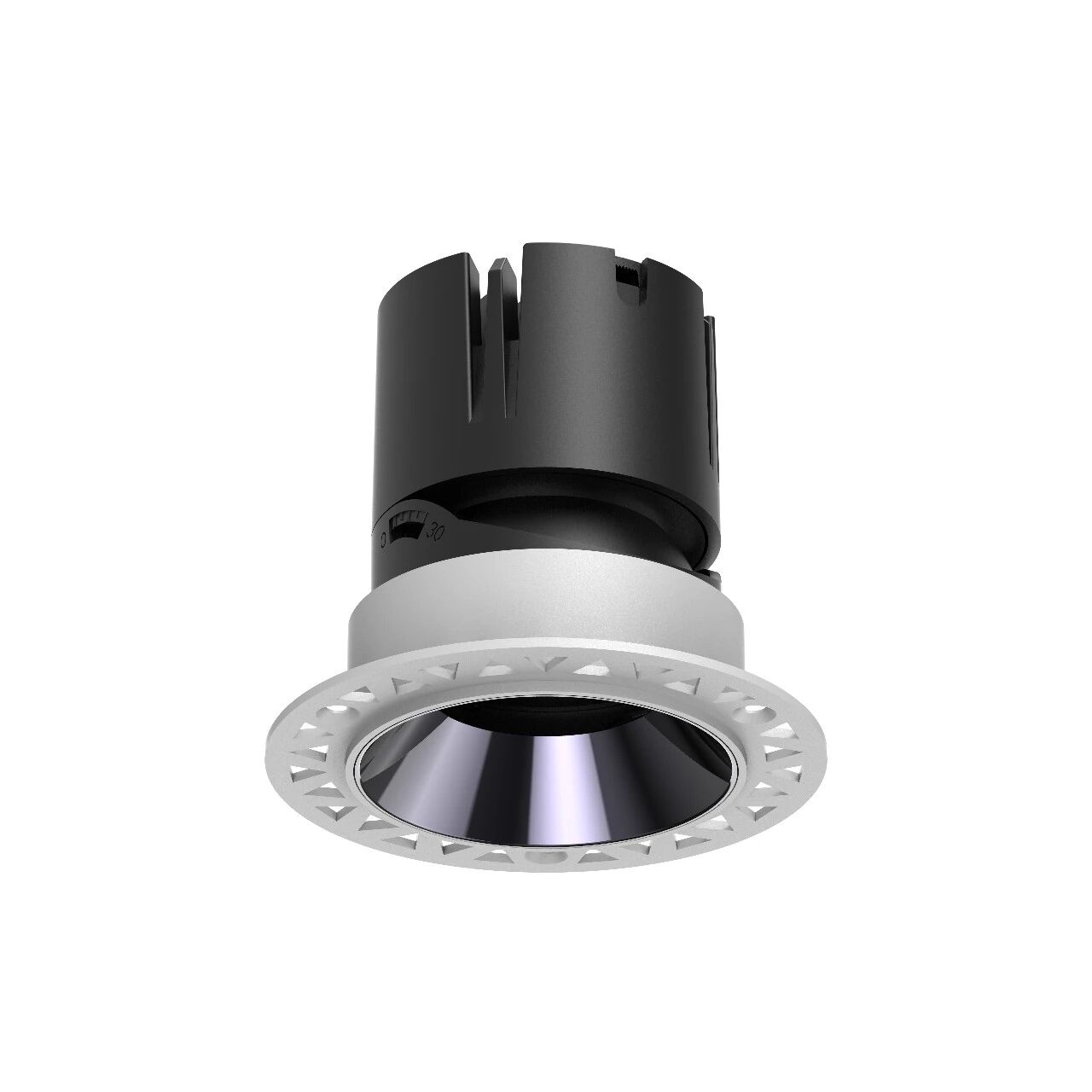

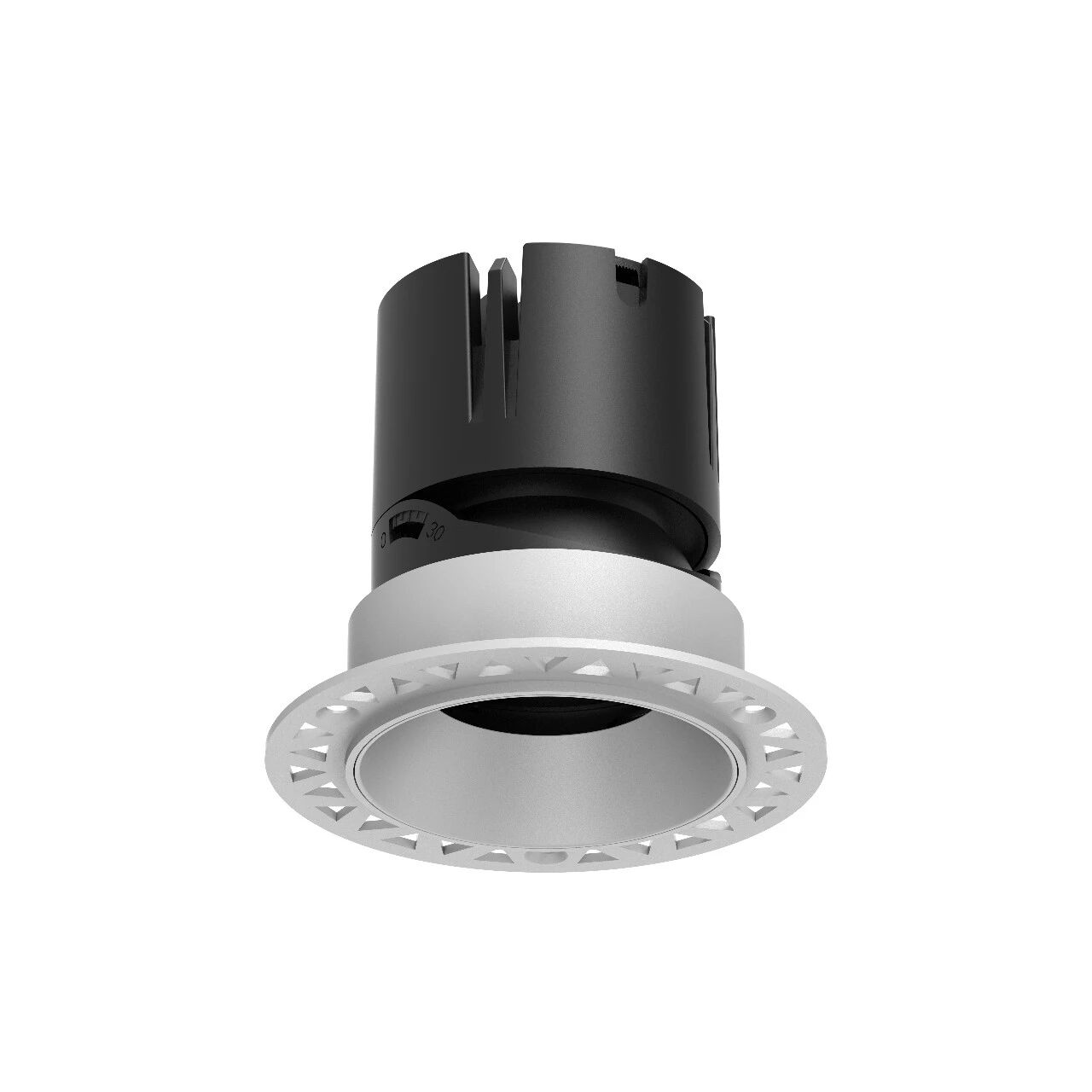

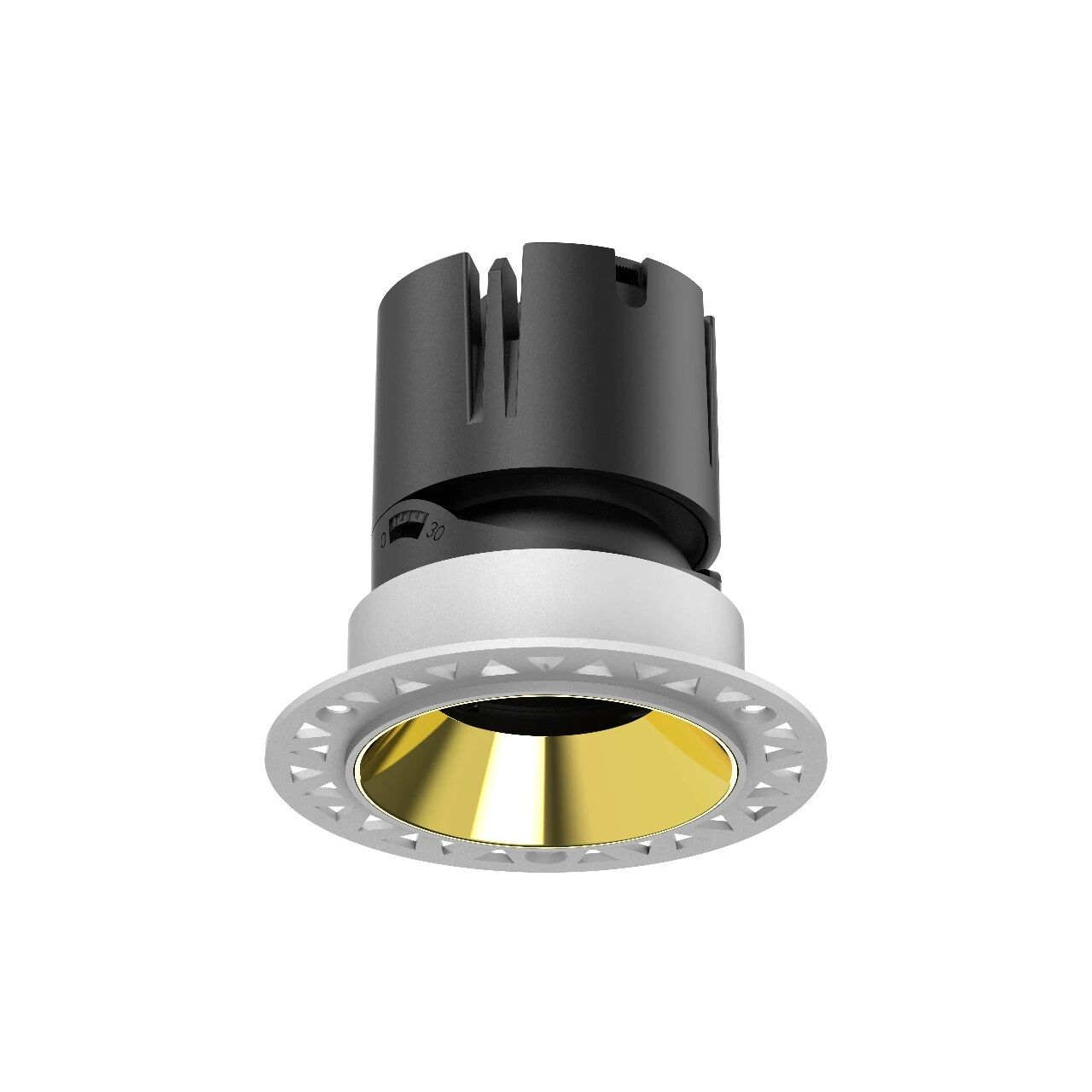

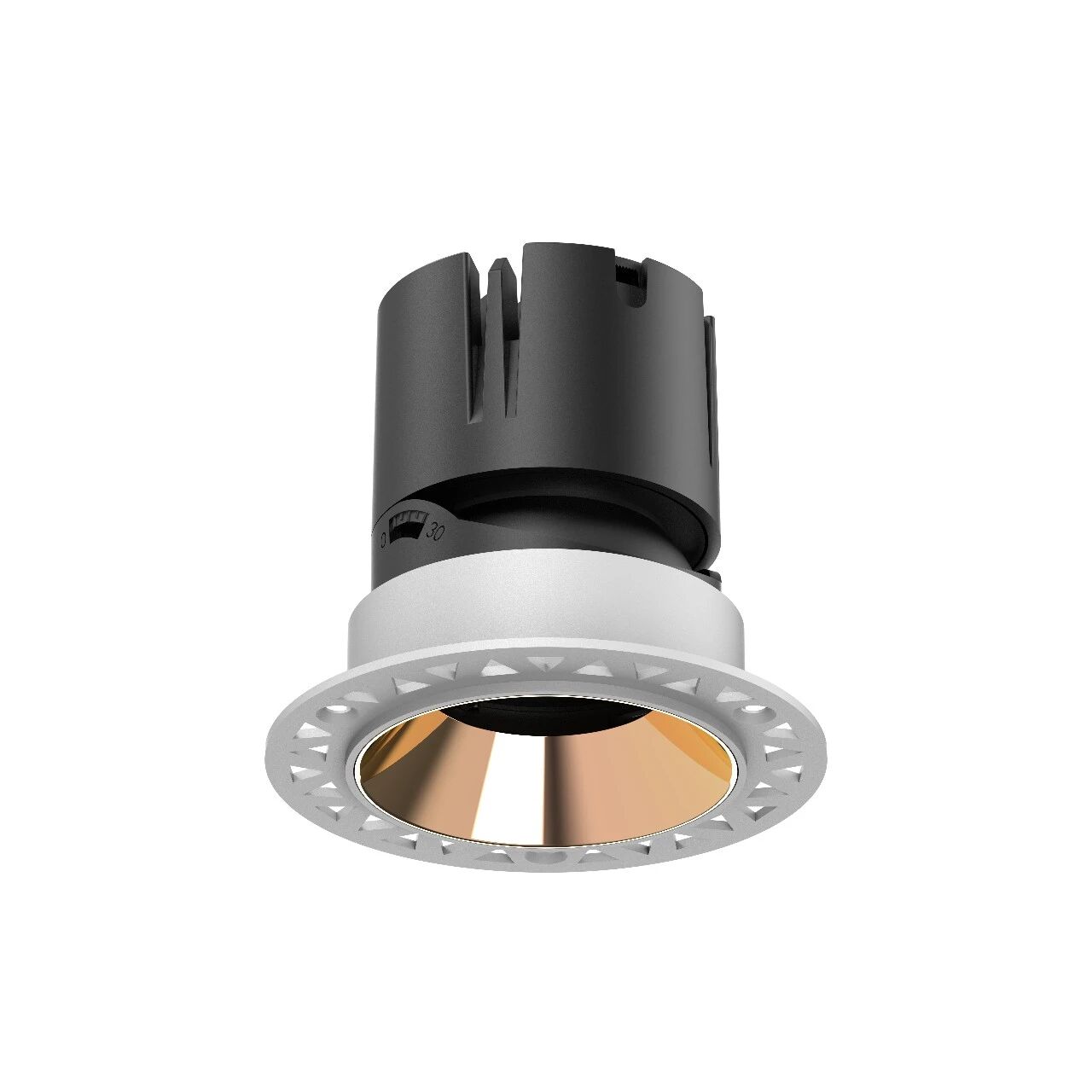

- Up to 9 reflector cup finishes
Designed for Versatile Lighting Applications
- Hotels & Hospitality
- Retail Stores
- Showrooms & Exhibition Spaces
- Commercial Offices
- Premium Residential Interiors
- Galleries & Art Spaces
- Accent Lighting & Wall Washing
Price range: $2.15 through $5.34
“T ” Series Recessed Trimless ceiling spotlight housing Kits-UGR≈0 . Aluminum Construction · Precision Optics · 0°–30° Adjustable · Multiple Configurations
Product Introduction
Trimless recessed spotlight housing with split plaster-in structure. No visible outer trim. The mud frame can be plastered and painted to merge seamlessly with drywall ceiling, delivering a clean flush ceiling finish. Housing only, compatible with various light engine modules. Ideal structural part for minimalist no-main-light projects.
Key Structural Features
- Plaster-in mud flange design:Perforated mud flange for better plaster adhesion, reduces cracking risk after plastering. Zero visible trim after installation
- Split separable housing:Separated base and inner bracket. The base stays fixed in ceiling; inner bracket can be replaced without damaging drywall

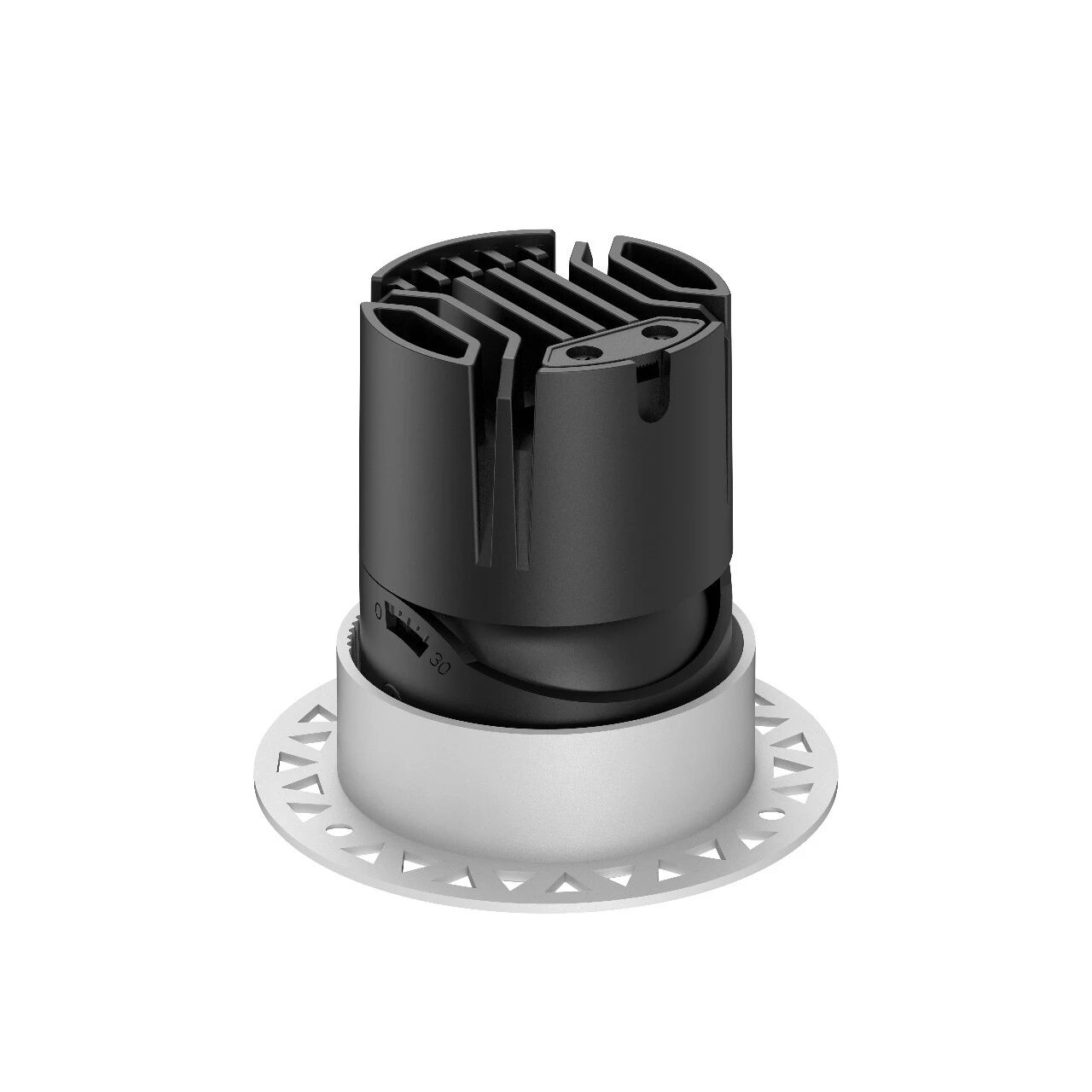

- Adjustable gimbal bracket:Built-in gimbal bracket, supports tilt and 355° full rotation for flexible aiming.
- Robust housing material:Die-cast aluminum housing, high structural rigidity, anti-deformation and stable under ceiling temperature.
- Snap-fit assembly:Snap-on design for inner bracket, fast assembly, fewer screws, suitable for mass installation.
- Standard cutout size:Standard cutout dimension, compatible with common drywall ceiling, easy for specifiers and contractors.
Model & Specifications
| NO | Model | Recommended Power | Overall Dimensions（mm) | Cut-out Size(mm) | Beam Angle | LED Holder | Color |
| 1 | SR01T55SF | 5-7W | Ø75*H80 | Ø55 | 15° 24° 36° 55° |
1304 |
|
| 2 | SR01T55HF | 8-10W | Ø75*H90 | ||||

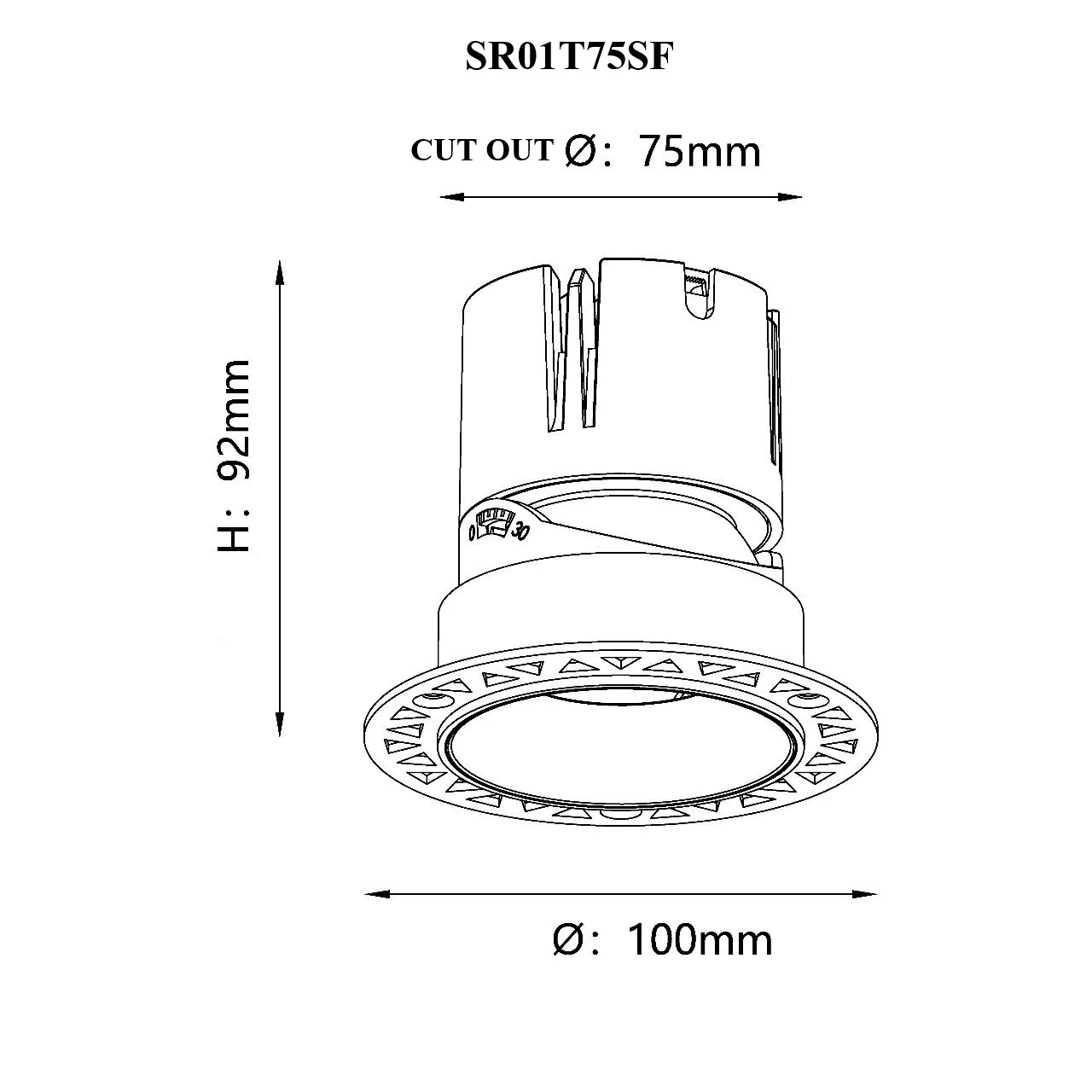

| 3 | SR01T75SF | 10-12W | Ø100*H92 | Ø75 | 020/ 1507 |
||

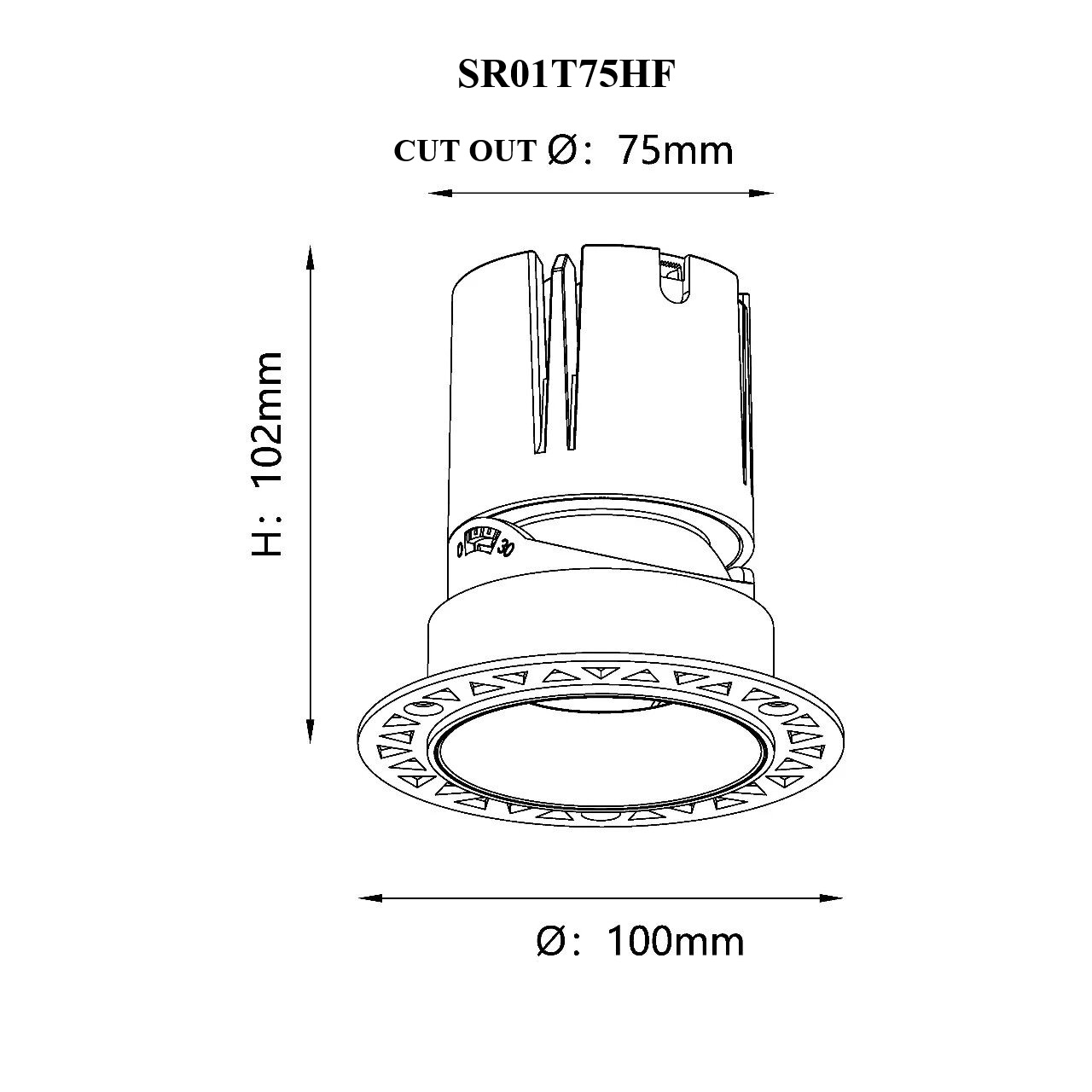

| 4 | SR01T75HF | 12-15W | Ø100*H102 | ||||
| 5 | SR01T95SF | 15-18W | Ø120*H115 | Ø95 | 020/ 1507/ 1816 |
||
| 6 | SR01T95HF | 20-24W | Ø120*H125 |
| Model | SR01T55SF, SR01T55HF, SR01T75SF, SR01T75HF, SR01T95SF, SR01T95HF |
|---|---|

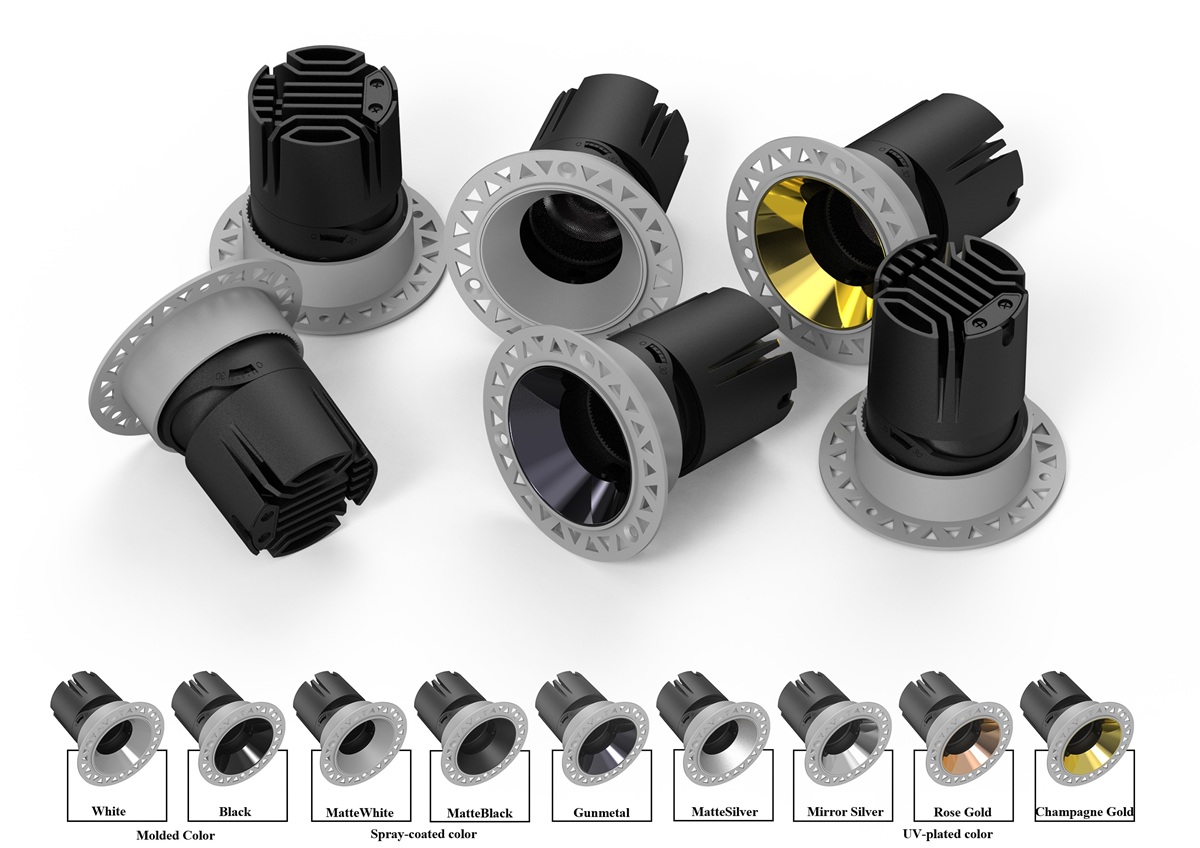

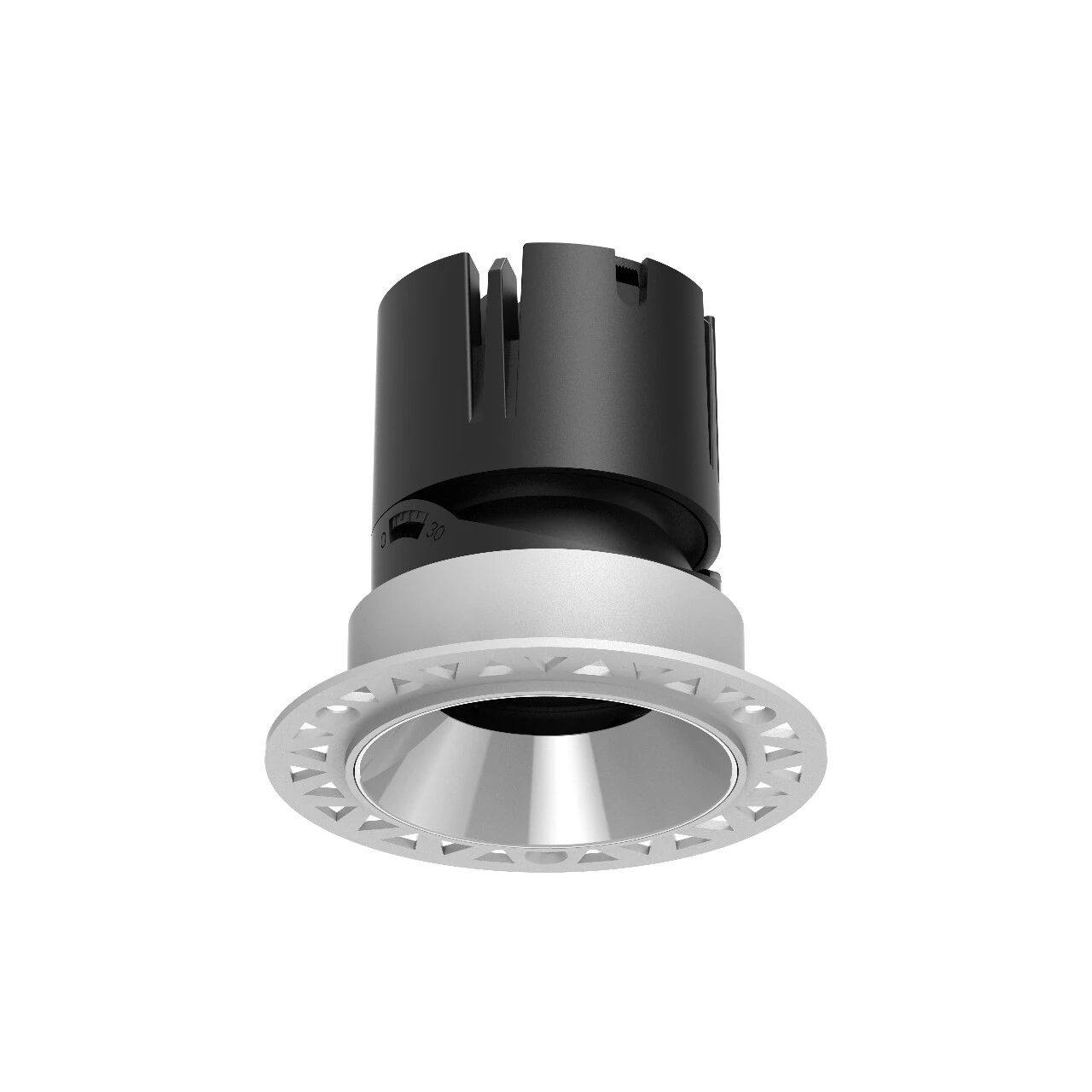

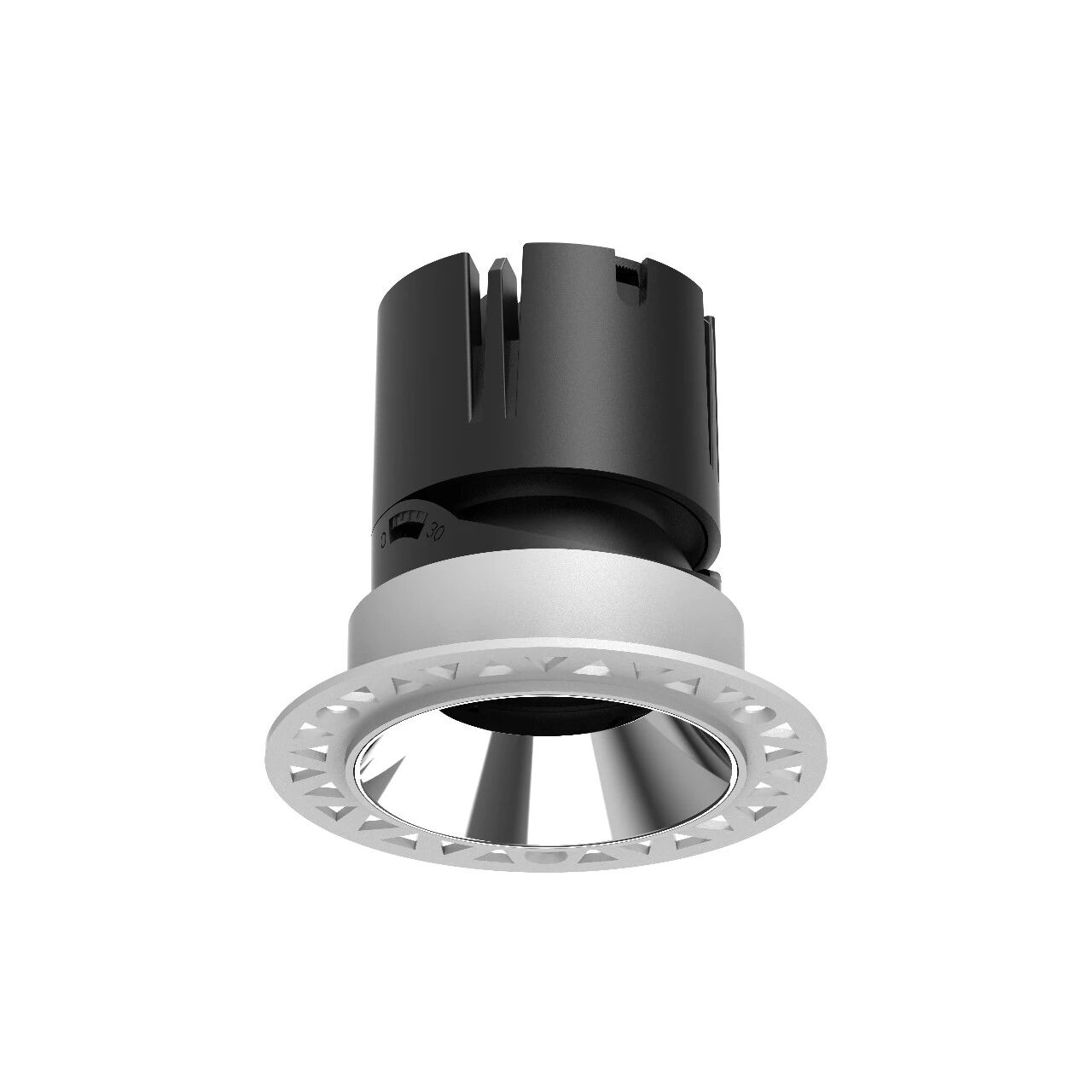

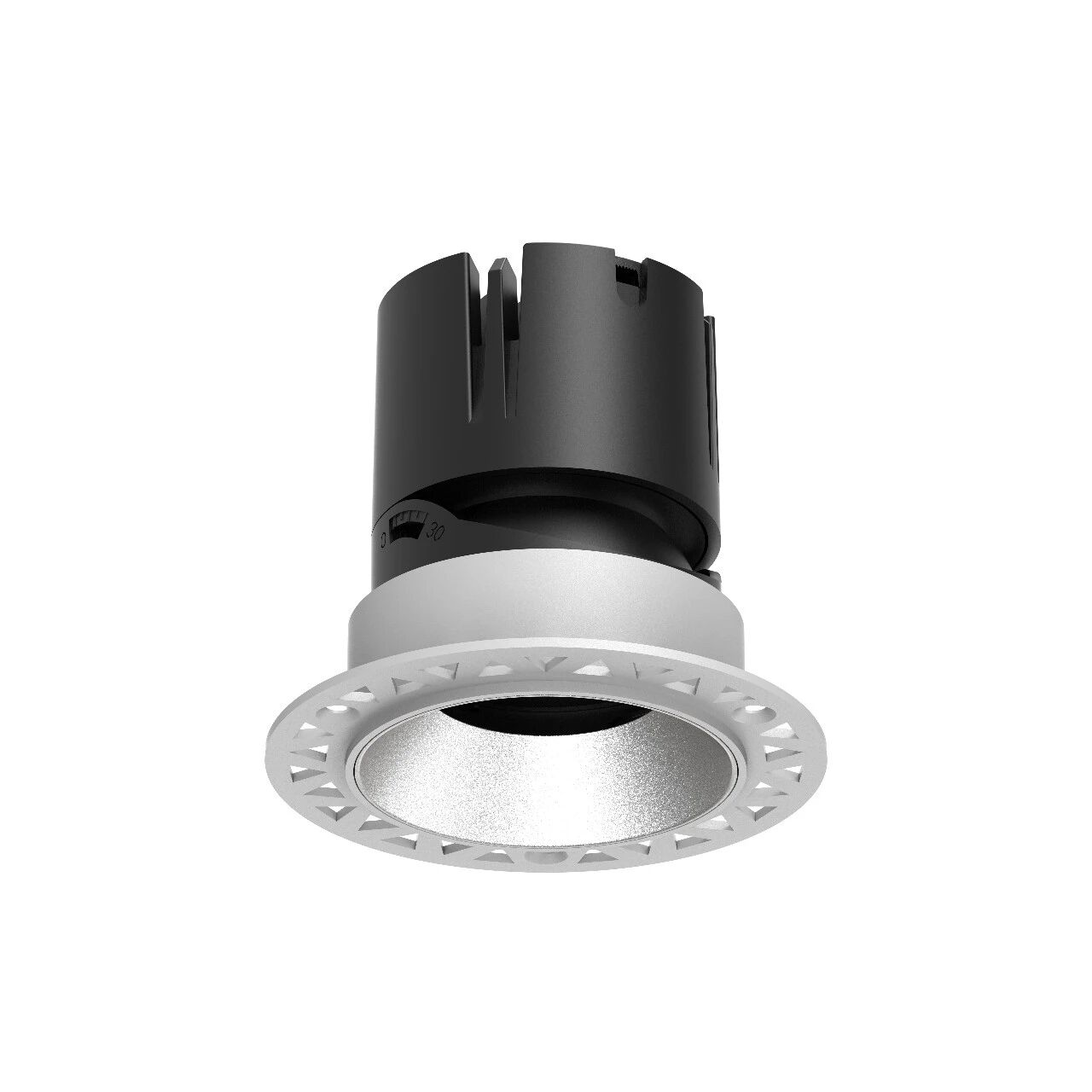

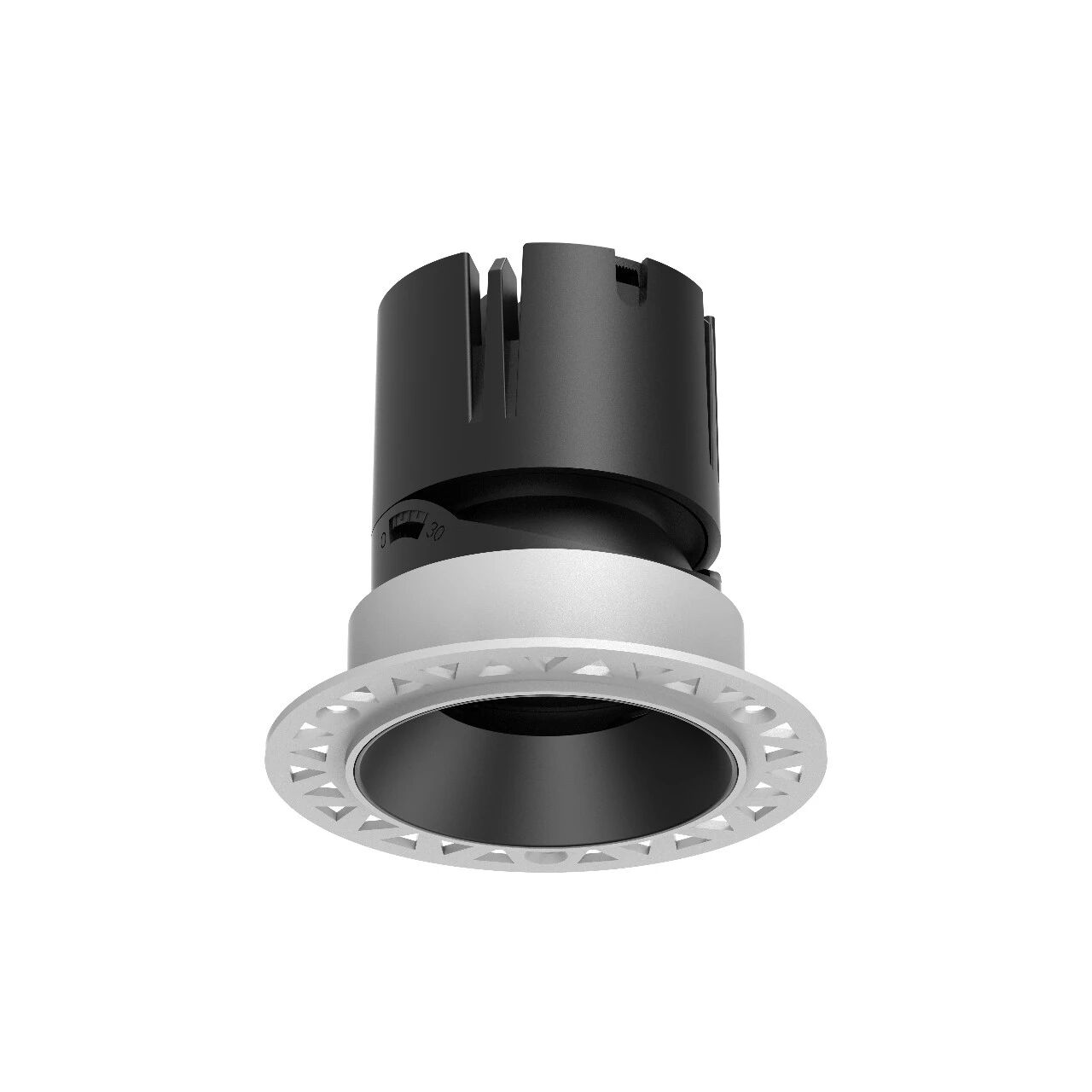

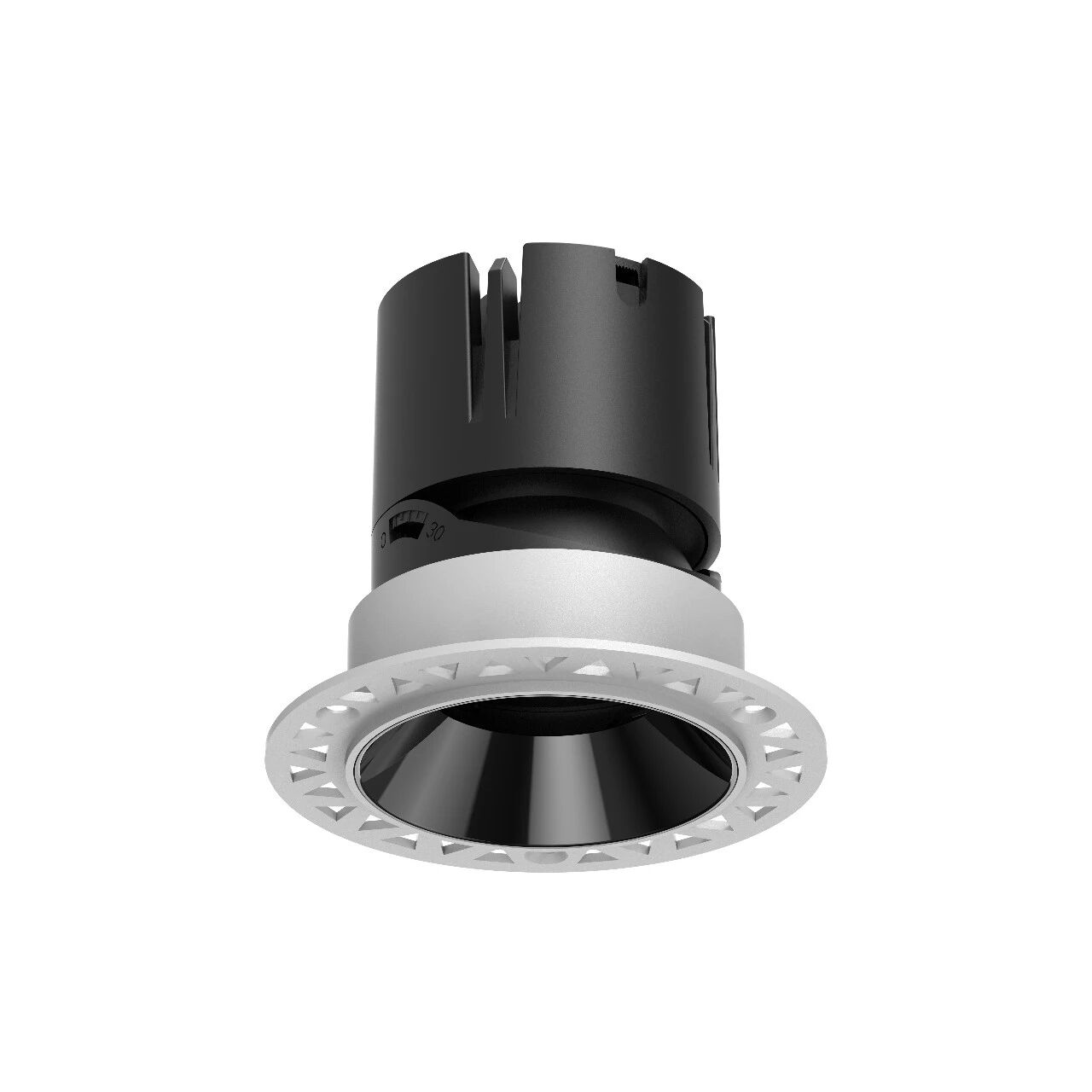

| Reflector cup color | Molded Color:White/Black, Spray‑coated color:MatteWhite/MatteBlack/MatteSilver, UV‑plated color:Mirror Silver/Gunmetal/Champagne Gold/Rose Gold |
| Beam Angle | |
| Cutout or Body Size | |
| IP Rating | |
| Power | |
| Housing Material |
