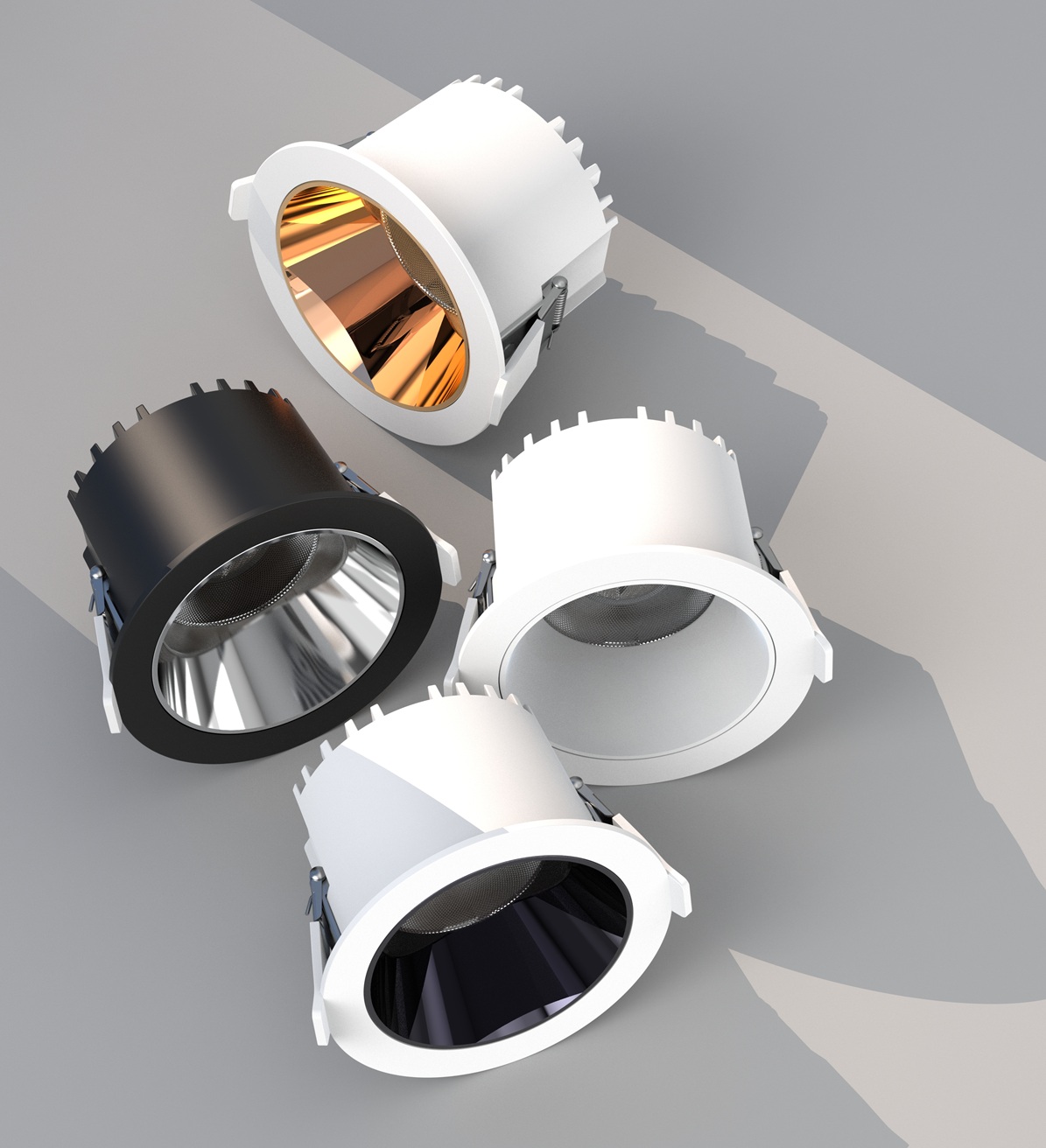

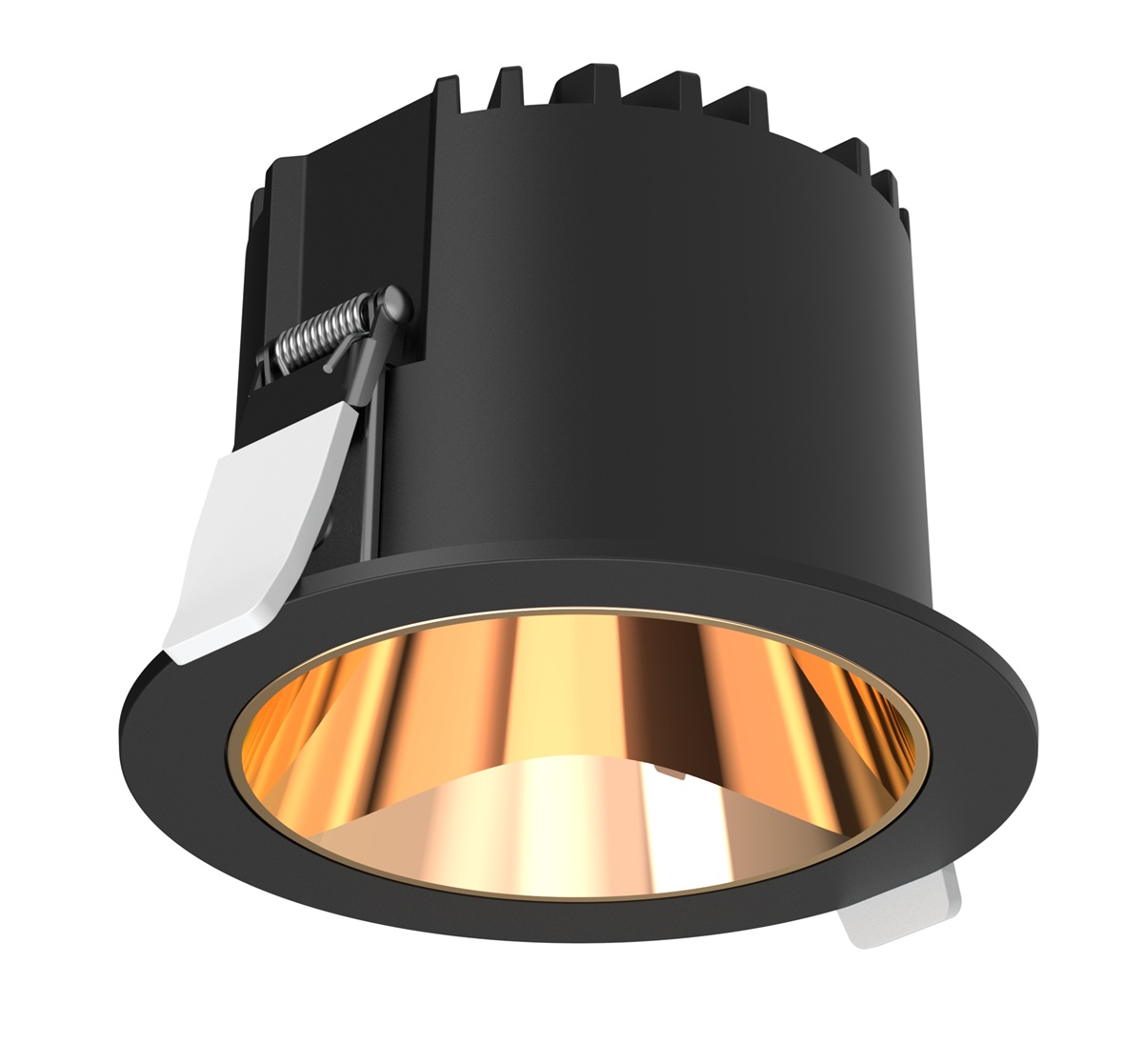

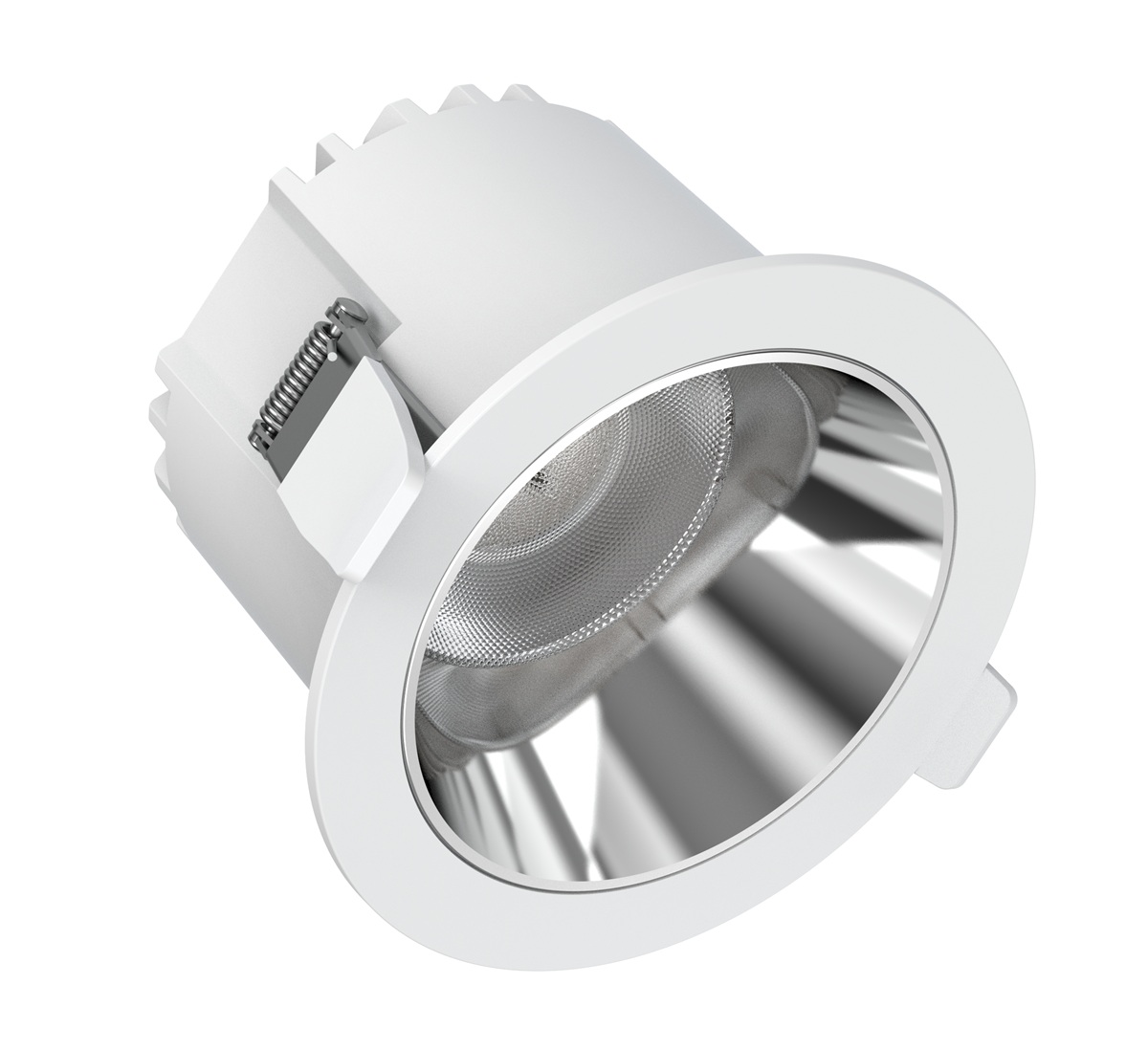

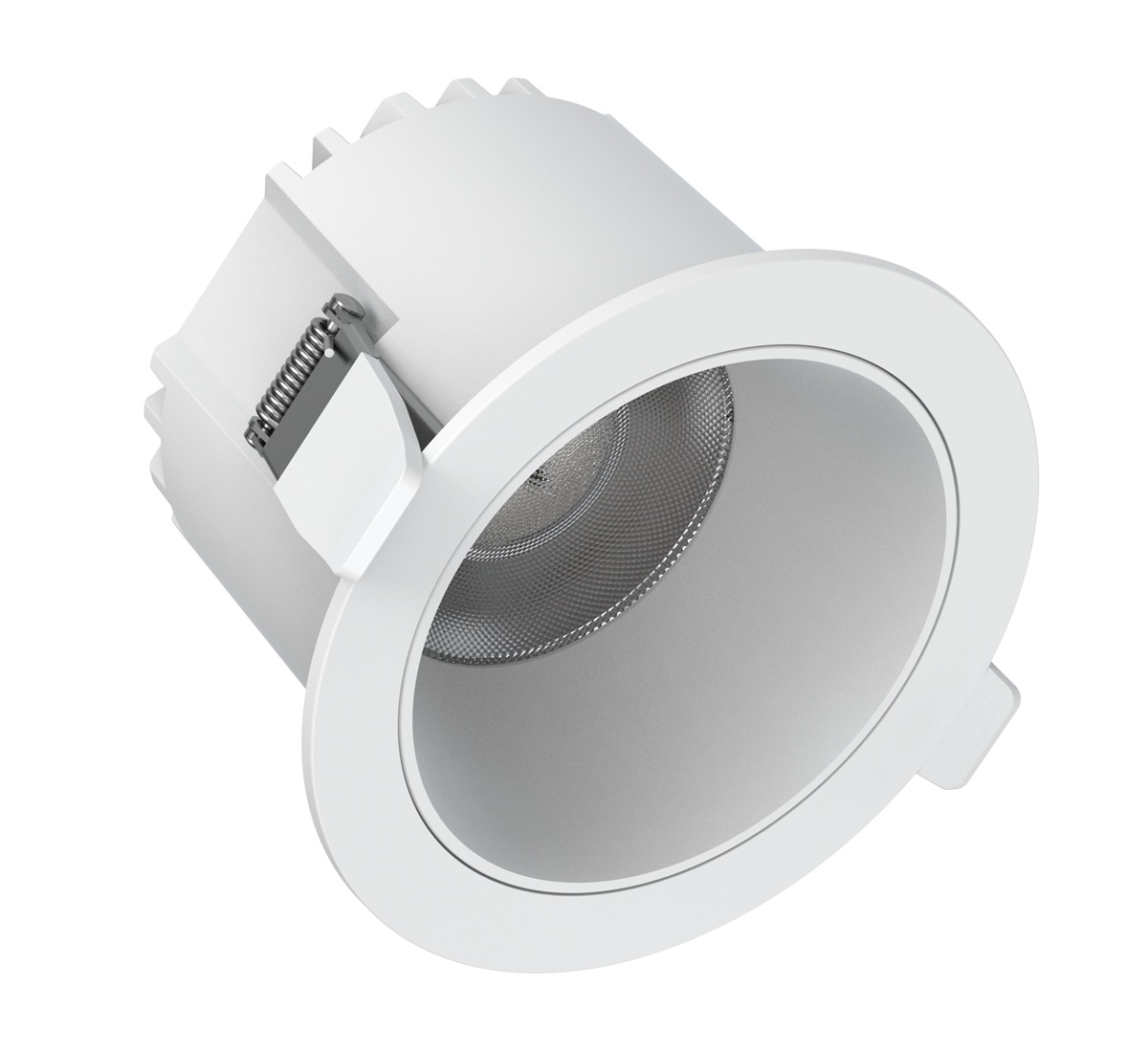

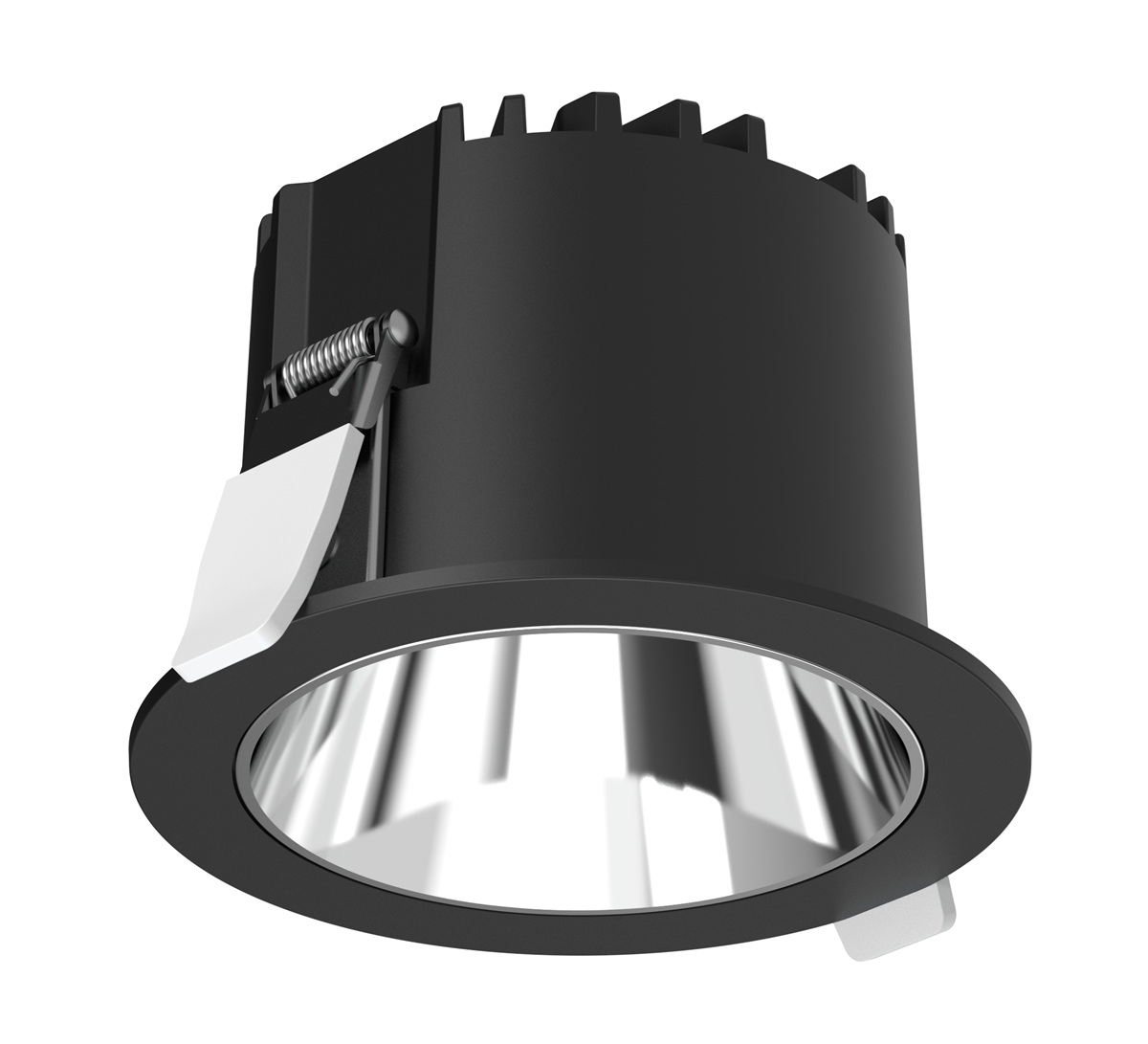

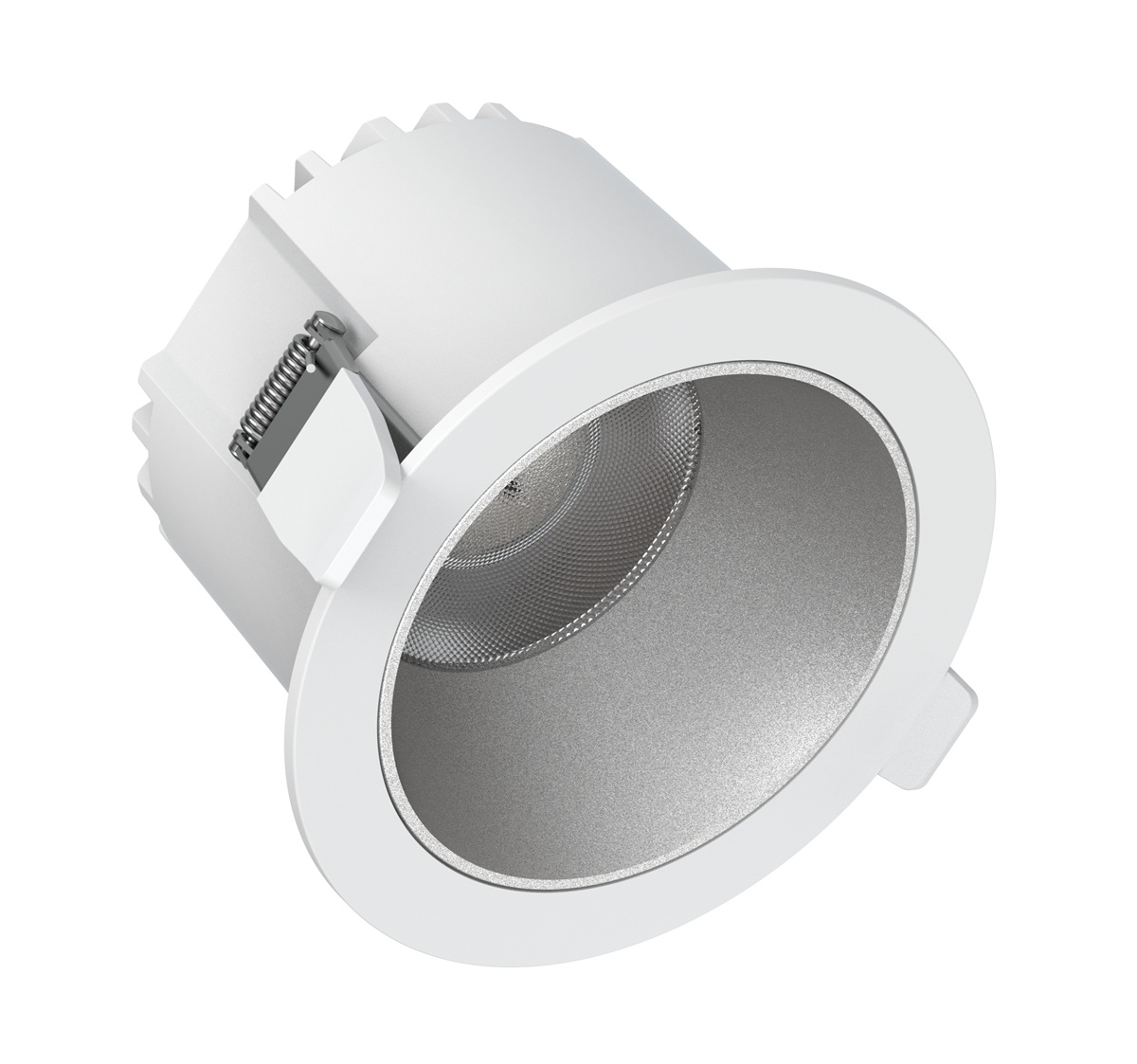

Die-cast Aluminum Anti-glare SMD Downlight Housing Kit
Key Features

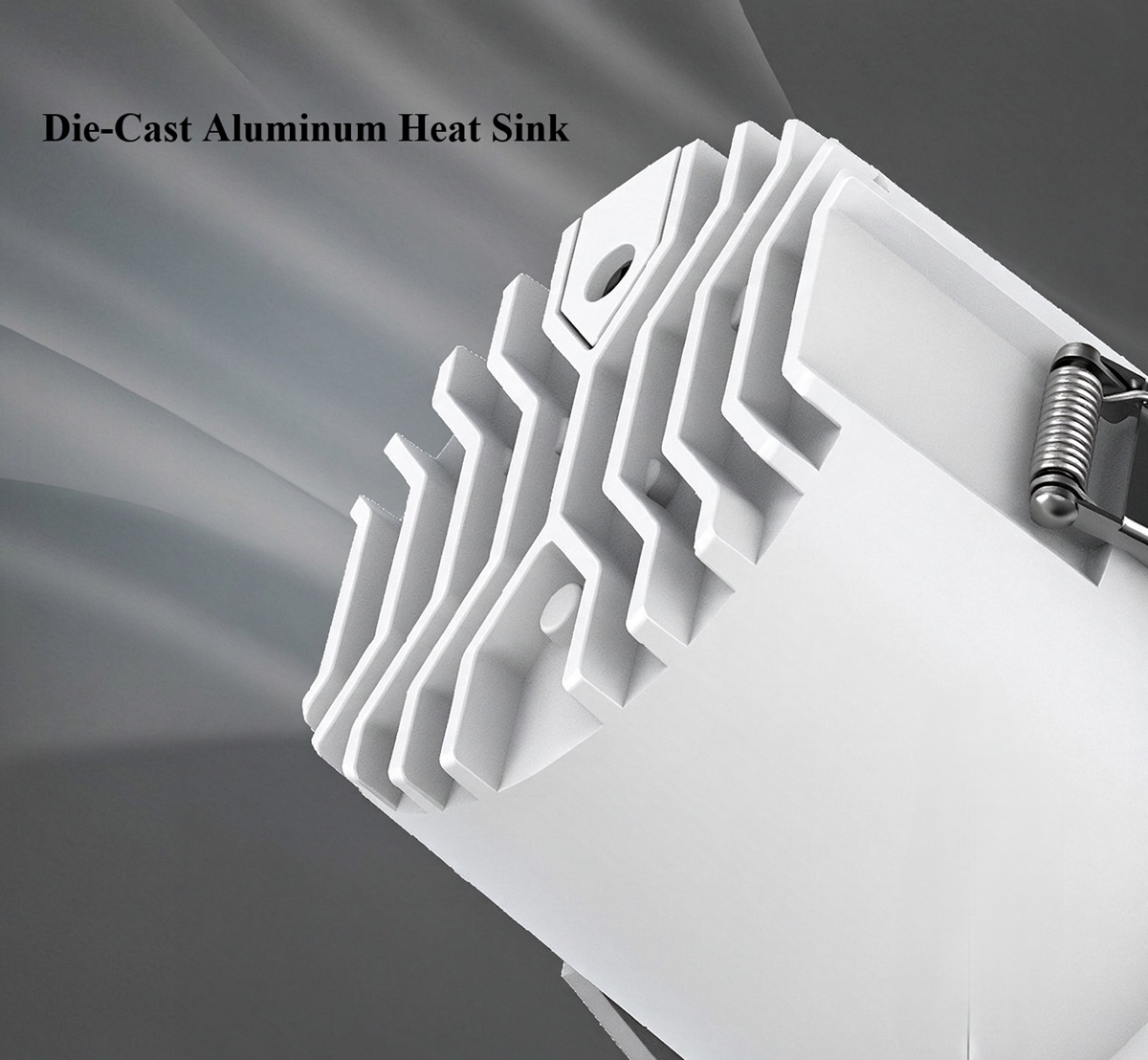

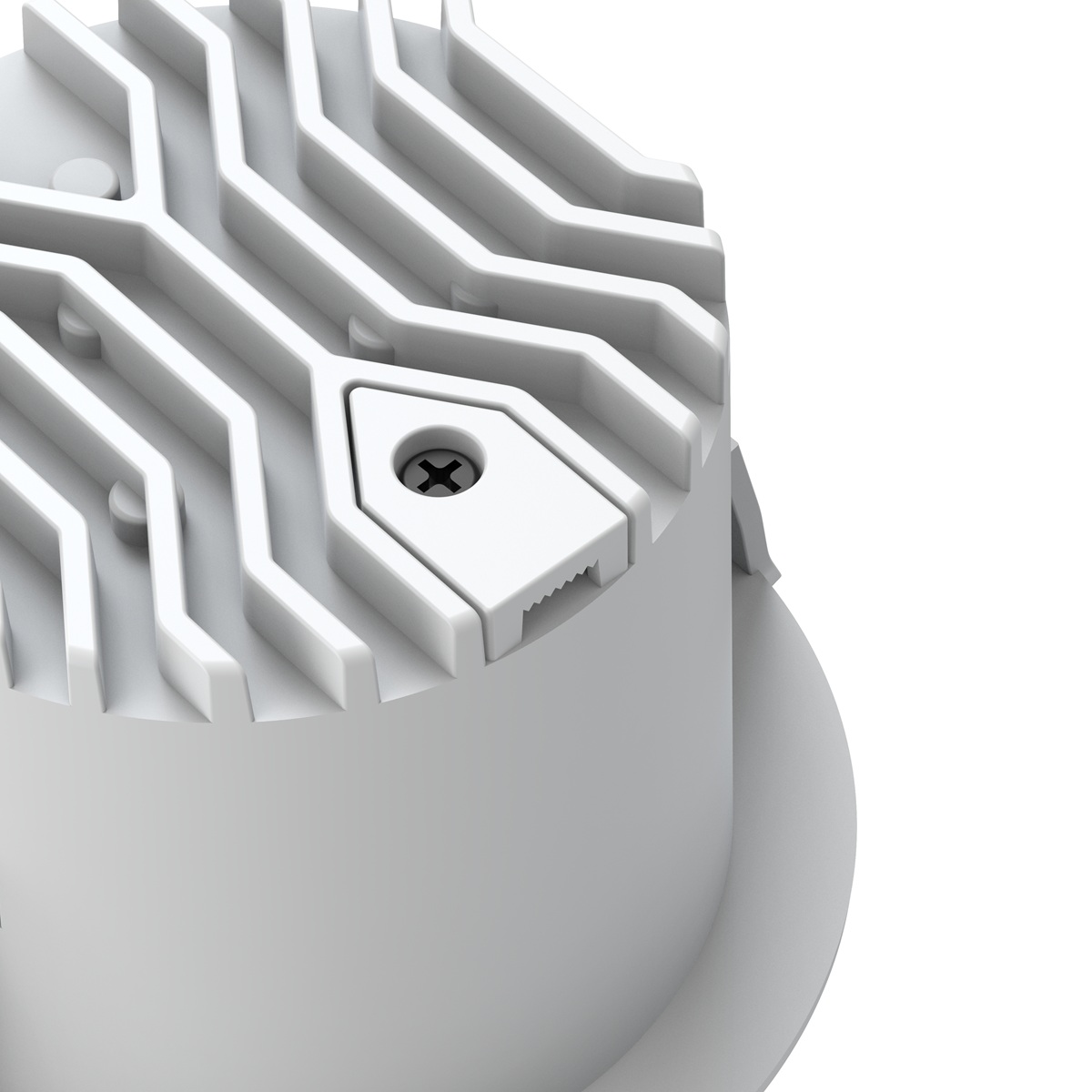

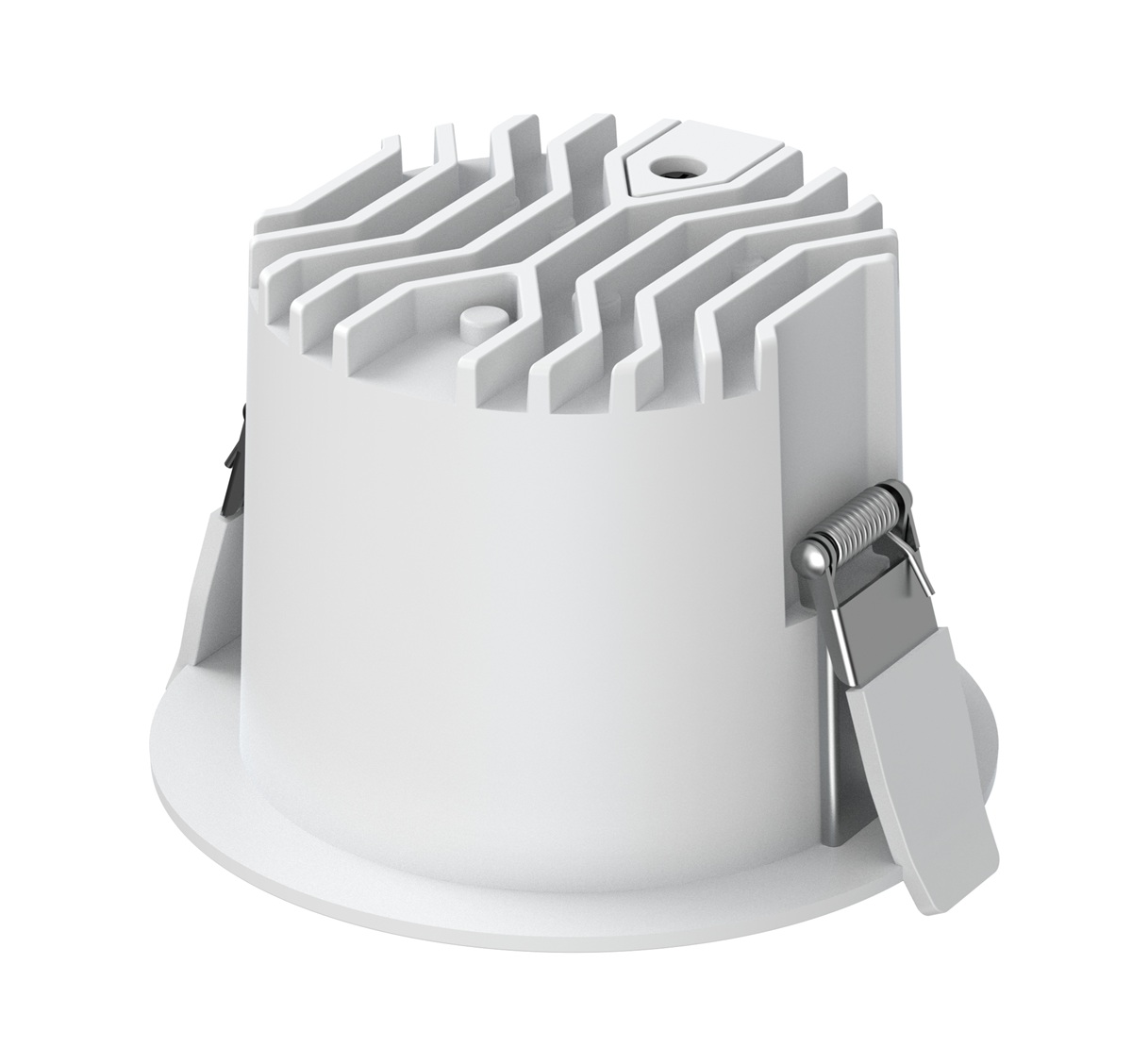

- Die-cast aluminum body with fin heat sink: superior heat dissipation, scratch-resistant & long durability

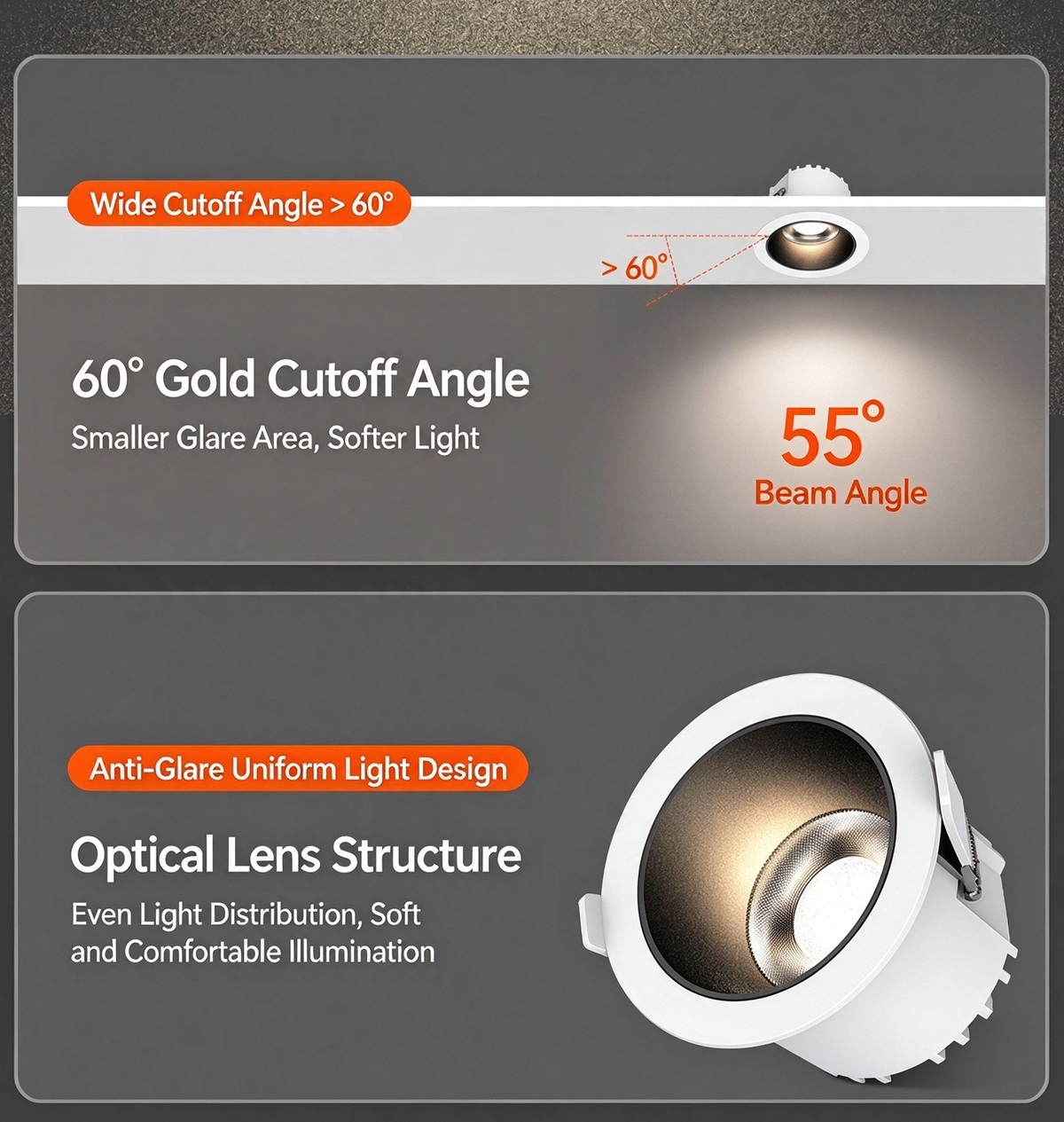

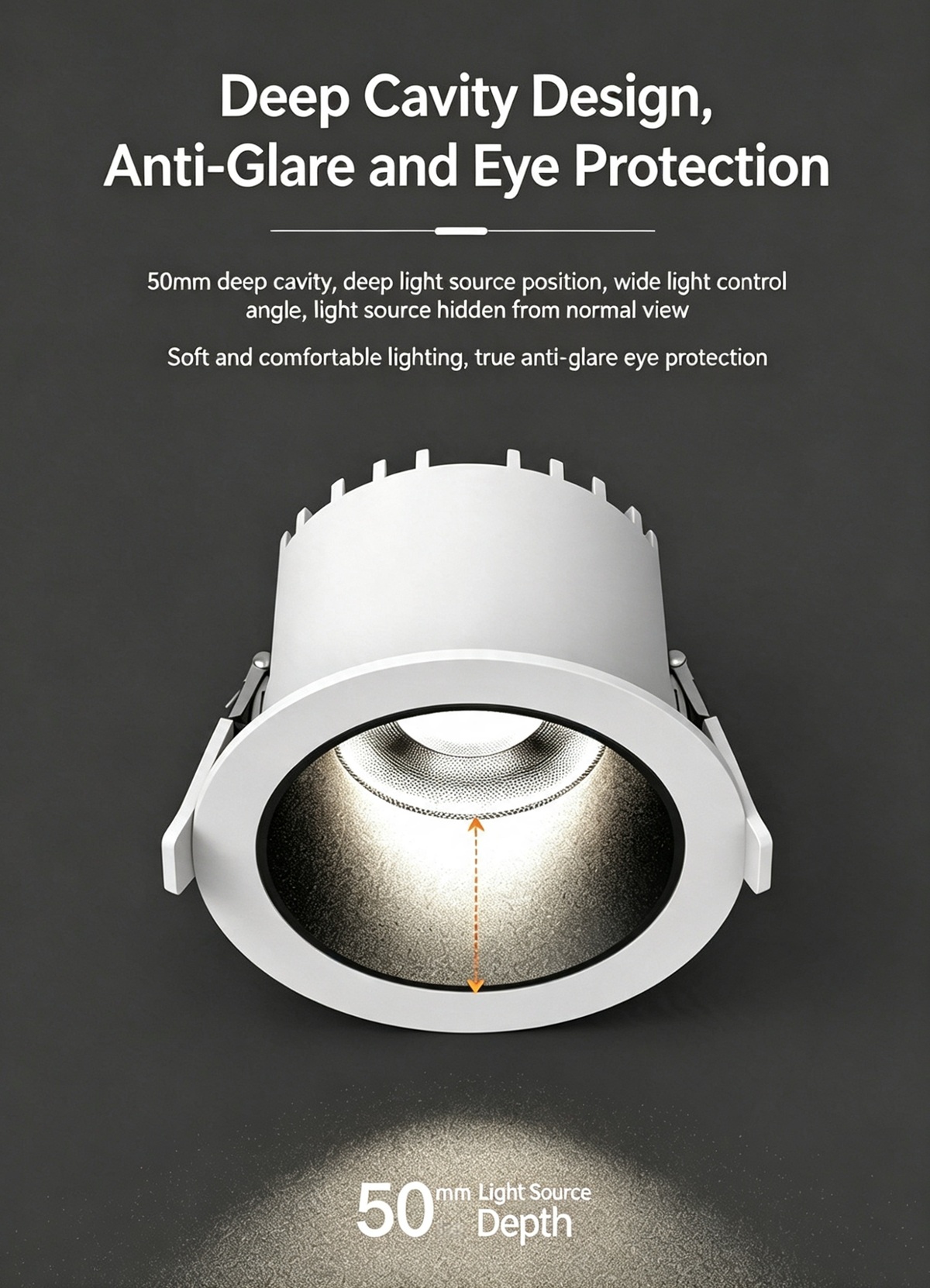

- Deep cavity anti-glare structure: 50mm deep cup, cutoff angle＞60°, eye-protection anti-glare
- High-efficiency optical lens: soft & clear light output, clean spot without stray light

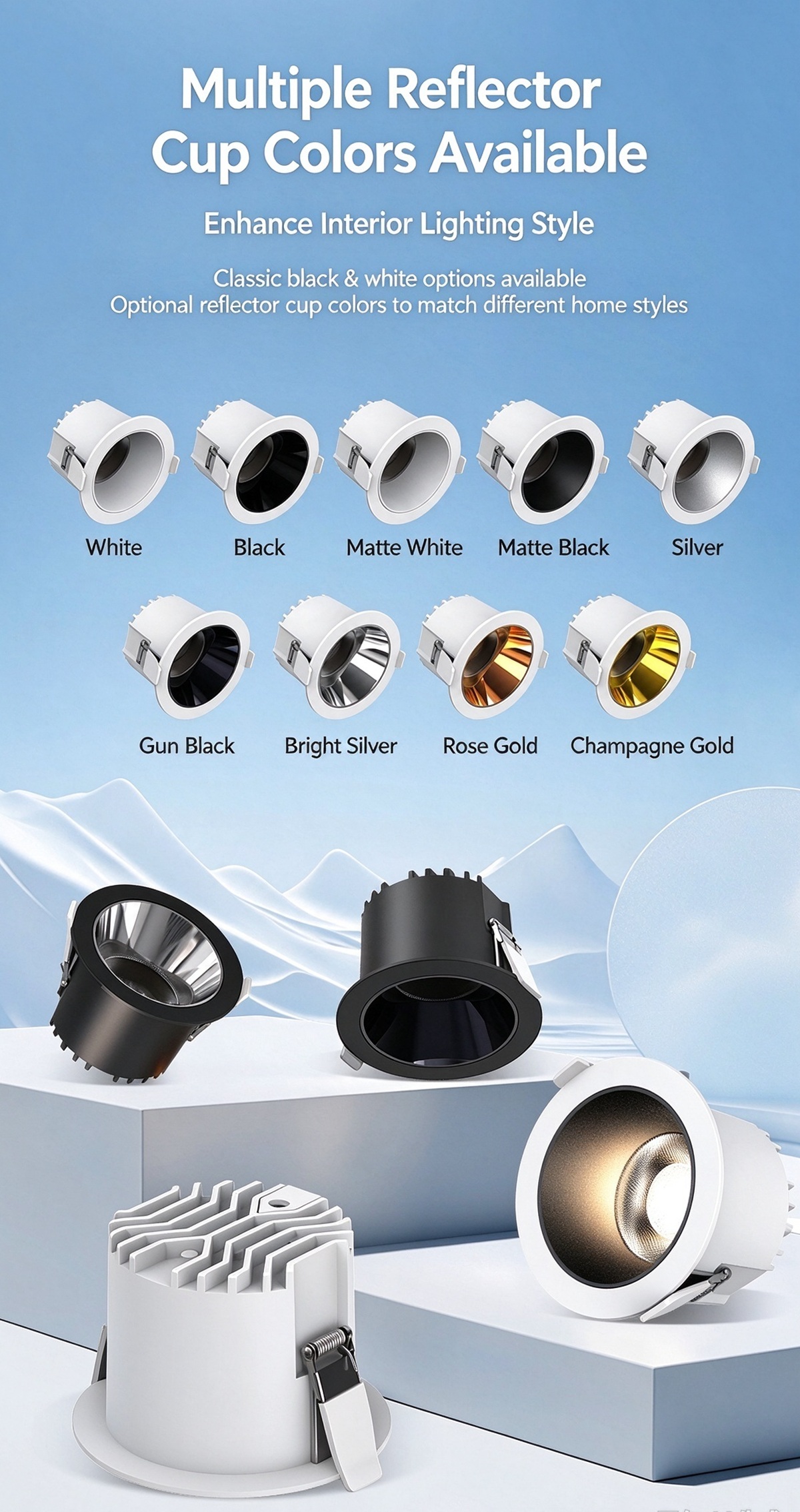

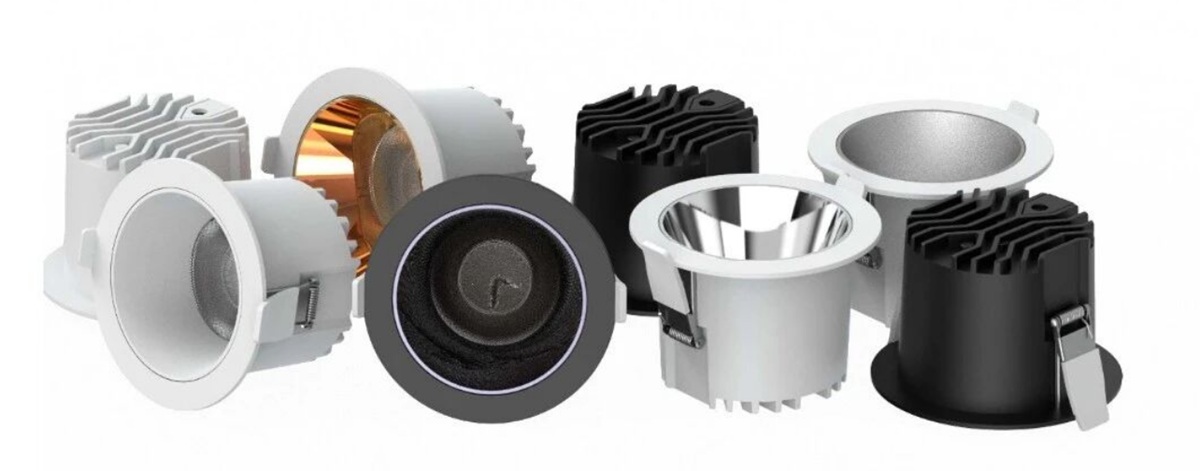

- 9 optional reflector cup colors: flexible color selection for diverse interior styles
- Reinforced spring clips: simple installation, stable & non-deformable for secure mounting
- Recessed cutout design, suitable for ceiling mounting
Applications

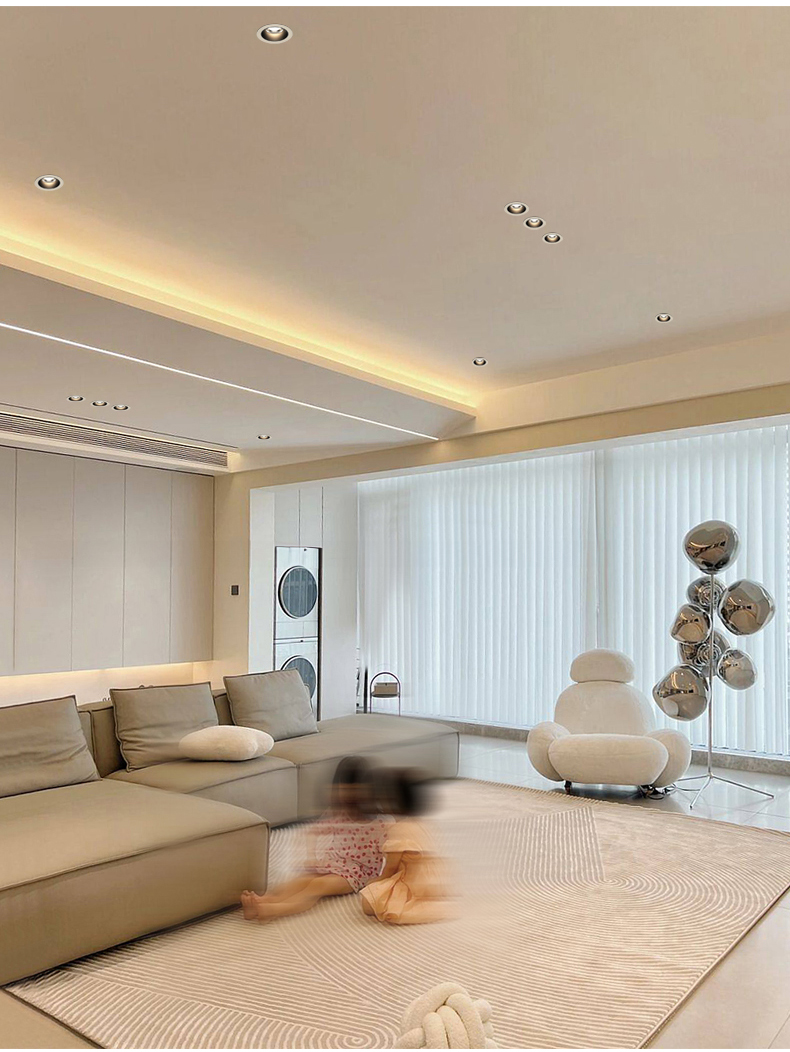

Residential indoor lighting (living room, bedroom, corridor, study), hotel guest rooms, offices, retail shops, exhibition halls, clubs and other recessed ceiling lighting projects.
Price range: $1.28 through $4.33
Die-cast Aluminum Anti-glare SMD Downlight Housing Kit, Recessed Ceiling Downlight Shell With 9 Optional Reflector Cups
Product Overview

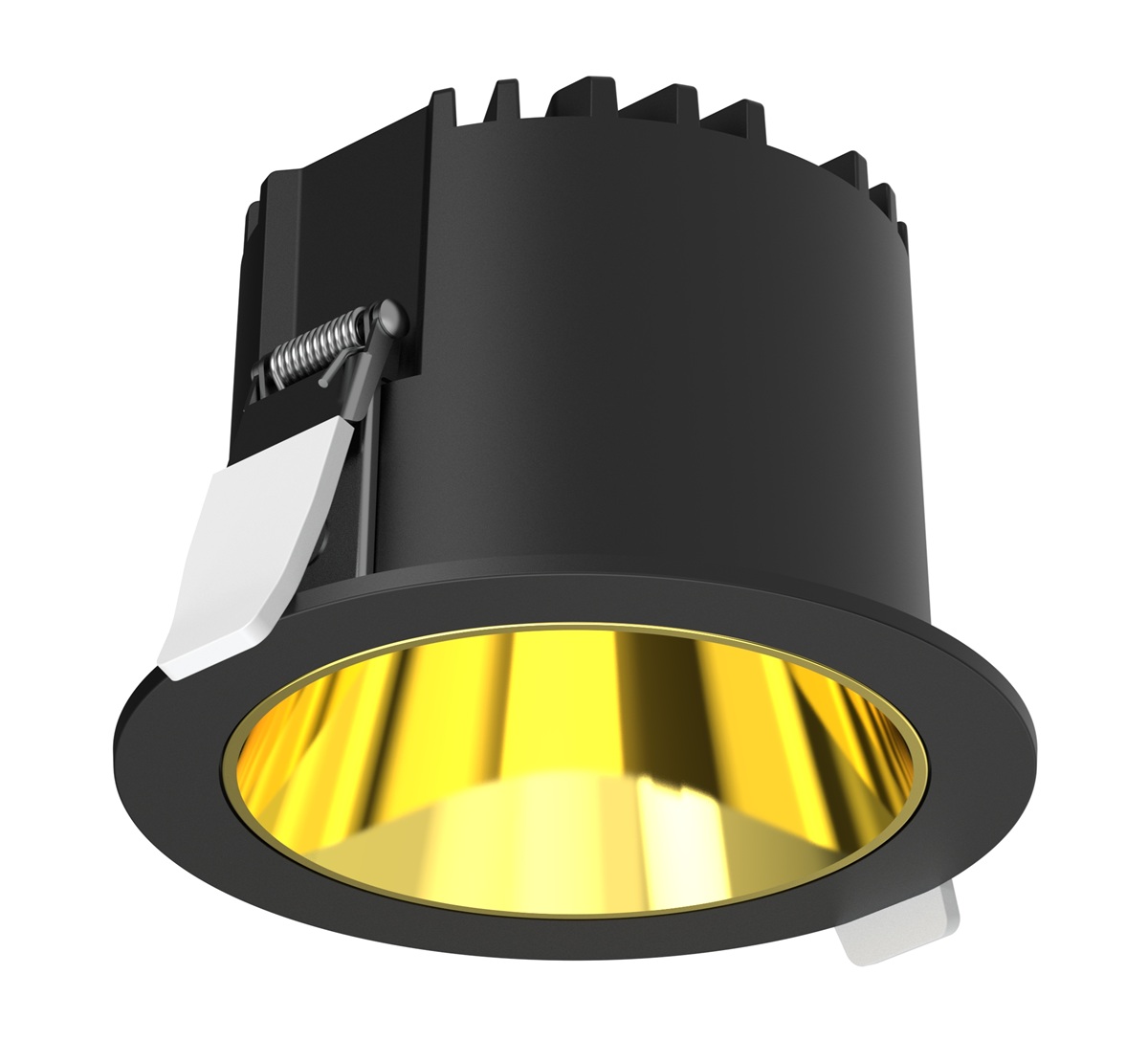

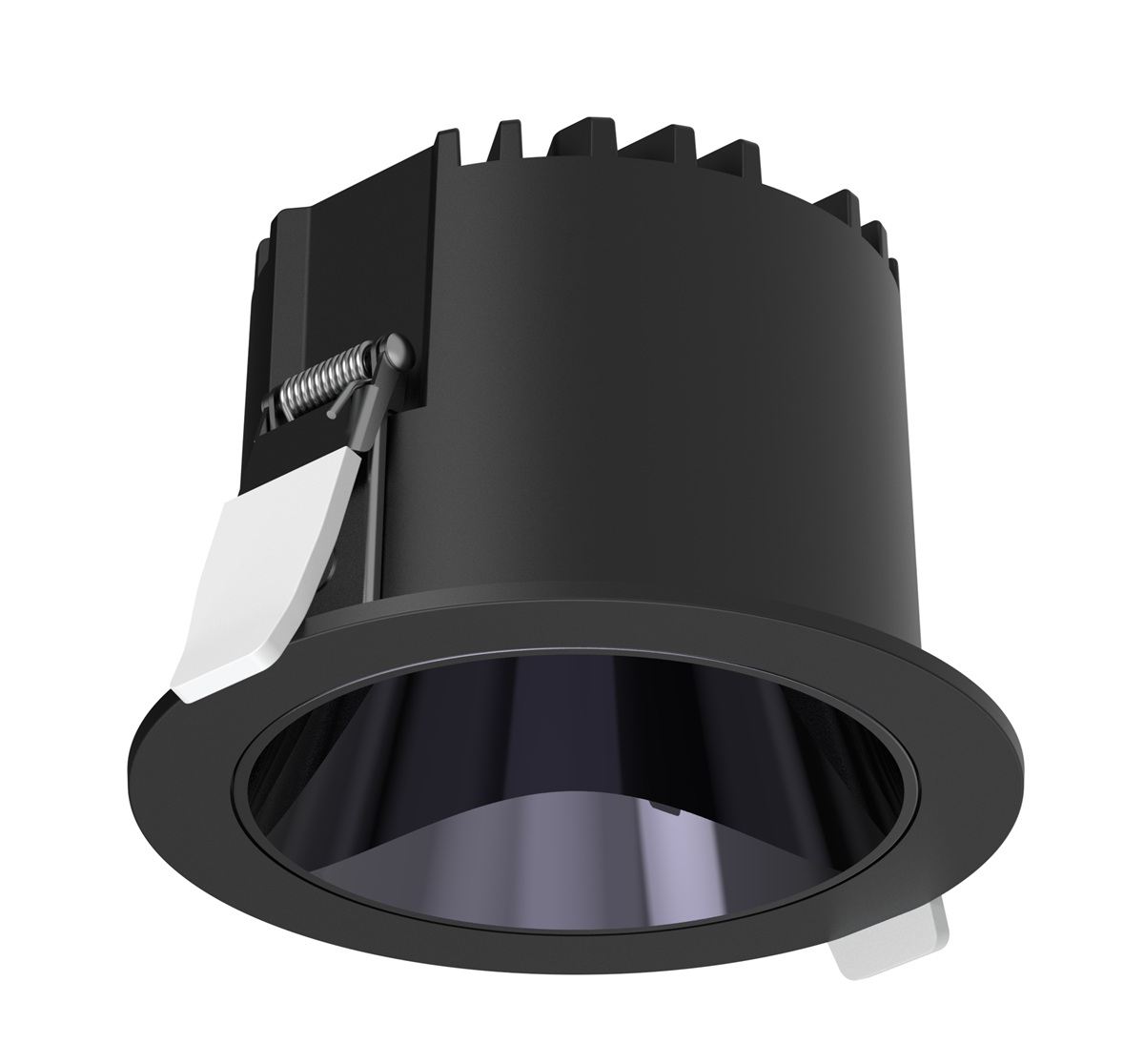

Cost-effective recessed SMD downlight housing kit. Constructed with die-cast aluminum lamp body with fin heat sink structure, fast heat conduction and long service life. 50mm deep cavity light hiding design, cutoff angle＞60°, matched with high light-efficiency optical lens for deep anti-glare performance. It produces soft and even light without stray light, achieving the effect of seeing light but not the lamp. Equipped with reinforced spring clips for easy installation. The clips keep stable and non-deformable for long-term ceiling mounting. 9 reflector cup colors are optional: White, Black, Matt White, Matt Black, Matte Silver, Gun Black, Bright Silver, Rose Gold, Champagne Gold, perfectly matching minimalist, modern and luxury interior decoration styles. This listing is downlight housing kit only, LED chip and driver are NOT included, ideal spare parts for indoor lighting projects.
Model & Spec

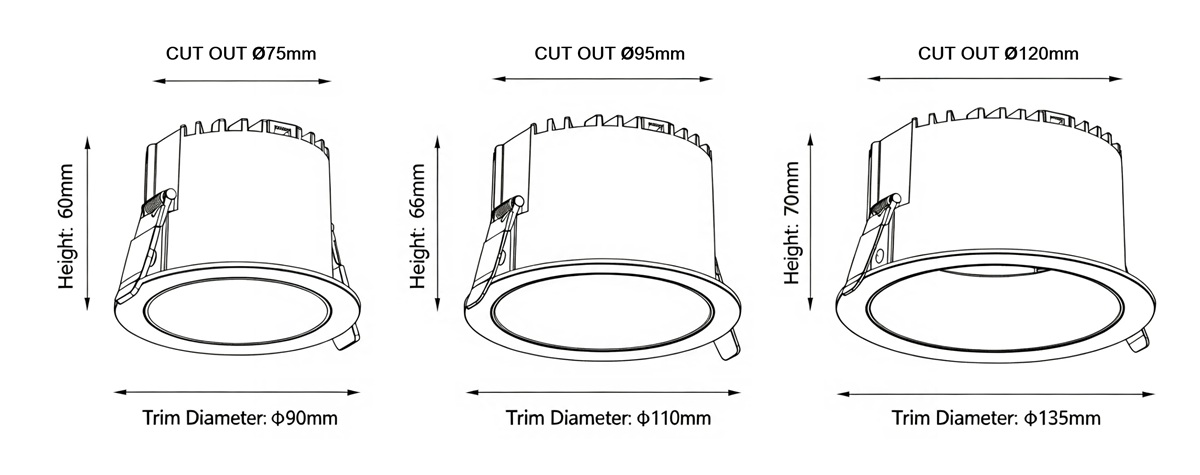

| NO | Model | Recommended Power | Overall Dimensions（mm) | Cut-out Size(mm) | Beam Angle | LED Holder | Color |
| 1 | DR01FS75 | 10-12W | Ø90*H60 | Ø75 | 55° | No COB‑LED holder, fitted with SMD PCB light source board. | Housing Color: Sand‑Black / Sand‑White Reflector Color: 1.Molded Color:White/Black; 2.Spray‑coated color:MatteWhite/MatteBlack/MatteSilver; 3.UV‑plated color:Mirror Silver/Gunmetal/Champagne Gold/Rose Gold |
| 2 | DR01FS95 | 15-18W | Ø110*H66 | Ø95 | |||
| 3 | DR01FS120 | 20-24W | Ø135*H70 | Ø120 |
Please note:
1. Reflector cup pricing varies by color: UV-plated costs the most, spray-coated is next, and molded color is slightly cheaper (usually only USD 0.1–0.2 difference). Unless stated otherwise, quoted prices are for UV-plated and apply to small batches or samples. For bulk orders, contact customer service.
2. Recommended power is for reference only. It depends on light source and driver quality, which are not included. Confirm actual power based on measured light source temperature rise to ensure lifespan.
3. When ordering a kit, provide the product model, lamp color, light source specs and size, required beam angle, and reflector cup color.
More Details
| Moedl | DR01FS75, DR01FS95, DR01FS120 |
|---|---|
| Reflector Color | 1.Molded Color:White/Black, 2.Spray‑coated color:MatteWhite/MatteBlack/MatteSilver, 3.UV‑plated color:Mirror Silver/Gunmetal/Champagne Gold/Rose Gold |
| Power | |
| Housing Material | |
| Beam Angle | |
| Cutout or Body Size | |
| IP Rating |
Related products
-
Downlight KitsIP65 Waterproof Downlight Housing Kit
Price range: $2.17 through $6.96 Select options This product has multiple variants. The options may be chosen on the product page -
Lighting KitsHigh Power（30W-90W） Recessed COB Spotlight Housing Kit
Price range: $9.14 through $66.37 Select options This product has multiple variants. The options may be chosen on the product page -
Lighting KitsQin Series Recessed COB Spotlight Housing Kit-Curved Trim
Price range: $1.91 through $5.12 Select options This product has multiple variants. The options may be chosen on the product page -

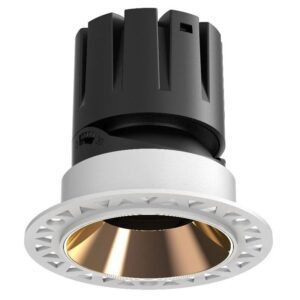

Lighting KitsS Series LED Recessed Spotlight Kits -Trimless Trim
