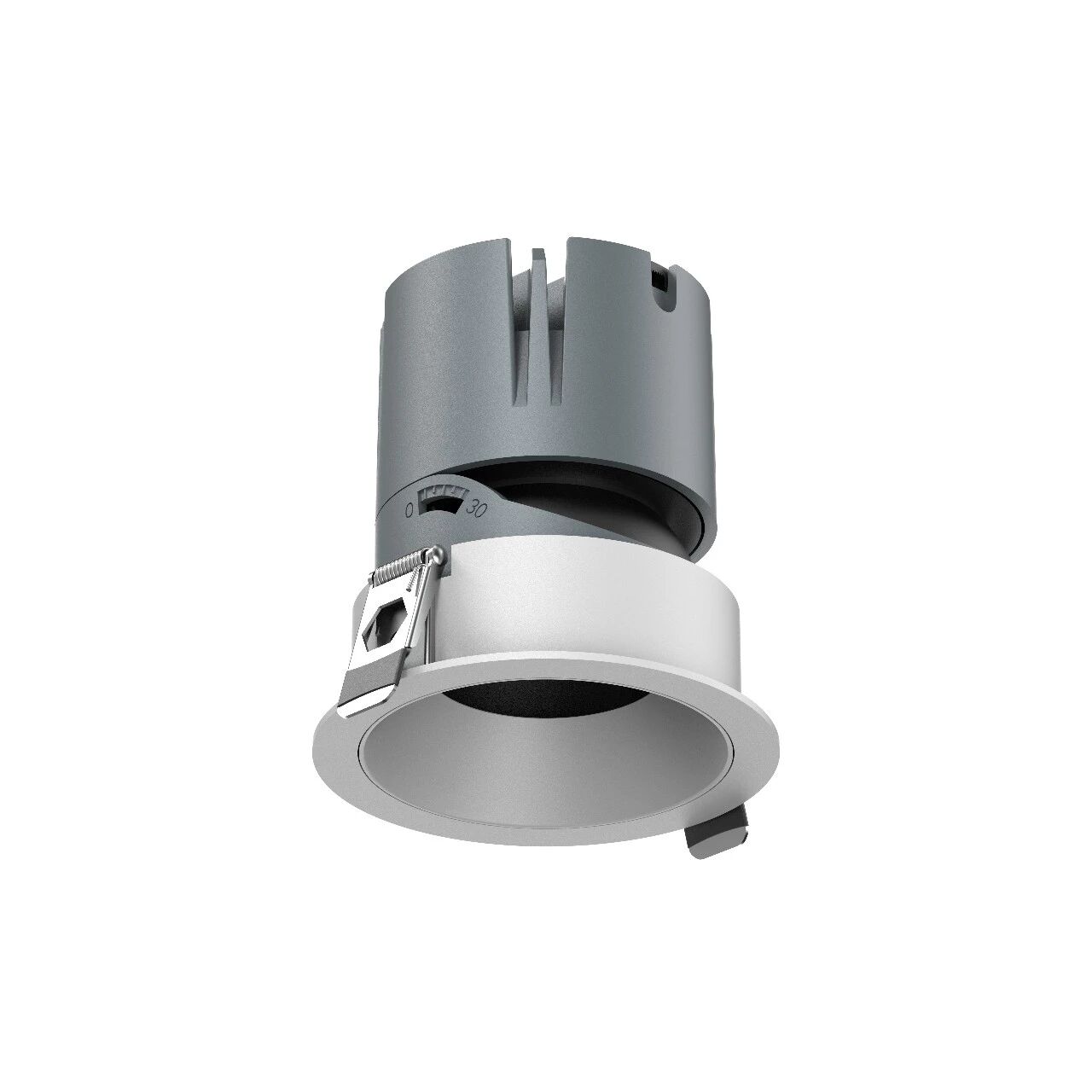

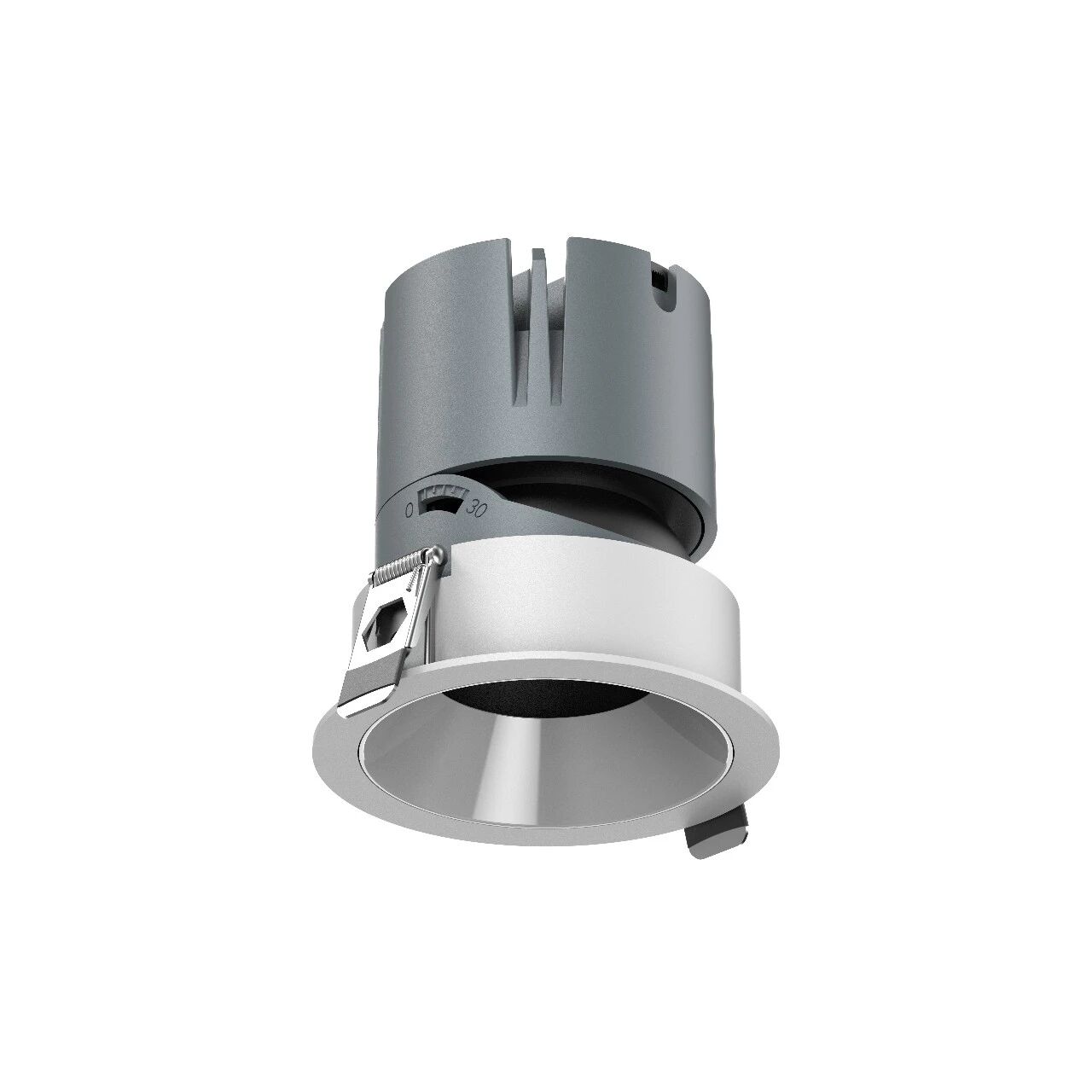

UGR≈0，“T ” -Flat Trim Series Recessed LED Spotlight Kit
Features

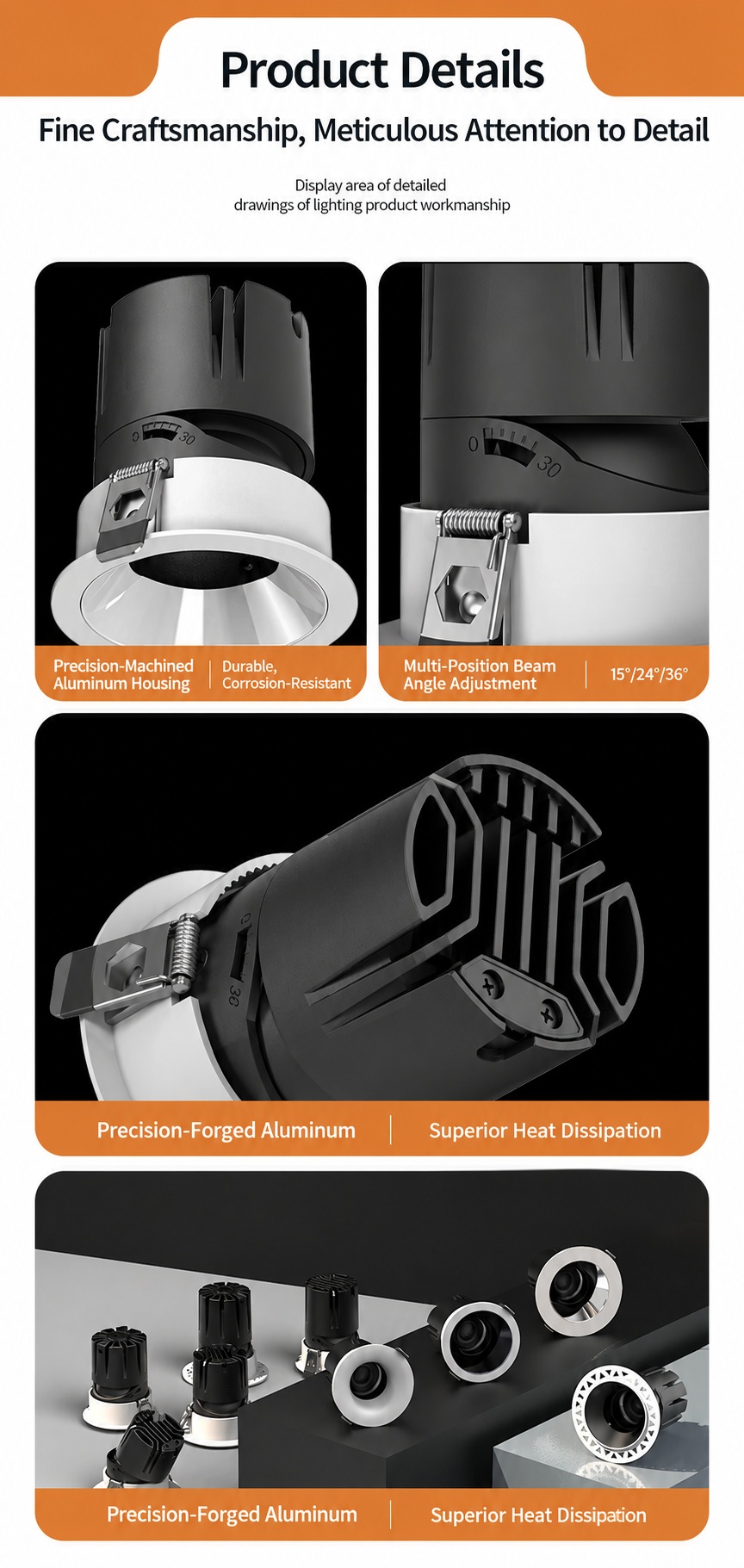

- Solid aluminum construction
- High-performance precision optics

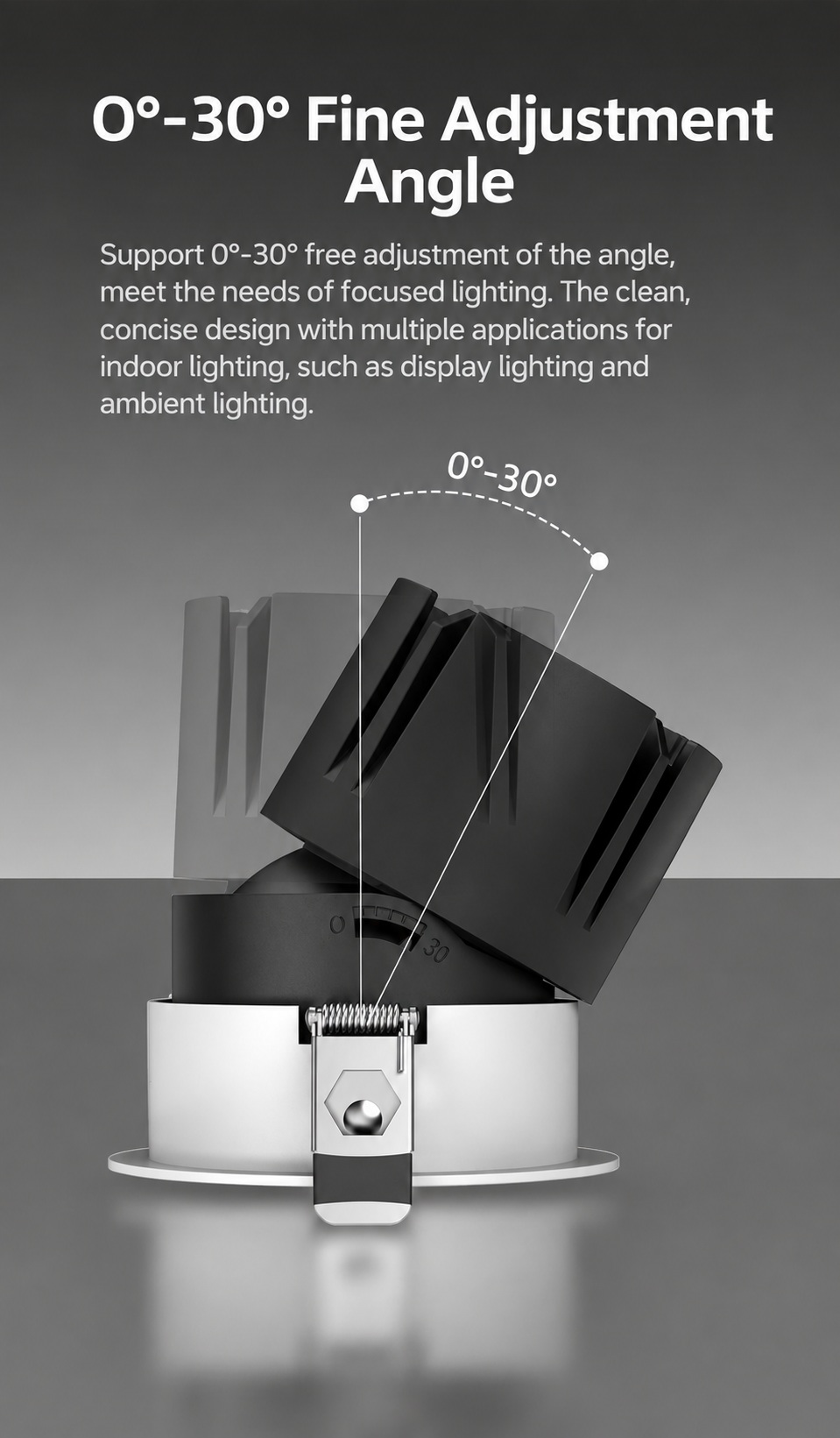

- 0°–30° flexible tilt adjustment

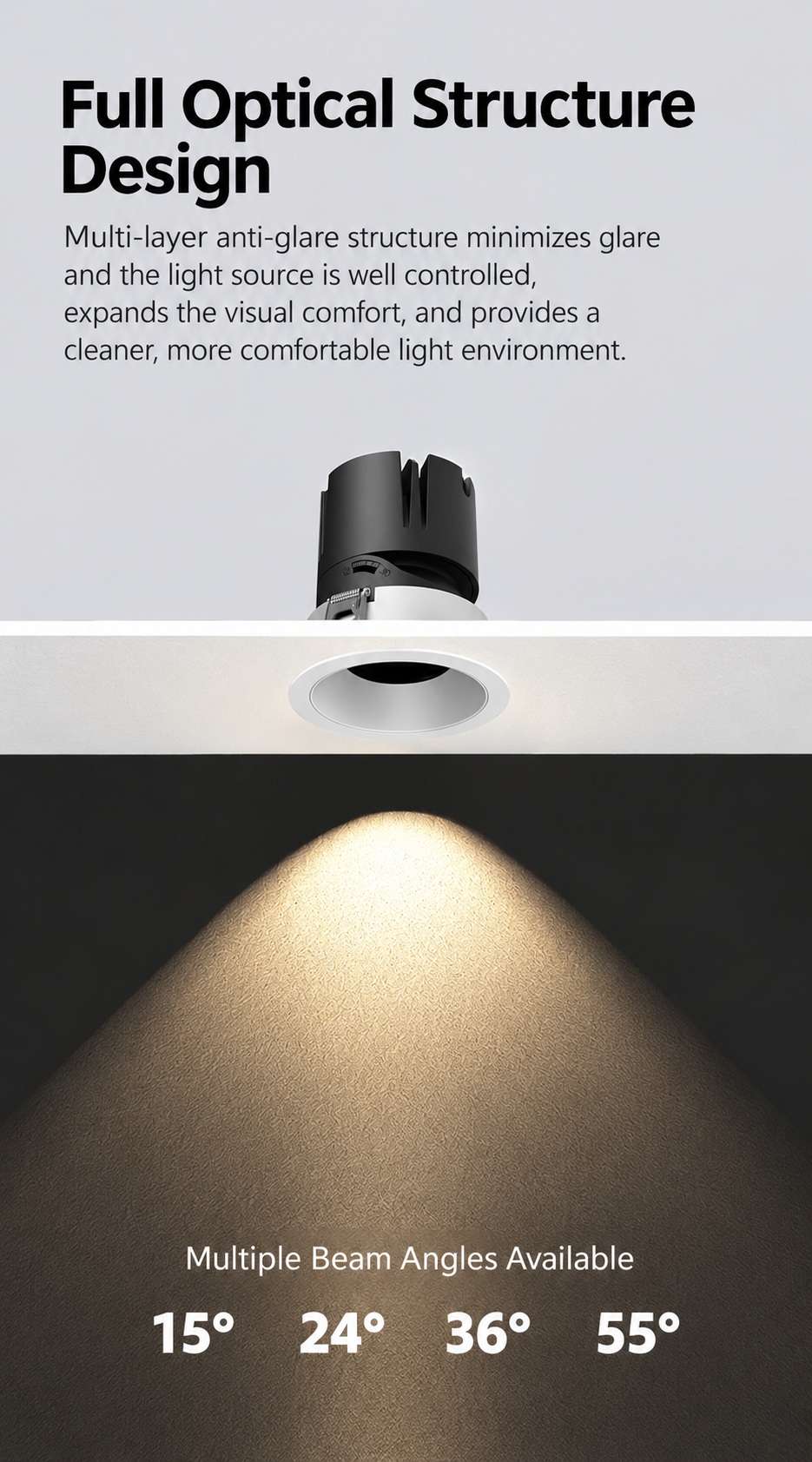

- 15° / 24° / 36° / 55° beam angles
- 55mm / 75mm / 95mm cut-out sizes

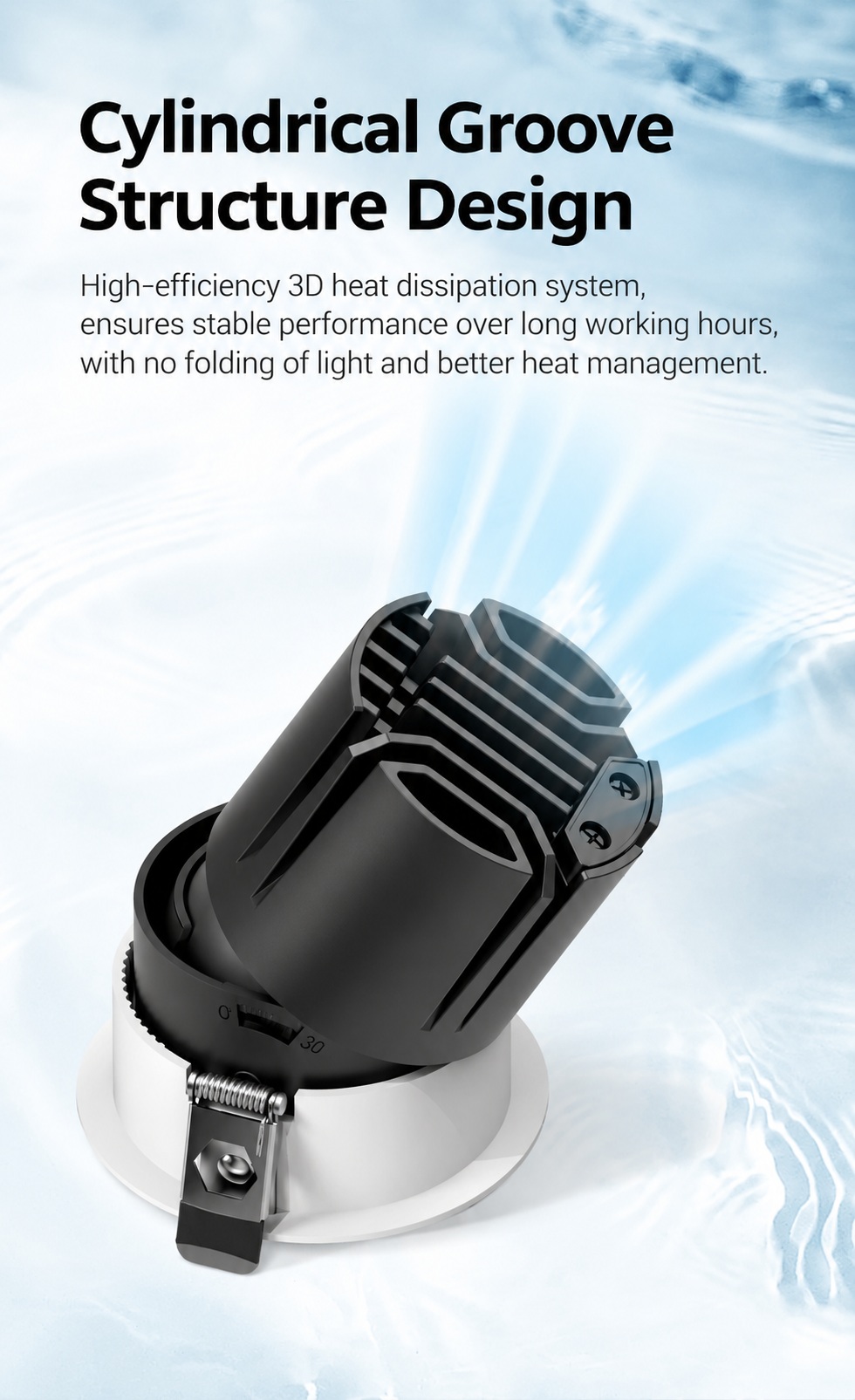

- Tall and short heat sink options
- Premium soft-touch textured finish

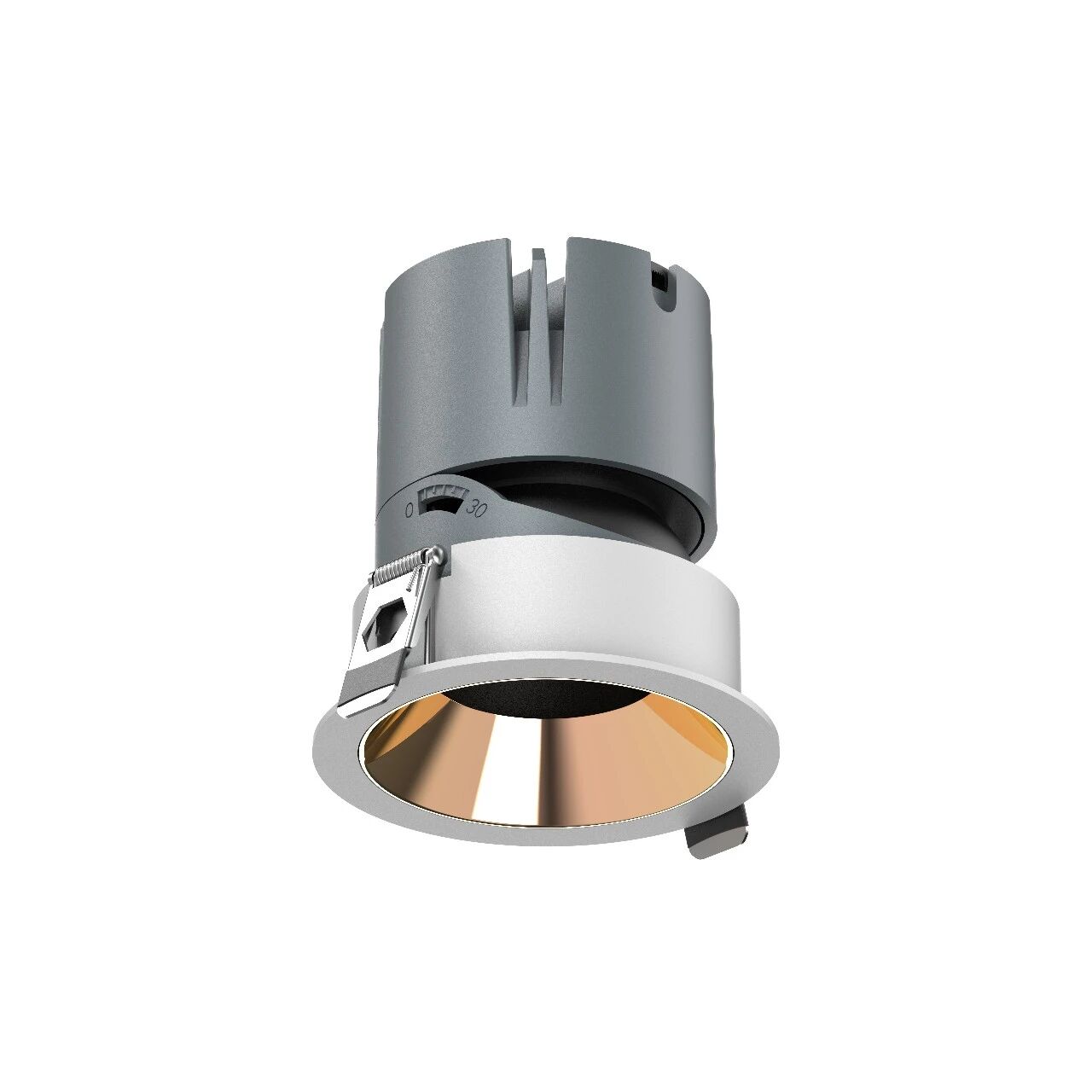

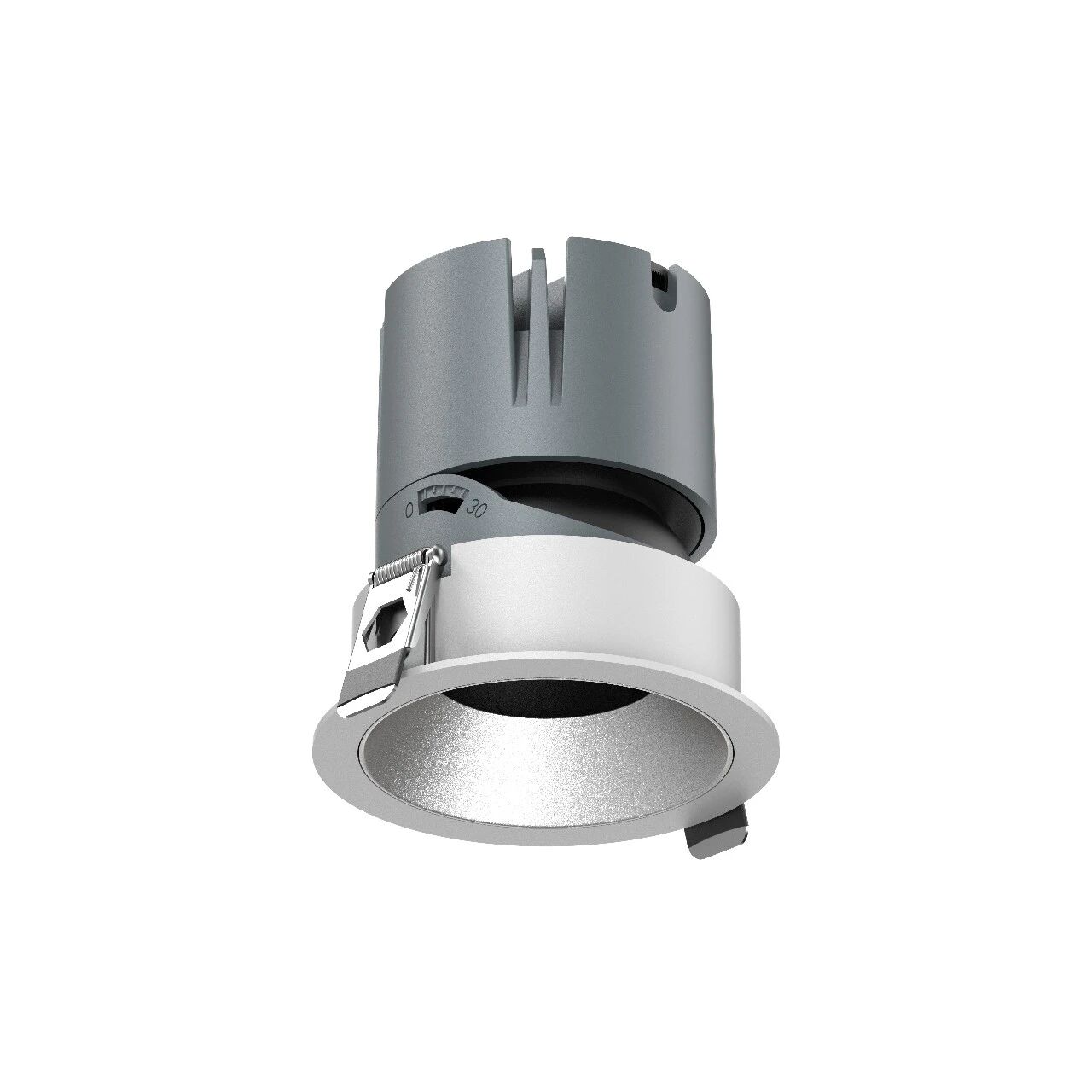

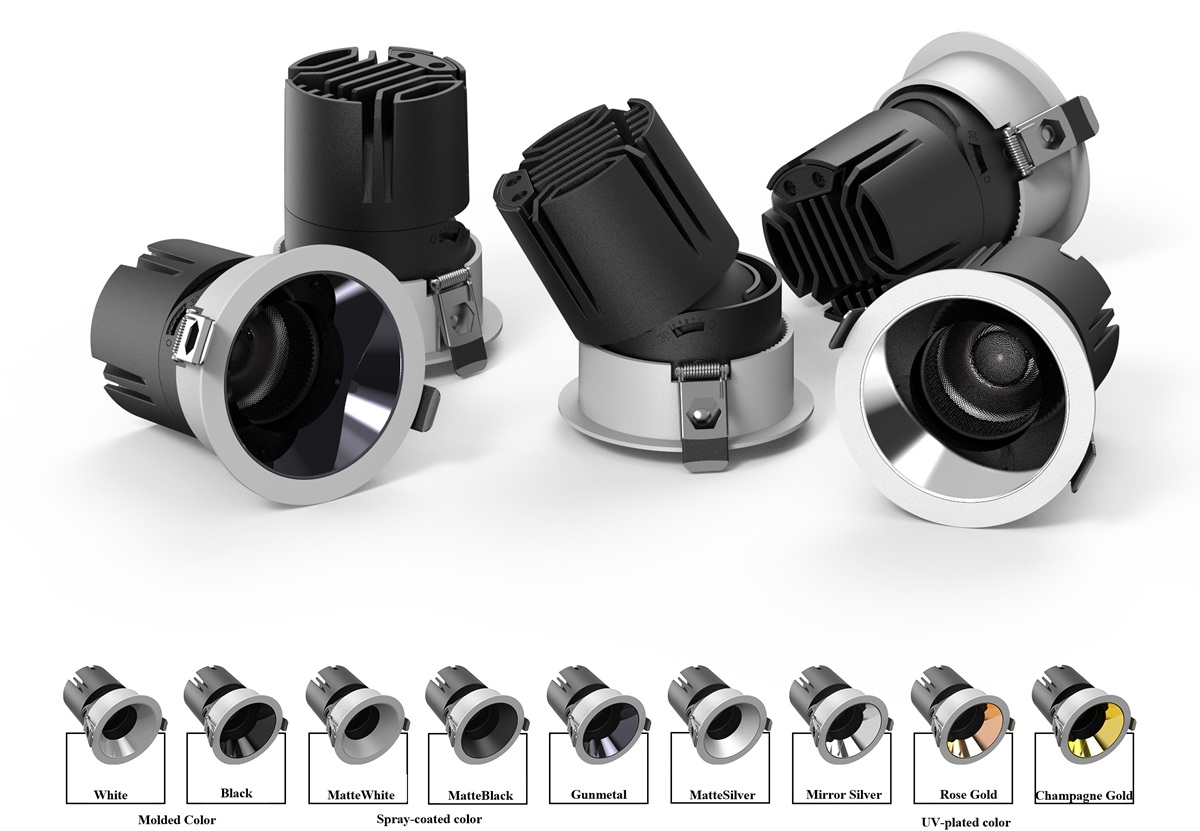

- Up to 9 reflector cup finishes
Designed for Versatile Lighting Applications
- Hotels & Hospitality
- Retail Stores
- Showrooms & Exhibition Spaces
- Commercial Offices
- Premium Residential Interiors
- Galleries & Art Spaces
- Accent Lighting & Wall Washing
Price range: $2.05 through $5.14
“T ” Series Recessed LED Spotlight Kit-UGR≈0.Aluminum Construction · Precision Optics · 0°–30° Adjustable · Multiple Configurations
Series Overview

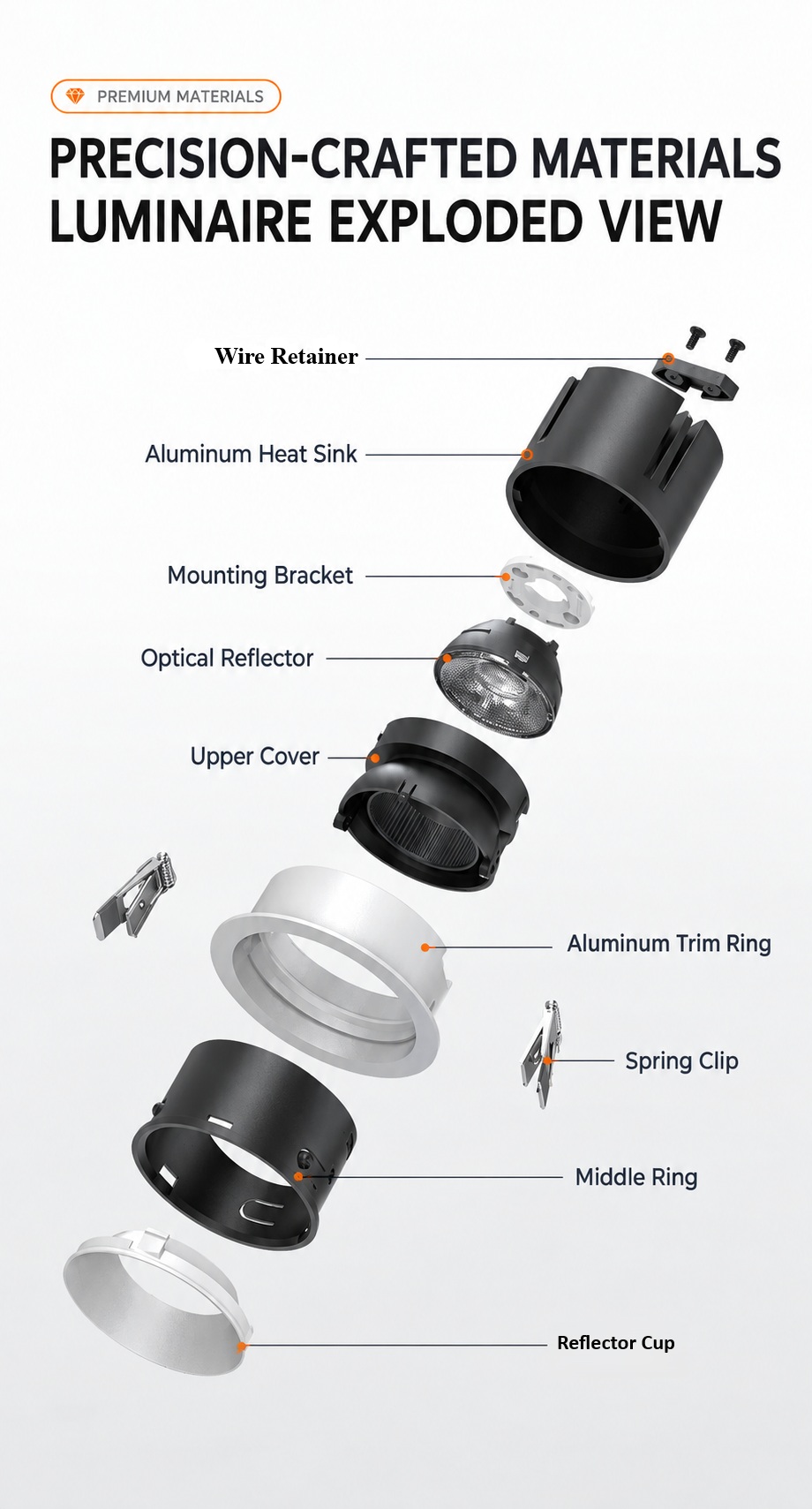

This Recessed LED Spotlight Kit combines modular construction, aluminum thermal management, precision optics, and flexible installation into one versatile lighting solution.
The kit features a high-quality aluminum trim ring and heat sink, combined with high-performance optical components to provide efficient thermal management, precise beam control, and a clean, uniform light distribution.
With multiple cut-out sizes, heat sink configurations, beam angles, and finish options, the series can be configured for a wide range of applications, including commercial spaces, hotels, retail stores, showrooms, and premium residential interiors.
Please note:
-

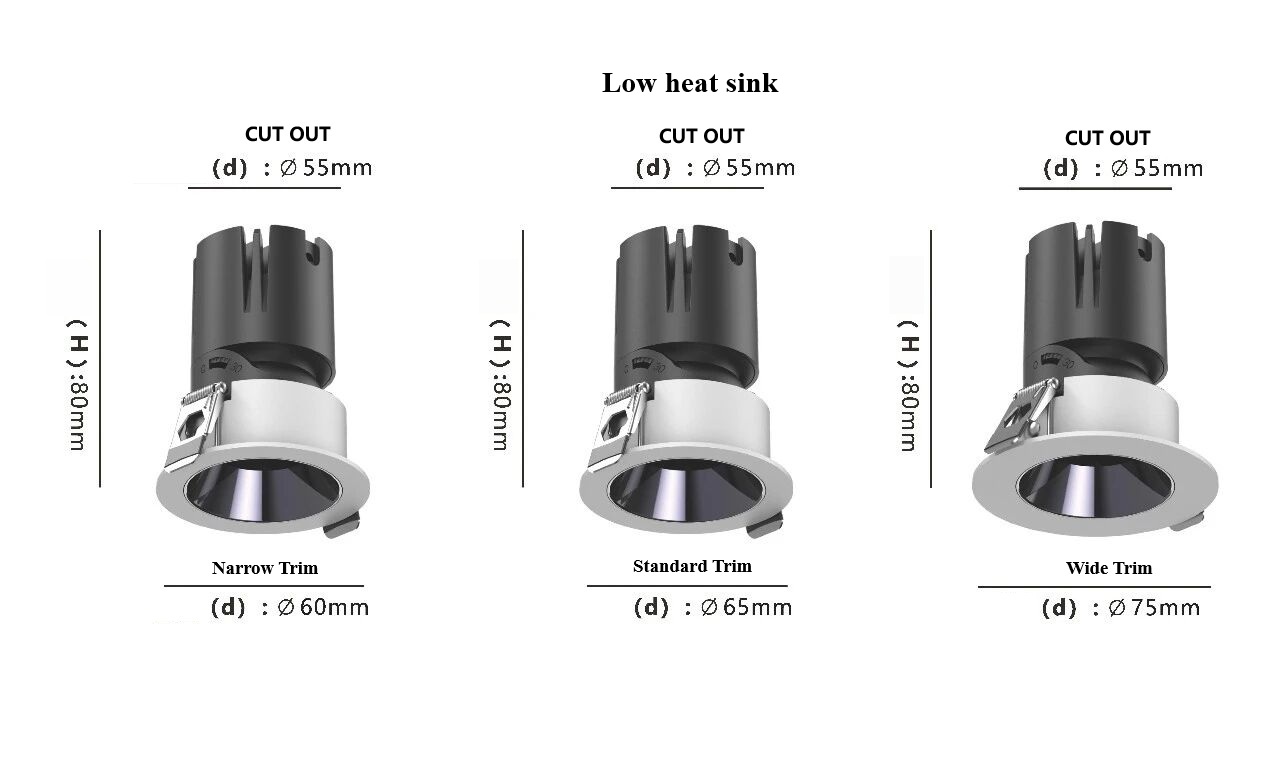

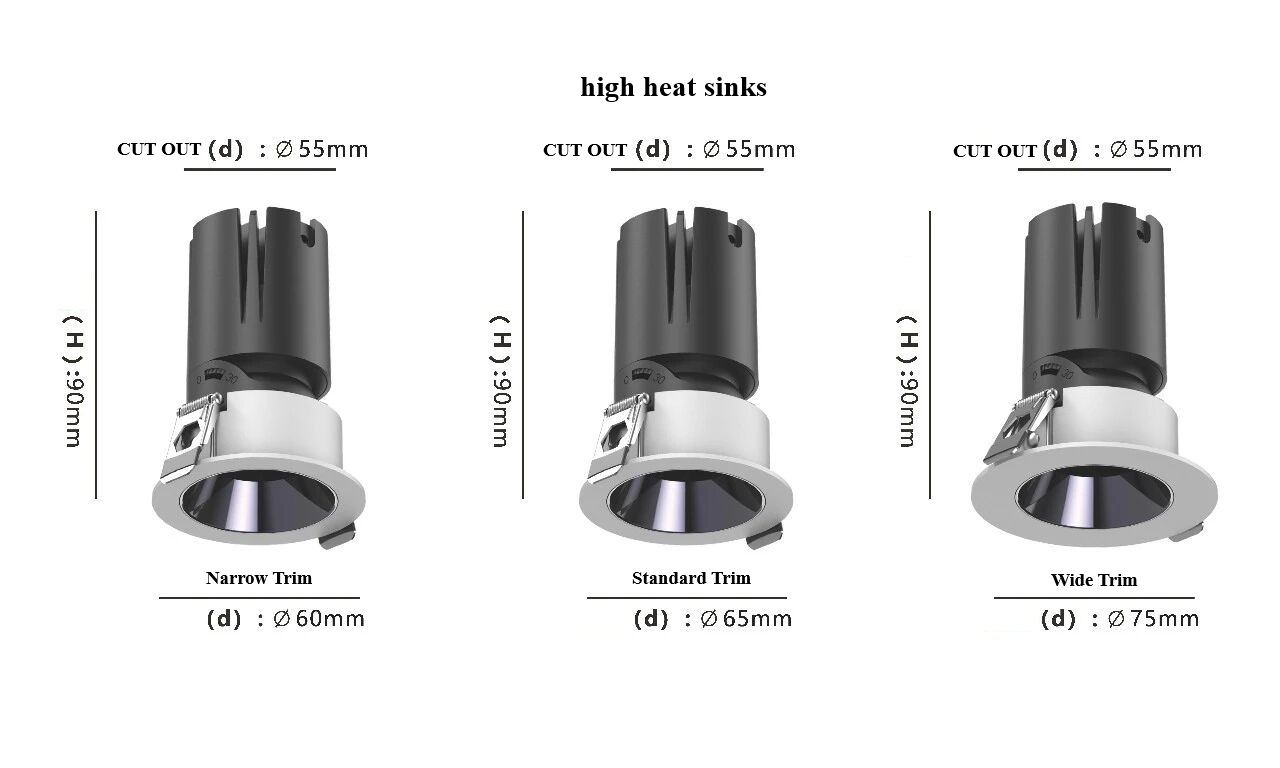

Each cut-out size can be paired with three types of flat trims—standard, narrow-rim, and wide-rim—as well as two heat sink heights, four beam angles, and up to nine light output cover colors. Different combinations will result in different prices.
-
The recommended power is for reference only. It is closely related to the quality of the selected light source and driver, which are not included in this kit.
-
When ordering a kit, please specify your light source size, beam angle, and reflector cup color.
Model & Specifications
| NO | Model | Recommended Power | Overall Dimensions（mm) | Cut-out Size(mm) | Beam Angle | LED Holder | Color |
| 1 | SR01T55SA | 5-7W | Ø65*H80 | Ø55 | 15° 24° 36° 55° | 1304 | Trim Color: White Reflector Color: 1.Molded Color:White/Black; 2.Spray‑coated color:MatteWhite/MatteBlack/MatteSilver; 3.UV‑plated color:Mirror Silver/Gunmetal/Champagne Gold/Rose Gold |
| 2 | SR01T55SB | Ø60*H80 | |||||
| 3 | SR01T55SC | Ø75*H80 | |||||
| 4 | SR01T55HA | 8-10W | Ø65*H90 | ||||
| 5 | SR01T55HB | Ø60*H90 | |||||
| 6 | SR01T55HC | Ø75*H90 | |||||
| 7 | SR01T75SA | 10-12W | Ø85*H92 | Ø75 | 15° 24° 36° 55° | 020/1507 | |
| 8 | SR01T75SB | Ø80*H92 | |||||
| 9 | SR01T75SC | Ø100*H92 | |||||
| 10 | SR01T75HA | 12-15W | Ø85*H102 | ||||
| 11 | SR01T75HB | Ø80*H102 | |||||
| 12 | SR01T75HC | Ø100*H102 | |||||
| 13 | SR01T95SA | 15-18W | Ø105*H115 | Ø95 | 15° 24° 36° 55° | 020/1507/1816 | |
| 14 | SR01T95SB | Ø102*H115 | |||||
| 15 | SR01T95SC | Ø120*H115 | |||||
| 16 | SR01T95HA | 20-24W | Ø105*H125 | ||||
| 17 | SR01T95HB | Ø102*H125 | |||||
| 18 | SR01T95HC | Ø120*H125 |
| Model | SR01T55SA, SR01T55SB, SR01T55SC, SR01T55HA, SR01T55HB, SR01T55HC, SR01T75SA, SR01T75SB, SR01T75SC, SR01T75HA, SR01T75HB, SR01T75HC, SR01T95SA, SR01T95SB, SR01T95SC, SR01T95HA, SR01T95HB, SR01T95HC |
|---|---|
| Reflector cup color | Molded Color:White/Black, Spray‑coated color:MatteWhite/MatteBlack/MatteSilver, UV‑plated color:Mirror Silver/Gunmetal/Champagne Gold/Rose Gold |
| Beam Angle | |
| Cutout or Body Size | |
| IP Rating | |
| Housing Material | |
| Power |
