IP65 Waterproof Downlight Housing Kit
Spec Summary
- Power:10-12W/15-18W/20-24W
- Overall Dimensions（mm):Ø87*H57/Ø107*H63/Ø130*H70
- Cut-out Size(mm):Ø75/Ø95/Ø120
- Beam Angle:55°

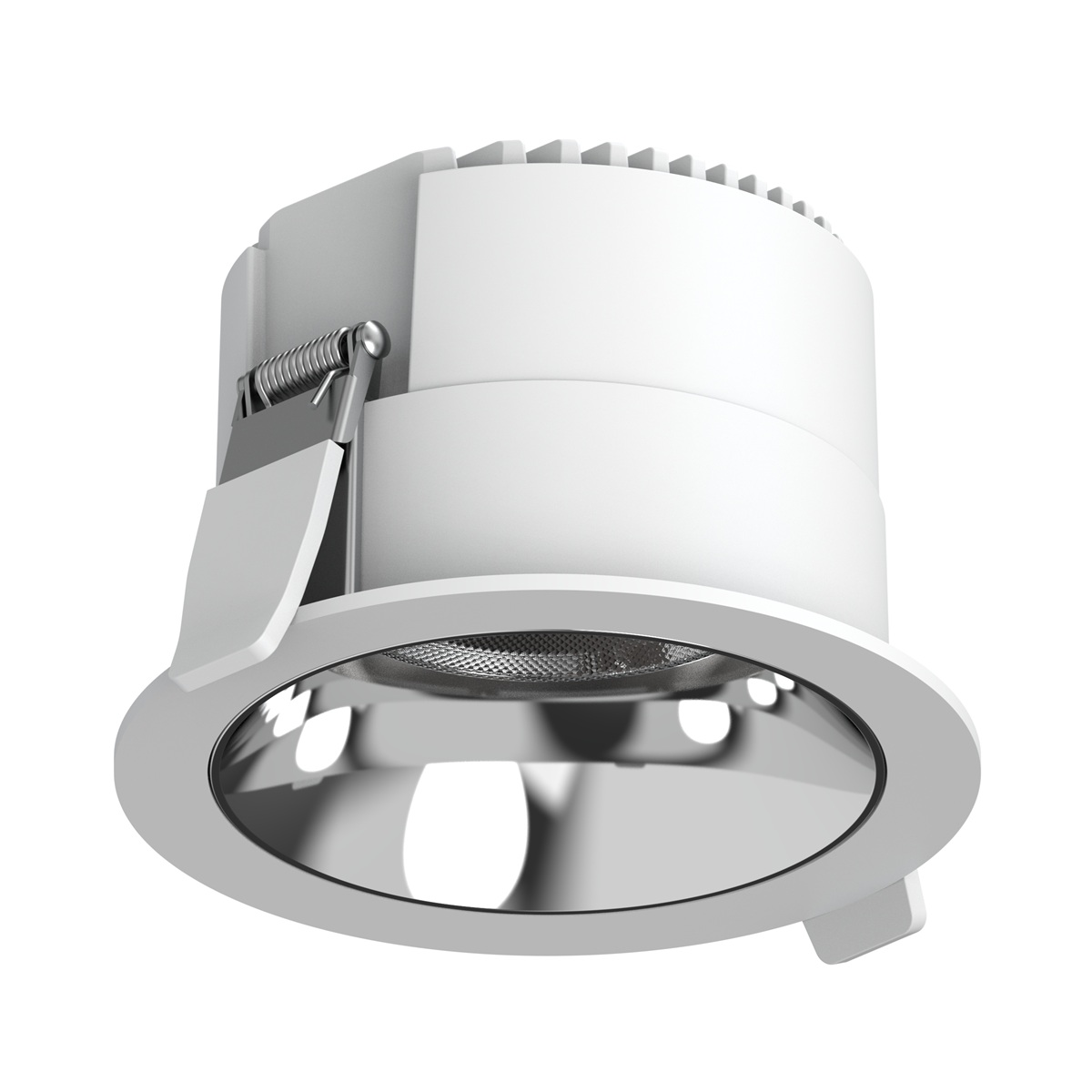

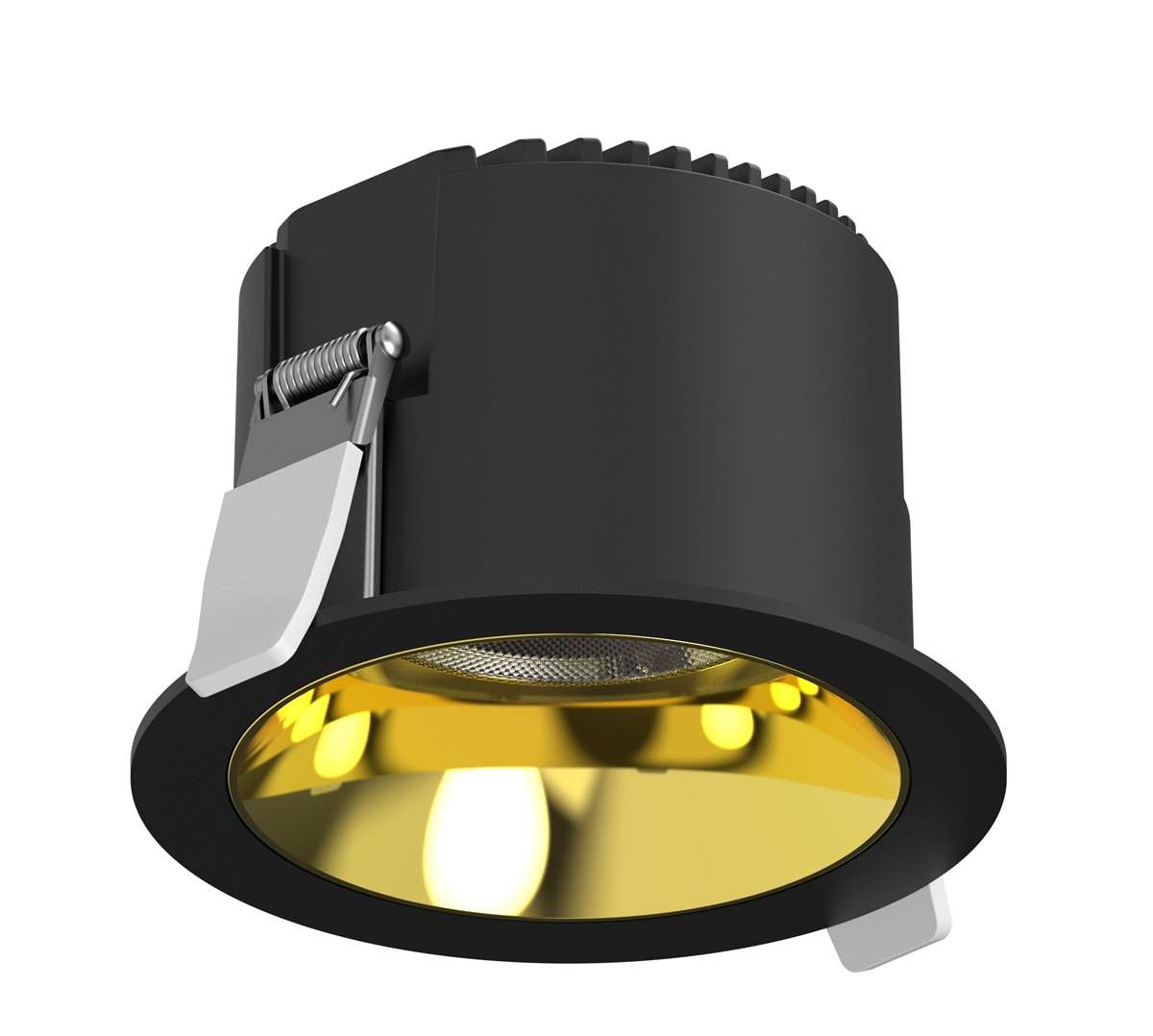

- Color:Housing Color: Sand‑Black / Sand‑White Reflector Color: 1.Molded Color:White/Black; 2.Spray‑coated color:MatteWhite/MatteBlack/MatteSilver; 3.UV‑plated color:Mirror Silver/Gunmetal/Champagne Gold/Rose Gold
Application
Damp locations: Bathroom, restroom, kitchen, balcony Commercial spaces: Hotel room, club, exhibition hall, shop corridor Residential no-main-light lighting projects, recessed downlight projects requiring water & fog resistance.
Price range: $2.17 through $6.96

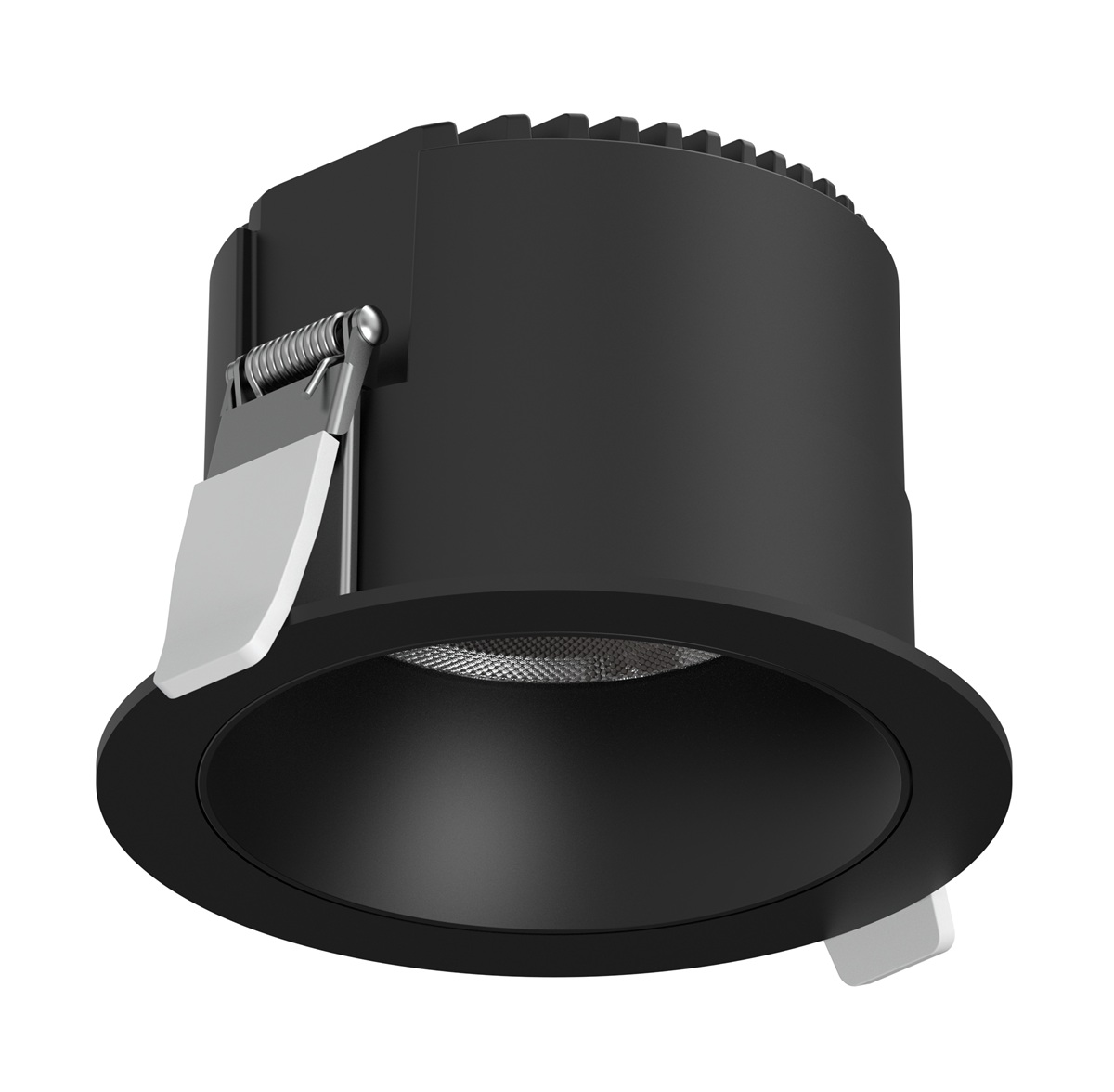

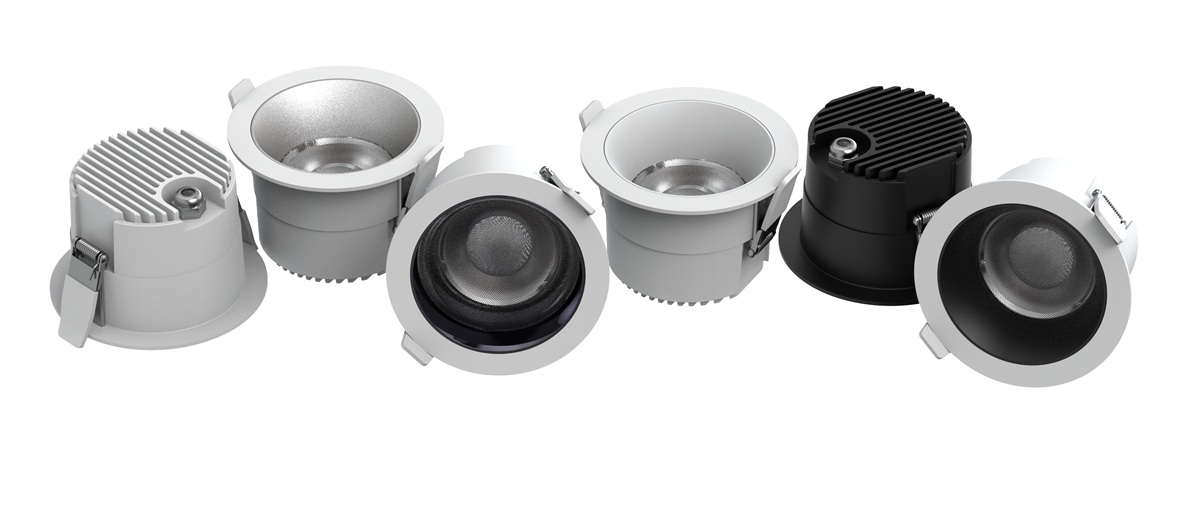

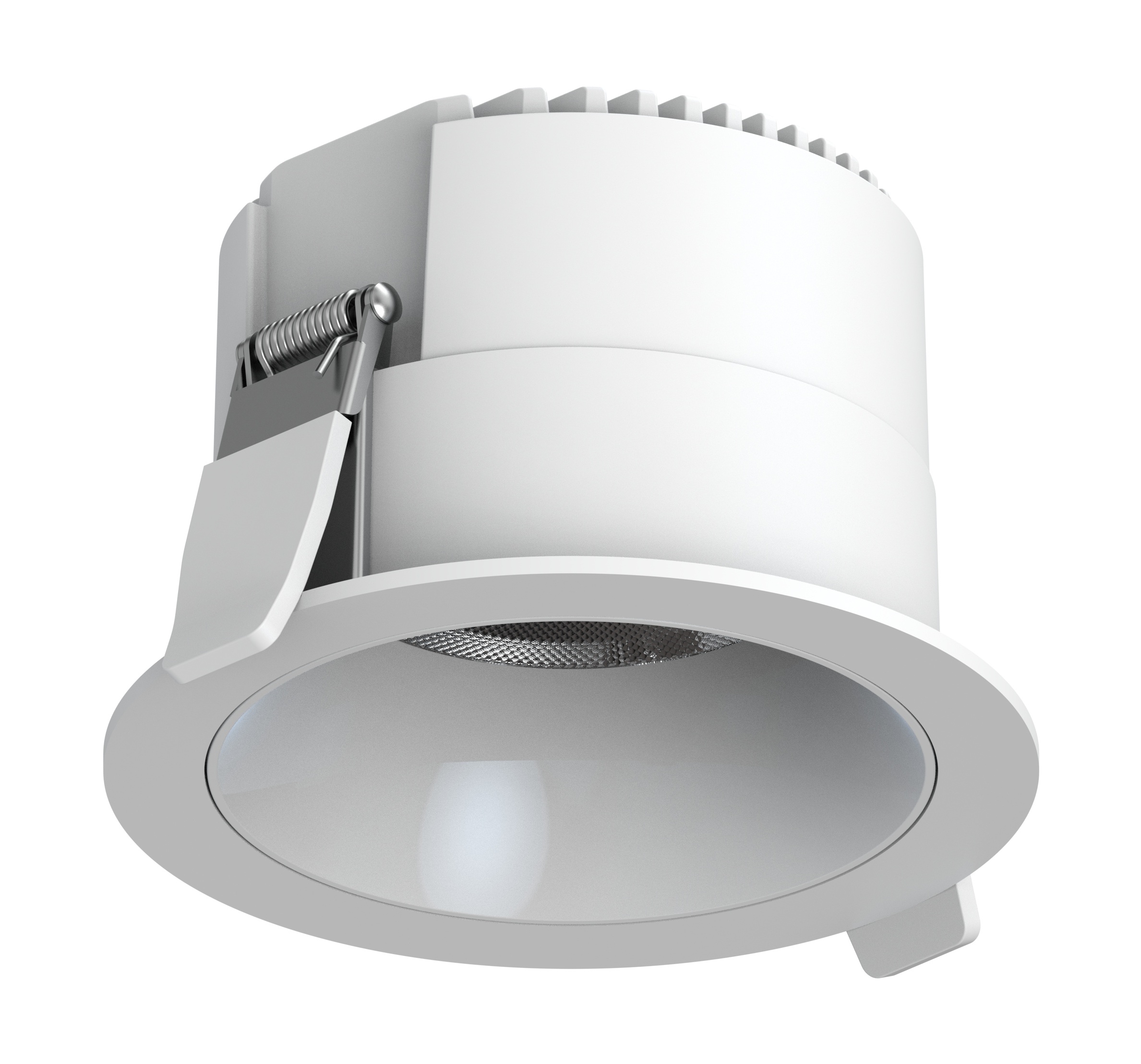

IP65 Waterproof Downlight Housing Kit
Integrated Die-cast Aluminum Deep Anti-glare Recessed Downlight Casing
Product Overview

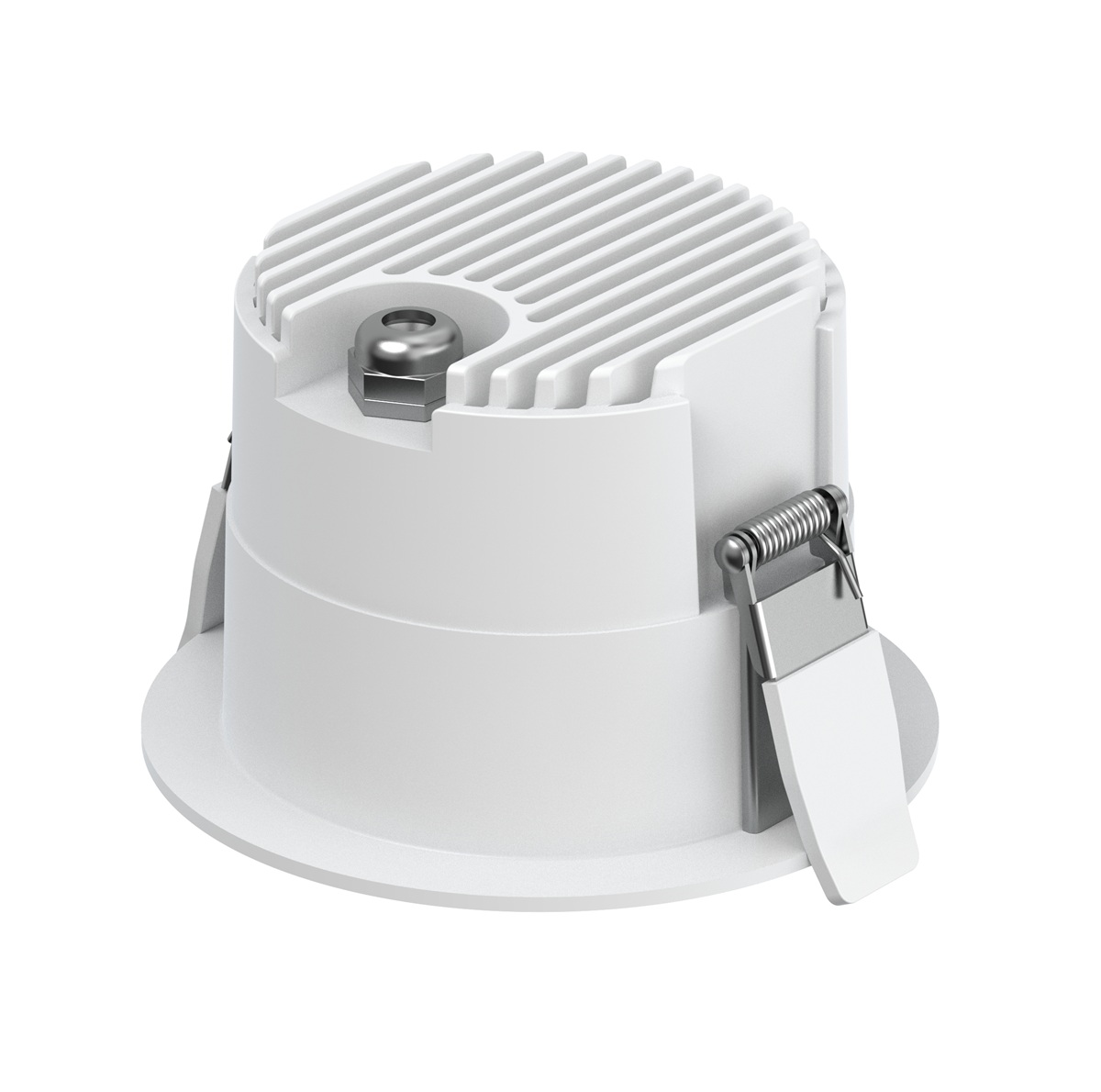

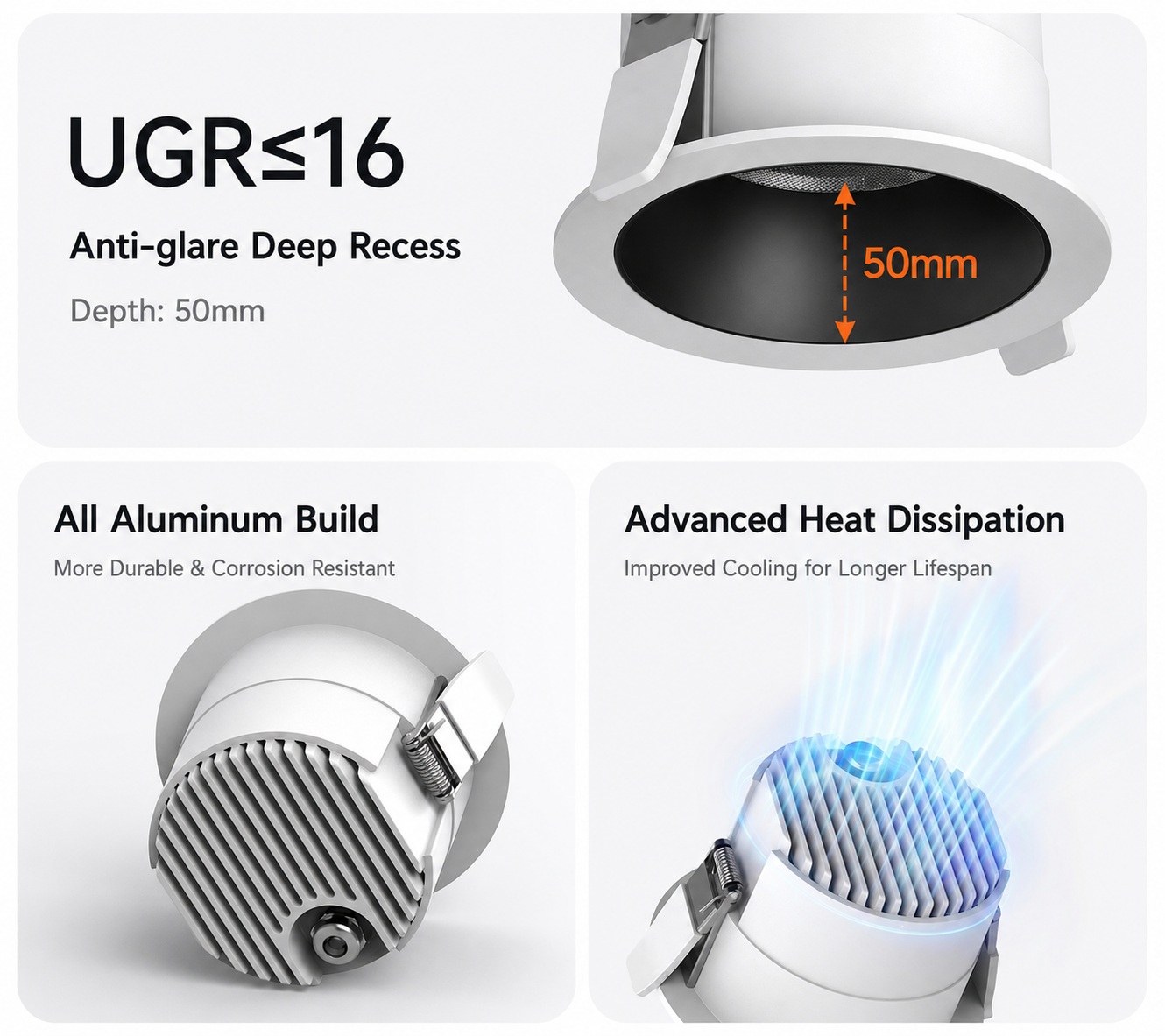

This IP65 waterproof LED downlight housing kit is integrally formed by die-cast aluminum alloy. The robust metal structure features fin heat sink design for superior thermal performance, protecting internal LED chips and extending lamp service life. It comes with deep-cavity anti-glare optical design. Deep recessed light source structure greatly reduces glare with low UGR value, delivering soft & comfortable lighting effect, “see the light but not the lamp”. 9 optional reflector colors are available: white, black, matte white, matte black, matte silver, gun black, bright silver, rose gold, champagne gold, matching modern & minimalist residential and commercial decoration styles. IP65 dust & water resistant construction protects against water splash, moisture and oil fume. Easy recessed installation, perfect housing component for finished downlight assembly.

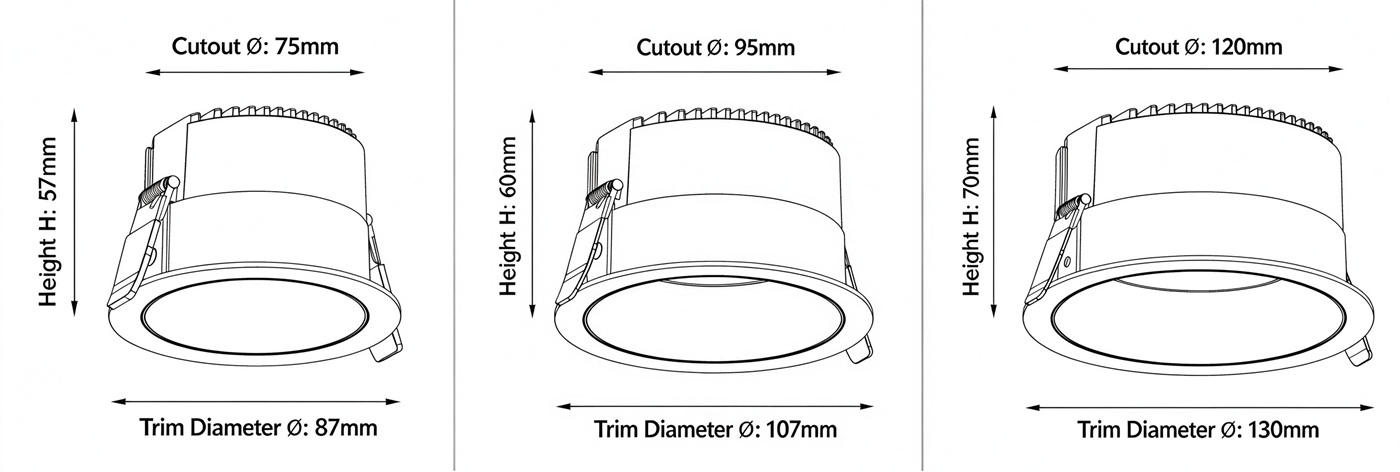

Model & Spec.
| NO | Model | Recommended Power | Overall Dimensions（mm) | Cut-out Size(mm) | Beam Angle | LED Holder | Color |
| 1 | DR01CH75 | 10-12W | Ø87*H57 | Ø75 | 55° | No COB‑LED holder, fitted with SMD PCB light source board. | Housing Color: Sand‑Black / Sand‑White Reflector Color: 1.MoldedColor:White/Black; 2.Spray‑coatedcolor:MatteWhite/MatteBlack/MatteSilver; 3.UV‑plated color:Mirror Silver/Gunmetal/Champagne Gold/Rose Gold |
| 2 | DR01CH95 | 15-18W | Ø107*H63 | Ø95 | |||
| 3 | DR01CH120 | 20-24W | Ø130*H70 | Ø120 |
Please note:
1. Reflector cup colors are usually priced differently: UV-plated is the highest, spray-coated is next, and molded color is slightly cheaper, with only a small difference (usually USD 0.1–0.2). Unless stated otherwise, quoted prices are for UV-plated and apply to small batches or samples. For bulk orders, please contact customer service for a quote.
2. Recommended power is for reference only. It depends heavily on the quality of the light source and driver, which are not included in this kit. Confirm the actual power based on the measured light source temperature rise to ensure its lifespan.
3. When ordering a kit, please provide the product model, lamp color, light source specifications and size, required beam angle, and reflector cup color.
More details
| Model | DR01CH75, DR01CH95, DR01CH120 |
|---|---|
| Reflector Color | Molded Color:White/Black, Spray‑coated color:MatteWhite/MatteBlack/MatteSilver, UV‑plated color:Mirror Silver/Gunmetal/Champagne Gold/Rose Gold |
| Power | |
| Cutout or Body Size | |
| IP Rating | |
| Housing Material | |
| Beam Angle |
