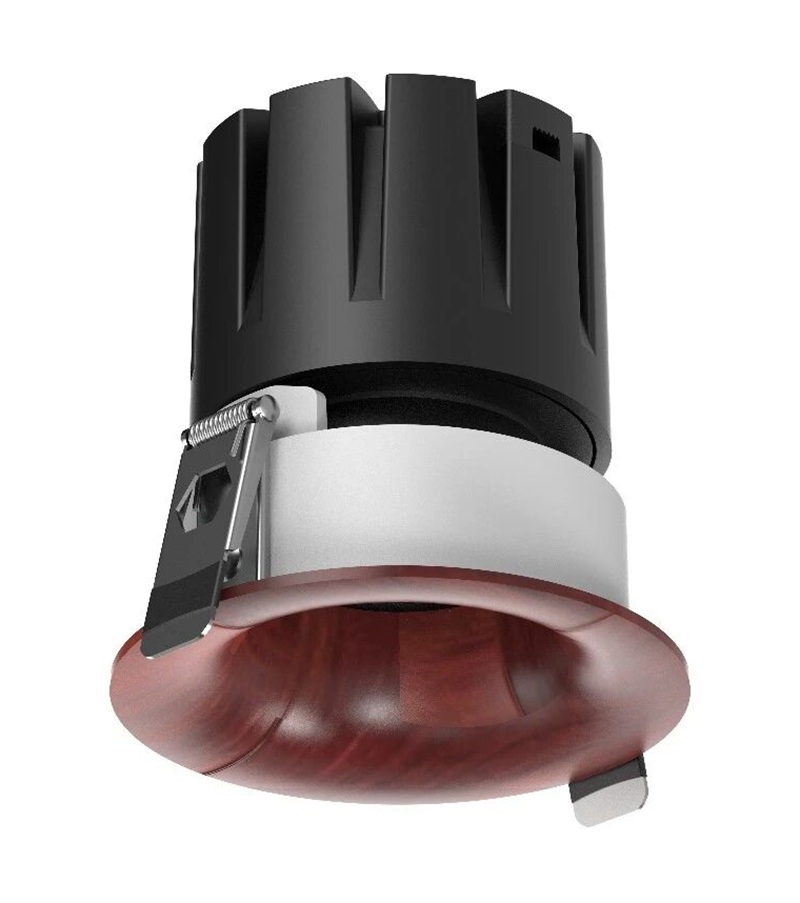

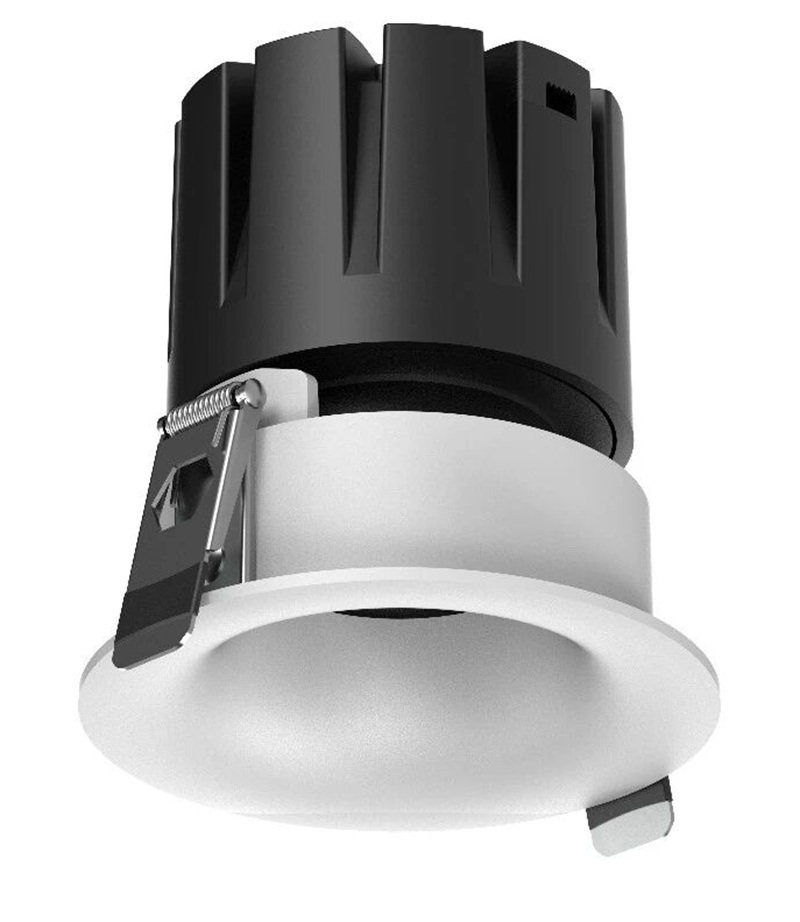

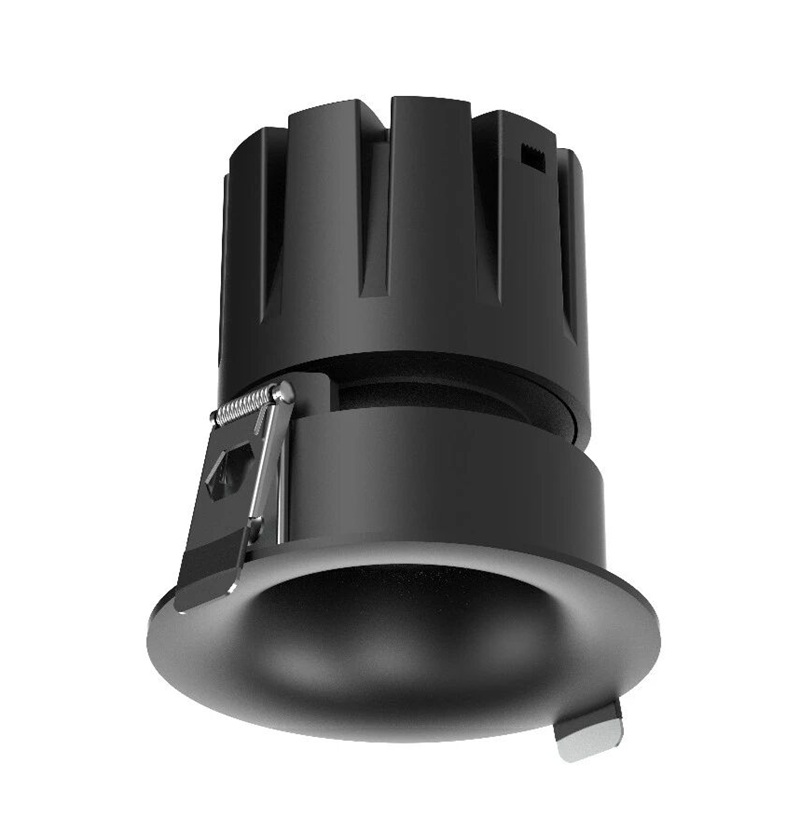

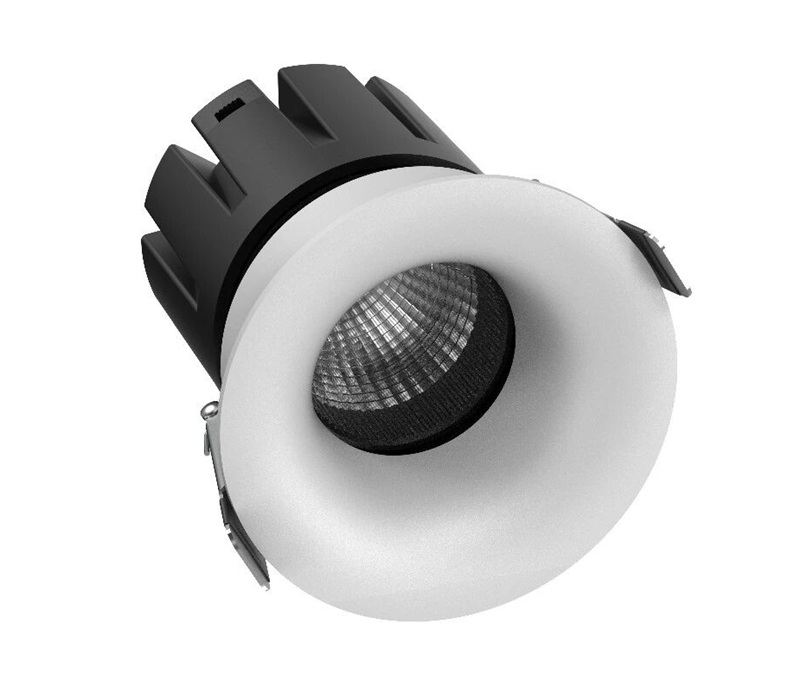

S Series LED Recessed Spotlight Kits -Curved Trim
Series Configuration
- Cutout：Ø55 / Ø75 / Ø95mm

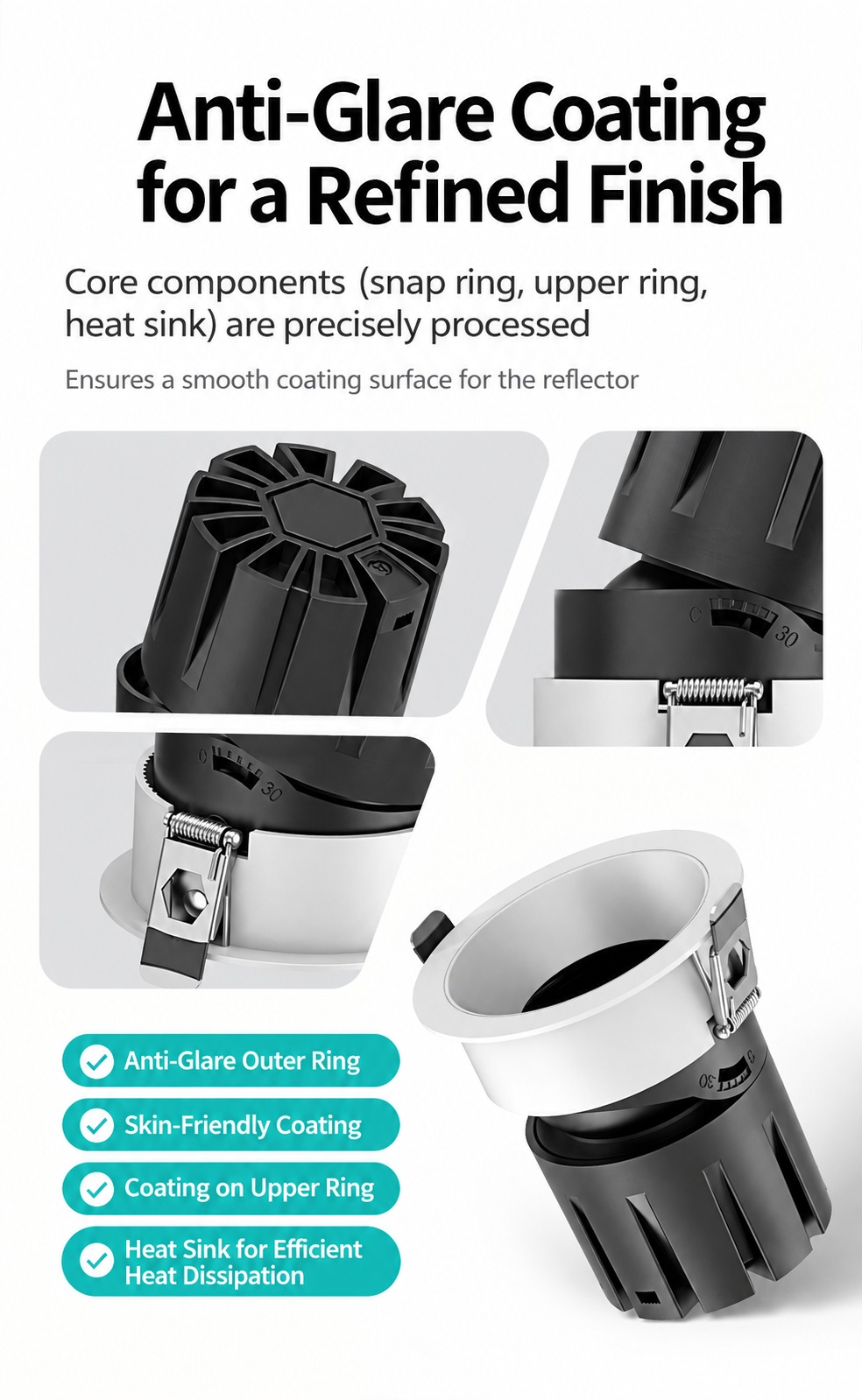

- Heat Sink：High / Low Heat Sink
- Trim:Standard / Narrow / Wide / Curved / Trimless
- Optical Configuration:Reflector Cup
- Beam Angle:Depending on Configuration( 15°/ 24° /36°)
- LED Holder:Depending on Configuration(1304/020/1507)
- Power:Depending on Heat Sink & Configuration
Applications
- Retail stores
- Hotels and restaurants
- Showrooms and galleries
- Commercial spaces
- Office interiors
- High-end residential spaces
- Other recessed indoor lighting applications
Price range: $2.94 through $6.52
S Series LED Recessed Spotlight Kits
S Series — One Platform, Multiple Configurations.

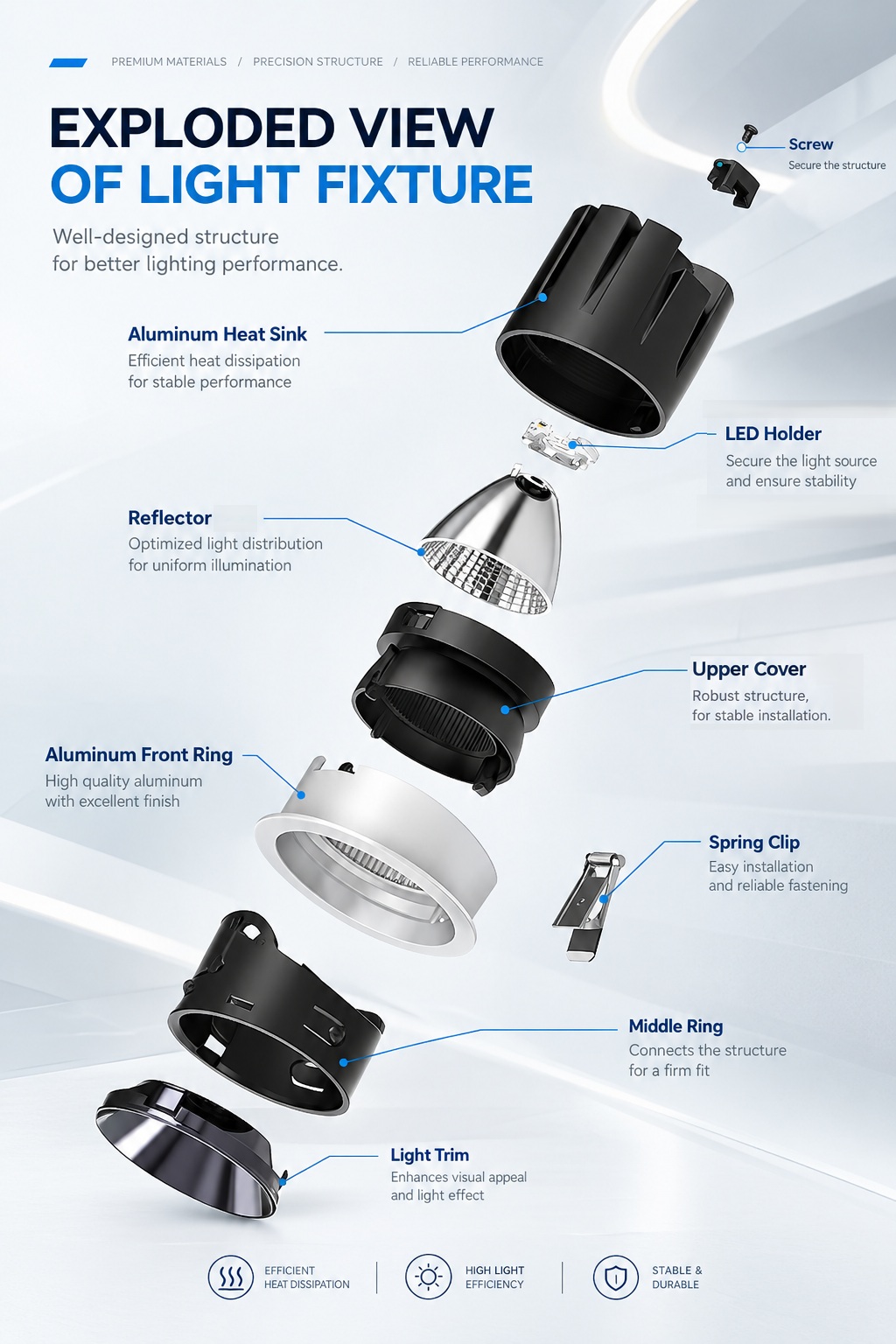

The S Series is a modular LED recessed spotlight kit designed for professional lighting applications. Its standardized core structure can be combined with different cutout sizes, heat sink configurations, trim designs and optical components to create a flexible lighting platform.
The series is available in 55mm, 75mm and 95mm cutout sizes. Each size can be configured with either a high or low heat sink, allowing the kit to accommodate different LED power levels and thermal requirements.
A wide range of trim options is available, including standard, narrow, wide, curved and trimless trims. This allows the same core platform to adapt to different ceiling structures and architectural styles.

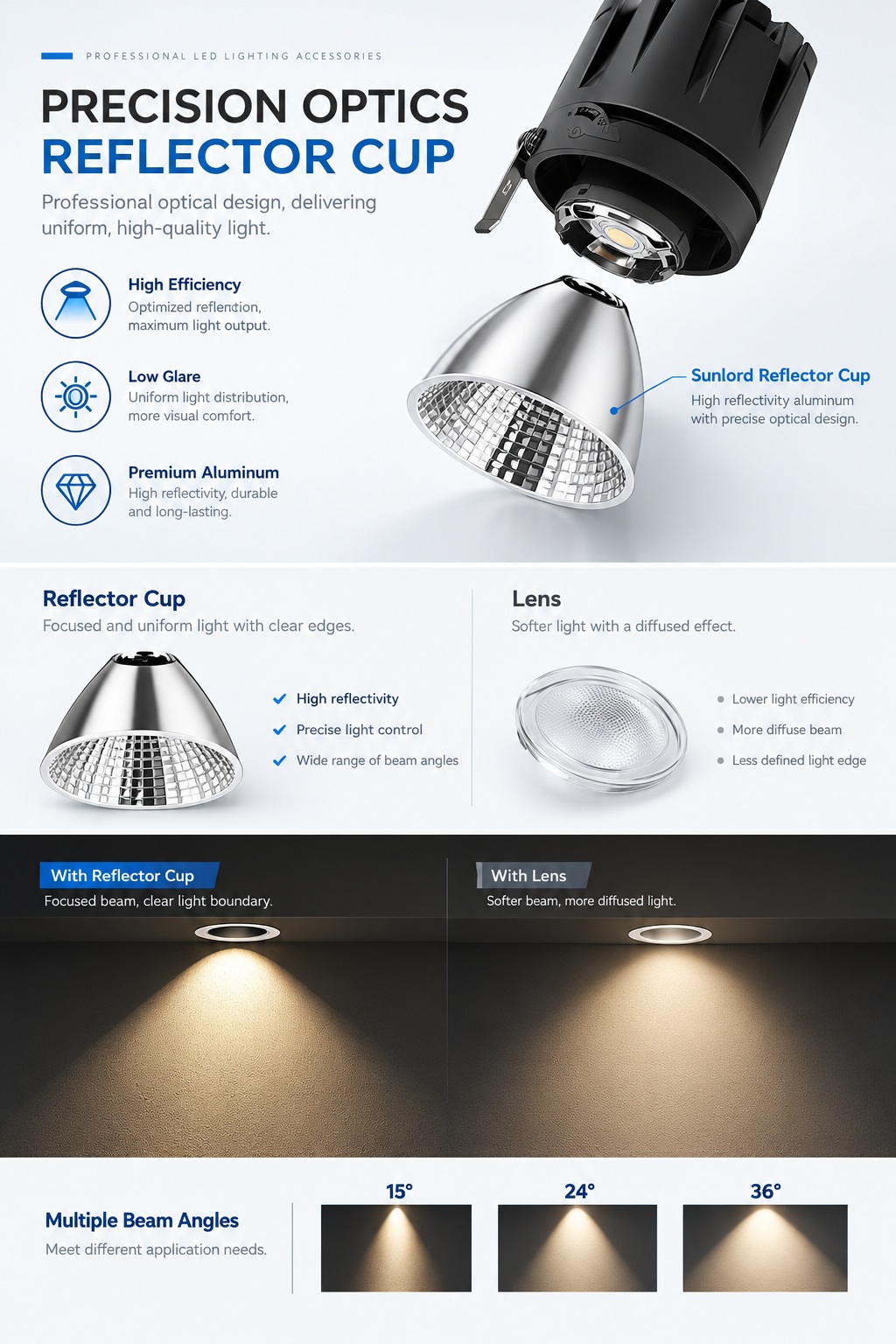

For optical performance, the kit can be configured with high-reflectivity reflector cups, lenses and other optical components to achieve different beam angles and light distribution characteristics.
Model&Spec
| NO | Model | Recommended Power | Overall Dimensions（mm) | Cut-out Size(mm) | Beam Angle | LED Holder | Trim Color |

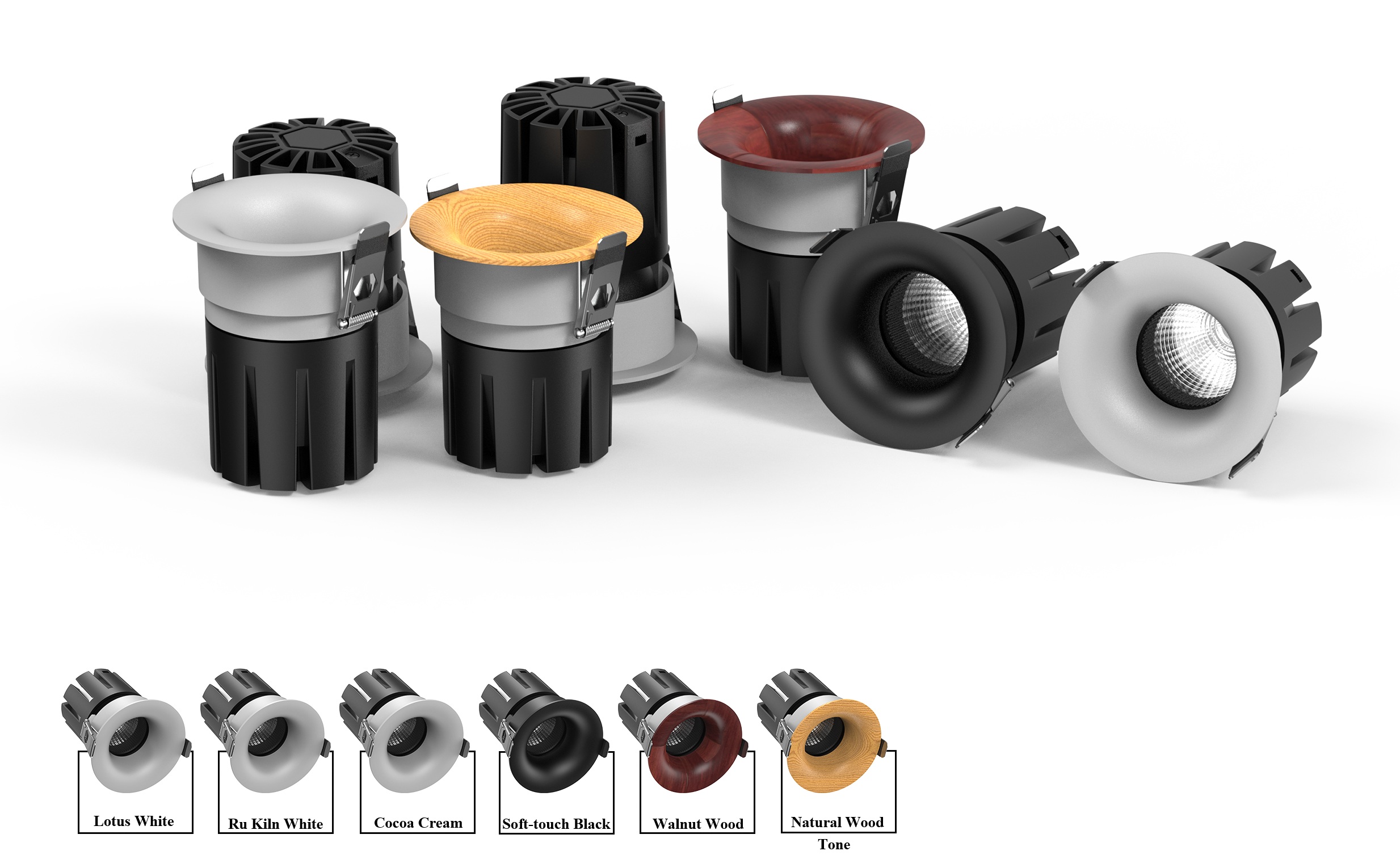

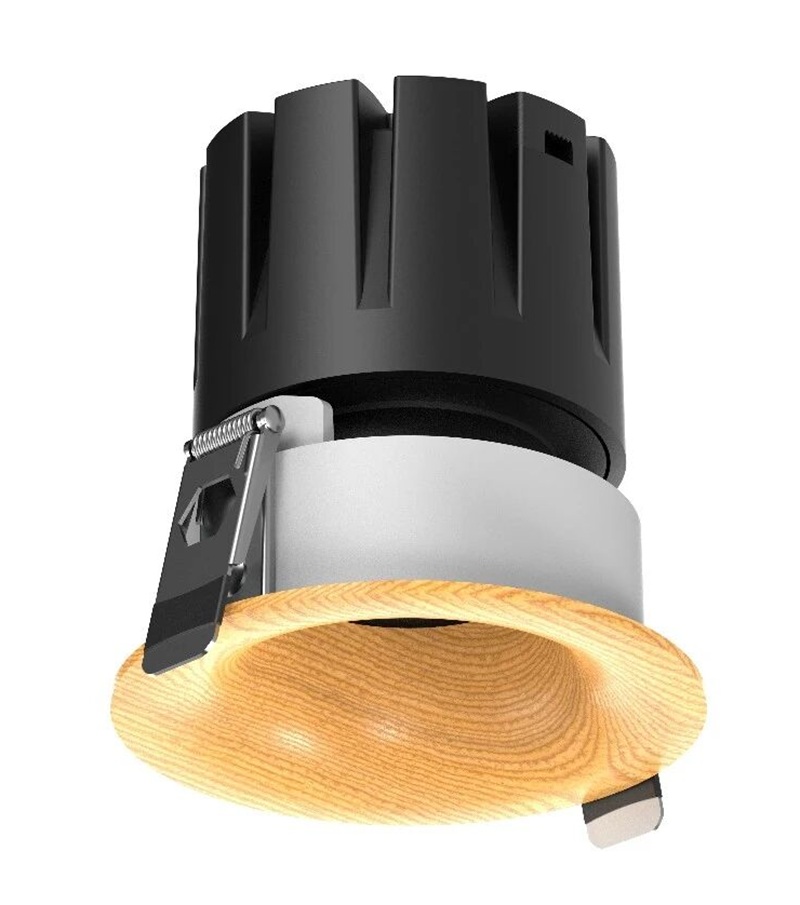

| 1 | SR01S55SR | 5-7W | Ø65*H73 | Ø55 | 15° 24° 36° | 1304 | Soft‑touch paint finish:Lotus White/Ru Kiln White/Cocoa Cream/Soft‑touch Black;Wood‑grain finish:Walnut Wood/Natural Wood Tone |
| 2 | SR01S55HR | 8-10W | Ø65*H84 | ||||

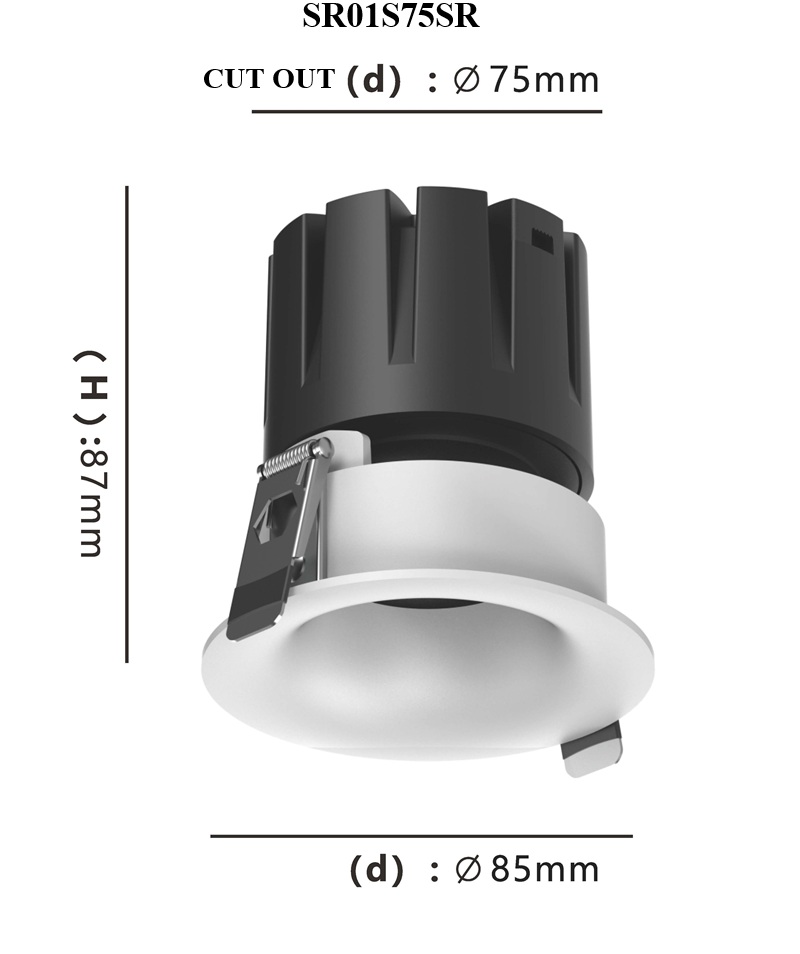

| 3 | SR01S75SR | 10-12W | Ø85*H87 | Ø75 | 24° 36° | 020/1507 | |

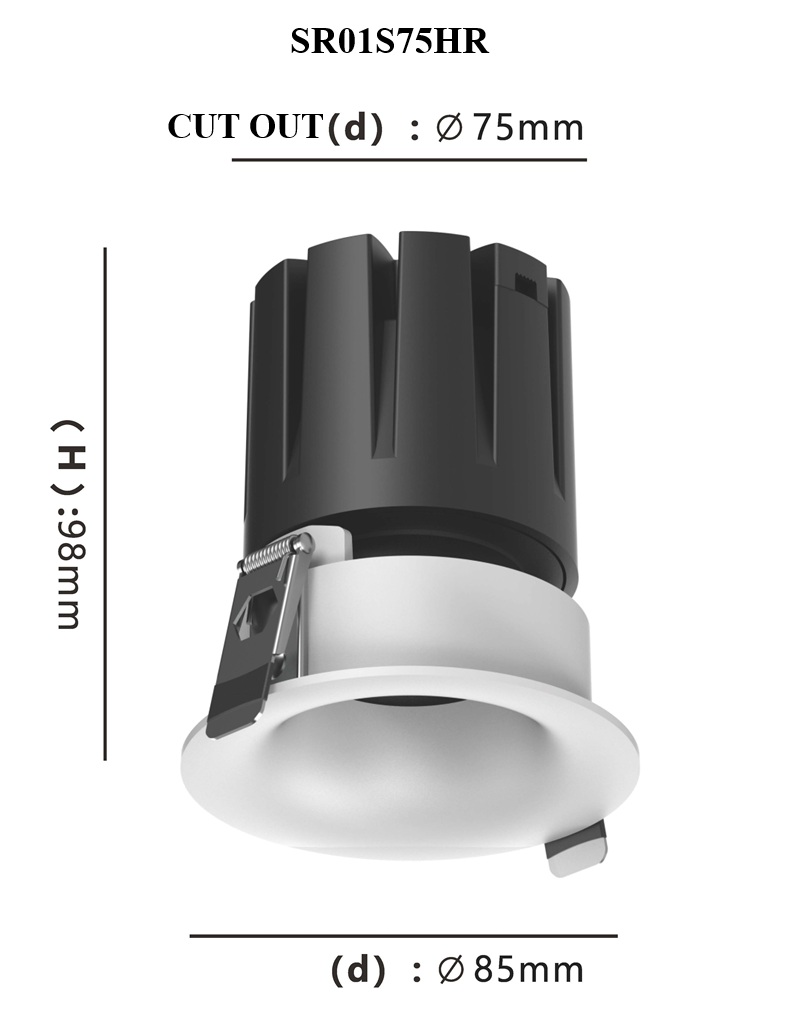

| 4 | SR01S75HR | 12-15W | Ø85*H98 | ||||
| 5 | SR01S95SR | 15-18W | Ø105*H105 | Ø95 | 020/1507 | ||
| 6 | SR01S95HR | 20-24W | Ø105*H115 |

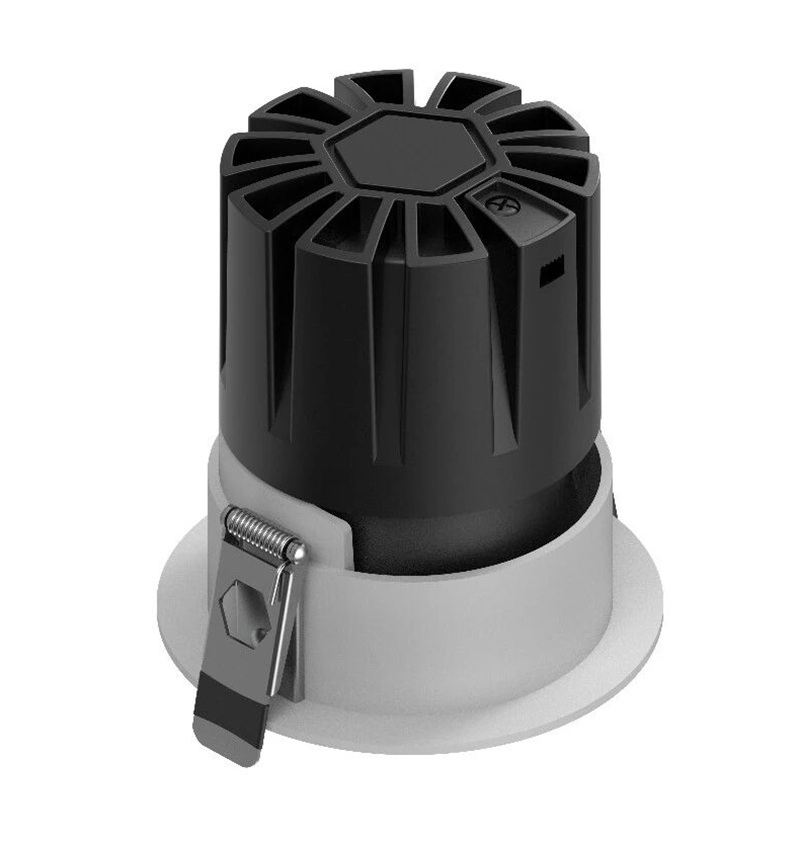

Two Heat Sink Options
| Model | SR01S55SR, SR01S55HR, SR01S75SR, SR01S75HR, SR01S95SR, SR01S95HR |
|---|---|
| Beam Angle | |
| Cutout or Body Size | |
| IP Rating | |
| Power | |
| Housing Material |
