OSRAM SOLERIQ® S CCT Tunable series COB Leds
- Single COB, Dual CCT — Minimalist Design
- 2700K–6500K Ultra-Wide CCT Coverage — Ambiance on Demand
- CRI 90 High Color Rendering — True Color Fidelity
- High Efficacy — Efficiency Meets Flexibility
- Multiple Power Levels — Match Any Application
Applications:
- Smart Lighting / Human Centric Lighting
- Hospitality Lighting (Scene Switching)
- High-End Retail Lighting (Product Displays)
- Museum / Art Gallery Lighting
- Office Lighting (Circadian Rhythm Lighting)
- Residential Lighting
- Restaurant Lighting
Price range: $1.37 through $4.06
OSRAM SOLERIQ® S CCT Tunable series COB Leds
The OSRAM SOLERIQ® S Tunable White series is a Chip-on-Board (COB) LED family from ams OSRAM, purpose-built for tunable color temperature lighting applications. This series integrates dual-channel emitters (warm white + cool white channels) within a single COB package, enabling continuous color temperature tuning from 2700K to 6500K by independently driving the two channels. Whether simulating natural daylight transitions from dawn to dusk or adapting spatial ambiance to different scenarios, the SOLERIQ S Tunable White series delivers
- Single COB, Dual CCT — Minimalist Design
- 2700K–6500K Ultra-Wide CCT Coverage — Ambiance on Demand
- CRI 90 High Color Rendering — True Color Fidelity
- High Efficacy — Efficiency Meets Flexibility
- Multiple Power Levels — Match Any Application
| Models | Size (mm) | Les(mm) | TyP Power(W) | IF(mA) | VF (V) | CCT Range | Holder |

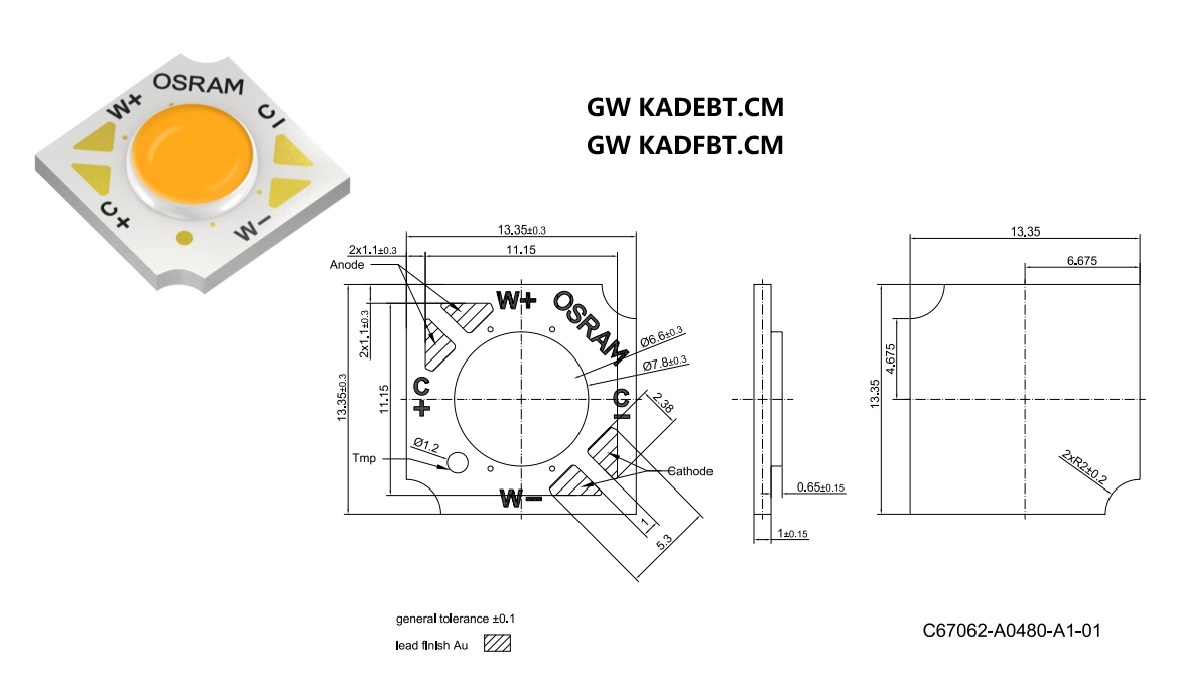

| GW KADEBT.CM | 13.5*13.5 | ø7.5 | 6-8w | 10-200 | min.31.00V
Typ.36.50V max.39.00V |
2700-4000K/2700-6500K | 1304 |

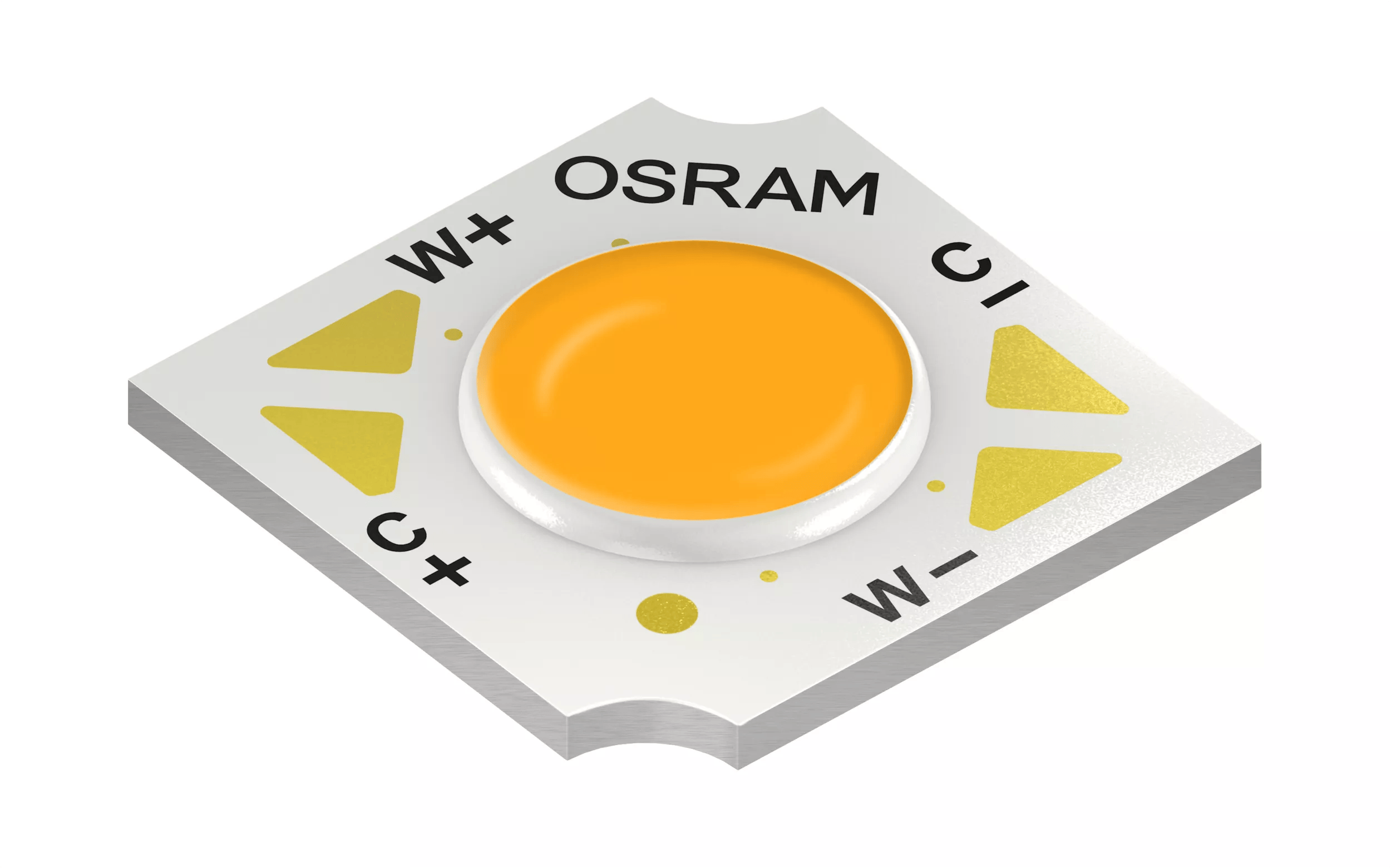

| GW KADFBT.CM | 13.5*13.5 | ø7.5 | 10-12w | 10-300 | 2700-4000K/2700-6500K | 1304 | |

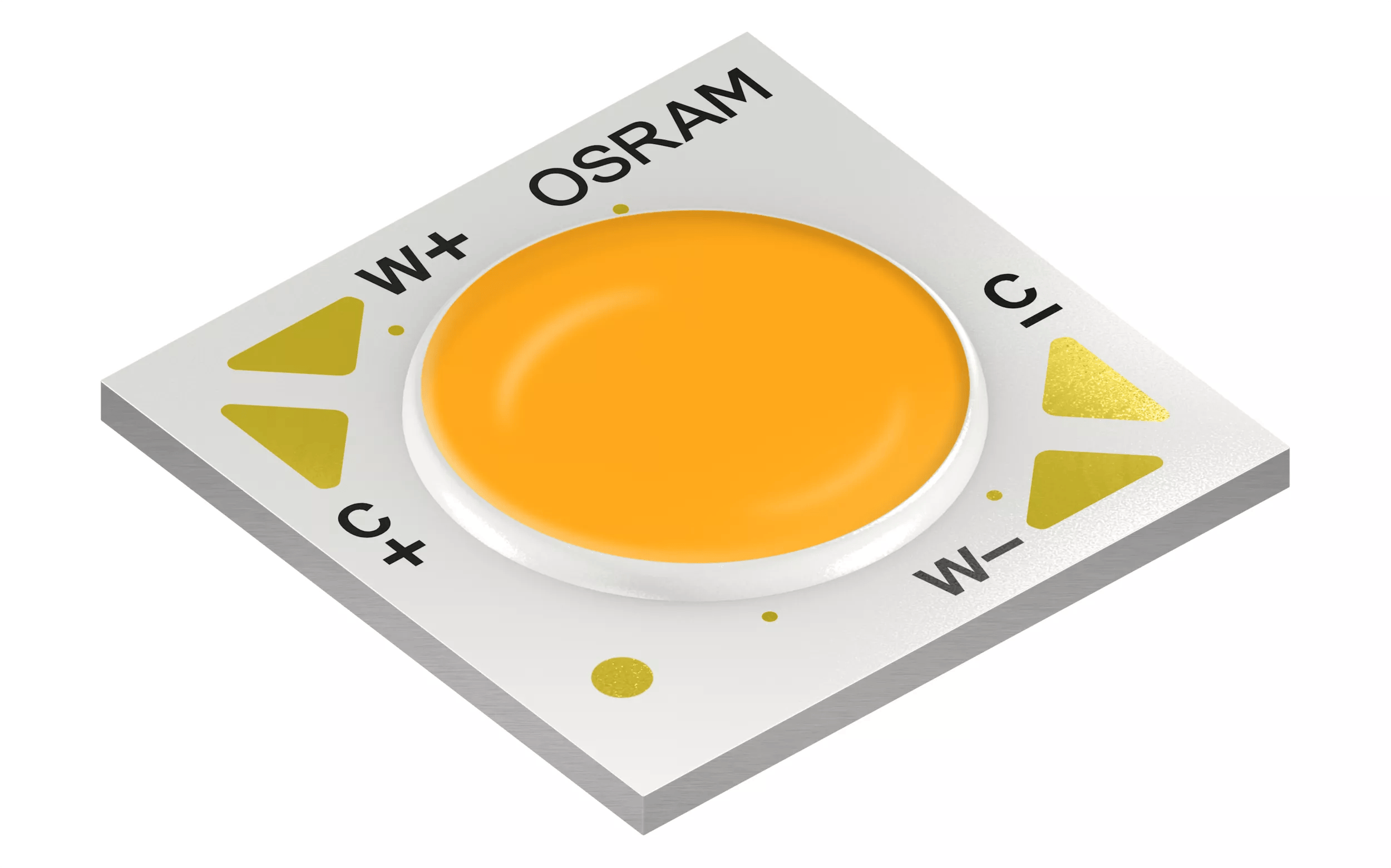

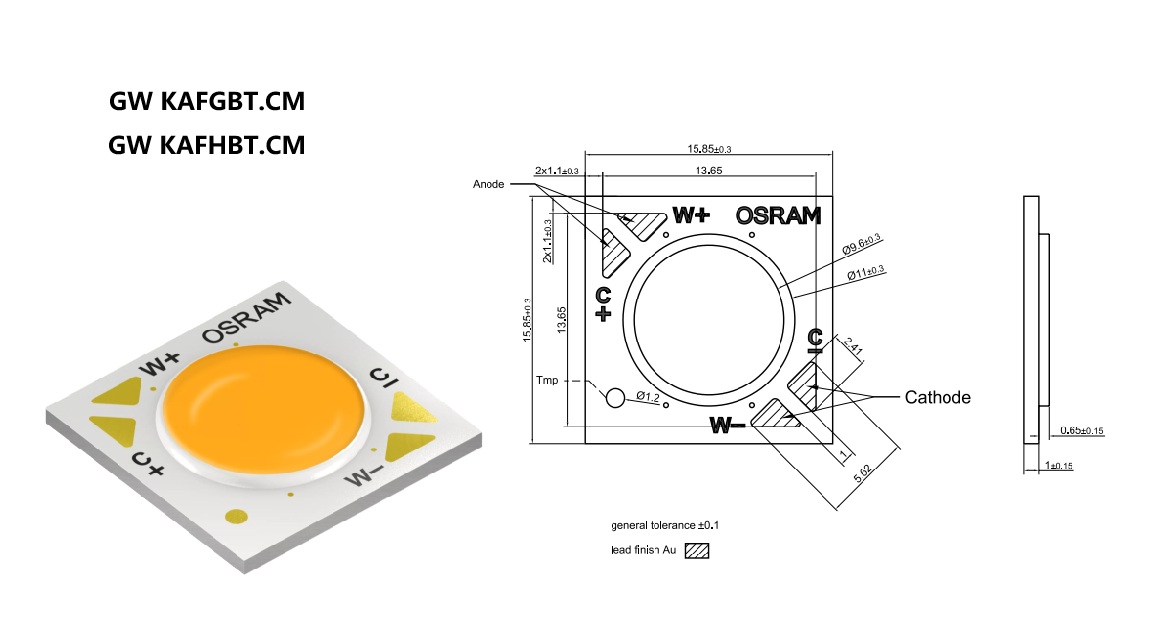

| GW KAFGBT.CM | 15.85*15.85 | ø11 | 12-15w | 300-350 | 2700-4000K/2700-6500K | 1507 | |
| GW KAFHBT.CM | 15.85*15.85 | ø11 | 15-24w | 350-600 | 2700-4000K/2700-6500K | 1507 | |

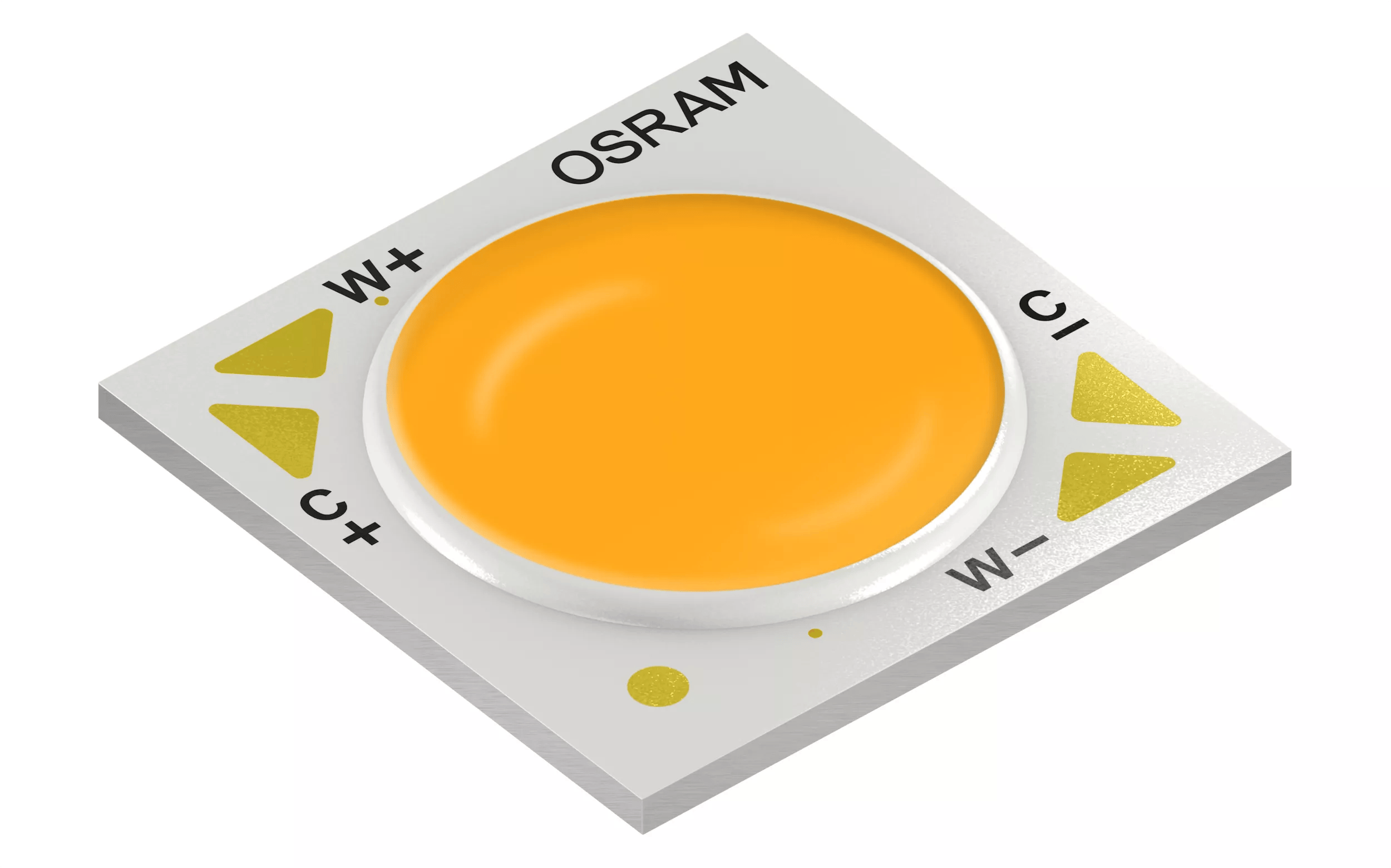

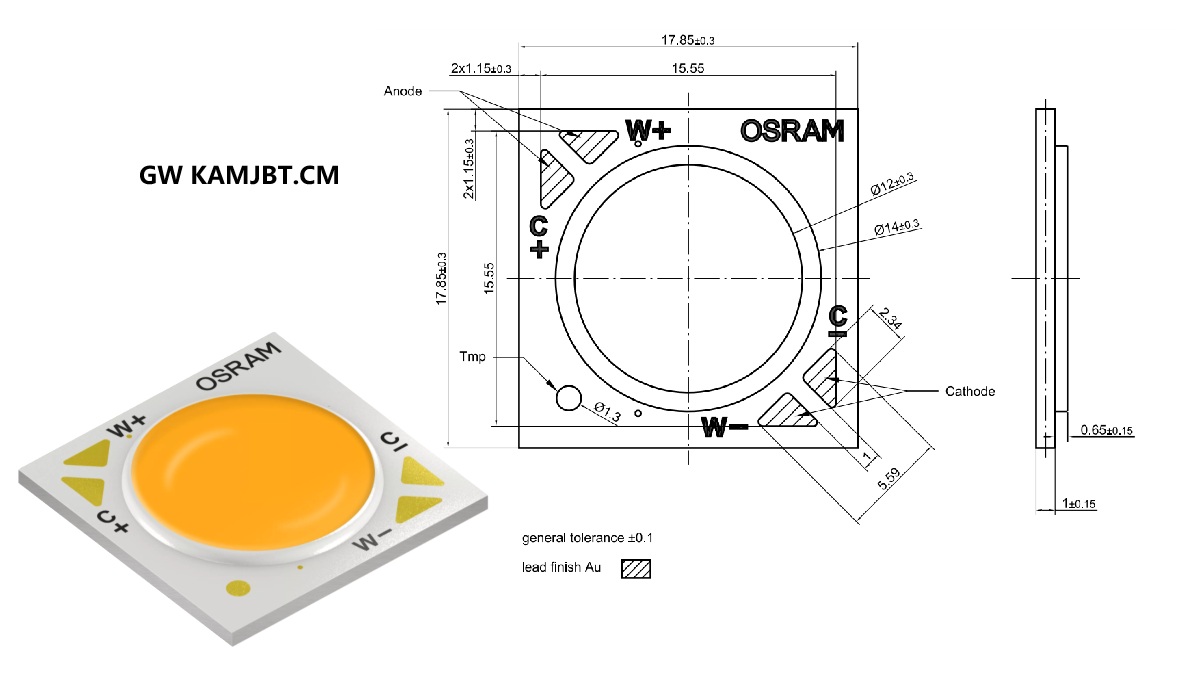

| GW KAMJBT.CM | 17.85*17.85 | ø14 | 24-36w | 600-900 | 2700-4000K/2700-6500K | 1816 |
Download Datasheet GW-KADEBT-CM
Download Datasheet GW-KADFBT-CM
Download Datasheet GW-KAFGBT-CM
Download Datasheet GW-KAFHBT-CM
Download Datasheet GW-KAMJBT-CM
| Models | GW KADEBT.CM, GW KADFBT.CM, GW KAFGBT.CM, GW KAFHBT.CM, GW KAMJBT.CM |
|---|---|
| CCT | |
| CRI | |

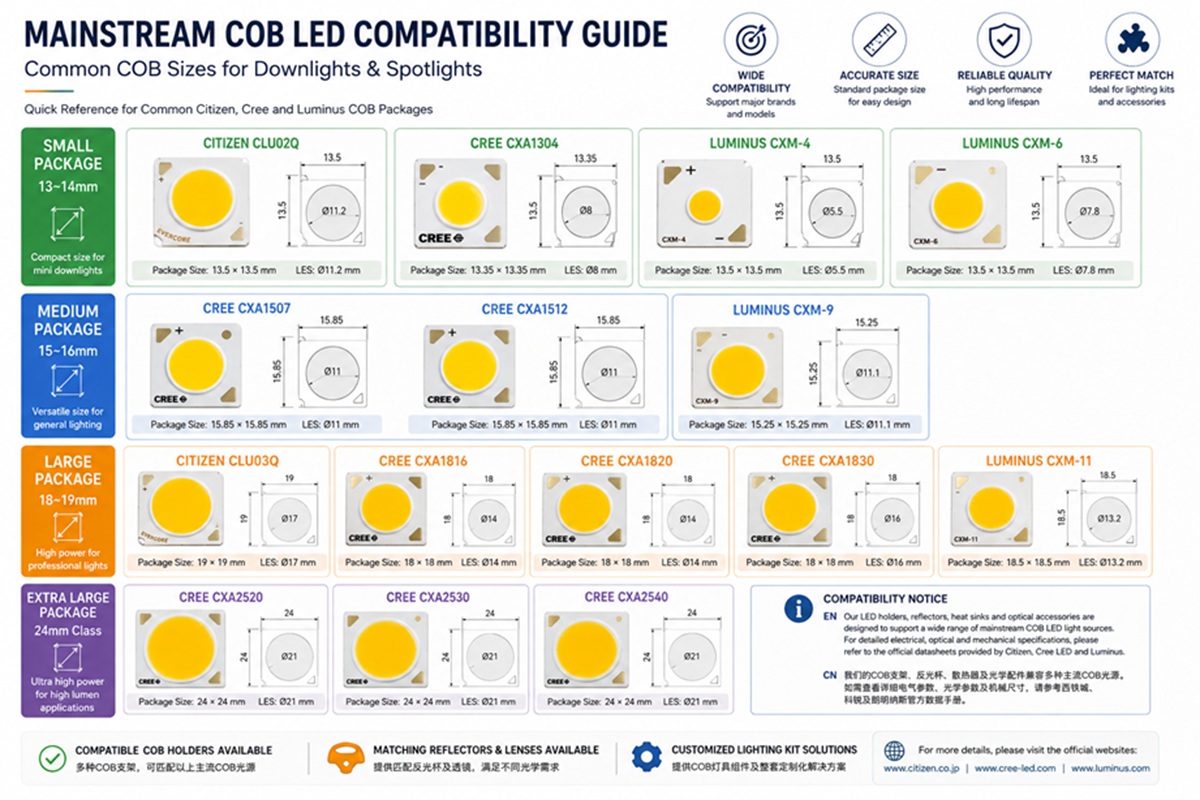

| LED Model Size | COB-1304/CXM-6/V6, COB-1507/1512, COB-1816/1820/1830, COB-2520/2530/2540, COB-CLU028/CXM-9/V10, COB-CLU038/CXM-14/V13 |
| Input or Forward Voltage | |
| LED substrate material | |
| Power |
