OSRAM SOLERIQ® S (Ra90) Series COB Leds
- Ultra-High Efficacy, Exceptional Energy Efficiency
- High CRI (RA90), True Color Reproduction
- Compact Size, High Luminous Flux
- Flexible CCT Options for Diverse Needs
- Superior Color Consistency
- Excellent Reliability and Durability
- 120° Lambertian Emitter for Flexible Optical Design
- Zhaga-Compliant for Easy Replacement
Applications:
- GU10 LED bulbs and retrofit lamps
- Commercial downlights
- Track lighting and spotlights
- Outdoor area lighting
- High-bay lighting
- Commercial and residential indoor lighting – hotels, shops, offices, lobbies, etc.
Price range: $0.51 through $2.38
OSRAM SOLERIQ® S (Ra90) Series COB Leds

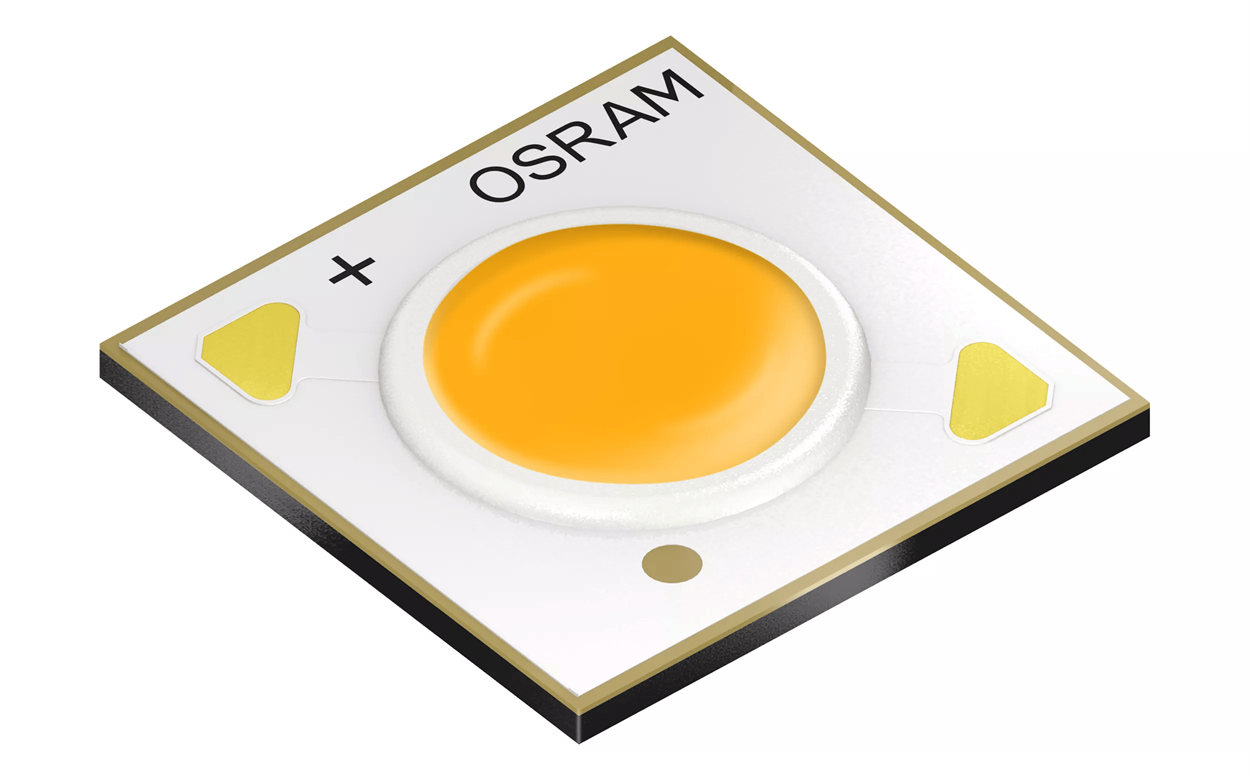

The OSRAM SOLERIQ® S series COB LED is an ultra-high efficiency Chip-on-Board light source engineered for professional lighting applications. With flexible CCT options, superior color consistency, a wide operating temperature range, and Zhaga compliance, it is the ideal core light source for premium indoor lighting, commercial lighting, and architectural lighting projects.
- Ultra-High Efficacy, Exceptional Energy Efficiency
- High CRI (RA90), True Color Reproduction
- Compact Size, High Luminous Flux
- Flexible CCT Options for Diverse Needs
- Superior Color Consistency
- Excellent Reliability and Durability
- 120° Lambertian Emitter for Flexible Optical Design
- Zhaga-Compliant for Easy Replacement
| Models | Size (mm) | Les (Excluding Dam,mm) | TyP Power(W) | recommended current
(mA) |
recommended Voltage (V) | CCT | Led Connection & Holder |

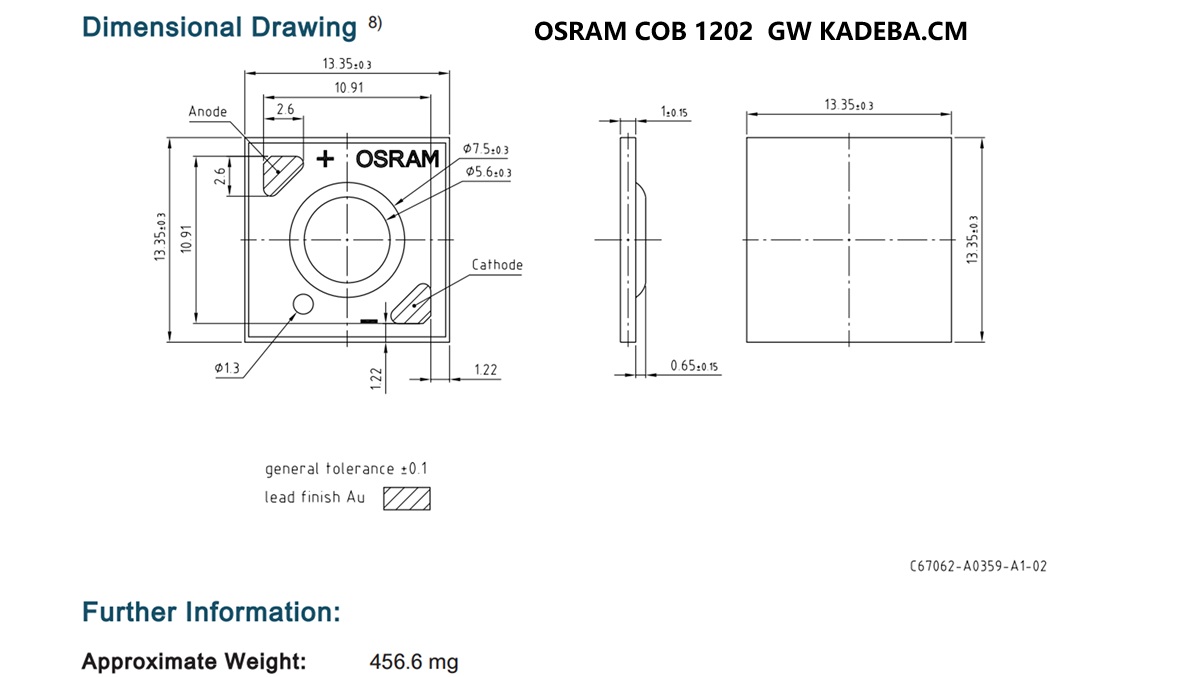

| GW KADEBA.CM | 13.5*13.5 | ø5.6 | 4-10w | 100-300 | 36v | 2700K/3000K/
3500K/4000K/ 5000K
|
12S2P/1304 |

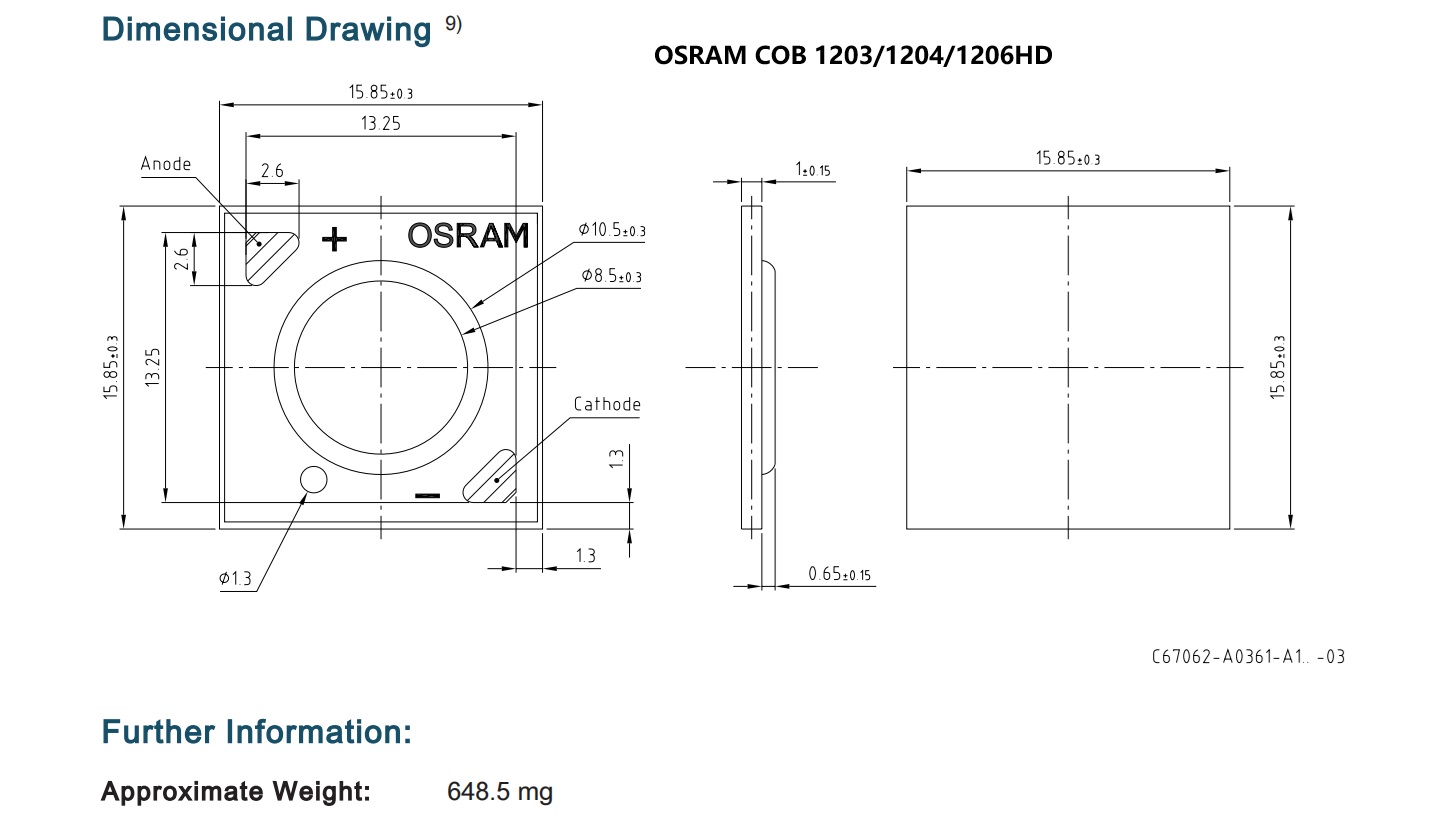

| GW KAFFBA.CM | 15.85*15.85 | ø8.5 | 8-18w | 200-450 | 12S3P/1507 | ||
| GW KAFHBA.CM | 15.85*15.85 | ø8.5 | 15-24w | 350-600 | 3000K/3500K/
4000K/5000K |
12S4P/1507 | |

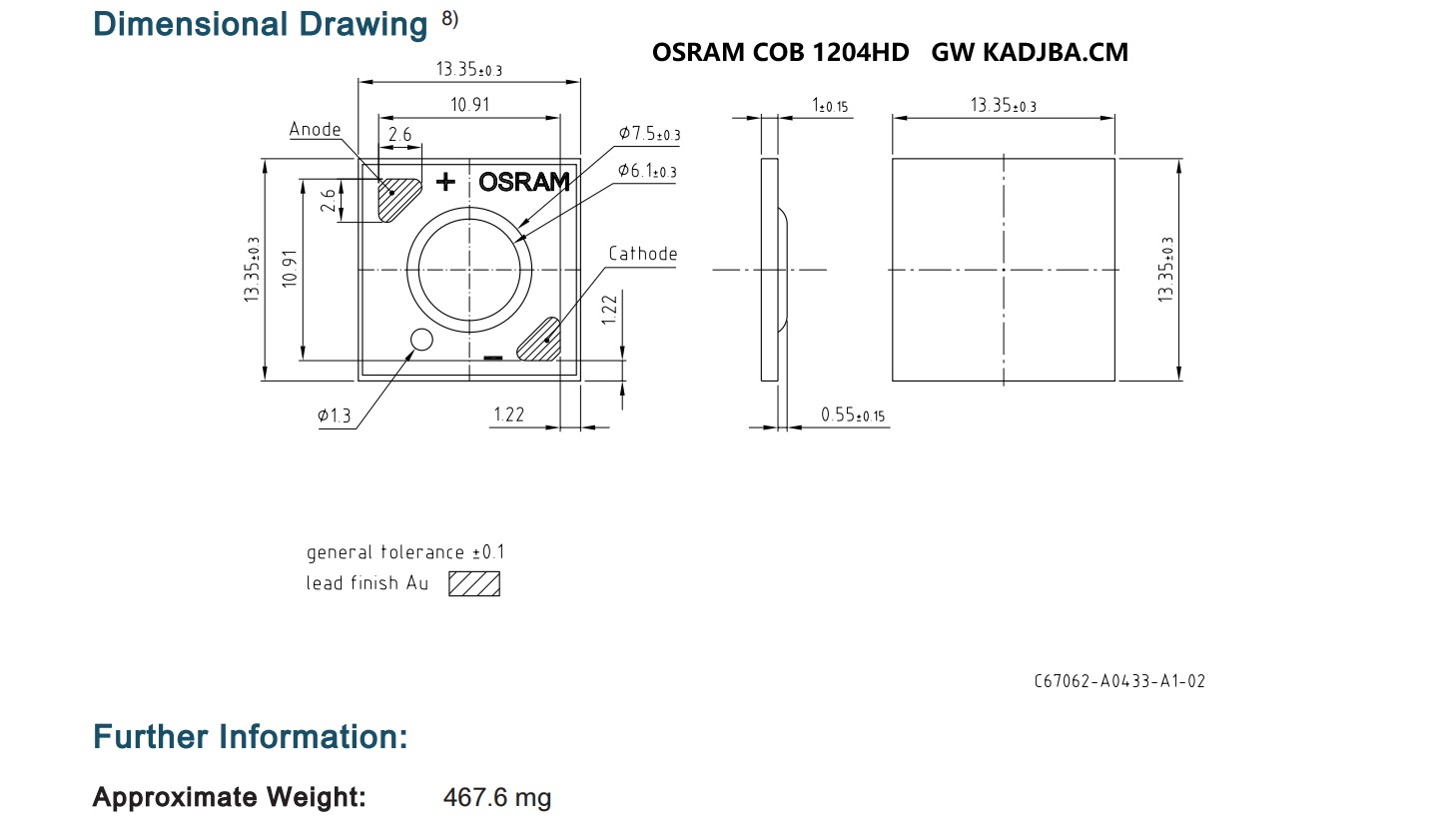

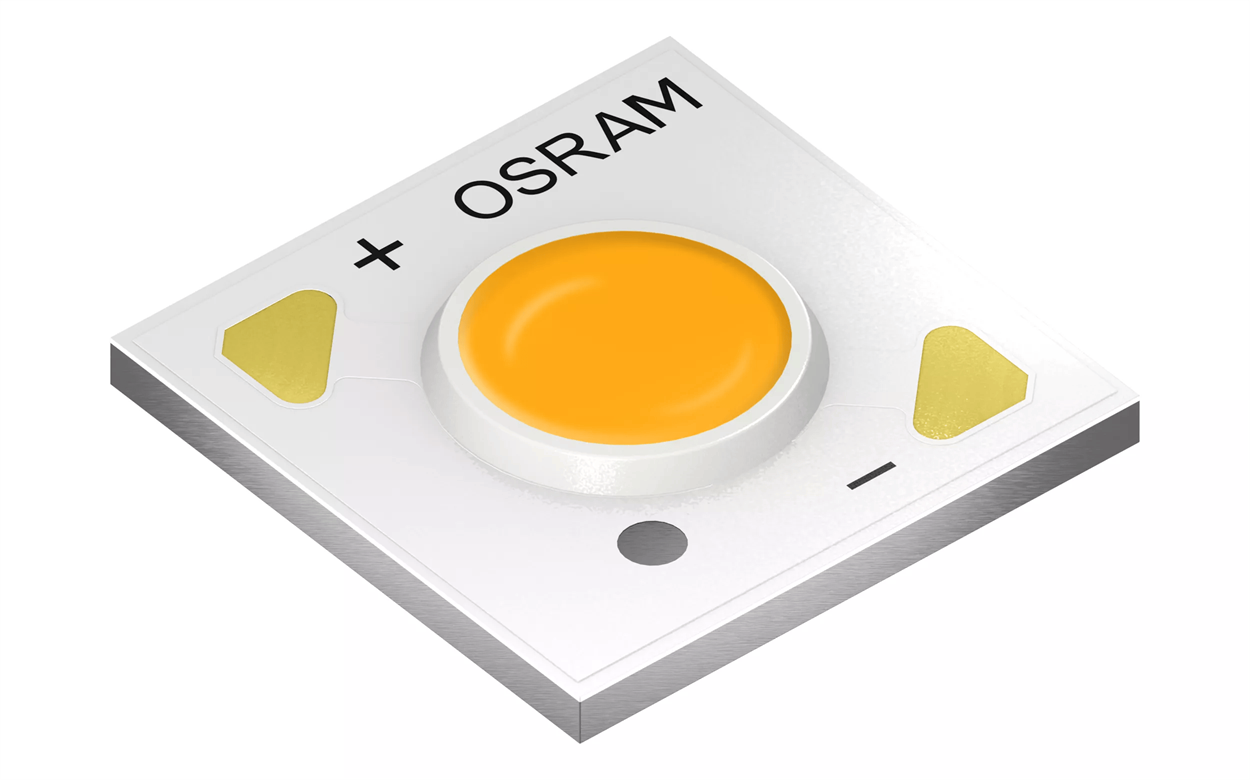

| GW KADJBA.CM | 13.5*13.5 | ø6.1 | 15-24w | 350-600 | 12S4P/1304 | ||

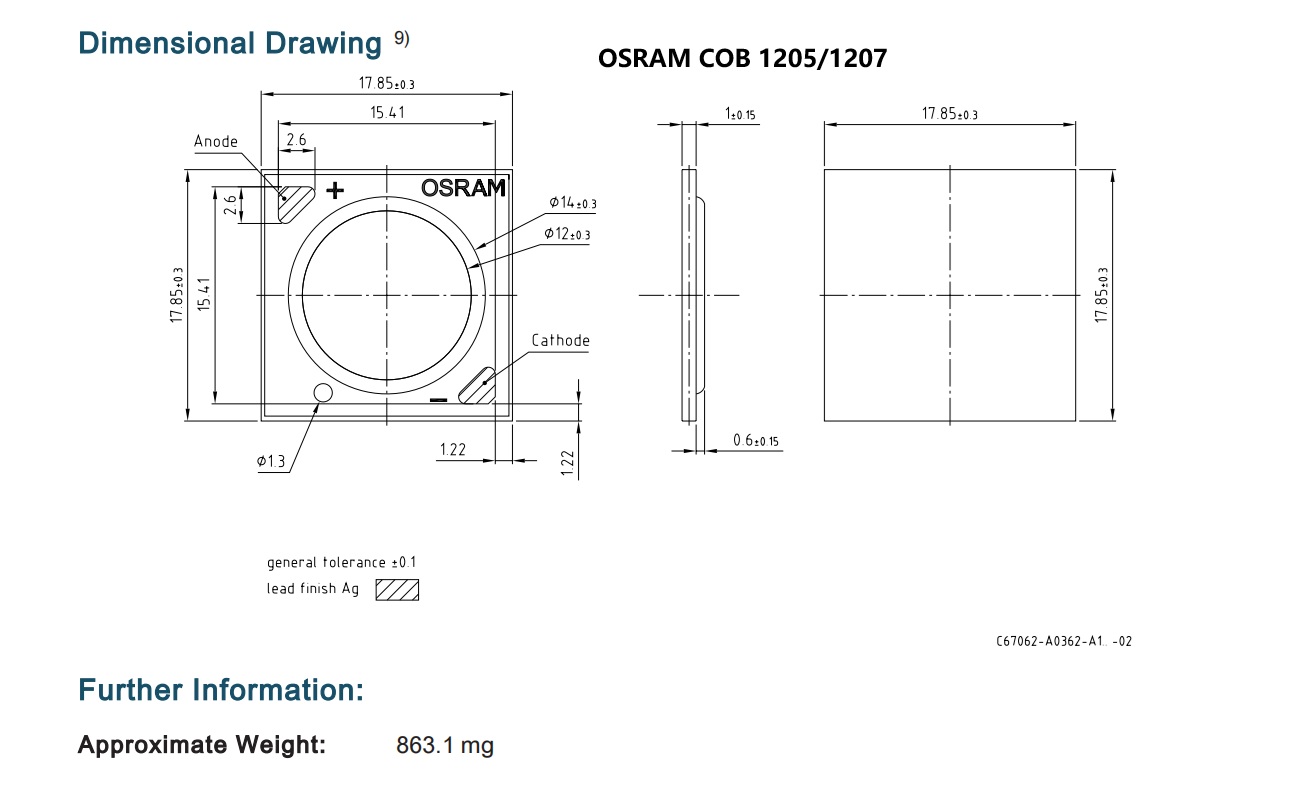

| GW KAMJBA.CM | 17.85*17.85 | ø12 | 24-32w | 600-800 | 12S5P/1816 | ||
| GW KAFLBA.CM | 15.85*15.85 | ø8.5 | 24-30w | 600-750 | 12S6P/1507 | ||

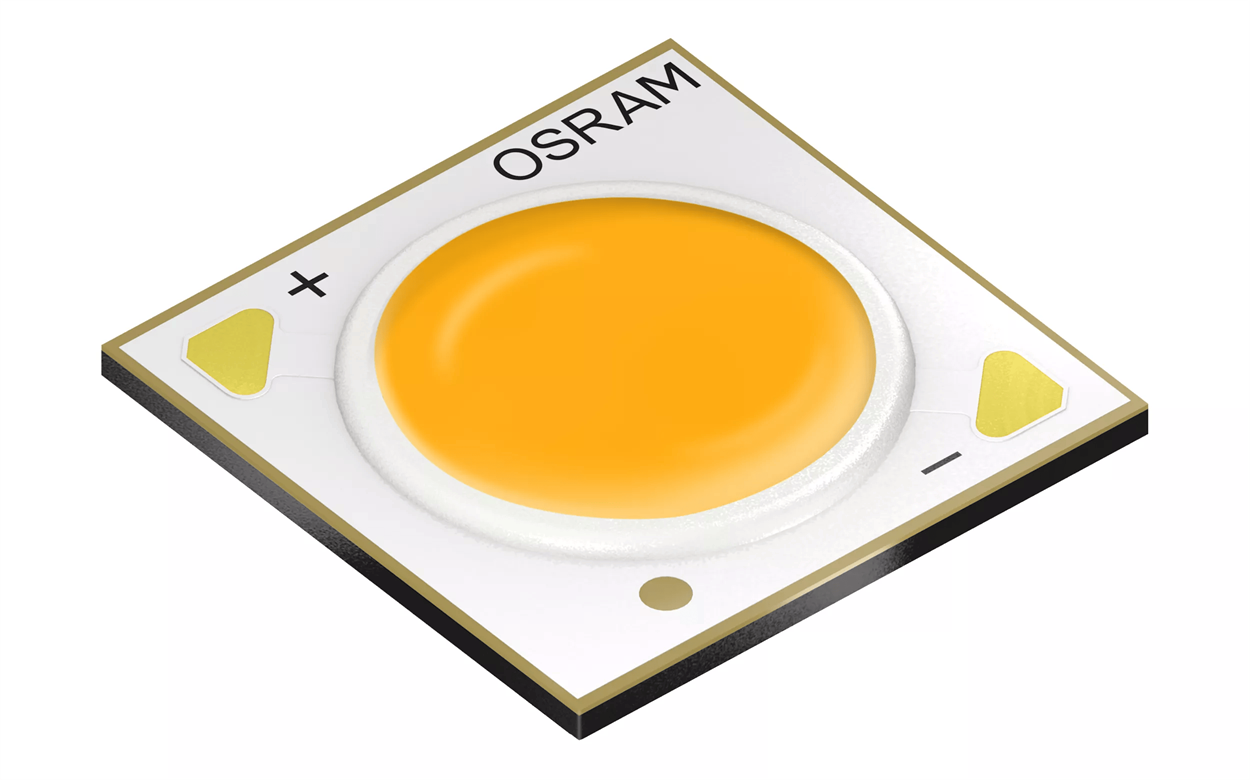

| GW KAMLBA.CM | 17.85*17.85 | ø12 | 30-42W | 750-1050 | 12S7P/1816 | ||

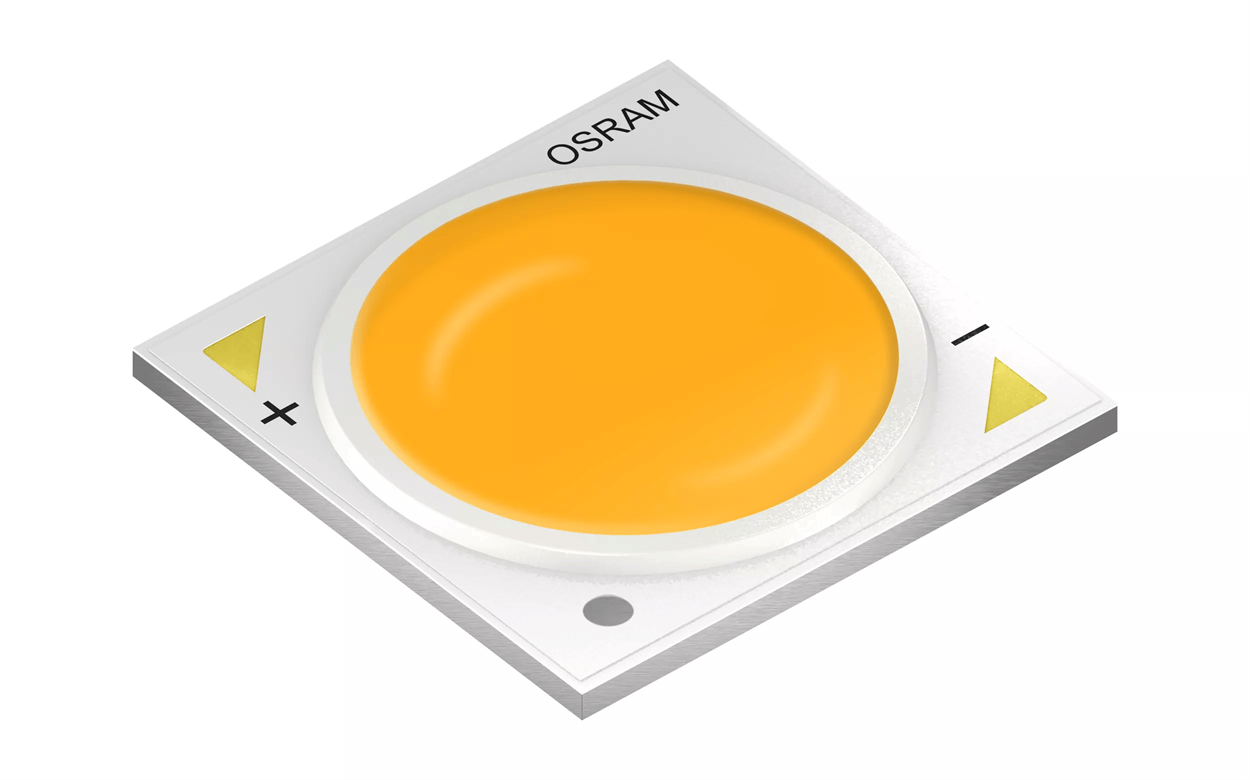

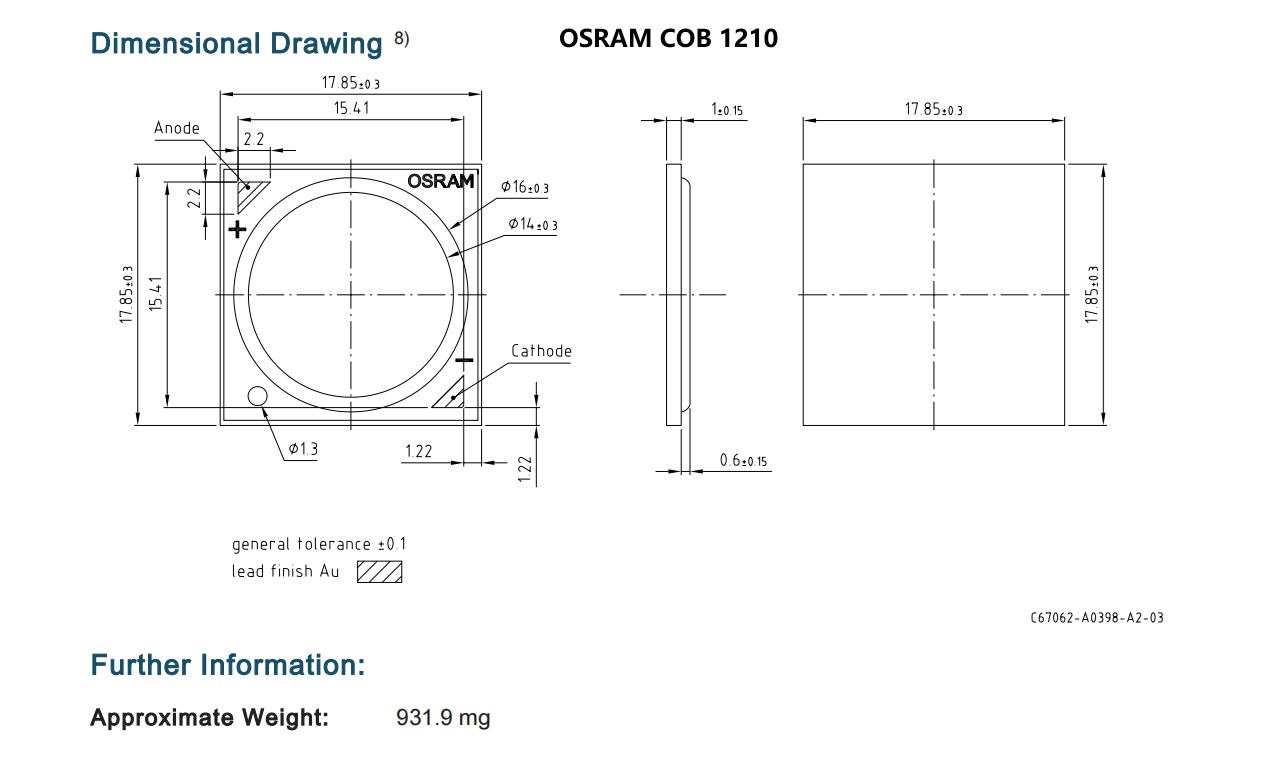

| GW KAPNBA.CM | 17.85*17.85 | ø14 | 40-50W | 1000-1200 | 2700K/3000K /3500K/4000K /5000K | 12S10P/1830 |
Download Datasheet GW-KADEBA-CM
Download Datasheet GW-KADJBA-CM
Download Datasheet GW-KAFFBA-CM
Download Datasheet GW-KAFHBA-CM
Download Datasheet GW-KAFLBA-CM
Download Datasheet GW-KAMJBA-CM
Download Datasheet GW-KAMLBA-CM
Download Datasheet GW-KAPNBA-CM
| Models | GW KADEBA.CM, GW KAFFBA.CM, GW KAFHBA.CM, GW KADJBA.CM, GW KAMJBA.CM, GW KAFLBA.CM, GW KAMLBA.CM, GW KAPNBA.CM |
|---|---|
| CCT | |
| CRI | |
| LED Model Size | COB-1816/1820/1830, COB-2520/2530/2540, COB-CLU028/CXM-9/V10, COB-CLU038/CXM-14/V13, COB-1304/CXM-6/V6, COB-1507/1512 |
| Input or Forward Voltage | |
| LED substrate material | |
| Power |
