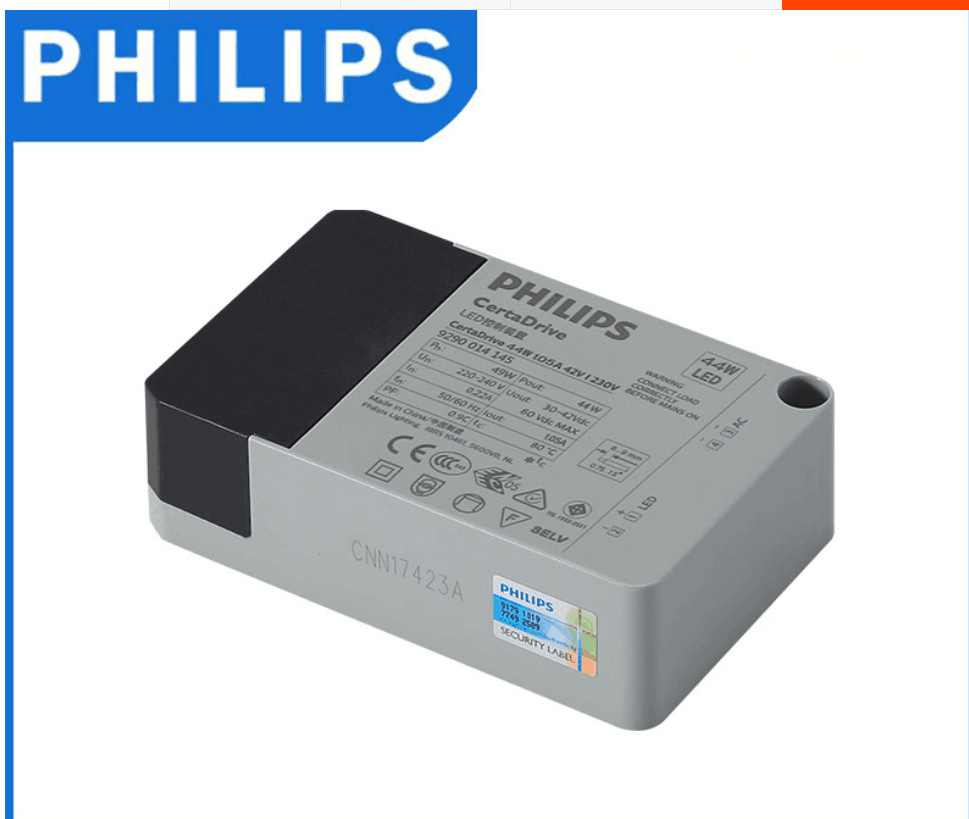

PHILIPS CertaDrive Downlight & Spotlight LED Drivers – LPF/HPF/G3/G4 Series
PHILIPS CertaDrive Downlight & Spotlight LED Drivers – LPF/HPF/G3/G4 Series - Image 2

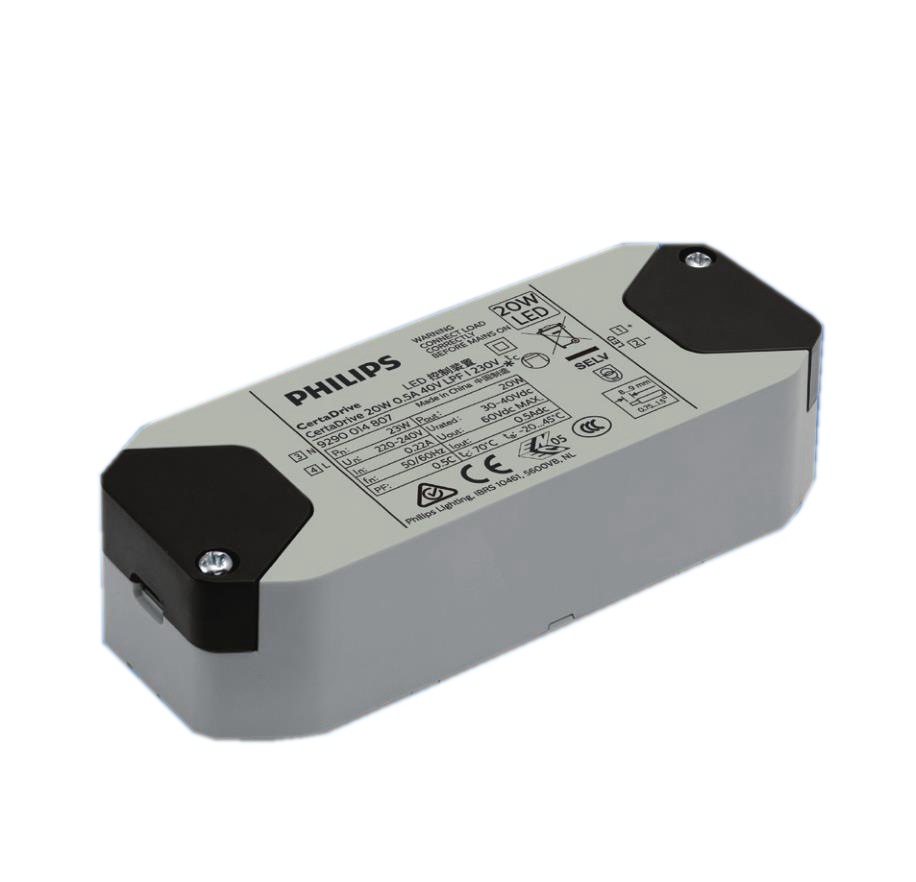

PHILIPS CertaDrive Downlight & Spotlight LED Drivers – LPF/HPF/G3/G4 Series - Image 3

PHILIPS CertaDrive Downlight & Spotlight LED Drivers – LPF/HPF/G3/G4 Series

  • Input Voltage:220–240V AC  Output Voltage:32–40V DC
  • Various Vout/Iout combinations covering 4W–44W
  • Efficiency:≥83%   Power Factor:0.5- 0.9    THD:≤ 20%
  •  Isolation Class:SELV     Protection Class:Class II
  • Ingress Protection:IP20    Nominal Lifetime:30,000h（@Tc-life）
  • T-Case Lifetime:65°C     T-Case Maximum:75°C
  • Ambient Temperature:-20°C — +40°C
  •  Short Circuit Protection/Over Power Protection/Open Circuit Protection
  • Certificate:CB,CE,CCC,EAC,ENEC,UA,UKCA
  • Three-year system warranty
  • Philips/Signify brand endorsement, premium brand reliability

Applications

  • Indoor general lighting (LED downlight applications)
  • Indoor accent lighting (LED spotlight applications)
  • Track lighting
  • COB and mid-power LED luminaires
  • Homes, offices, retail, public buildings



Price range: $2.24 through $4.85

▩Please note: All prices are EXW (Ex Works) and exclude VAT, customs duties, and shipping costs.
SKU PH92900xxxxxxxx Categories , , Tags , , , , Brand:

PHILIPS CertaDrive Downlight & Spotlight LED Drivers – LPF/HPF/G3/G4 Series

CertaDrive LED Point drivers are specifically designed for indoor accent lighting applications, covering homes, offices, public buildings and retail environments. Compatible with COB and mid-power LEDs from any LED manufacturer, these drivers support both built-in and independent installations for downlights, spotlights and track lights. With both economical (LPF) and high-performance (HPF) options available, the series meets diverse project budgets and performance requirements.

  • Output current ripple < 5% (LPF) / < 4% (G3)–No visual flicker, eye comfort; camera-friendly performance
  • 30,000 hours lifetime (@Tc-life)–Long-term reliable operation for high-volume basic lighting applications
  • Fixed single constant current output–Easy design-in, shortened development cycle, fast time to market
  • Various Vout/Iout combinations covering 4W–44W–Flexible matching for diverse downlight/spotlight requirements
  • Ultra-compact dimensions–Space-saving, easy integration into various downlight/spotlight fixtures
  • Independent-version housing design–Supports both built-in and stand-alone installations
  • Great EMI performance–Easy design-in with EMC compliance
  • ENEC, CB, CE, CCC, RCM and more–Meets major global market access requirements
  • Economical positioning, optimized cost/performance ratio
Order code(12NC) Product Description Power Input Voltage Output Current Output Voltage Efficiency Power Factor Size
929003460280 CertaDrive 4W 0.1A 40V LPF I 230V G4

4W











220-240VAC



100mA









32-40VDC

 ≥83% 0.5







88*39*32mm
929003460380 CertaDrive 6W 0.15A 40V LPF I 230V G4

6W



150mA

 ≥83% 0.5
929003460480 CertaDrive 8W 0.2A 40V LPF I 230V G4

8W



200mA

 ≥83% 0.5
929003460580 CertaDriver 10W 0.25A 40V LPF I 230V G4

10W



250mA

 ≥83% 0.5
929003460680 CertaDrive 12W 0.3A 40V LPF I 230V G4

12W



300mA

 ≥85% 0.5
929002878580 CertaDrive 14W 0.35A 40V LPF I 230V

14W



350mA

 ≥83% 0.5









101*41*28mm


929002878680 CertaDrive 16W 0.4A 40V LPF I 230V

16W



400mA

 ≥83% 0.5
929002878780 CertaDrive 18W 0.45A 40V LPF I 230V

18W



450mA

 ≥83% 0.5
929002878880 CertaDrive 20W 0.5A 40V LPF I 230V

20W



500mA

 ≥83% 0.5
929002819380 CertaDrive 25W 0.6A 42V I 230V G3 25W 600mA ≥85% 0.9











108*68*32mm






929002819480 CertaDrive 30W 0.7A 42V I 230V G3 30W 700mA ≥85% 0.9
929002819580 CertaDrive 34W 0.8A 42V I 230V G3 34W 800mA ≥85% 0.9
929002819680 CertaDrive 38W 0.9A 42V I 230V G3 38W 900mA ≥85% 0.9
929002819780 CertaDrive 44W 1.05A 42V I 230V G3 44W 1050mA ≥85% 0.9

If you need detailed specifications, please feel free to contact us or visit the official Philips website!

Dimming Type

Order code

929003460280, 929003460380, 929003460480, 929003460580, 929003460680, 929002878580, 929002878680, 929002878780, 929002878880, 929002819380, 929002819480, 929002819580, 929002819680, 929002819780
Input or Forward Voltage

IP Rating

Power

, , , , ,

Certified

, , , ,

Power Factor

,
