Eaglerise DIP-Switch Adjustable Output Current LED Driver Series – High Efficiency, External, High Power Factor
Features
- For luminaries of protection Class II，SELV， Independent
- DIP-Switch Adjustable Current
- Input Voltage： 220-240VAC
- Protections：SCP/OLP/OVP/OTP
- Power Factor：0.95(Typ.)
- Efficiency：≥92%(Typ.)
- Adjustable Output Current with dip-switch
- 5 years warranty
- IP20
Applications
- LED panel
- LED down light
Price range: $2.97 through $3.29
Eaglerise DIP-Switch Adjustable Output Current LED Driver Series – High Efficiency, External, High Power Factor
Eaglerise DIP-switch adjustable output current LED driver series is designed for LED panel lights, downlights and other indoor lighting applications. Featuring DIP-switch adjustable output current, one driver covers multiple current values, significantly reducing inventory costs. With high efficiency (up to 94%) and high power factor (>0.95), the series is certified with CE, CB, ENEC, CCC and more.
Models and Specifications
| NO | Models | Power | Input Voltage | Output Voltage | Output Current(mA) | Efficiency | Power Factor | Size |

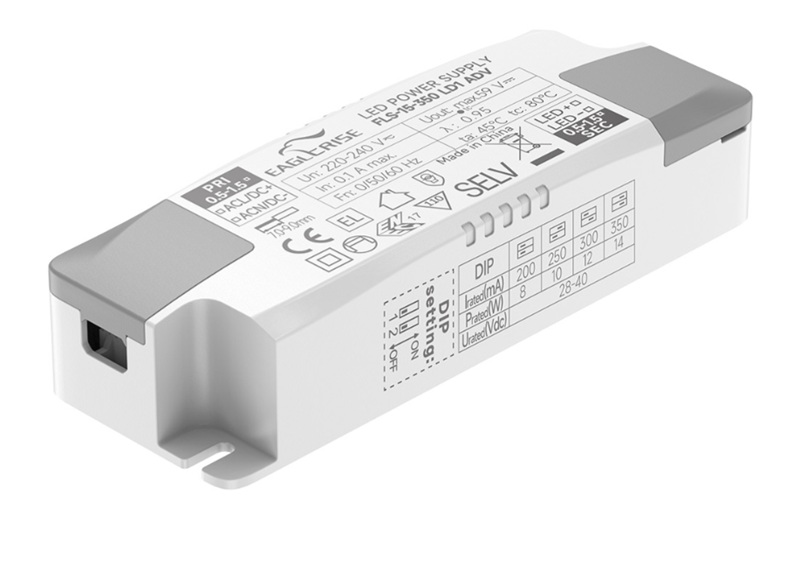

| 1 | FLS-15-350 LD1 ADV | 8-14W |
220-240VAC |
28-40VDC |

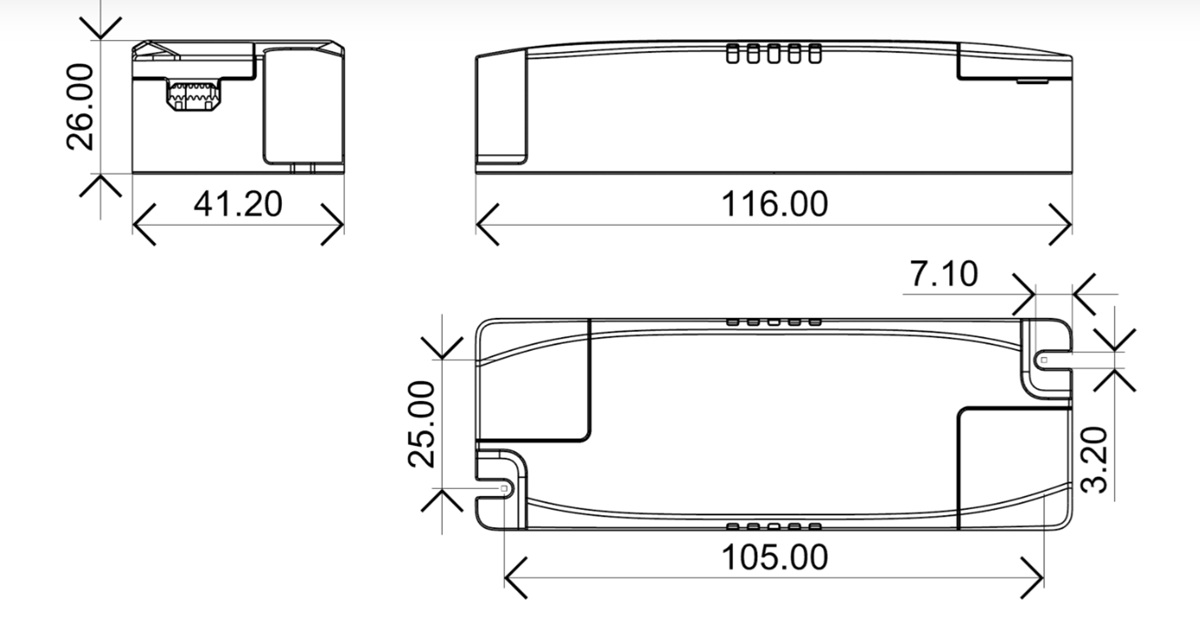

200-250-300-350 | 92% | 0.95 | 116*41*26mm |

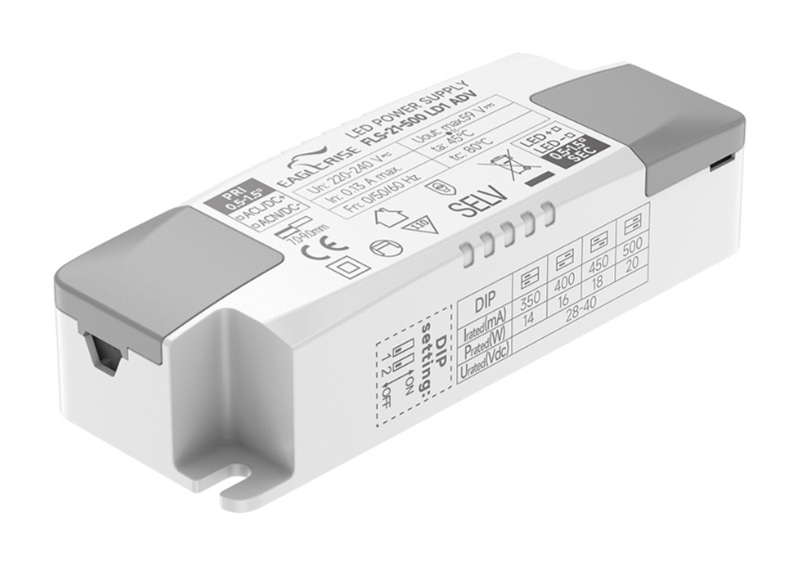

| 2 | FLS-21-500 LD1 ADV | 14-20W | 350-400-450-500 | 93% | ||||

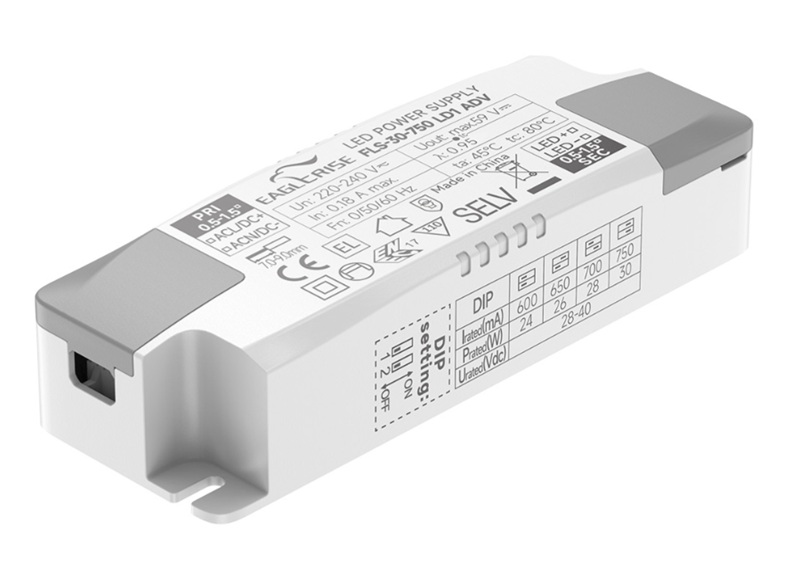

| 3 | FLS-30-750 LD1 ADV | 24-30W | 600-650-700-750 | 94% | ||||
| 4 | FLS-40-1050 LD1 ADV | 28-42W | 700-800-900-1050 | 94% |
Quality Assurance
Eaglerise LED Driver is CE and ENEC certified, fully compliant with EU Low Voltage and EMC Directives. Rigorously tested by Nemko and other independent bodies, it ensures proven reliability and stable performance for demanding lighting projects.
Need certification documents? Contact our team – we’ll provide them promptly.
Download Datasheet FLS-15-350-LD1-ADV
Download Datasheet FLS-21-500-LD1-ADV
Download Datasheet FLS-30-750-LD1-ADV
Download Datasheet FLS-40-1050-LD1-ADV
| Models | FLS-15-350 LD1 ADV, FLS-21-500 LD1 ADV, FLS-30-750 LD1 ADV, FLS-40-1050 LD1 ADV |
|---|---|
| IP Rating | |
| Dimming Type | |
| Input or Forward Voltage | |
| Certified | |
| Power Factor | |
| Power |
Related products
-
Constant Current DriversIndependent Constant Current LED Driver-EAGLERISE LS Mini series
Price range: $1.17 through $1.59 Select options This product has multiple variants. The options may be chosen on the product page -
Constant Current DriversIndependent Constant Current LED Driver-EAGLERISE SI1 Series
Price range: $0.78 through $1.27 Select options This product has multiple variants. The options may be chosen on the product page -

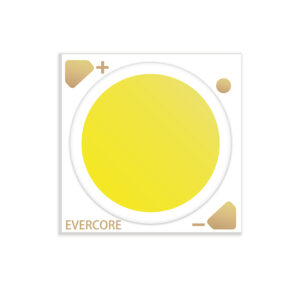

COB LEDsEVERCORE High efficiency COB-SV5 Series 180lm/W
