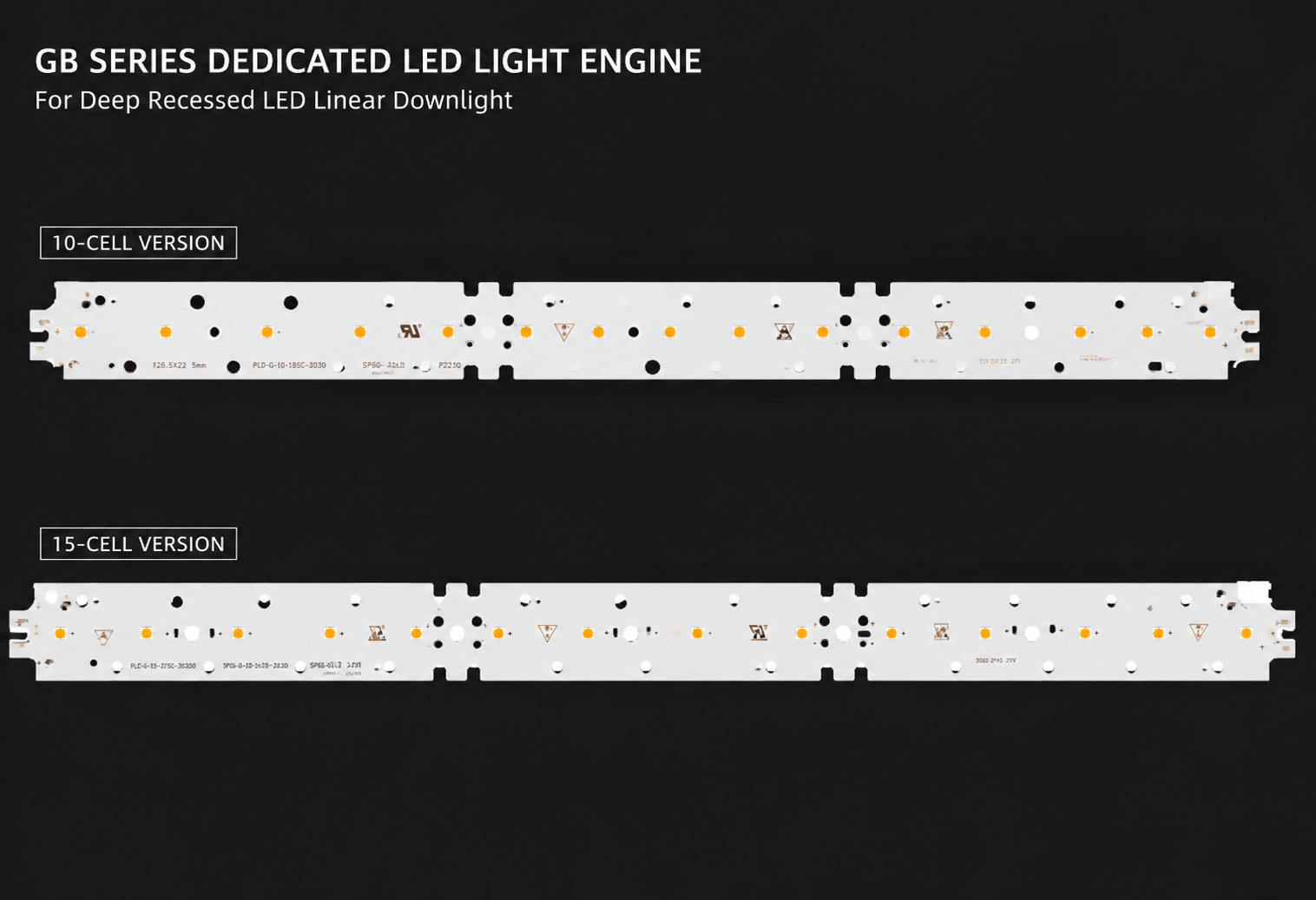

GB Series Dedicated LED Light Engine
Available configurations:
• Single Cell • Dual Cell • Triple Cell • Quad Cell • Five Cell • Nine Cell • Ten Cell • Fifteen Cell
Available Color Temperatures:
✔ 2700K Warm White
✔ 3000K Warm White
✔ 3500K Neutral White
✔ 4000K Cool White
✔ 5700K Daylight
Custom CCT solutions are available upon request.
Price range: $0.09 through $1.12

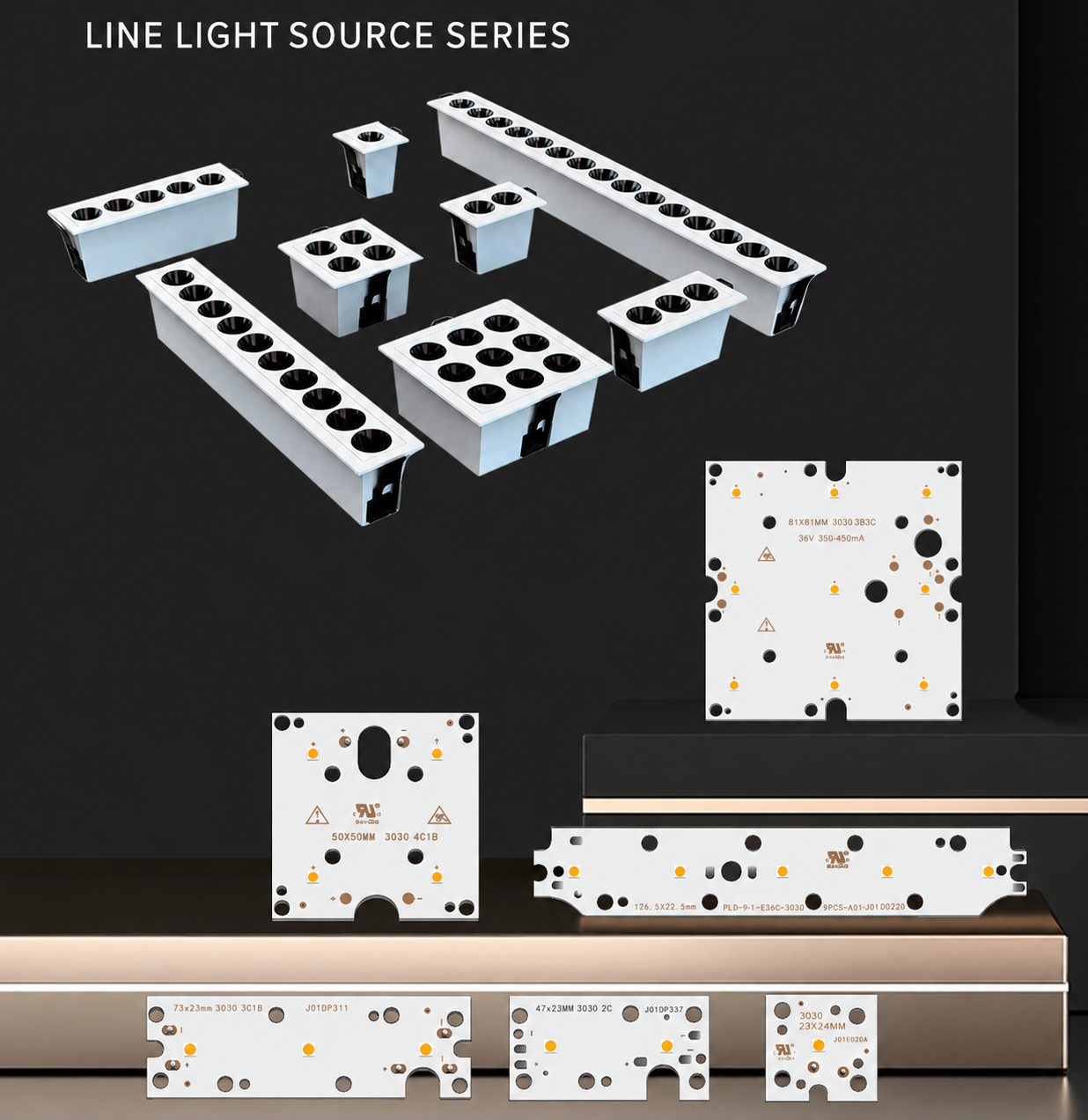

GB Series Deep Recessed LED Linear Downlight
Dedicated LED Light Engine Series
Perfectly matched with GB Series Deep Recessed LED Linear Downlight, available in 8 configurations to ensure consistent optical performance, thermal management and easy assembly.
Premium Aluminum PCB Construction
Manufactured with high-quality aluminum-core PCB for superior heat dissipation, improved reliability and extended service life.
High Efficiency 3030 LED Technology
Equipped with premium 3030 SMD LEDs delivering excellent luminous efficacy, color consistency and long-term performance.Optional LED brands include（Different options come with different prices）:
• Osram 3030
• Seoul Semiconductor 3030
• Lumileds 3030
• Samsung 3030
• Other designated LED brands
Excellent Color Rendering
High color fidelity enhances the appearance of materials, fabrics, wood grains and decorative finishes.
UR Recognized Components
Recognized by UR for enhanced safety, reliability and project compliance.
| Product Model | PCB Model | Size | Input Voltage | Input Current | Max. Power | CCT / CRI |
| SR01GB01 | PCB-GB01 | 23*24mm 3030 1P | 6V | 260-280mA | 2W | 2700K/3000K/3500K 4000K/5700KRA 90 |
| SR01GB02 | PCB-GB02 | 23*47mm 3030 1P2S | 12V | 4W | ||
| SR01GB03 | PCB-GB03 | 23*73mm 3030 1P3S | 18V | 6W | ||
| SR01GB04 | PCB-GB04 | 50*50mm 3030 1P4S | 24V | 8W | ||
| SR01GB05 | PCB-GB05 | 125*20mm/ 3030 1P5S |
30V | 10W | ||
| SR01GB09 | PCB-GB09 | 81*81mm 3030 3P3S | 18W | 900mA | 18W | |
| SR01GB10 | PCB-GB10 | 258*20mm/ 3030 2P5S |
30V | 500-550mA | 20W | |
| SR01GB15 | PCB-GB15 | 390*20mm/ 3030 3P5S |
30V | 750-850mA | 30W |
| PCB Model | PCB-GB01, PCB-GB02, PCB-GB03, PCB-GB04, PCB-GB05, PCB-GB09, PCB-GB10, PCB-GB15 |
|---|---|
| LED substrate material |
