Independent Constant Current LED Driver-EAGLERISE LS Mini series
Independent Constant Current LED Driver-EAGLERISE LS Mini series - Image 2
Independent Constant Current LED Driver-EAGLERISE LS Mini series - Image 3
Independent Constant Current LED Driver-EAGLERISE LS Mini series - Image 4
Independent Constant Current LED Driver-EAGLERISE LS Mini series - Image 5

Independent Constant Current LED Driver-EAGLERISE LS Mini series

Product Description:

  • For luminaries of protection Class II
  • SELV，Built-in
  • Input Voltage 220-240VAC
  • Protections: SCP/OLP/OVP/OTP
  • Power Factor ：0.5
  • Efficiency：70%-76%
  • Certified to: CE, CB, CCC, TÜV, and ENEC.
  • 5 years warranty

Applications：

  • Small-cutout cabinet lights (≥25mm)
  • Small-cutout recessed spotlights
  • Small-cutout downlights
  • Decorative star lights
  • Jewelry/wine cabinet display lights



Price range: $1.17 through $1.59

▩Please note: All prices are EXW (Ex Works) and exclude VAT, customs duties, and shipping costs.
SKU LS-mini-x Categories , , Tags , , , , Brand:

Independent Constant Current LED Driver-EAGLERISE LS Mini series

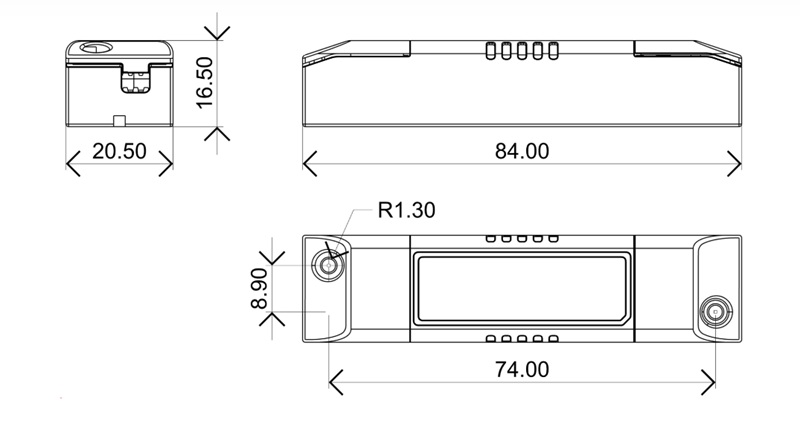

The Eaglerise LS Mini series is an ultra-compact constant current LED driver specifically designed for small cutout luminaires (≥25mm). With 84×20.5×16.5mm dimensions, it easily fits tight spaces such as small-cutout cabinet lights, recessed spotlights, downlights, and decorative star lights. Covering 1W–11.5W with current options from 120mA to 1150mA.

Independent Class II design with SELV safety isolation and built-in SCP/OLP/OVP triple protections; backed by a 5-year warranty and certified to CE, CCC, CB, RCM, BIS and more. Compact size, full functionality, safe and reliable.

Models and Specifications

NO Models Power Input Voltage Output Voltage Output Current Efficiency Power Factor Size
1 LS-3-350 SI E 2-4W 220-240 5-12V 350 ≥73% 0.5C 84*20.5*16.5
2 LS-3-500 SI E 1-4W 220-240 2.5-4.5V 500 ≥73% 0.5C 84*20.5*16.5
3 LS-3-700 SI E 1-4W 220-240 2.5-4.5V 700 ≥71% 0.5C 84*20.5*16.5
4 LS-3-1150 SI E 4-6W 220-240 2.5-3.2V 1150 ≥70% 0.5C 84*20.5*16.5
5 LS-6-120 SI E 5.5W 220-240 27-40V 120 ≥76% 0.5C 84*20.5*16.5
6 LS-6-150 SI E 6.9W 220-240 27-40V 150 ≥76% 0.5C 84*20.5*16.5
7 LS-6-180 SI E 8.3W 220-240 27-40V 180 ≥76% 0.5C 84*20.5*16.5
8 LS-6-250 SI E 3-7W 220-240 10-24V 250 ≥76% 0.5C 84*20.5*16.5
9 LS-6-300 SI E 3-7W 220-240 8-20V 300 ≥76% 0.5C 84*20.5*16.5
10 LS-6-350 SI E 3-7W 220-240 8-18V 350 ≥76% 0.5C 84*20.5*16.5
11 LS-6-500 SI E 2-7W 220-240 5-12V 500 ≥76% 0.5C 84*20.5*16.5
12 LS-6-700 SI E 2-7W 220-240 4-9V 700 ≥76% 0.5C 84*20.5*16.5
13 LS-8-200 SI E1 9W 220-240 30-42V 200 ≥73% 0.5C 84*20.5*16.5
14 LS-8-220 SI E1 9.8W 220-240 30-42V 220 ≥73% 0.5C 84*20.5*16.5
15 LS-8-700 SI E1 7.5-11.5W 220-240 8-13V 700 ≥76% 0.5C 84*20.5*16.5

Quality Assurance

Eaglerise  LED Driver is CE and ENEC certified, fully compliant with EU Low Voltage and EMC Directives. Rigorously tested by Nemko and other independent bodies, it ensures proven reliability and stable performance for demanding lighting projects.

Need certification documents? Contact our team – we’ll provide them promptly.


Download Datasheet LS-3-XXX-SI-E

Download Datasheet LS-6-XXX-SI-E

Download Datasheet LS-8-XXX-SI-E1

Models

LS-3-350 SI E, LS-3-500 SI E, LS-3-700 SI E, LS-3-1150 SI E, LS-6-120 SI E, LS-6-150 SI E, LS-6-180 SI E, LS-6-250 SI E, LS-6-300 SI E, LS-6-350 SI E, LS-6-500 SI E, LS-6-700 SI E, LS-8-200 SI E1, LS-8-220 SI E1, LS-8-700 SI E1
IP Rating

Dimming Type

Input or Forward Voltage

Certified

, , , , ,

Power Factor

Power

, ,
