High Power（30W-90W） Recessed COB Spotlight Housing Kit
Specifications
- Power Adaptation:30W/40W/60W/80W/90W
- Size:Ø130*H123mm/Ø150*H136mm/Ø175*H155mm/Ø200*H170mm/Ø230*H186mm

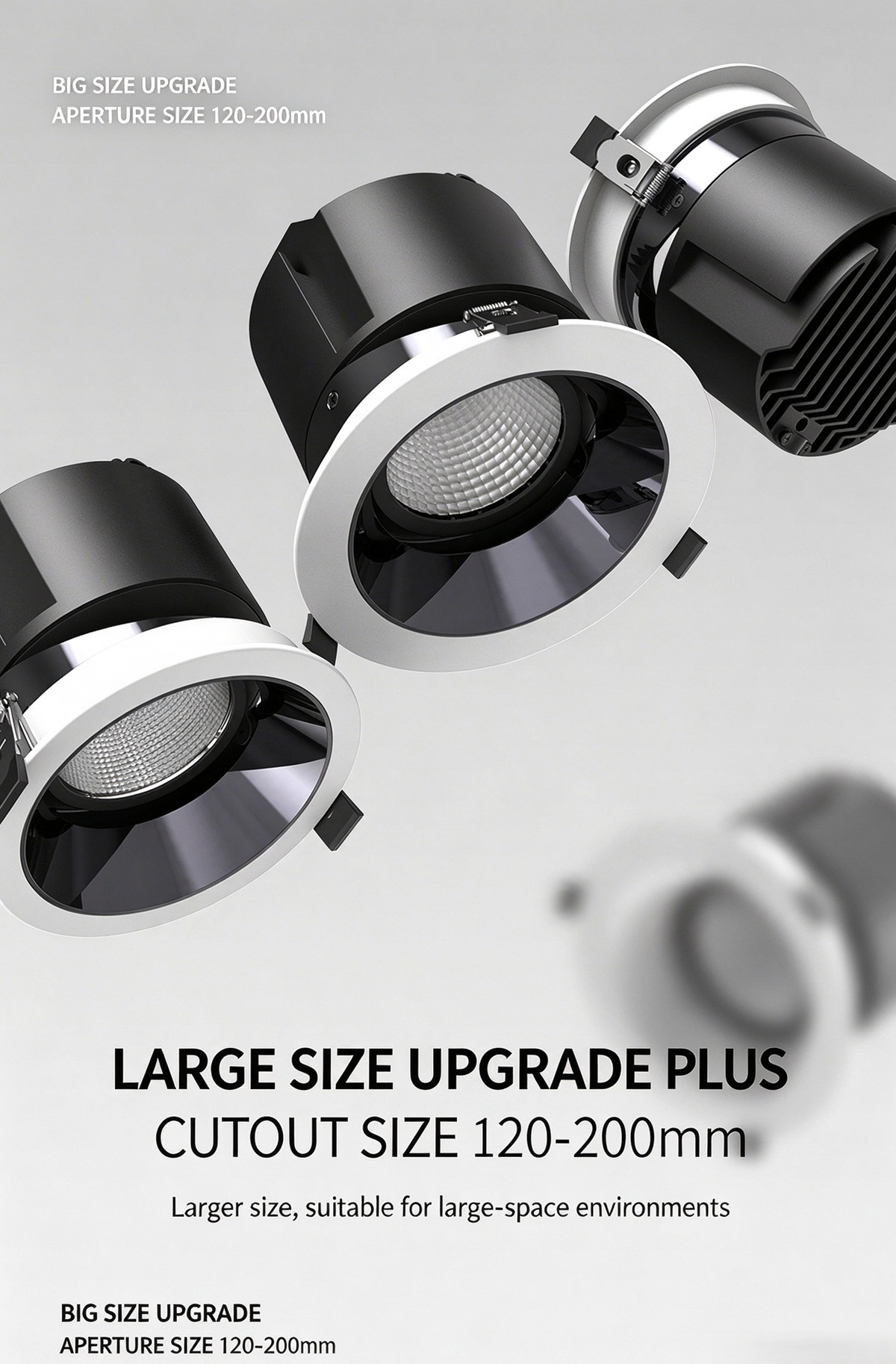

- CUT OUT:Ø120/Ø140/Ø160/Ø180/Ø200
- COB Holder:030/1830,040/2540
- Beam Angle：15°/24°/38°
- Reflector Cup Color: 1.Molded Color:White/Black;2.UV‑plated color:Mirror Silver/Gunmetal
Applications
Suitable for large-space commercial lighting & wall-washing accent lighting: shopping malls, exhibition halls, hotel lobbies, clubs, office buildings, museums and other projects.
Price range: $9.14 through $66.37
High Power Recessed COB Spotlight Housing Kit
Product Overview

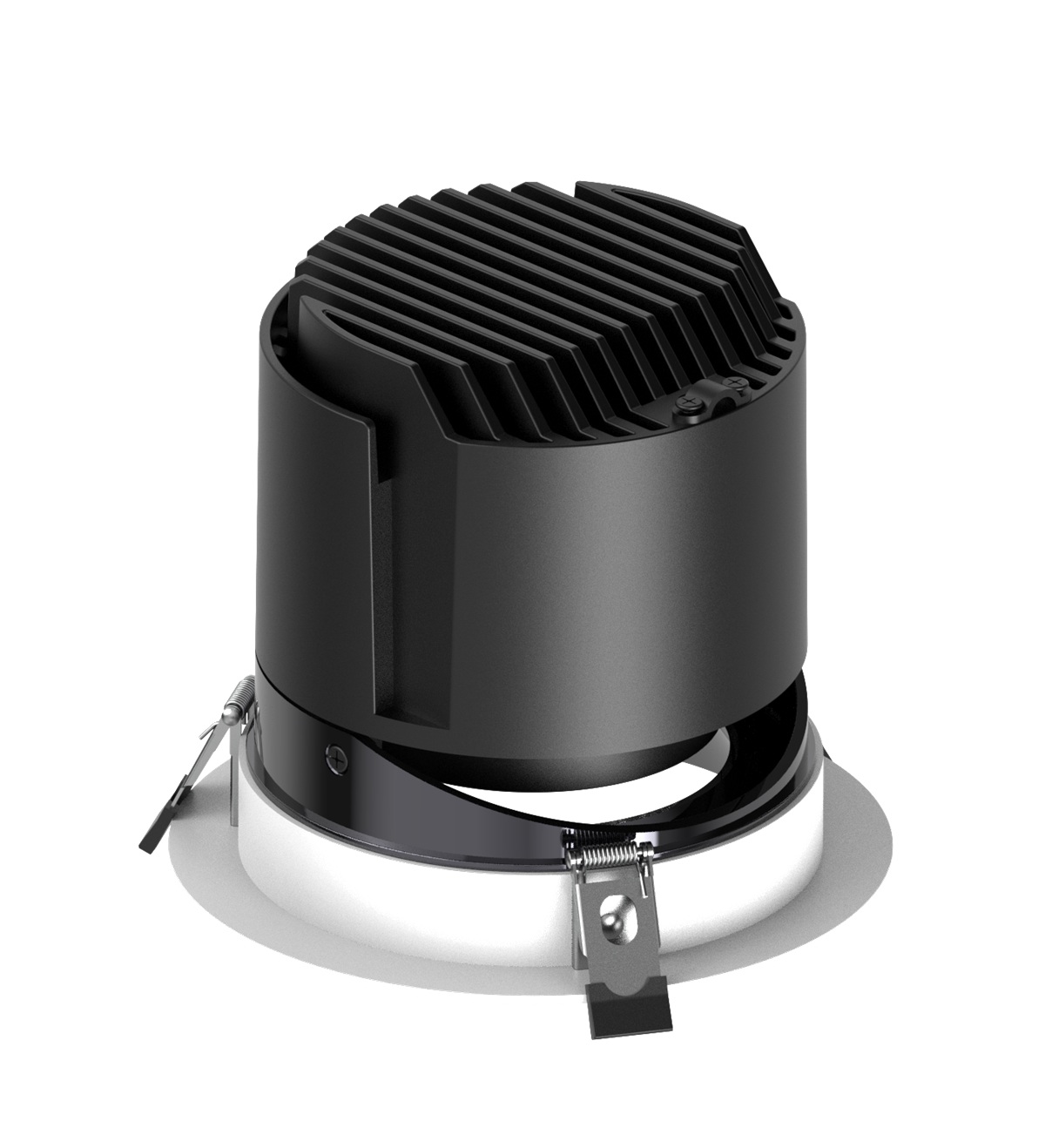

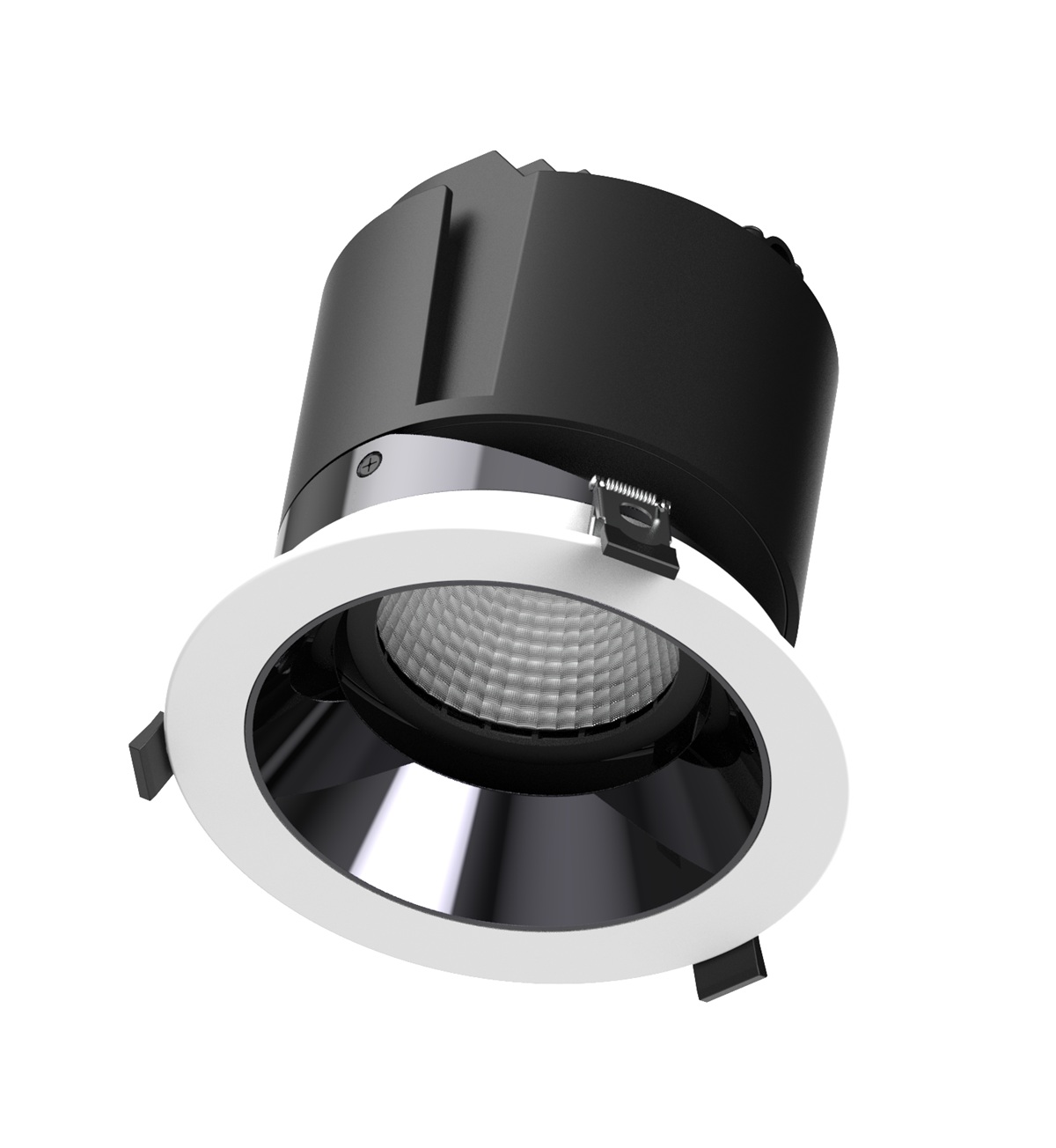

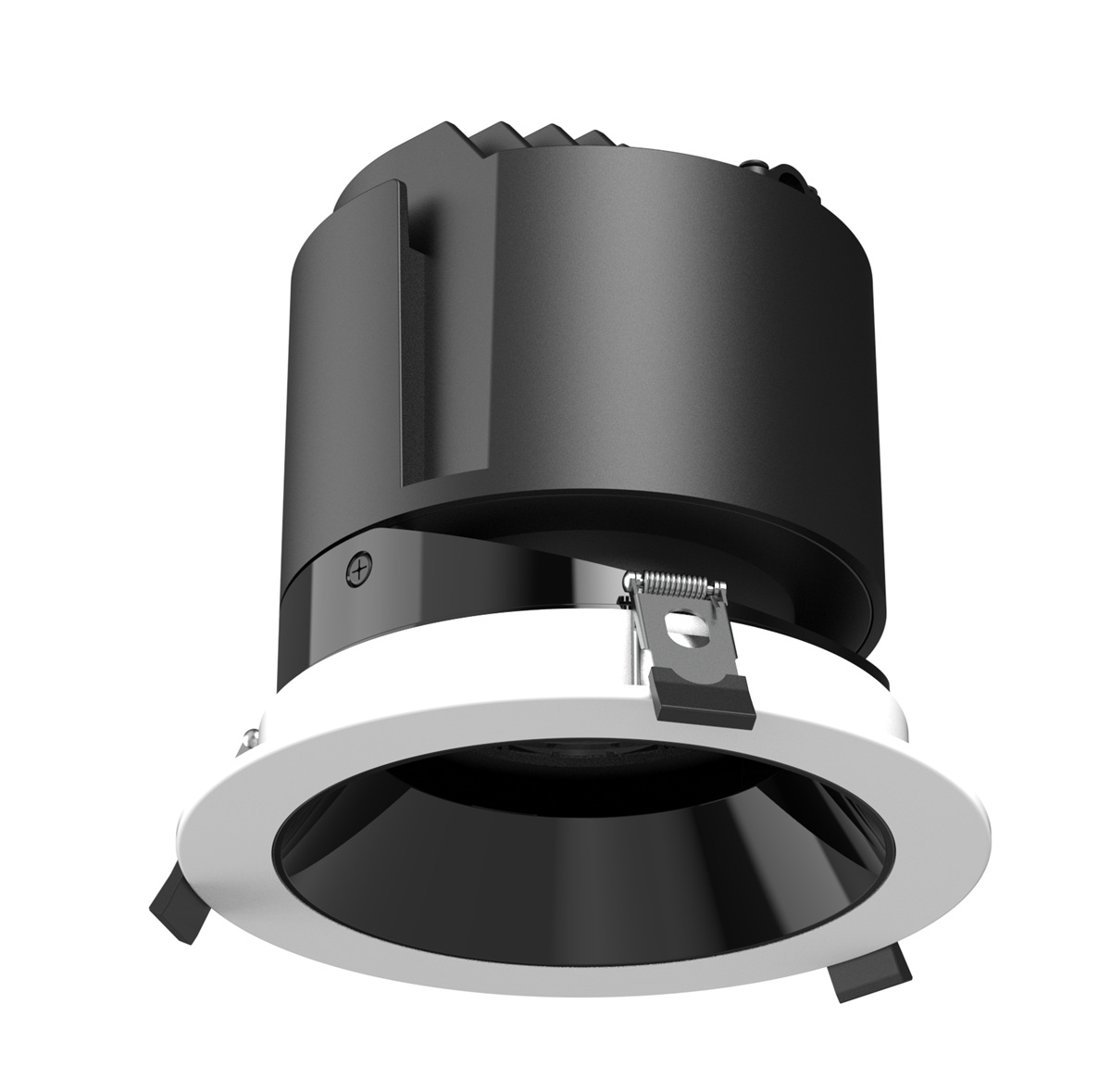

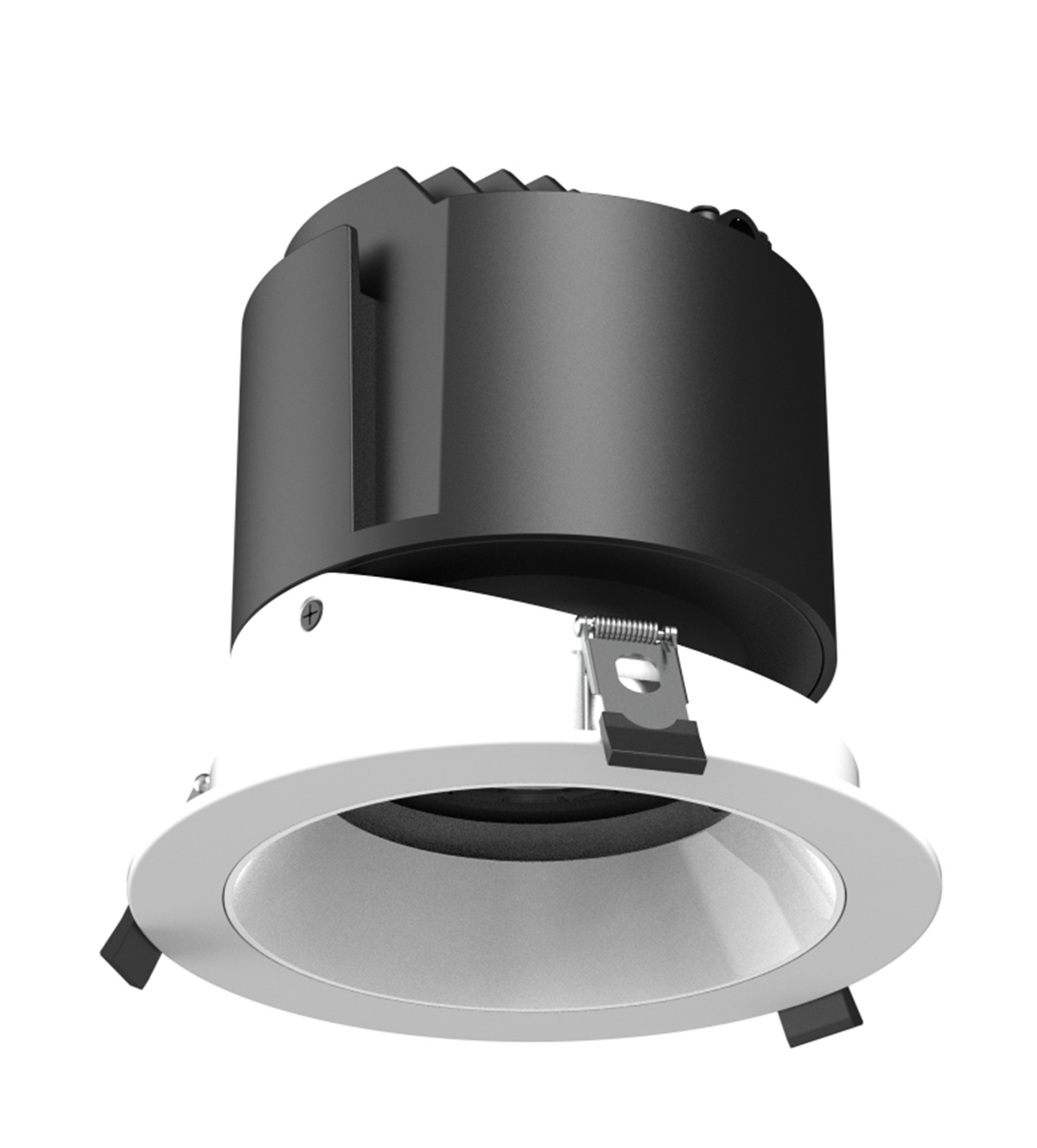

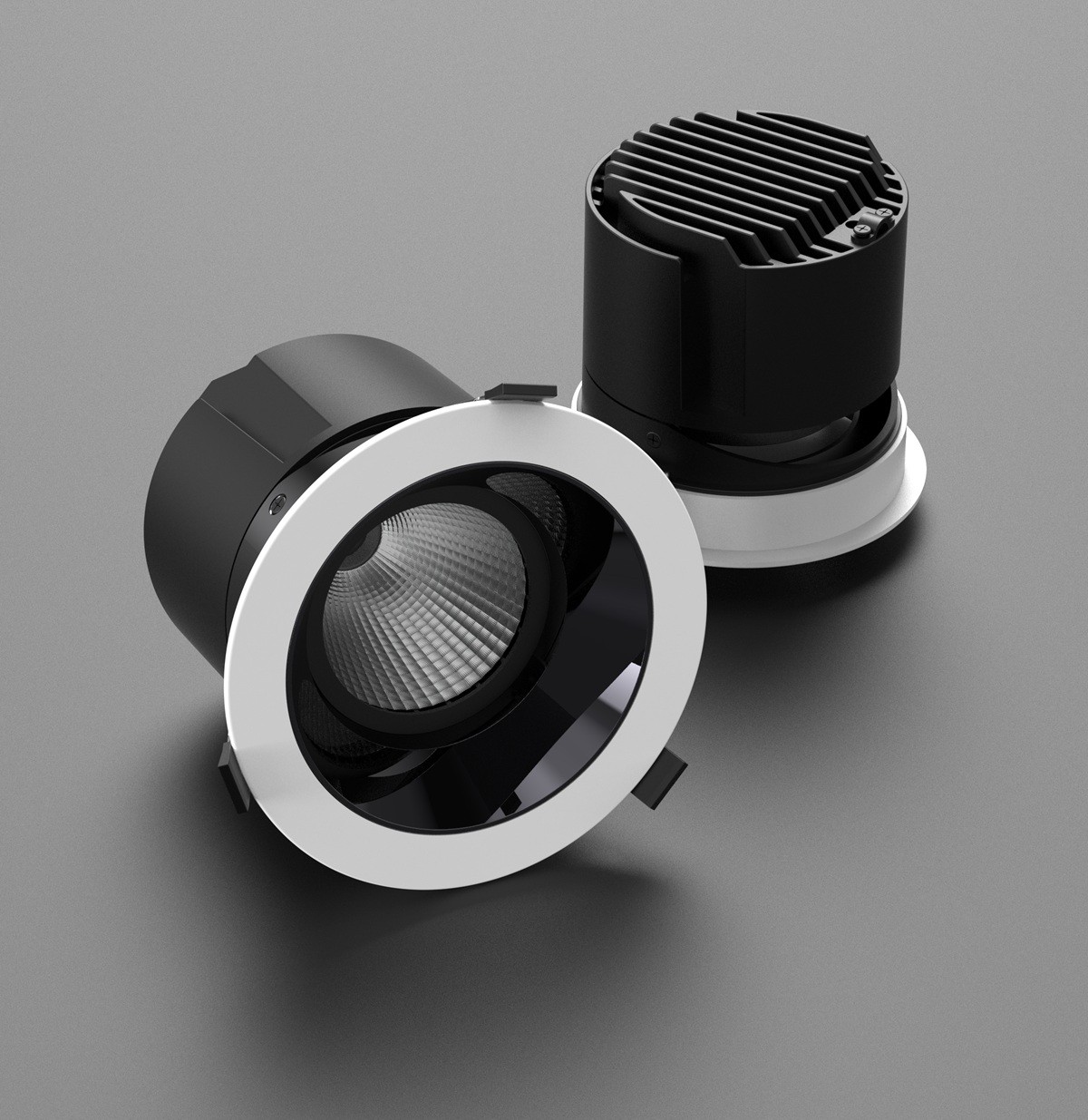

Developed for high-power lighting in large spaces, this recessed COB spotlight housing kit features an integrated die-cast aluminum heat sink with excellent heat dissipation, which ensures stable operation of the light source and maintains luminous efficiency. Equipped with precision aluminum reflector with curved optical design, polished and anodized surface for accurate light distribution and high light output. Deep recessed light source structure suppresses glare for comfortable lighting. Multiple cutout sizes and reflector finishes are available for diverse commercial lighting projects.
Model & Spec
| NO | Model | Recommended Power | Overall Dimensions（mm) | Cut-out Size(mm) | Beam Angle | LED Holder | Color |
| 1 | SR01XG120 | 24-30W | Ø130*H123 | Ø120 | 15° 24° 38° |
1830 030 |
Reflector Cup Color: 1.Molded Color:White/Black;2.UV‑plated color:Mirror Silver/Gunmetal |
| 2 | SR01XG140 | 36-40W | Ø150*H136 | Ø140 | |||
| 3 | SR01XG160 | 50-60w | Ø175*H155 | Ø160 | 040 2520 |
||
| 4 | SR01XG180 | 70-80W | Ø200*H170 | Ø180 | |||
| 5 | SR01XG200 | 80-90W | Ø230*H186 | Ø200 |
Please note:
1. Reflector cup colors are usually priced differently: UV-plated is the highest, spray-coated is next, and molded color is slightly cheaper, with only a small difference (usually USD 0.1–0.2). Unless stated otherwise, quoted prices are for UV-plated and apply to small batches or samples. For bulk orders, please contact customer service for a quote.
2. Recommended power is for reference only. It depends heavily on the quality of the light source and driver, which are not included in this kit. Confirm the actual power based on the measured light source temperature rise to ensure its lifespan.
3. When ordering a kit, please provide the product model, lamp color, light source specifications and size, required beam angle, and reflector cup color.

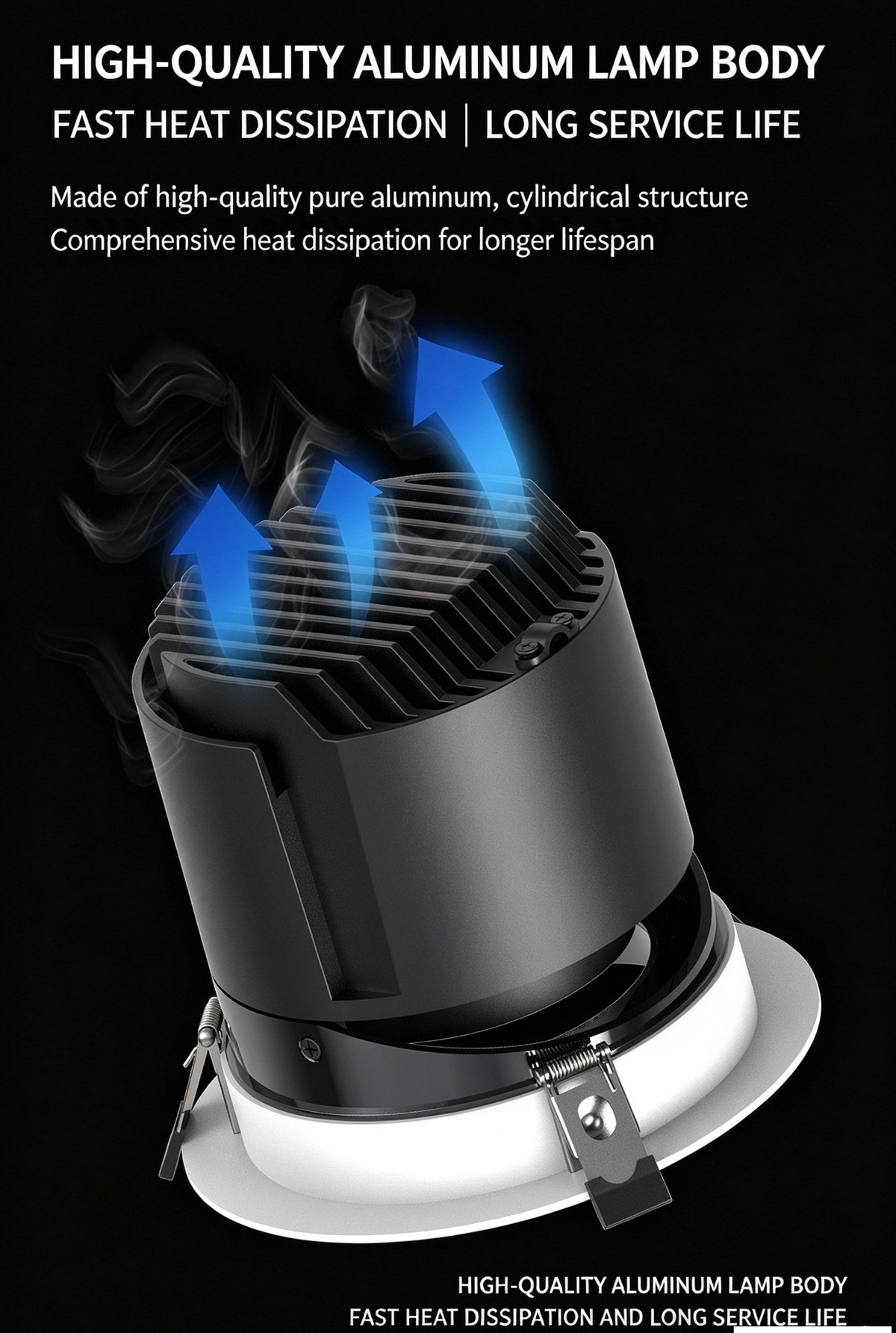

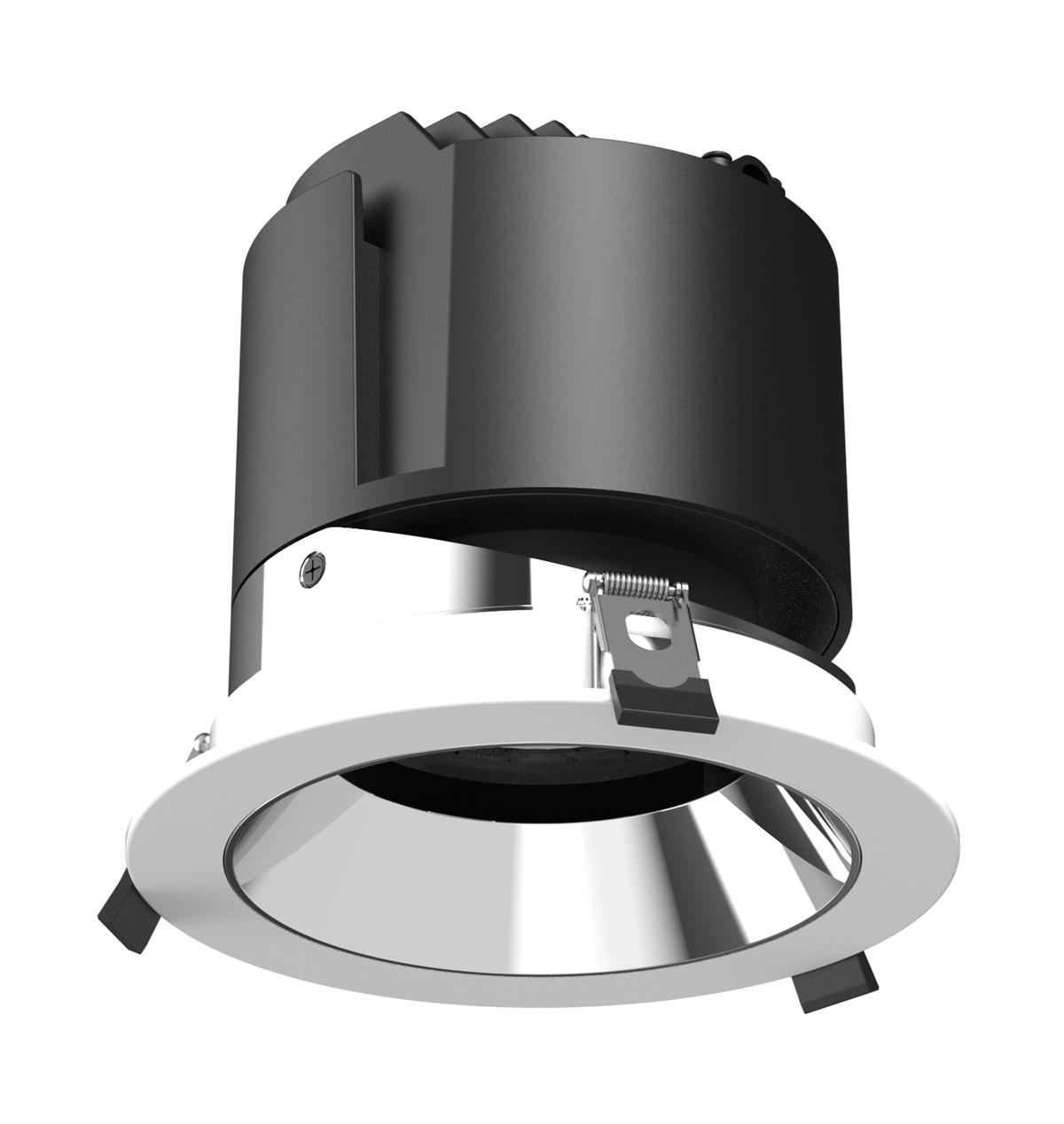

Die-cast aluminum heat sink, fast heat dissipation to extend light source lifespan

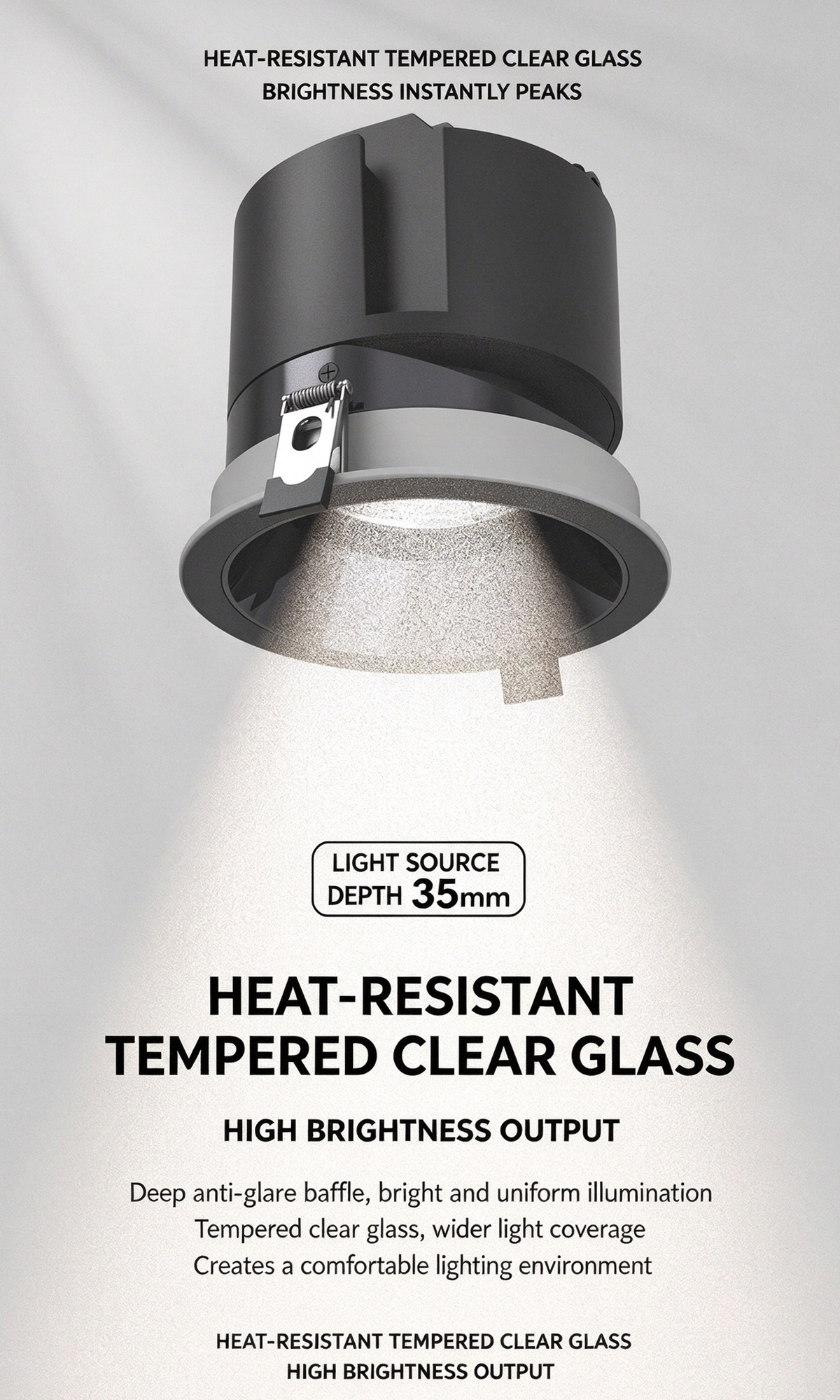

Deep recessed anti-glare structure, soft light output and low glare

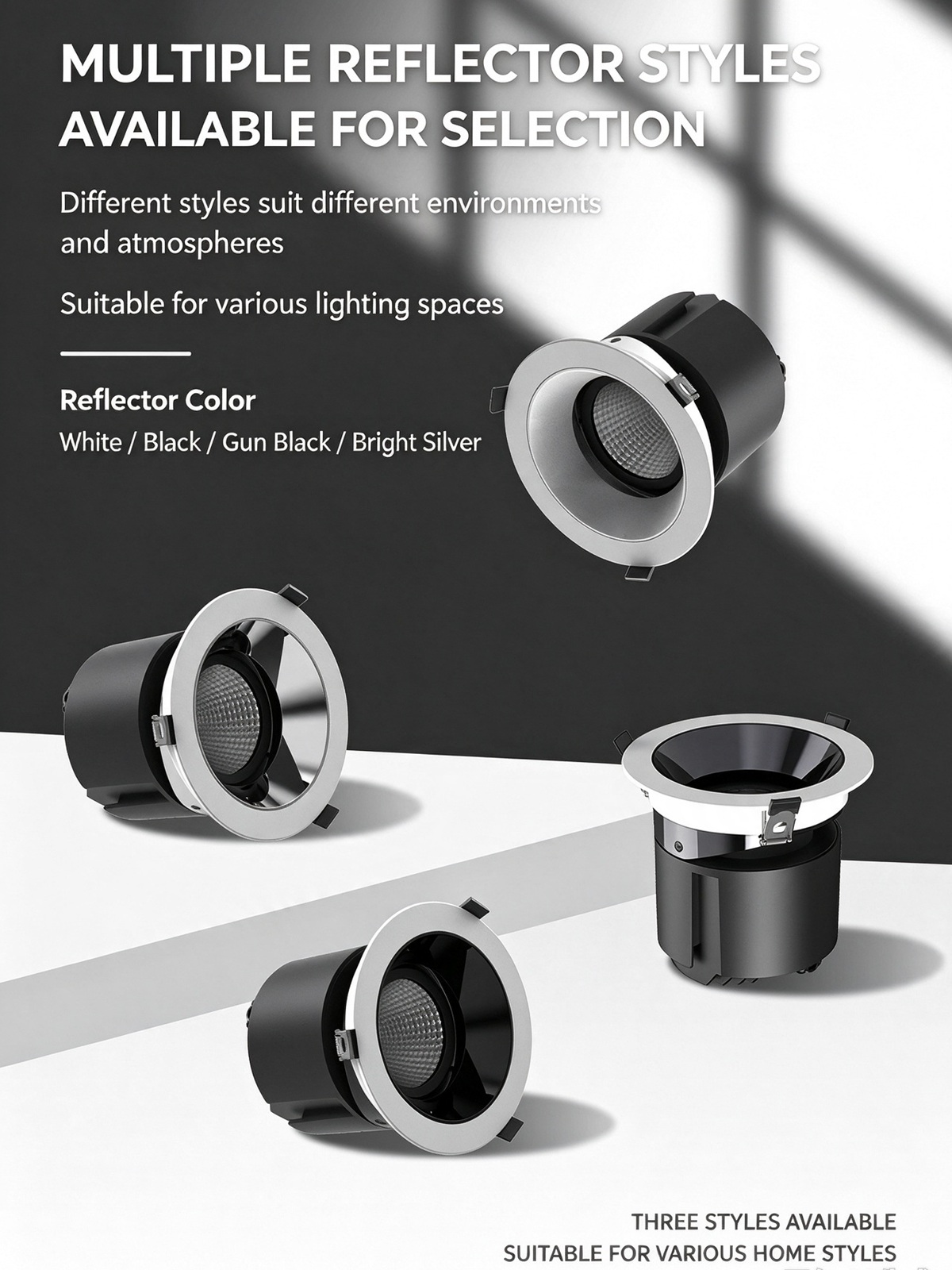

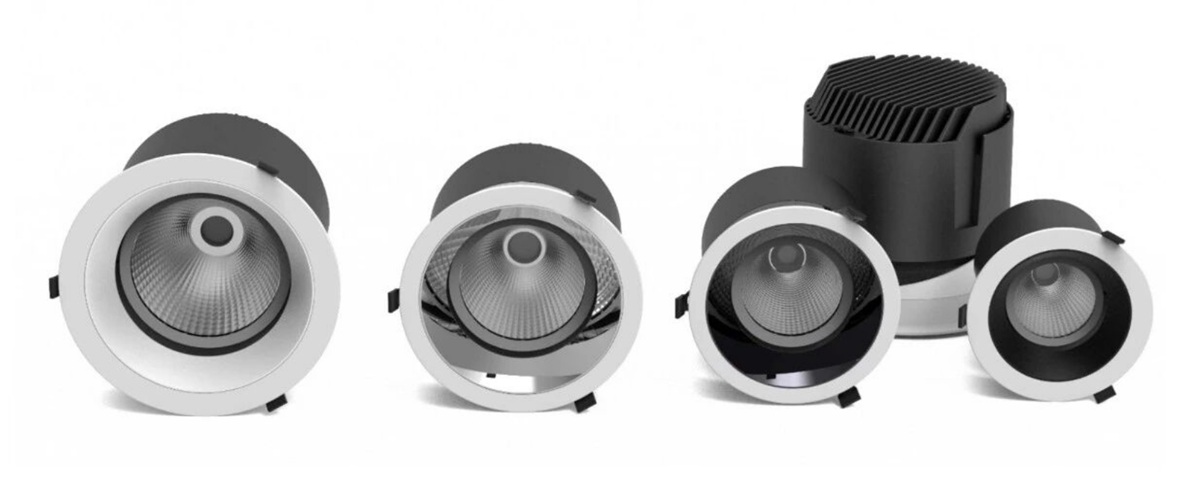

Multiple reflector options: original white, original black, gun black, bright silver
| Model | SR01XG120, SR01XG140, SR01XG160, SR01XG180, SR01XG200 |
|---|---|
| Cutout or Body Size | Cutout:≥Ø200mm, Cutout:Ø110-125mm, Cutout:Ø125-160mm, Cutout:Ø165-200mm |
| Power | |
| IP Rating | |
| Beam Angle | |
| Housing Material |
