3-Step Dimming LED Driver-Eaglerise ONOFF Series
3-Step Dimming LED Driver-Eaglerise ONOFF Series - Image 2
3-Step Dimming LED Driver-Eaglerise ONOFF Series - Image 3
3-Step Dimming LED Driver-Eaglerise ONOFF Series - Image 4
3-Step Dimming LED Driver-Eaglerise ONOFF Series - Image 5
3-Step Dimming LED Driver-Eaglerise ONOFF Series - Image 6
3-Step Dimming LED Driver-Eaglerise ONOFF Series - Image 7

3-Step Dimming LED Driver-Eaglerise ONOFF Series

Product Description:

  • For luminaries of protection Class II
  • 3-Step Dimming with Standard Switch
  • SELV，Built-in
  • Input Voltage 220-240VAC
  • Protections: SCP/OLP/OVP/OTP
  • Power Factor ：0.5-0.95
  • Efficiency：79-89%
  • Certified to: CE, CB, CCC, TÜV, and ENEC.
  • 5 years warranty

Applications：

  • LED Panel Lights
  • LED Down Lights
  • LED Spot Lights
  • LED Track Lights
  • Commercial Lighting, Office Lighting, Hospitality Lighting

Price range: $2.12 through $5.51

▩Please note: All prices are EXW (Ex Works) and exclude VAT, customs duties, and shipping costs.
SKU LS-XXX-ON/OFF Categories , , Tags , , , , , , , Brand:

3-Step Dimming LED Driver-Eaglerise ONOFF Series

Product Features

  • 3-Step Dimming with Standard Switch
    Achieve three brightness levels (e.g., 100%→50%→20%) via existing wall switch – no extra wiring or new panel required. Easily adapt to different lighting scenes.
  • High Efficiency & Stable Output–Efficiency >88% and PF ≥0.95 across the series. Constant current design delivers uniform, flicker-free LED brightness.
  • Comprehensive Protections–Built-in short circuit, overload, over-voltage, and over-temperature protection. SELV/Independent design, compatible with Class II luminaires.

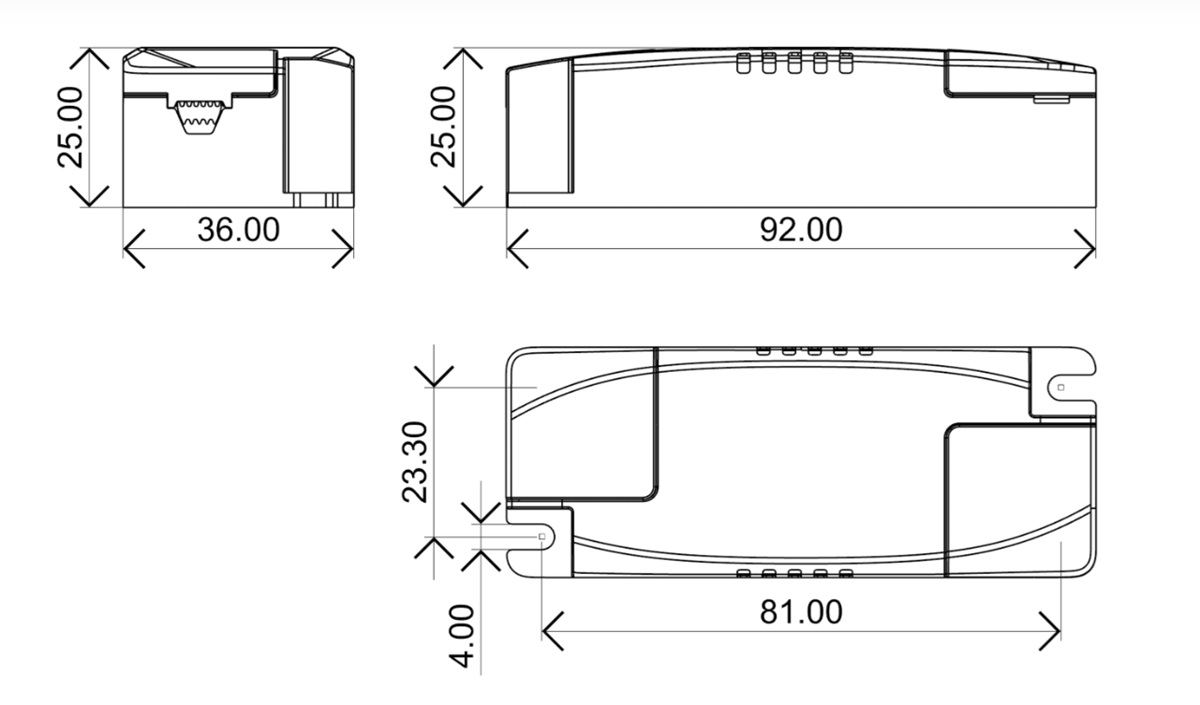

  • Compact & Slim Design–Ultra-compact dimensions (from 92×36×25mm) for easy integration into ceiling lights, LED panels, and more.
  • Global Approvals & 5-Year Warranty–Certified with CCC, CE, ENEC, CB. Backed by a 5-year warranty for reliable long-term performance.

Models and Specifications

NO Models Power Input Voltage Output Voltage Output Current Efficiency Power Factor Size
1 LS-8-200 ON/OFF SI E 8W 220-240V 30-40V 200MA 79% 0.5 92*36*25
2 LS-12-250 ON/OFF SI E 10W 220-240V 30-40V 250MA 83% 0.5 92*36*25
3 LS-12-300 ON/OFF SI E 12W 220-240V 30-40V 300MA 83% 0.5 92*36*25

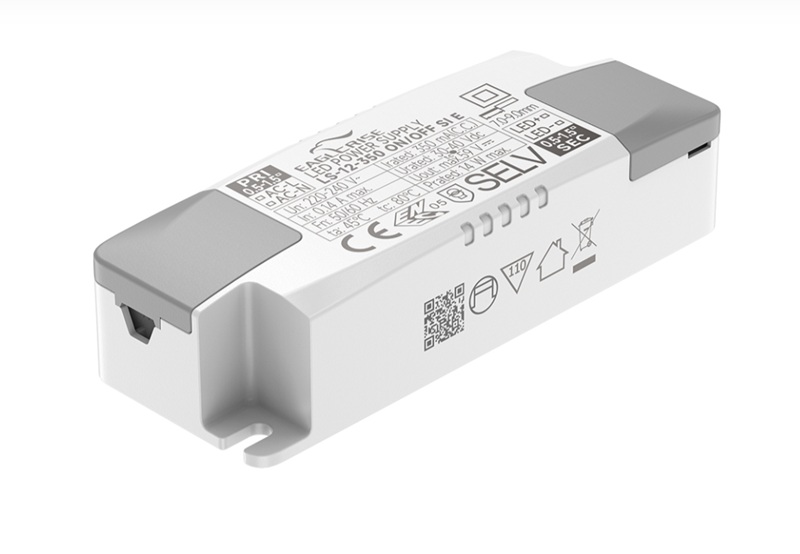

4 LS-12-350 ON/OFF SI E 15W 220-240V 30-40V 350MA 83% 0.5 92*36*25
5 LS-21-400 ON/OFF SI E 16W 220-240V 30-40V 400MA 86% 0.5 92*36*25
6 LS-21-450 ON/OFF SI E 18W 220-240V 30-40V 450MA 86% 0.5 92*36*25

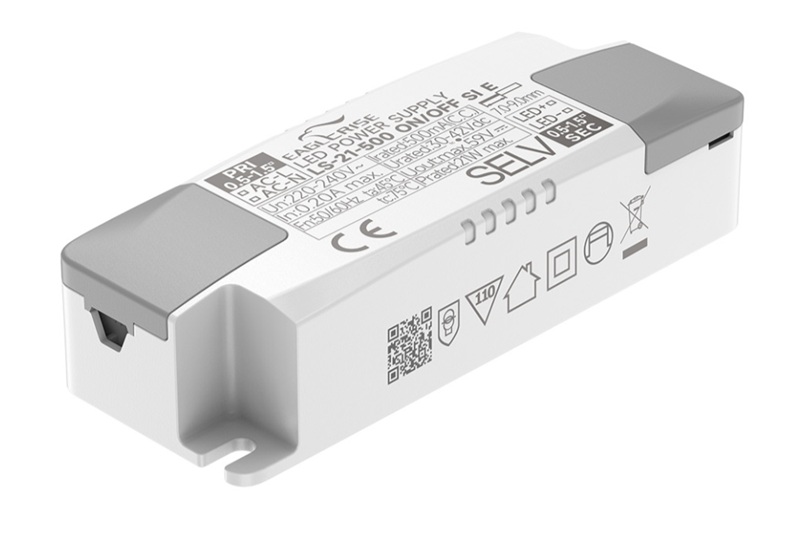

7 LS-21-500 ON/OFF SI E 20W 220-240V 30-40V 500MA 86% 0.5 92*36*25
8 LS-21-600 ON/OFF SI E 21W 220-240V 30-40V 600MA 86% 0.5 92*36*25
9 LS-40-700 ON/OFF LI EXC 28 220-240V 30-40V 700MA 88% 0.95 115*41*26
10 LS-40-800 ON/OFF LI EXC 32W 220-240V 30-40V 800MA 88% 0.95 115*41*26
11 LS-40-900 ON/OFF LI EXC 36W 220-240V 30-40V 900MA 88% 0.95 115*41*26
12 LS-40-1050 ON/OFF LI EXC 40W 220-240V 30-40V 1050MA 88% 0.95 115*41*26

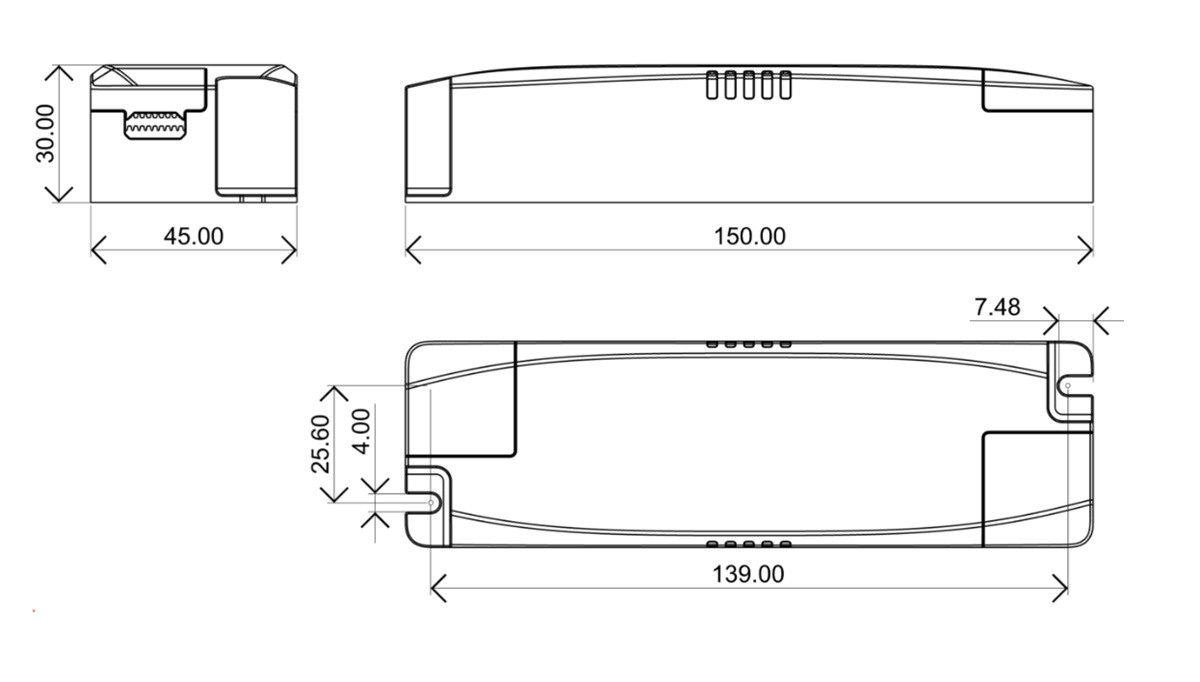

13 LS-60-1700 ON/OFF LA EXC 46-60W 220-240V 30-40V 1100-1700MA 89% 0.95 150*45*26

Quality Assurance

Eaglerise  LED Driver is CE and ENEC certified, fully compliant with EU Low Voltage and EMC Directives. Rigorously tested by Nemko and other independent bodies, it ensures proven reliability and stable performance for demanding lighting projects.

Need certification documents? Contact our team – we’ll provide them promptly.


Download Datasheet LS-21-XXX-ON-OFF-SI-E

Download Datasheet LS-40-XXX-ON-OFF-LI-EXC

Models

LS-8-200 ON/OFF SI E, LS-12-250 ON/OFF SI E, LS-12-300 ON/OFF SI E, LS-12-350 ON/OFF SI E, LS-21-400 ON/OFF SI E, LS-21-450 ON/OFF SI E, LS-21-500 ON/OFF SI E, LS-21-600 ON/OFF SI E, LS-40-700 ON/OFF LI EXC, LS-40-800 ON/OFF LI EXC, LS-40-900 ON/OFF LI EXC, LS-40-1050 ON/OFF LI EXC, LS-60-1700 ON/OFF LA EXC
