4‑Wire In‑Track Constant‑Current LED Driver-Eaglerise FDS Series
Features
- Class II&I，SELV，Built-in
- Input Voltage 100-240VAC
- Protections: SCP/OLP/OVP
- Power Factor ≥0.5
- IP65 Ingress protection
- Efficiency ≥68%
- 5 years warranty
Applications
- LED spot lights
- LED wall lights
- Small built‑in LED luminaires
Price range: $4.03 through $4.13
4‑Wire In‑Track Constant‑Current LED Driver-Eaglerise FDS Series
Product Introduction

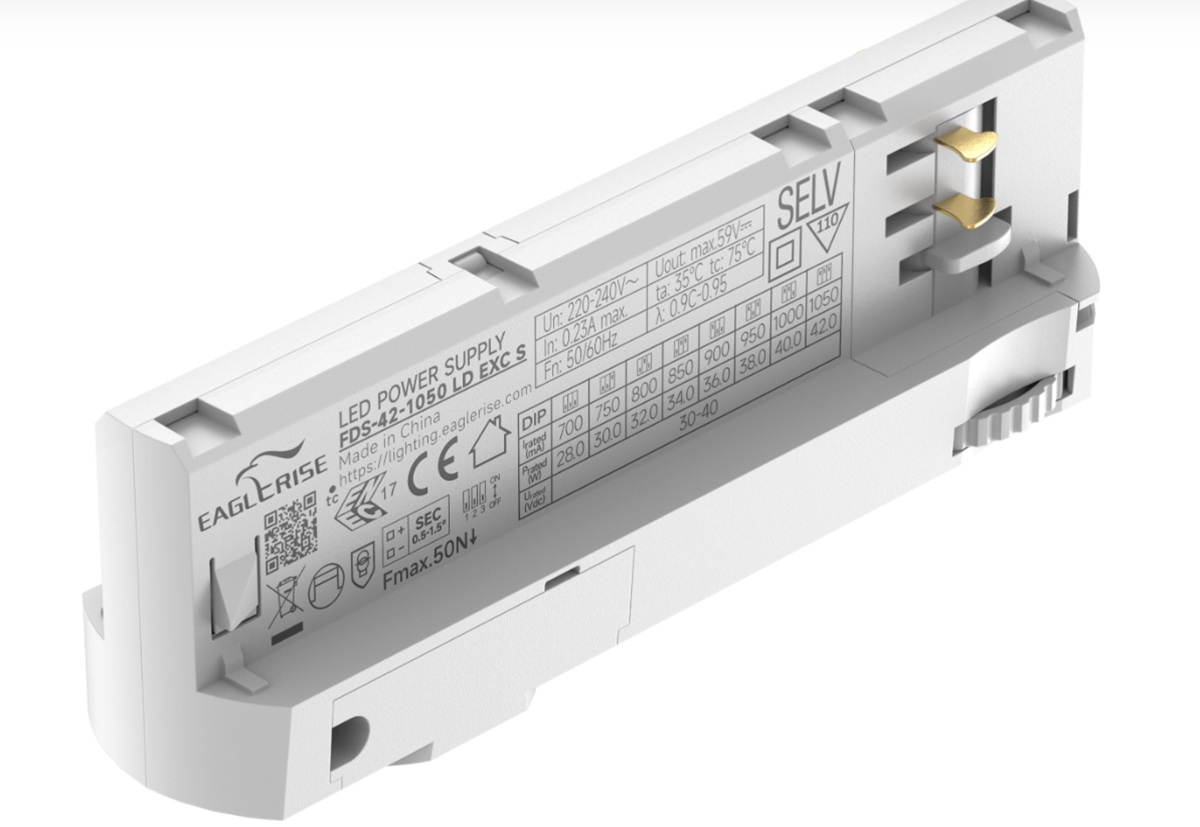

FDS‑XX‑XXX LD EXC S series are Eaglerise 4‑wire in‑track integrated constant‑current LED drivers, specially developed for track spotlights, built‑in inside track fixture heads, compatible with mainstream global 3‑phase track adapters. Output current multi‑level adjustable via DIP‑switch. Designed for Class‑II luminaries with SELV safety extra‑low‑voltage. Built‑in auto‑recovery protections: SCP(Short‑circuit), OLP(Over‑load), OTP(Over‑temperature). Flicker‑free output & high power factor. Compliant with EU ErP2.0, CE, CB, RoHS. 5‑year manufacturer warranty. Widely applied in retail shops, exhibition halls, hotels and other commercial track‑lighting projects.
Model & Specification
| NO | Models | Power | Input Voltage | Output Voltage | Output Current | Efficiency | Power Factor | Size |

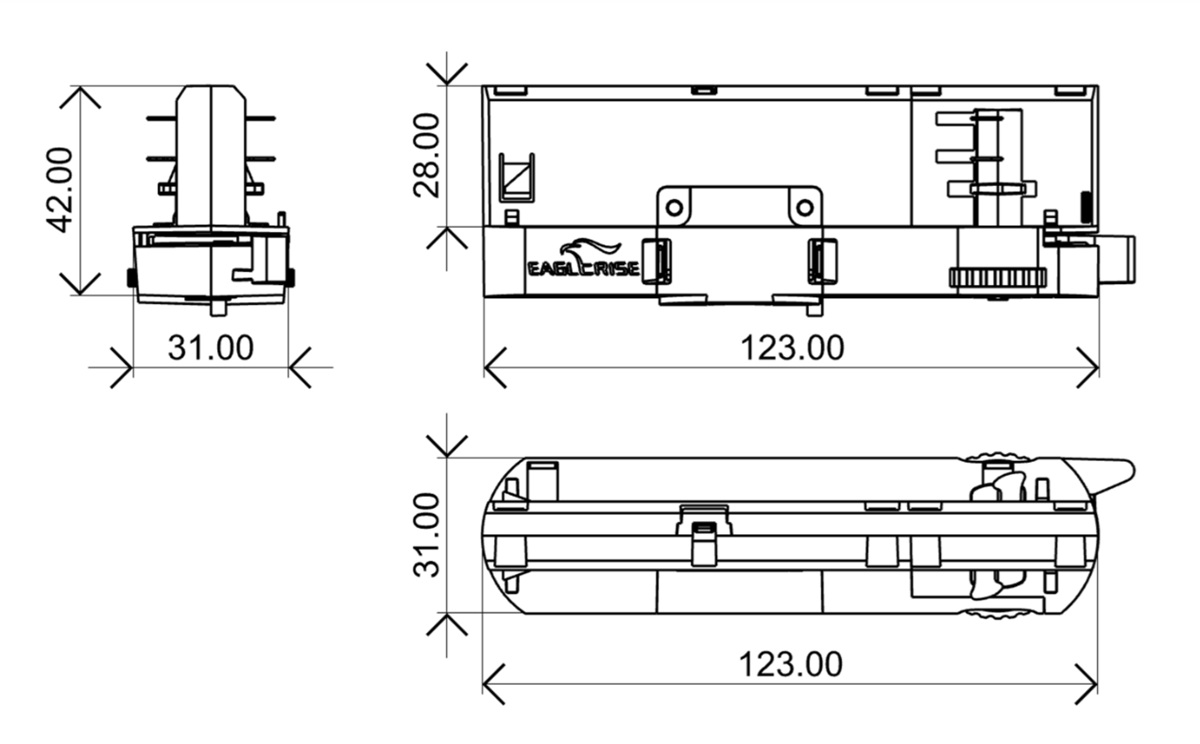

| 1 | FDS-28-750 LD EXC S | 4-28W | 220-240VAC | 10-40VDC | 100-750mA | ≥88% | 0.9 | 123*31*42 |

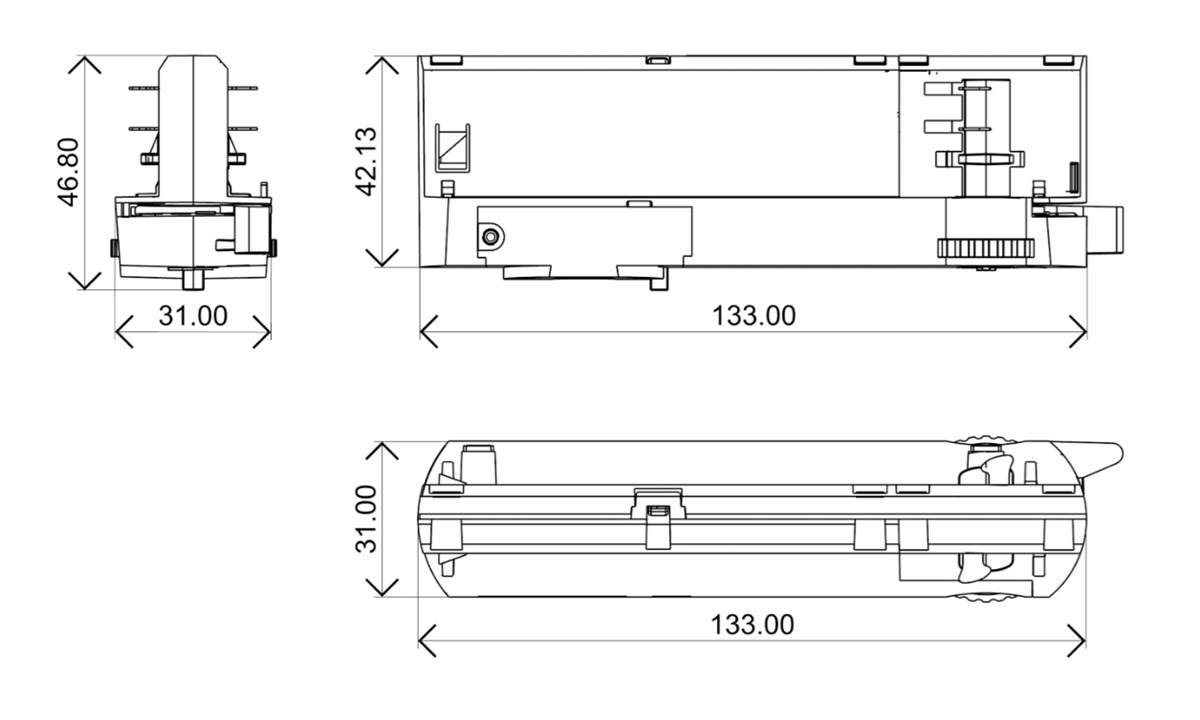

| 2 | FDS-42-1050 LD EXC S | 28-42W | 220-240VAC | 30-42VDC | 700-1050mA | ≥89% | 0.9 | 133*31*42 |
Quality Assurance
Eaglerise LED Driver is CE and ENEC certified, fully compliant with EU Low Voltage and EMC Directives. Rigorously tested by Nemko and other independent bodies, it ensures proven reliability and stable performance for demanding lighting projects.
Need certification documents? Contact our team – we’ll provide them promptly.
Download Datasheet FDS-28-750 LD EXC S
Download Datasheet FDS-42-1050 LD EXC S
| Model | FDS-28-750 LD EXC S, FDS-42-1050 LD EXC S |
|---|---|
| Input or Forward Voltage | |
| IP Rating | |
| Dimming Type | |
| Power Factor | |
| Certified | EL Mark, SELV Compliant, CE Certified, CB Certified, ENEC Certified |
| Power |
