Eaglerise 0-10V Dimming Constant Current LED Driver Series
Specifications
- For luminaries of protection
- Class I，II，SELV，Independent
- Input Voltage 220-240VAC
- Protections: SCP/OLP/OVP/OTP
- Power Factor ：0.6C-0.97
- Efficiency：≥85%
- Support 0-10V,RX,PWM Dimming
- 5 years warranty
Typical Applications
- LED Panel Lights
- LED Downlights
- LED Spotlights
- Track Lights
- Office Lighting
- Commercial Lighting
Price range: $4.45 through $10.17
Eaglerise 0-10V Dimming Constant Current LED Driver Series
Product Overview
The Eaglerise 0-10V constant current dimmable LED drivers are designed for indoor commercial and residential lighting applications. Covering a power range from 5W to 61W, the series features DIP switch adjustable output current, compatible with a wide variety of LED luminaires including panel lights, downlights, and spotlights. The drivers support 0-10V, PWM, and RX 3-in-1 dimming protocols for smooth, flicker-free dimming performance.
Key Features
- 3-in-1 Dimming (0-10V / PWM / RX)
- DIP-Switch Adjustable Current
- High Efficiency, Low Energy Consumption
- High Power Factor, Low THD
- Built-in short circuit protection, overload protection, and overvoltage protection
- Compact Size, Easy Integration
- 5-Year Warranty, Reliable & Durable
Models and Specifications
| NO | Models | Power | Input Voltage | Output Voltage | Output Current | Efficiency | Power Factor | Size |

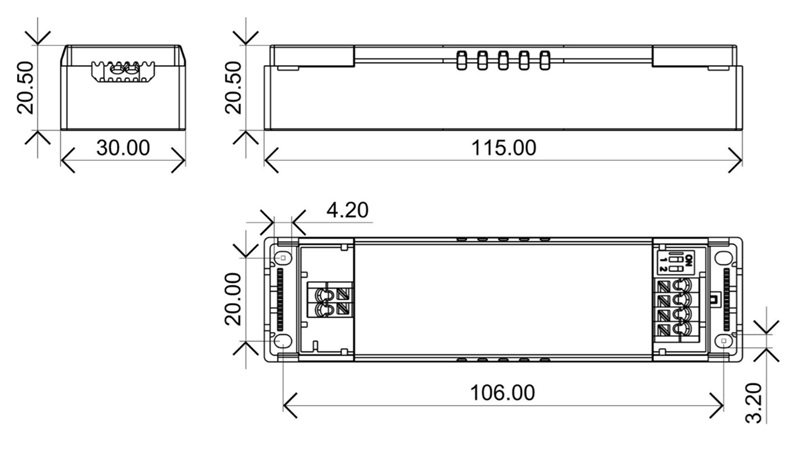

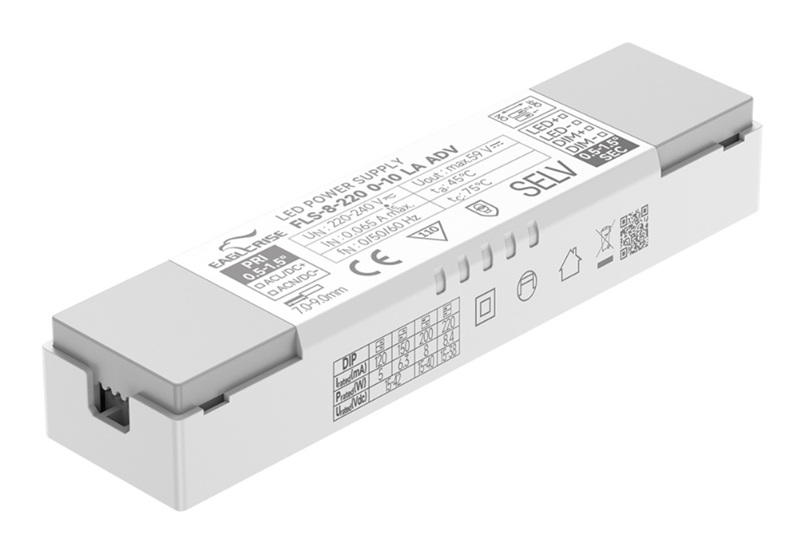

| 1 | FLS-8-220 0-10 LA ADV | 5-9W | 220-240VAC | 30-40VDC | 120-220mA | ≥80% | 0.5 | 115*30*20.5mm |

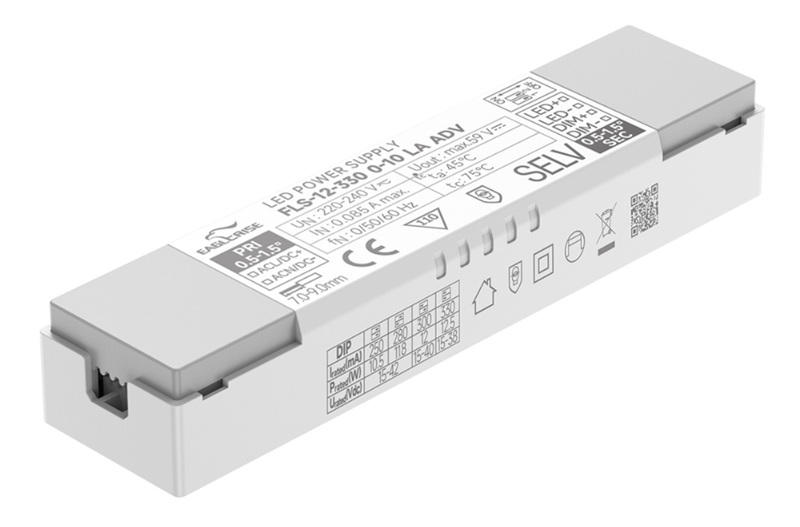

| 2 | FLS-12-330 0-10 LA ADV | 10-13W | 30-40VDC | 250-330mA | ≥80% | 115*30*20.5mm | ||

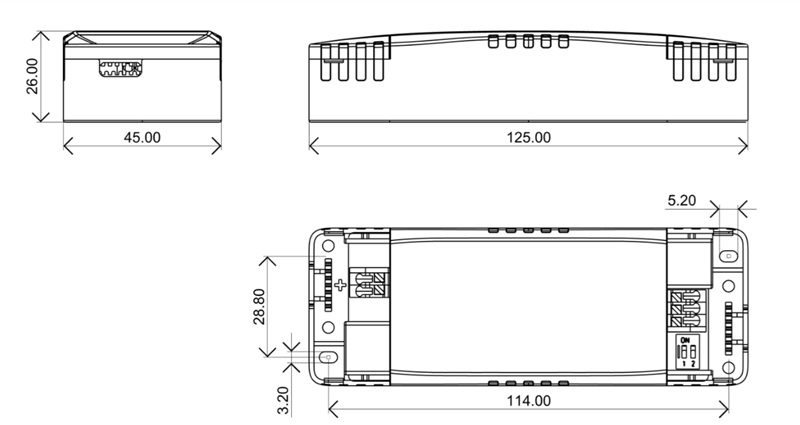

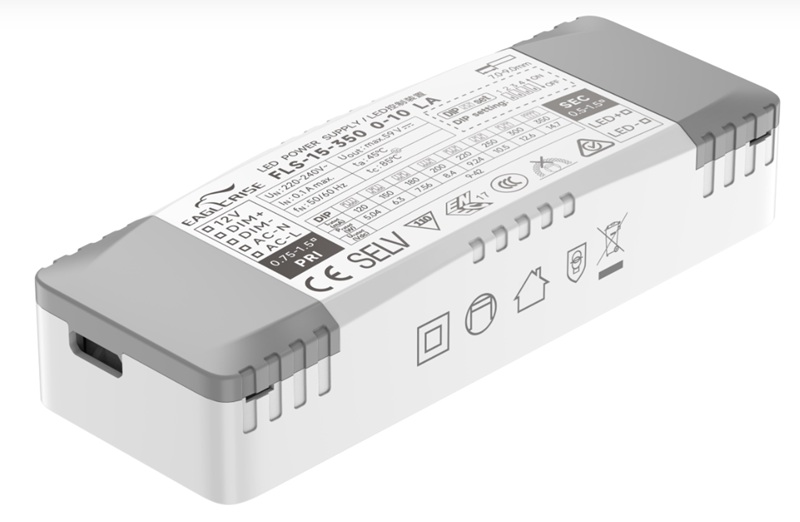

| 3 | FLS-15-350 0-10 LA | 5-15W | 9-42VDC | 120-350mA | ≥84% | 0.9 | 125*45*26mm | |

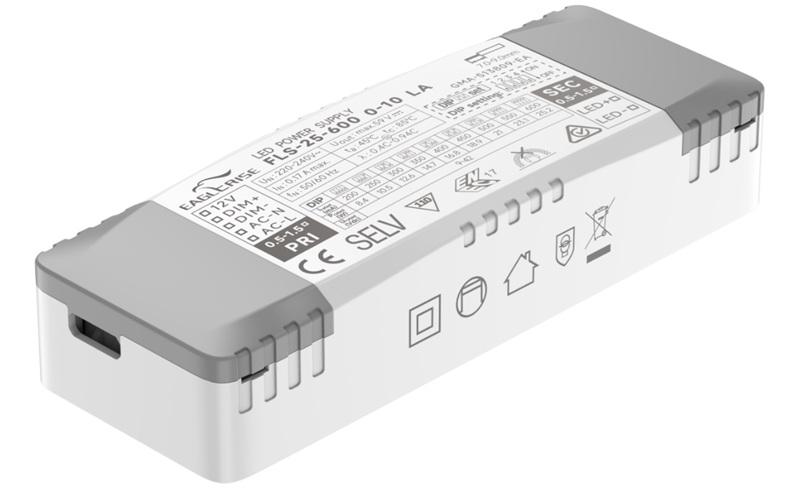

| 4 | FLS-25-600 0-10 LA | 9-25W | 9-42VDC | 200-600mA | ≥84% | 125*45*26mm | ||

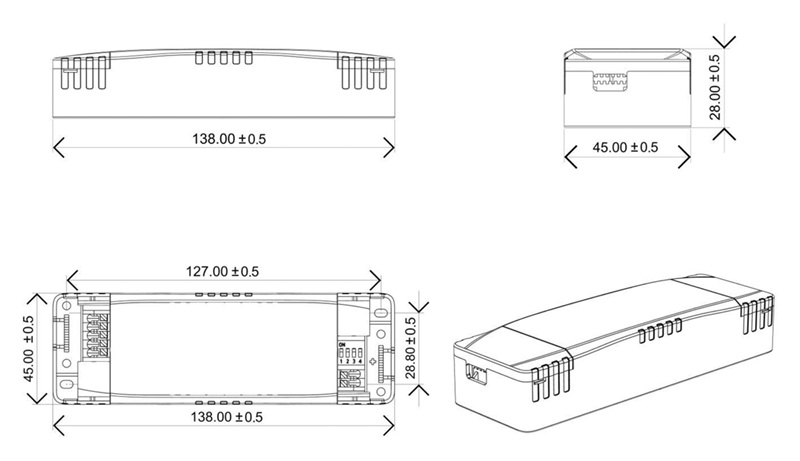

| 5 | FLS-44-1050 0-10 LA | 27-44W | 9-42VDC | 650-1050mA | ≥85% | 138*45*28mm | ||

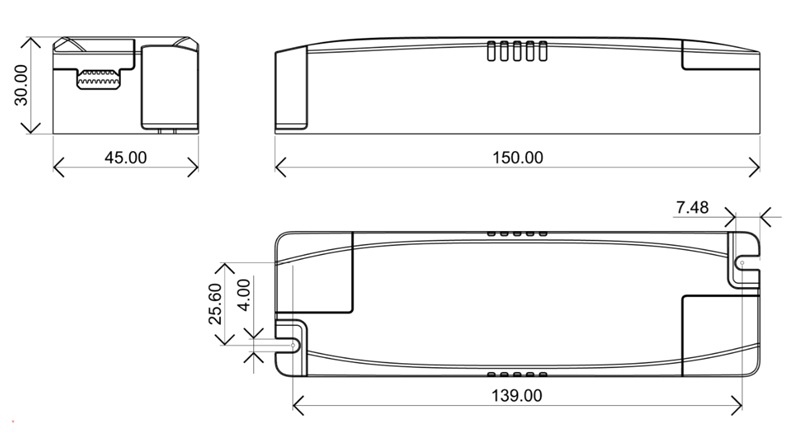

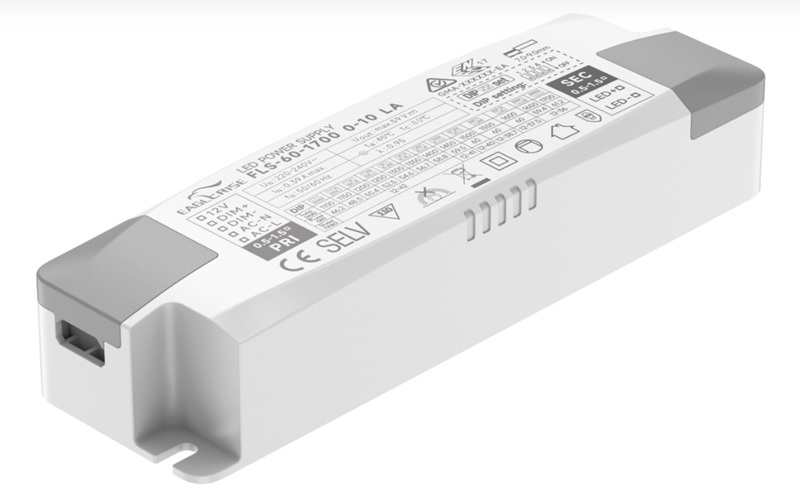

| 6 | FLS-60-1700 0-10 LA | 46-61W | 12-42V | 1100-1400mA | ≥88% | 150*45*30mm | ||
| 12-41V | 1450mA | |||||||
| 12-40V | 1500mA | |||||||
| 12-38.7V | 1550mA | |||||||
| 12-37.5V | 1600mA | |||||||
| 12-36V | 1650-1700mA |
Quality Assurance
Eaglerise LED Driver is CE and ENEC certified, fully compliant with EU Low Voltage and EMC Directives. Rigorously tested by Nemko and other independent bodies, it ensures proven reliability and stable performance for demanding lighting projects.
Need certification documents? Contact our team – we’ll provide them promptly.
Download Datasheet FLS-8-220-0-10-LA-ADV
Download Datasheet FLS-12-330-0-10-LA-ADV
Download Datasheet FLS-15-350-0-10-LA
Download Datasheet FLS-25-600-0-10-LA
Download Datasheet FLS-44-1050-0-10-LA
Download Datasheet FLS-60-1700-0-10-LA
| Models | FLS-8-220 0-10 LA ADV, FLS-12-330 0-10 LA ADV, FLS-15-350 0-10 LA, FLS-25-600 0-10 LA, FLS-44-1050 0-10 LA, FLS-60-1700 0-10 LA |
|---|---|
| Dimming Type | |
| Input or Forward Voltage | |
| IP Rating | |
| Certified | |
| Power Factor | |
| Power |
Related products
-

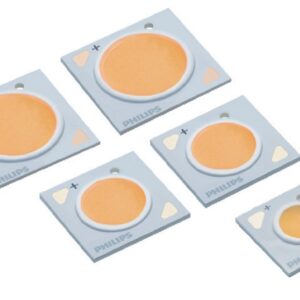

COB LEDsPHILIPS CertaFlux LED SLM G2 Series COB Leds
