CREE XLamp® CXA Series COB LEDs
- A Proven, Reliable Platform；
- Unrivaled Lumen Density
- Industry-Leading Color Consistency
- 85°C Hot-Test Characterization & Binning
- Complete LM-80 Reliability Data
- Single-Device Design, Simplified Manufacturing
- Comprehensive Product Matrix
Applications:
- GU10 LED bulbs and retrofit lamps
- Commercial downlights
- Track lighting and spotlights
- Outdoor area lighting
- High-bay lighting
- Commercial and residential indoor lighting – hotels, shops, offices, lobbies, etc.
Price range: $0.53 through $5.93
CREE XLamp® CXA Series COB LEDs – The Foundation of Lighting-Class Performance
As one of Cree’s first mass-produced COB product families, the CXA series benefits from mature manufacturing processes and extensive real-world application data – a “safe anchor” for luminaire design.
-
Proven Reliability, Accelerated Certification: With over 6,000 hours of LM-80 data and years of field validation, the CXA series streamlines your ENERGY STAR® and DLC qualification process.
-
Superior Color Consistency, True to Spec: Featuring 2‑step EasyWhite® bins and 85°C hot‑test characterization, it delivers minimal color deviation across luminaires and stable performance in real operation.
-
High‑Density Output, Versatile Portfolio: Delivers exceptional luminous flux from a compact LES, with LES sizes ranging from 6mm to 23mm – one reliable platform covers downlights, spotlights, track lights, and more.
| Models | Size (mm) | Les (mm) | TyP Power(W) | recommended current
(mA) |
recommended Voltage (V) | CCT | CRI |

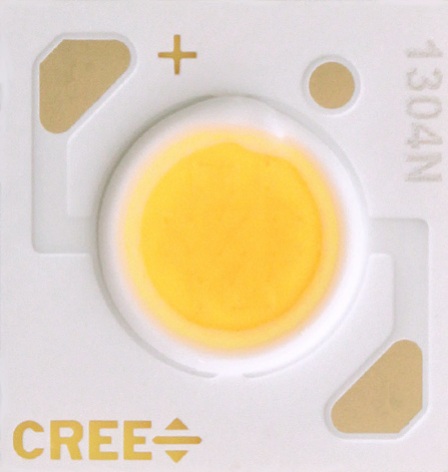

| CXA1304N | 13.5*13.5 | ø7.5 | 4-8w | 100-200 | 36v | 2700K/3000K/
3500K/4000K/ 5000K/5700K/ 6500K |
80/90/95 |

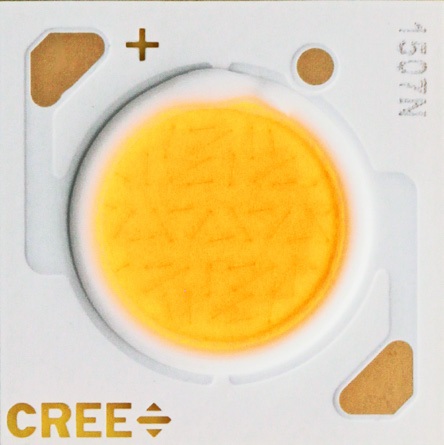

| CXA1507N | 15.85*15.85 | ø10.5 | 7-12w | 200-300 | |||

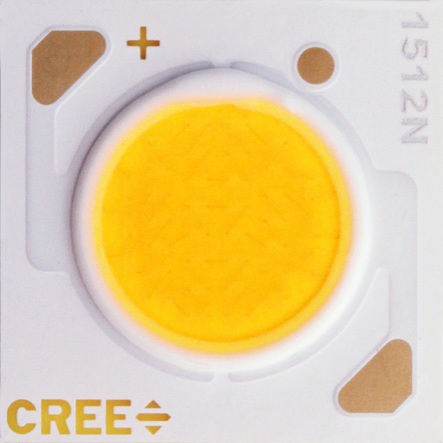

| CXA1512N | 15.85*15.85 | ø10.5 | 13-19w | 350-480 | |||

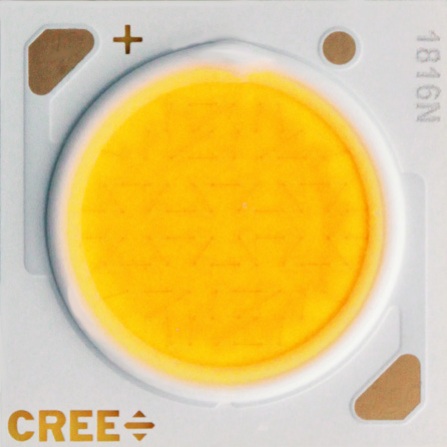

| CXA1816N | 17.85*17.85 | ø14 | 17-28w | 450-720 | |||

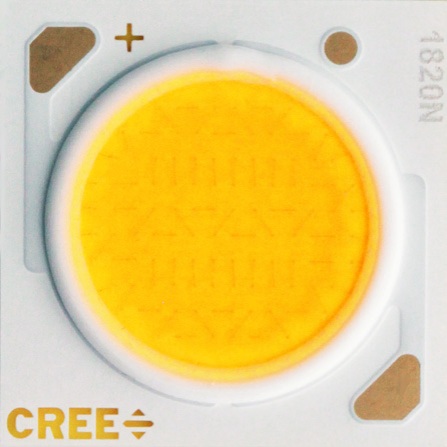

| CXA1820N | 17.85*17.85 | ø14 | 20-33w | 550-840 | |||

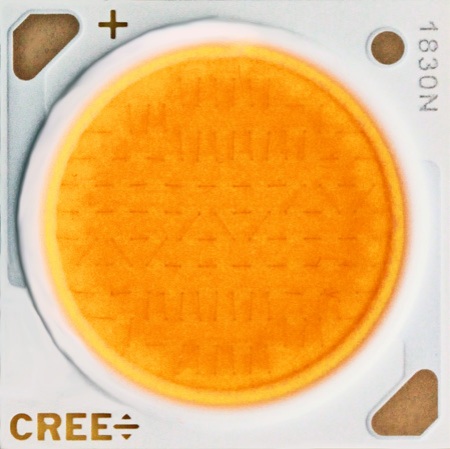

| CXA1830N | 17.85*17.85 | ø16 | 30-45w | 800-1120 | |||

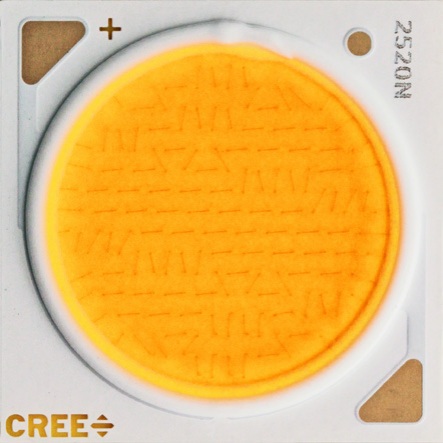

| CXA2520N | 23.85*23.85 | ø21 | 21-40W | 550-1000 | |||

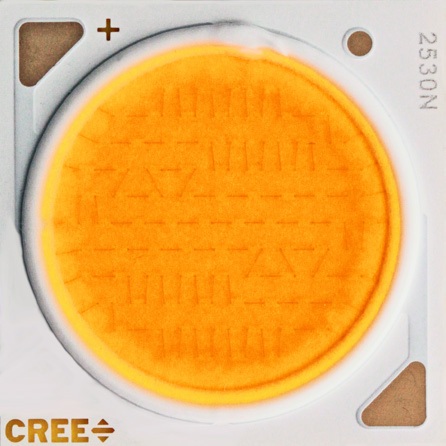

| CXA2530N | 23.85*23.85 | ø21 | 30-50W | 800-1200 | |||
| CXA2540N | 23.85*23.85 | ø21 | 40-65w | 1100-1680 |
Download Datasheet CXA1304N
Download Datasheet CXA1507N
Download Datasheet CXA1512N
Download Datasheet CXA1816N
Download Datasheet CXA1820N
Download Datasheet CXA1830N
Download Datasheet CXA2520N
Download Datasheet CXA2530N
Download Datasheet CXA2540N
| Models | CXA1304N, CXA1507N, CXA1512N, CXA1816N, CXA1820N, CXA1830N, CXA2520N, CXA2530N, CXA2540N |
|---|---|
| CCT | |
| CRI | |
| LED Model Size | COB-1816/1820/1830, COB-2520/2530/2540, COB-CLU028/CXM-9/V10, COB-CLU038/CXM-14/V13, COB-1304/CXM-6/V6, COB-1507/1512 |
| LED substrate material | |
| Power | |
| Input or Forward Voltage |
