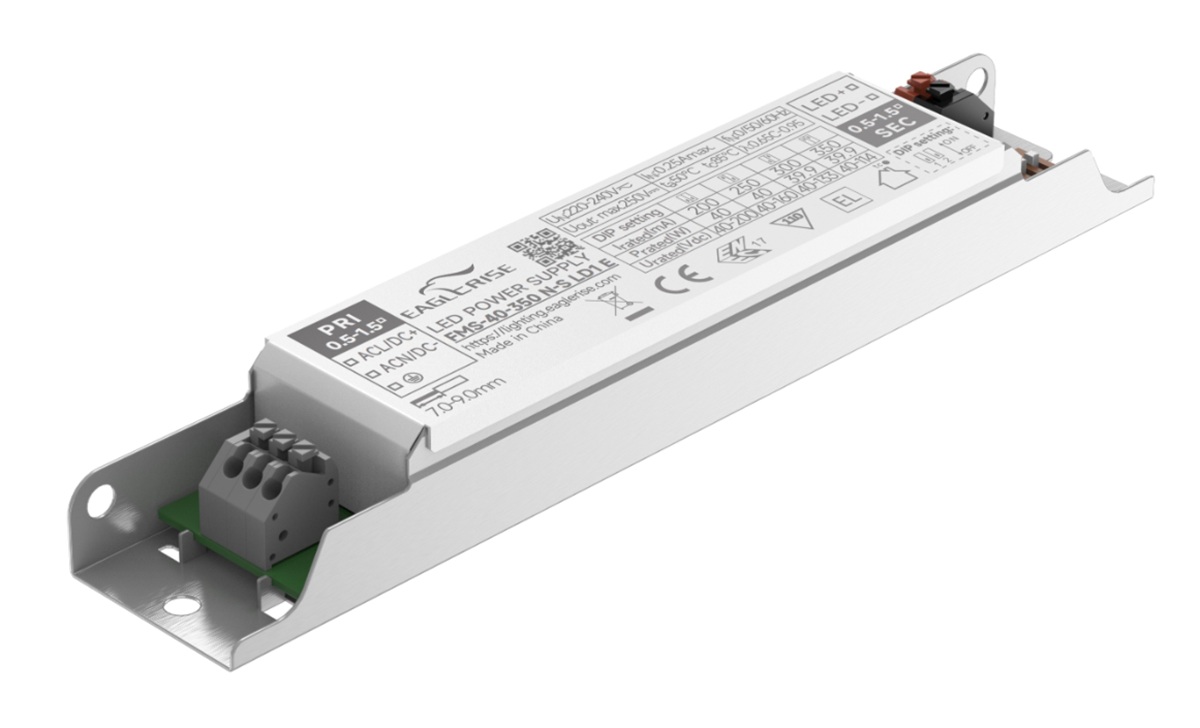

Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 3
Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 4
Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 5
Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 6
Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 7

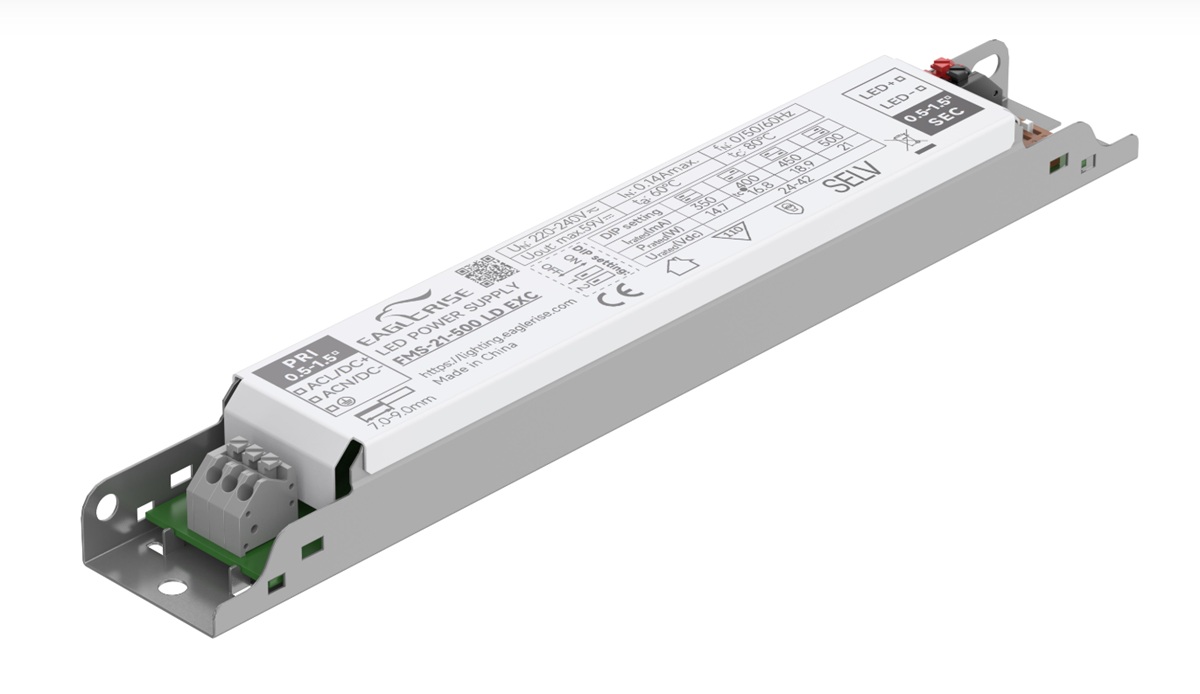

Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 8

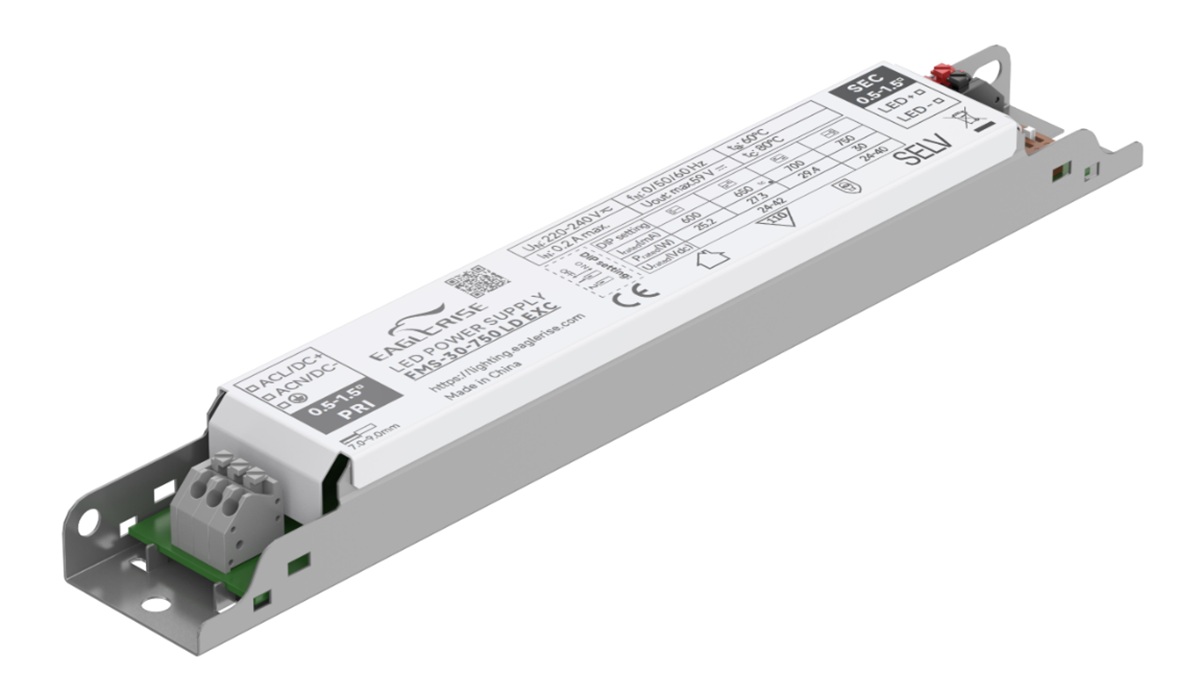

Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 9

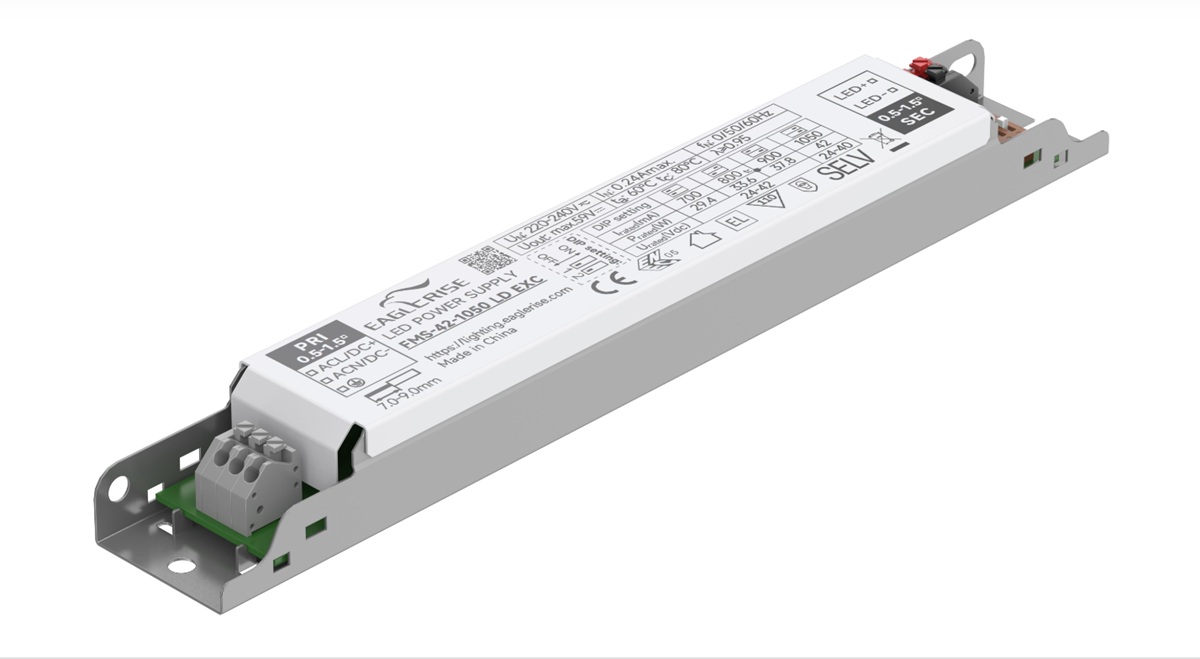

Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 10
Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 11
Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 12

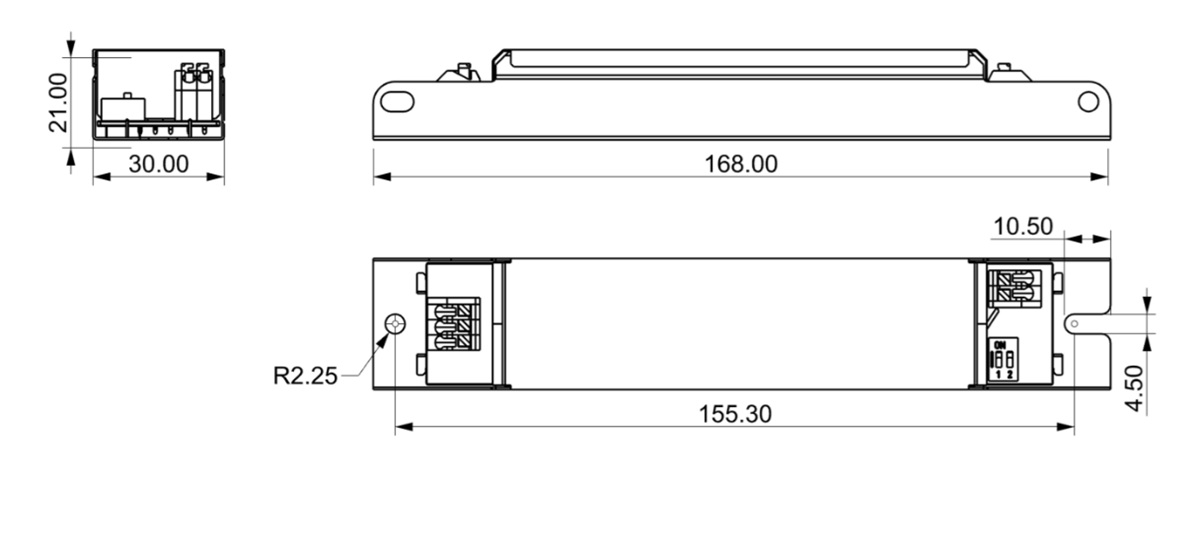

Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 13

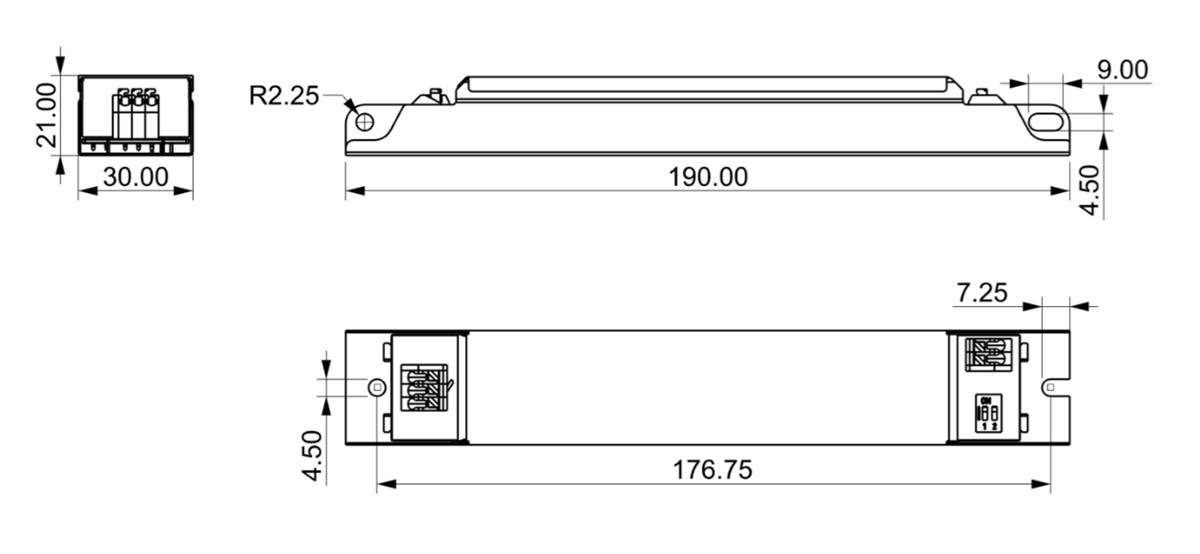

Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 14

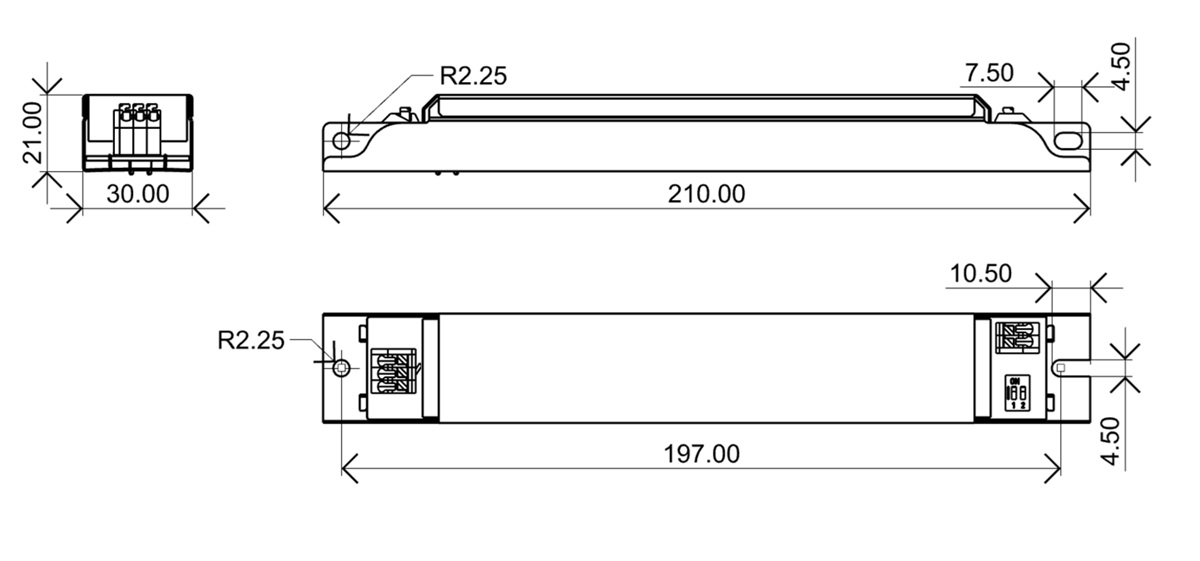

Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 15

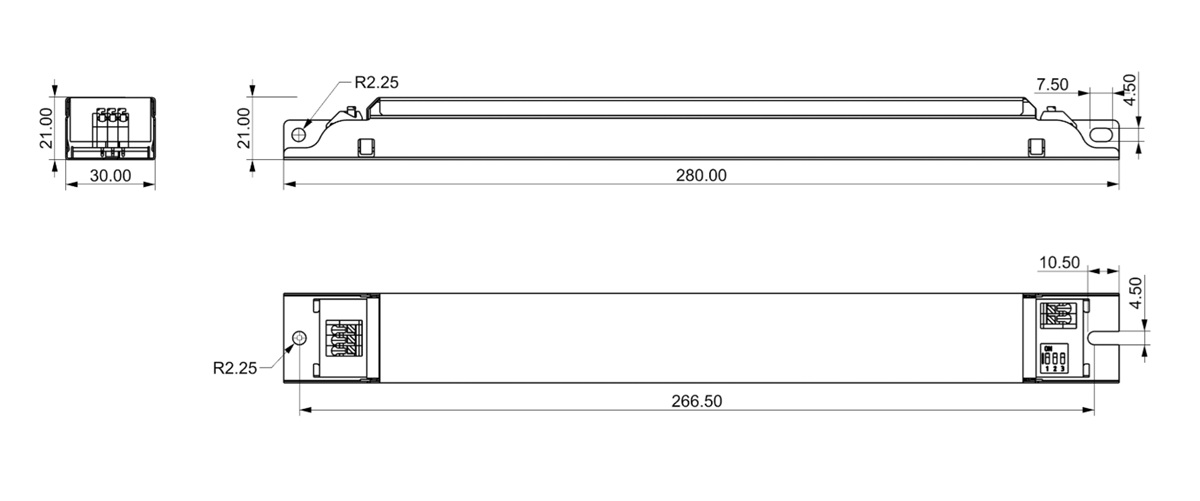

Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver - Image 16

Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver

Features

  • Segmented linear constant‑current topology; multi‑level output current selectable via DIP‑switch, current accuracy ±5%~±6%
  • N‑S: Non‑isolated design; LD EXC: Mains‑frequency transformer isolation with SELV safe output
  • High power factor, typical PF ≥0.90~0.95; Typical THD＜10%
  • High typical efficiency 86%~95% (condition: LED string voltage near upper‑limit of working window)
  • Complete protections: Short‑circuit Protection(SCP), Over‑Load Protection(OLP), Over‑Voltage Protection(OVP), Over‑Temperature Protection(OTP), auto‑recovery after fault
  • Thermal derating: Automatically reduce output current when case temperature exceeds threshold to protect driver and luminaire
  • Surge capability: 2KV for L‑N and L‑N‑Ground
  • Metal housing, IP20, 5‑year warranty
  • Compliant with ErP2.0, RoHS; GB / IEC / EN 61347 safety & EMC standards
  • DC input available for emergency lighting purpose only

Applications

  • LED linear light / linear luminaire (primary application)
  • Built‑in drivers for commercial, office and warehouse lighting fixtures
  • Suitable for Class‑I / Class‑II luminaires. N‑S non‑isolated versions for double‑insulation luminaire only; EXC isolated versions applicable for exposed metal housing fixtures
  • Compatible with emergency lighting system per EN50172

Price range: $2.23 through $7.42

▩Please note: All prices are EXW (Ex Works) and exclude VAT, customs duties, and shipping costs.
SKU FMS-XXX Categories , Tags , , , , , , , , Brand:

Eaglerise FMS Series Segmented Constant‑Current Linear LED Driver



Product Overview

FMS series are segmented constant‑current linear LED drivers from Eaglerise, consisting of two sub‑families: N‑S Non‑isolated type and LD EXC Isolated type. It accepts 198‑264VAC mains input. Multiple constant‑current output levels can be selected via DIP‑switch, with power range from 20W to 150W. For N‑S non‑isolated models, the output side is electrically connected to mains, luminaires shall comply with Class‑II double‑insulation requirement. LD EXC isolated models integrate mains‑frequency isolation transformer to provide SELV safe extra‑low‑voltage output, suitable for both Class‑I and Class‑II luminaires. This is built‑in driver series with slim metal housing of 30×21mm cross‑section, easy for integration inside linear luminaires.

Important note: For both non‑isolated and isolated variants, set LED string voltage close to upper‑limit output voltage of corresponding current gear to achieve rated efficiency and avoid excessive heat rise.

Model & Specifications

NO Models Power Input Voltage(VAC) Output Voltage(VDC) Output Current(mA) Efficiency Power Factor Size
Non‑isolated Linear Driver

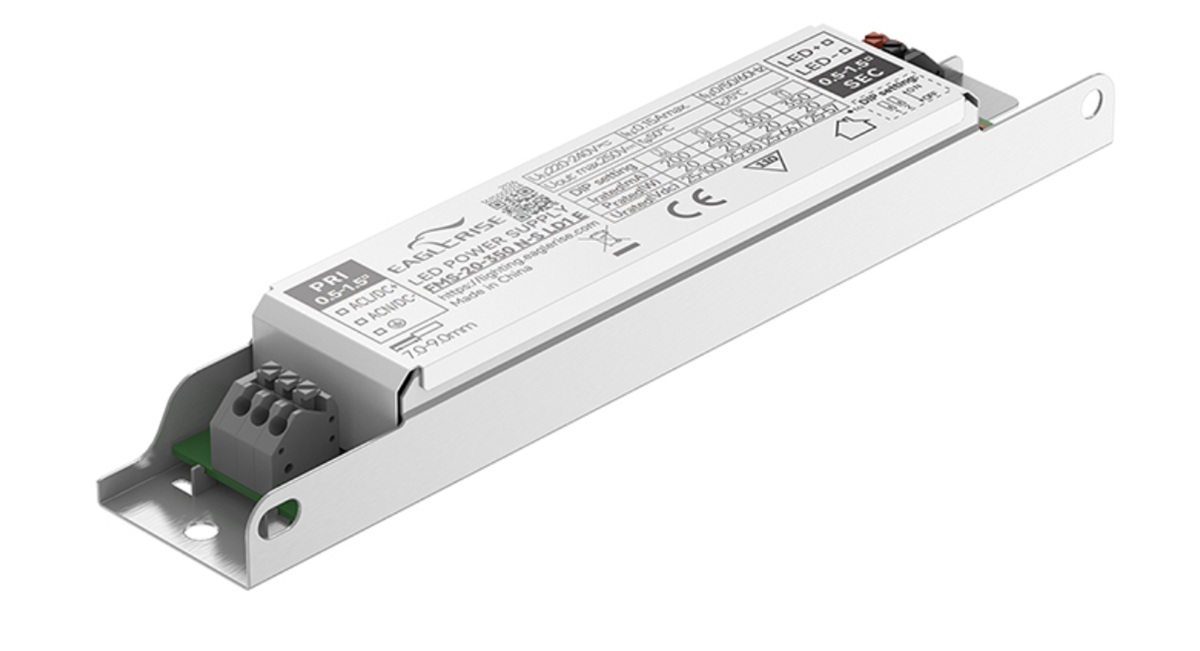

1 FMS-20-350 N-S LD1 E 20W 220-240 25-100V 200 ≥86% ≥0.9 168*30*21
25-80V 250
25-66.7V 300
25-57V 350
2 FMS-40-350 N-S LD1 E 40W 220-240 40-200V 200 ≥90% ≥0.9 168*30*21
40-160V 250
40-130V 300
40-114V 350

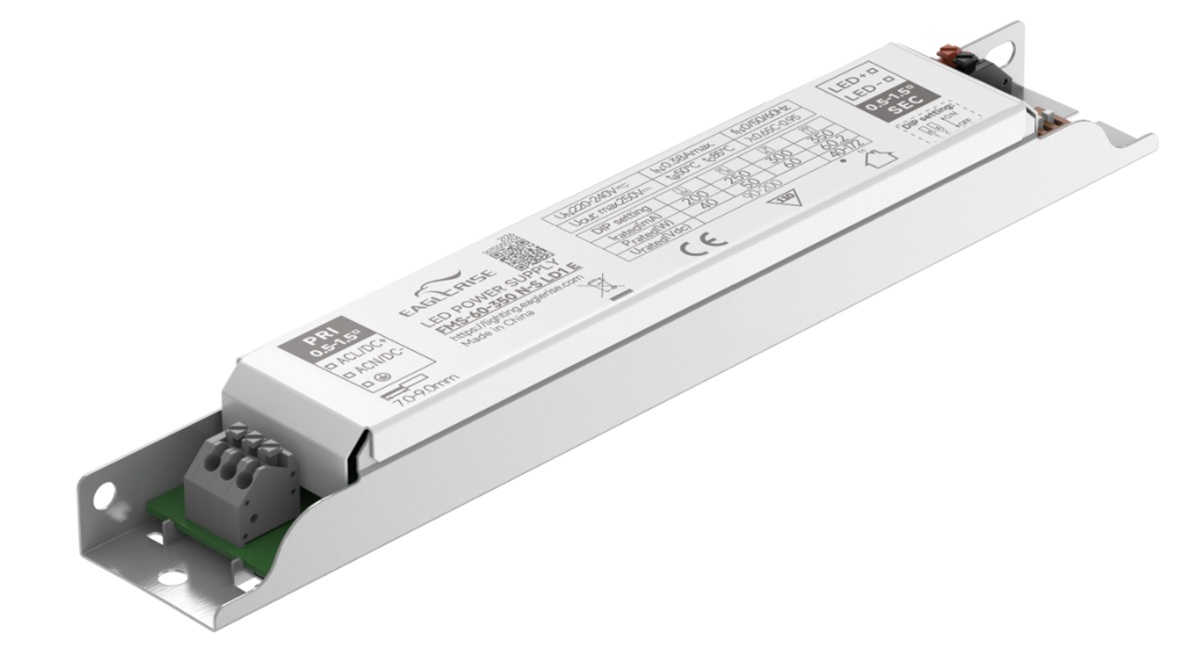

3 FMS-60-350 N-S LD1 E 60W 220-240 70-200V 200 ≥92% ≥0.9 190*30*21
250
300
70-172V 350

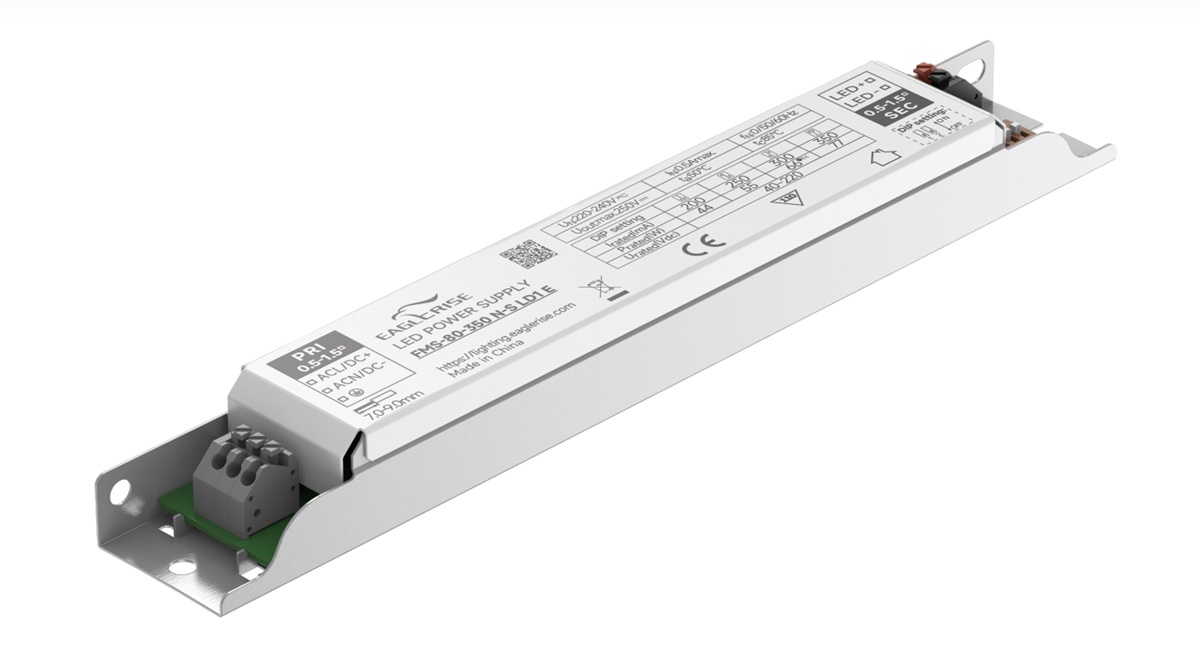

4 FMS-80-350 N-S LD1 E 80W 220-240 40-200V 200 ≥94% ≥0.9 210*30*21
250
300
350

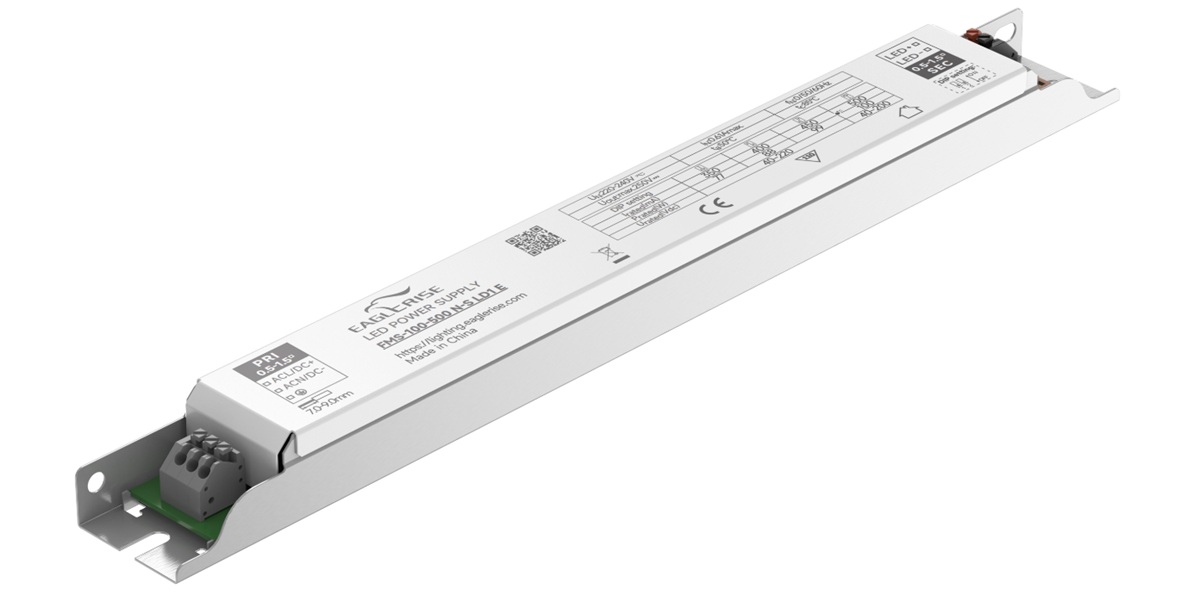

5 FMS-100-500 N-S LD1 E 100W 220-240 40-200V 350 ≥95% ≥0.9 280*30*21
400
450
500

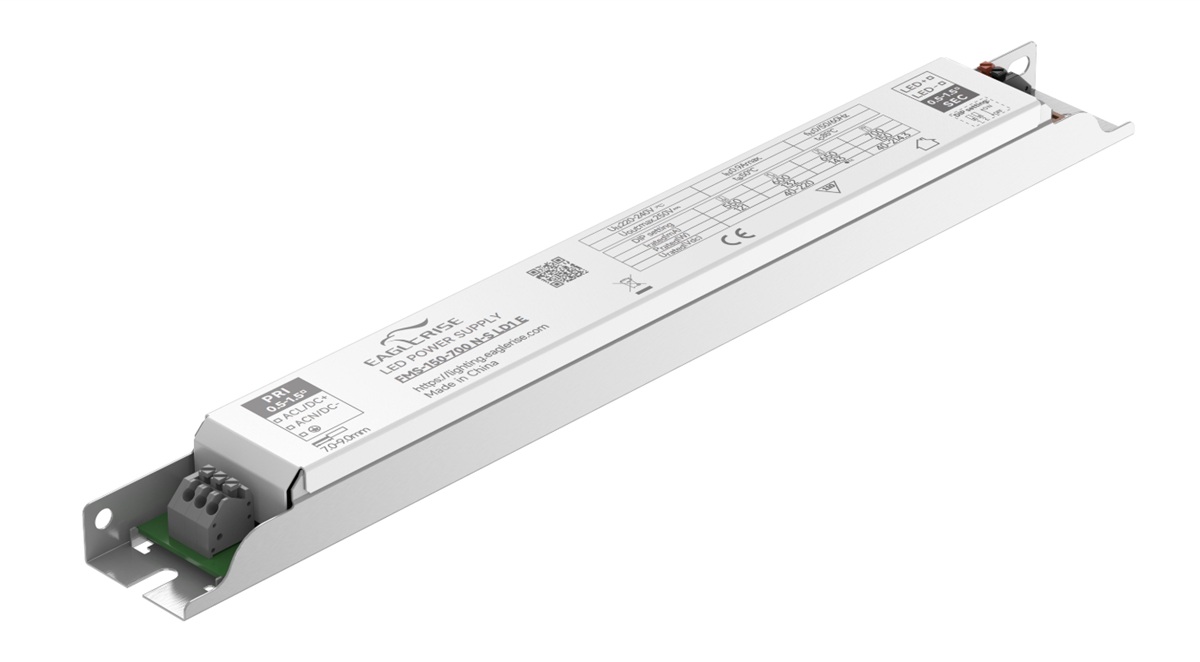

6 FMS-150-700 N-S LD1 E 150W 220-240 40-200V 550 ≥95% ≥0.9 280*30*21
600
650
700
Linear Isolated LED Driver
1 FMS-21-500 LD EXC 21W 220-240 24-42V 350 ≥88% ≥0.9 210*30*21
400
450
500
2 FMS-30-750 LD EXC 30W 220-240 24-42V 600 ≥90% ≥0.9 210*30*21
650
700
24-40V 750
3 FMS-42-1050 LD EXC 42W 220-240 24-42V 700 ≥89% ≥0.9 210*30*21
800
900
24-40V 1050

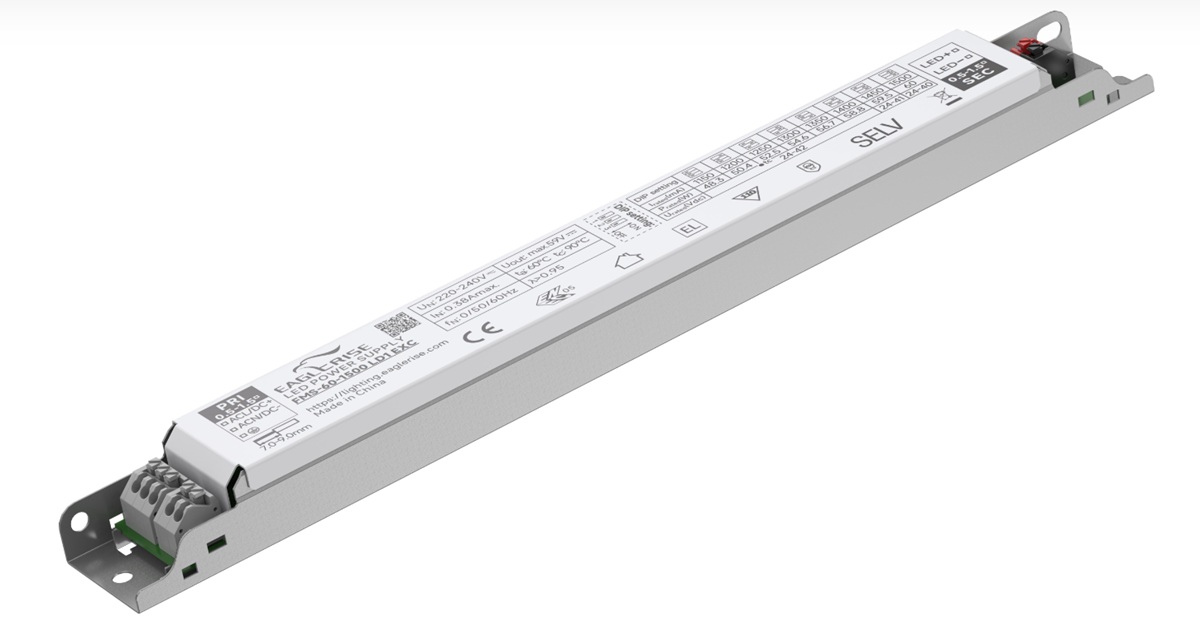

4 FMS-60-1500 LD1 EXC 60W 220-240 24-42V 1150 ≥90% ≥0.9 280*30*21
1200
1250
24-41V 1300
1350
1400
1450
24-40V 1500

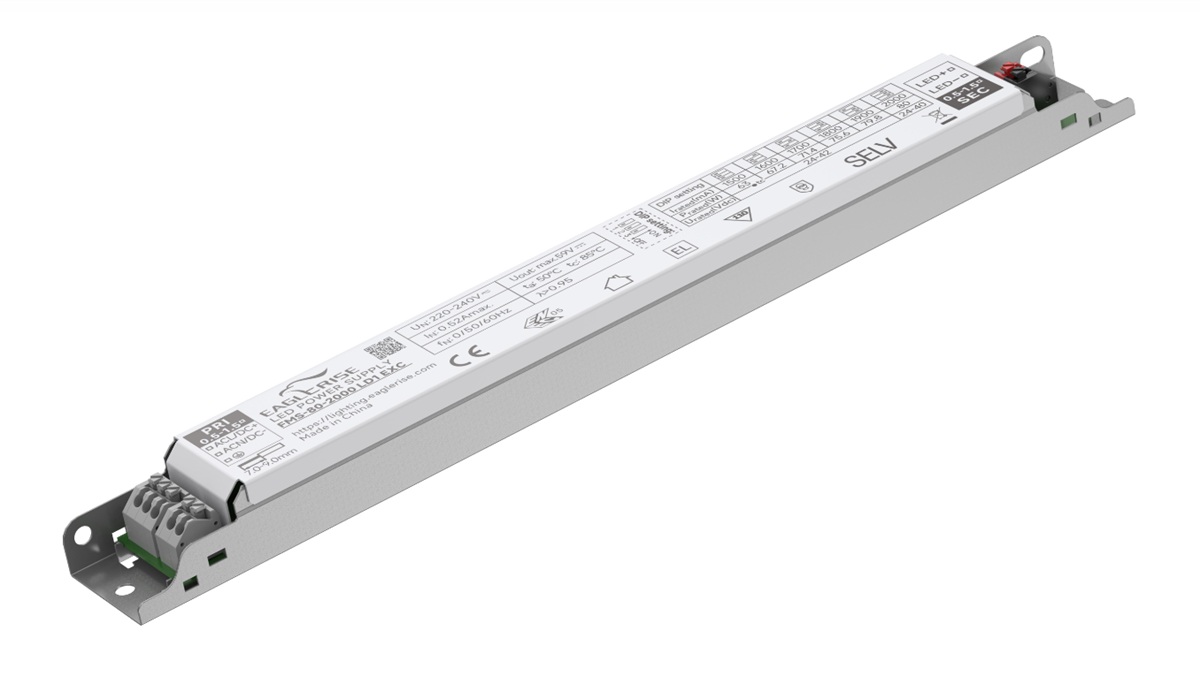

5 FMS-80-2000 LD EXC 80W 220-240 24-42V 1500 ≥90% ≥0.9 280*30*21
1600
1700
1800
1900
24-40V 2000

Quality Assurance

Eaglerise  LED Driver is CE and ENEC certified, fully compliant with EU Low Voltage and EMC Directives. Rigorously tested by Nemko and other independent bodies, it ensures proven reliability and stable performance for demanding lighting projects.

Need certification documents? Contact our team – we’ll provide them promptly.


Download Datasheet FMS-20-350 N-S LD1 E
Download Datasheet FMS-40-350 N-S LD1 E
Download Datasheet FMS-60-350 N-S LD1 E
Download Datasheet FMS-80-350 N-S LD1 E
Download Datasheet FMS-100-500 N-S LD1 E
Download Datasheet FMS-150-700 N-S LD1 E
Download Datasheet FMS-21-500 LD EXC
Download Datasheet FMS-30-750 LD EXC
Download Datasheet FMS-42-1050 LD EXC
Download Datasheet FMS-60-1500 LD1 EXC
Download Datasheet FMS-80-2000 LD1 EXC

Model

FMS-20-350 N-S LD1 E, FMS-40-350 N-S LD1 E, FMS-60-350 N-S LD1 E, FMS-80-350 N-S LD1 E, FMS-100-500 N-S LD1 E, FMS-150-700 N-S LD1 E, FMS-21-500 LD EXC, FMS-30-750 LD EXC, FMS-42-1050 LD EXC, FMS-60-1500 LD1 EXC, FMS-80-2000 LD EXC
